256X128 graphic lcd JHD256128-G03BSWD-G
US $5.72-$6.43
High Resolution 320x240 Graphic LCD Display STN Blue LCD Module With White Backlight
- Category: Graphic Display >>>
- Supplier: Shenzhen Enrich Electronics Co. Ltd.
Share on (62299987464):
Product Overview
Description
Product Description
PRODUCT PARAMETERS
| 1.Product name : | ENH-DG320240-A |
| 2.Size: | 112.50x88.0mm |
| 3.Viewing area: | 104.0x79.50mm |
| 4.Active area : | 95.97x71.97mm |
| 5.Resolution: | 128x64 |
| 6.Display type : | STN/Transmissive/Negative |
| 7.Viewing angle: | 6 O'clock |
| 8.Drive method : | 1/240 duty, 1/116 bias |
| 9.Working temp : | -20℃~+70℃ |
| 10.Storage temp : | -30℃~+80℃ |
| 11.Connector: | COG+FPC |
| 12.Drive IC : | NT7711&NT7712 |
| 13.Backlight : | White led backlight |
PIN ASSIGNMENT
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| SYMBOL | VSS | VDD | LP | D.0FF | EIO1 | FR | V4 | V1 | V0 |
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| SYMBOL | VSS | VDD | D0 | D1 | D2 | D3 | XCK | D.OFF | LP | FR | V3 | V2 | V0 |

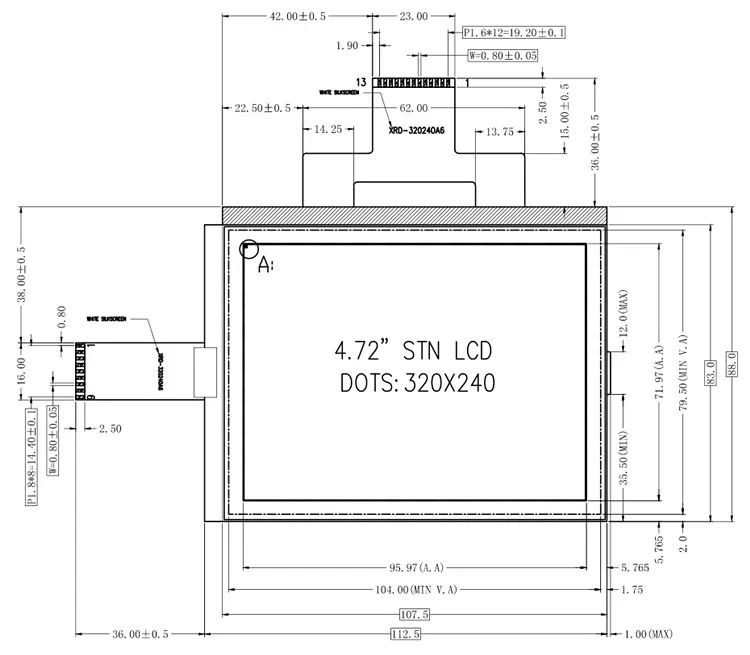

LCD Outline Size
Company Introduction
CUSTOM PROCESS
(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)
1.Firstly,discuss and confirm all of the details.
2.Payment for tooling process.
3.Formal drawing will be sent within 5 days and confirmed by your side.
4.15-20 days for tooling process.
5.Samples(5-20 pcs)will be sent to you to test and confirmed.
6.Place order for mass production after samples are confirmed.
