mobile mini mix wet concrete batching plant with silo 60 ton
US $48000-$50000
Передвижная бетоносмесительная установка с передвижным горизонтальным цементным силосом
- Category: Concrete Batching Plant >>>
- Supplier: Henan Shengmao Machinery Co. Ltd.
Share on (62299987854):
Product Overview
Description
Product Description

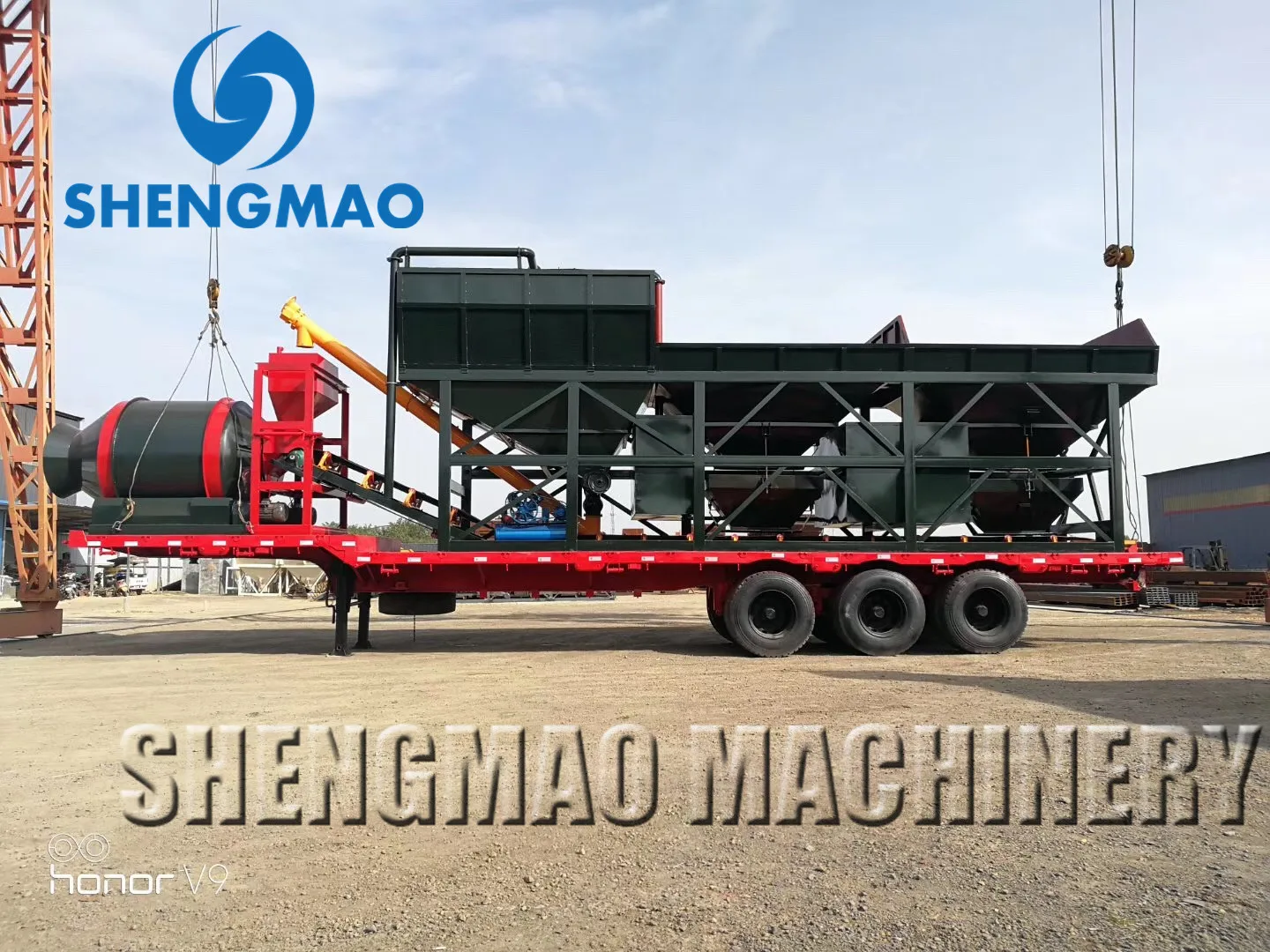

Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have is from 20m3/h to 90m3/h. Welcome to contact us for details and quotations.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have is from 20m3/h to 90m3/h. Welcome to contact us for details and quotations.
YHZM series of mobile concrete batching plant | ||||||||
Model | YHZM20 | YHZS30 | YHZS60 | YHZS100 | ||||
Production capacity (m3/h) | 20 | 30 | 60 | 100 | ||||
Concrete mixer | JZM500 | JZM750 | JZM1500 | JZM2000 | ||||
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | ||||
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | ||||
Discharging height(m) | 1.5 | 1.5 | 1.5 | 1.5 | ||||
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Control system | Panel | Computer | Computer | Computer | ||||
Total power (kw) | 42 | 46 | 67 | 77.5 | ||||
Total weight) | 12 | 13 | 14.5 | 26 | ||||
YHZM series of mobile concrete batching plant
Features:
1. No need to make concrete foundation, easy to install and move to other jobsites;
2. the mixer is drum mixer;
3. the cement silo is mobile;
4. the discharging height is 1.5m. In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a
ramp to increase the discharging height.
2. the mixer is drum mixer;
3. the cement silo is mobile;
4. the discharging height is 1.5m. In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a
ramp to increase the discharging height.
NYHZS series of mobile concrete batching plant | ||||||||
Model | NYHZS25 | NYHZS35 | NYHZS50 | NYHZS75 | ||||
Production capacity (m3/h) | 25 | 35 | 50 | 75 | ||||
Concrete mixer | JS500 | JS750 | JS1000 | JS1500 | ||||
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | ||||
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | ||||
Discharging height(m) | 1 | 1 | 1 | 1 | ||||
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Control system | Panel | Computer | Computer | Computer | ||||
Total power (kw) | 61 | 76 | 85 | 95 | ||||
Total weight) | 13 | 15 | 19 | 22 | ||||
NYHZS series of mobile concrete batching plant
Features:
1. No need to make concrete foundation, easy to install and move to other jobsites;

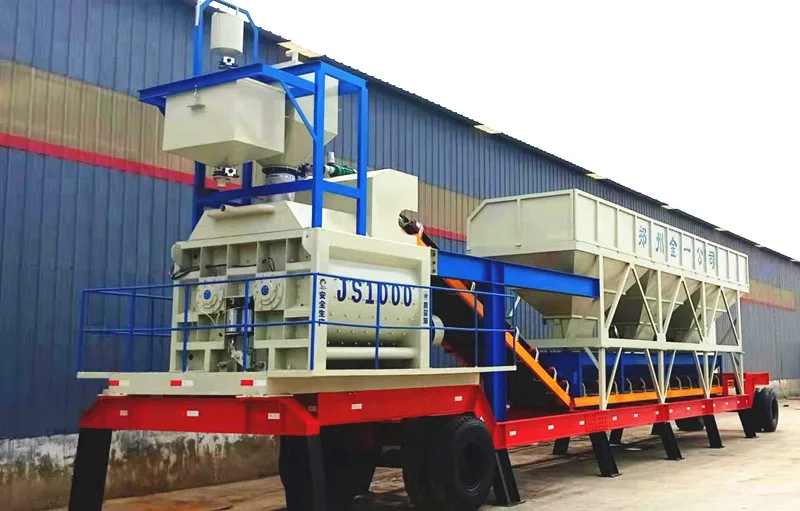

2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is mobile;
4. the discharging height is 1m; In order to use transit mixer to collect concrete, we need to use a belt conveyor to increase the discharging height;
to increase the discharging height.
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is mobile;
4. the discharging height is 1m; In order to use transit mixer to collect concrete, we need to use a belt conveyor to increase the discharging height;
to increase the discharging height.
YHZS series of mobile concrete batching plant | ||||||||
Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 | ||||
Production capacity (m3/h) | 25 | 35 | 50 | 75 | ||||
Concrete mixer | JS500 | JS750 | JS1000 | JS1500 | ||||
Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | ||||
Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | ||||
Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 | ||||
Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 | ||||
Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 | ||||
Control system | Panel | Computer | Computer | Computer | ||||
Total power (kw) | 60 | 72 | 92 | 102 | ||||
Total weight) | 14 | 22 | 26 | 29 | ||||
YHZS series of mobile concrete batching plant
Features:
1. we need to make concrete foundation;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is stationary, we need to make huge concrete foundation;
4. the discharging height is 4.1m;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is stationary, we need to make huge concrete foundation;
4. the discharging height is 4.1m;

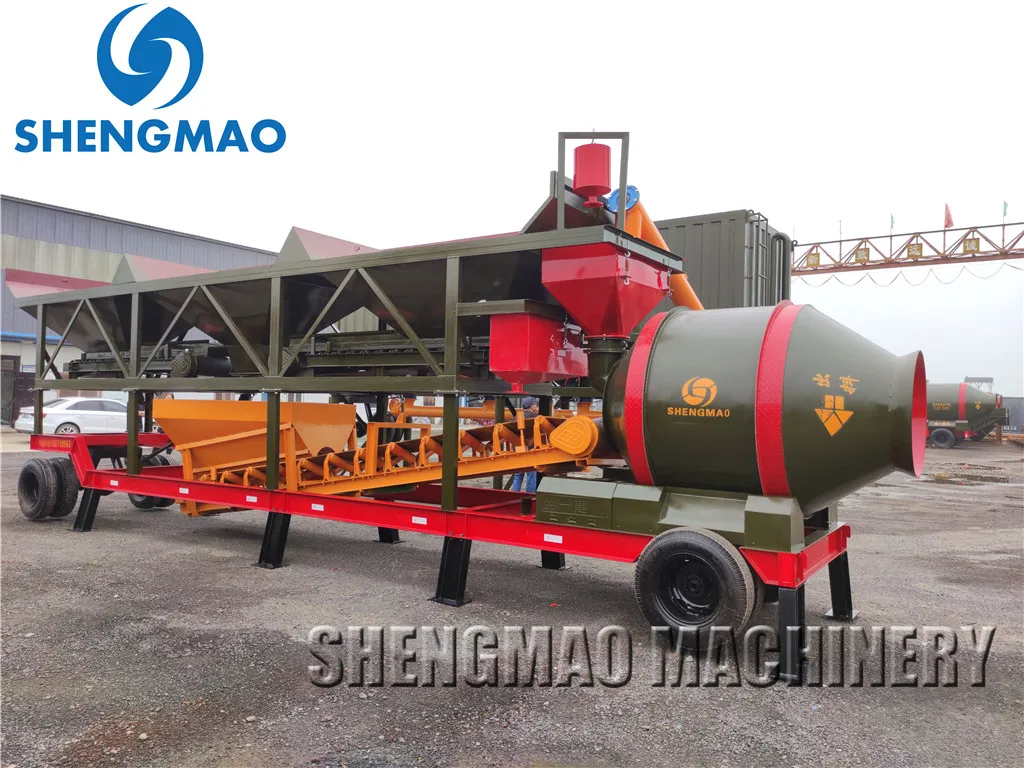

Drum mixer
Twin shaft mixer

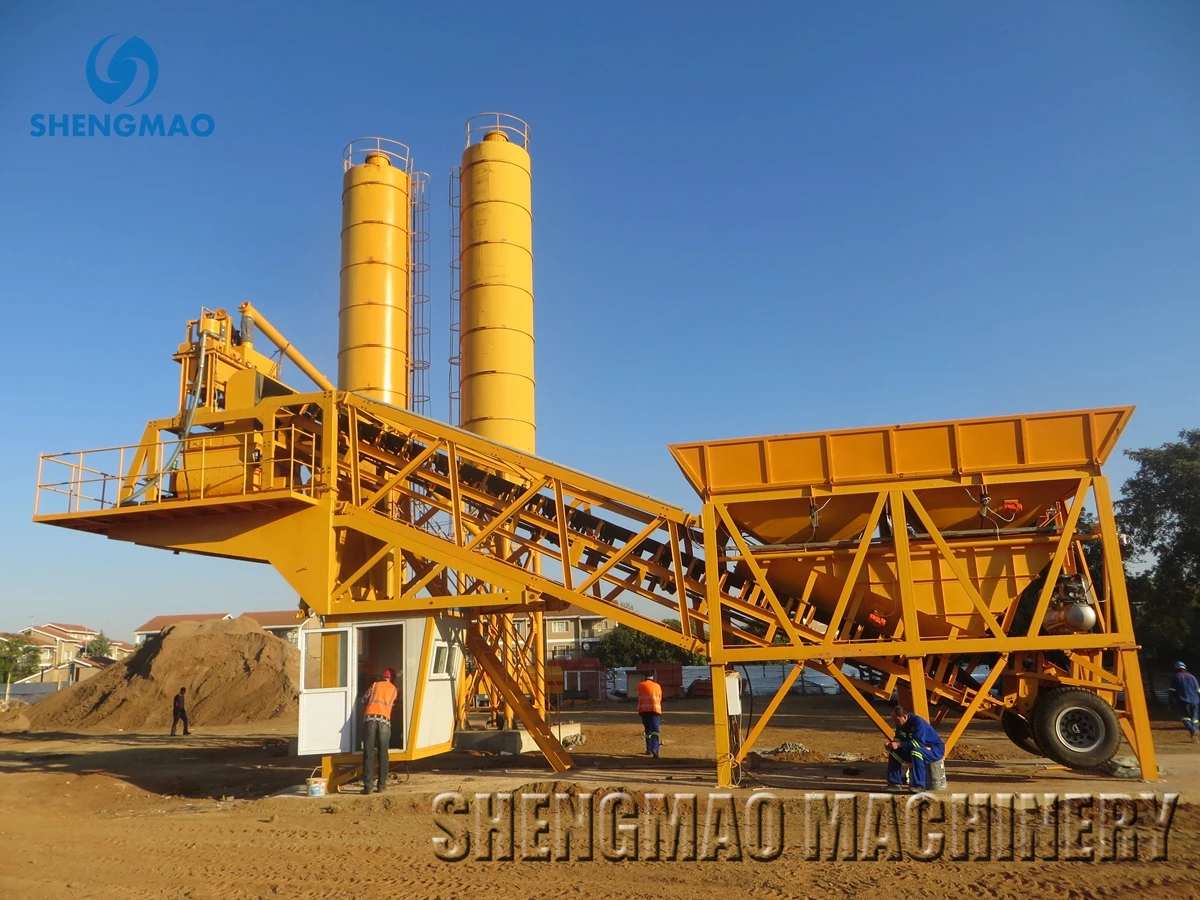

Vertical cement silo

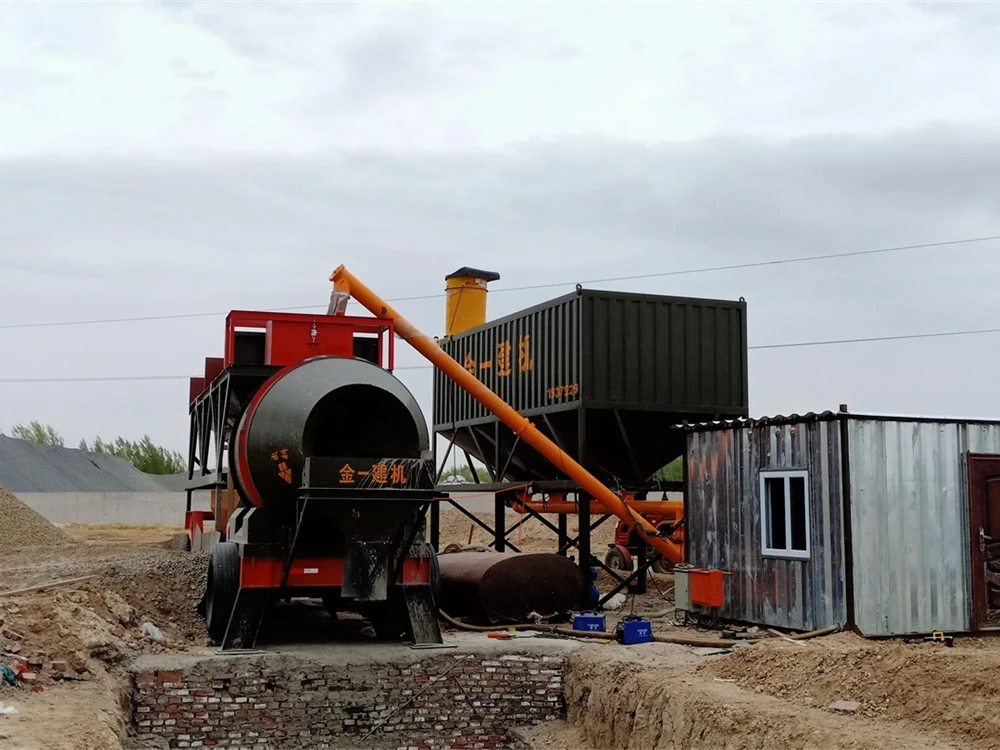

Horizontal cement silo
Horizontal cement silo

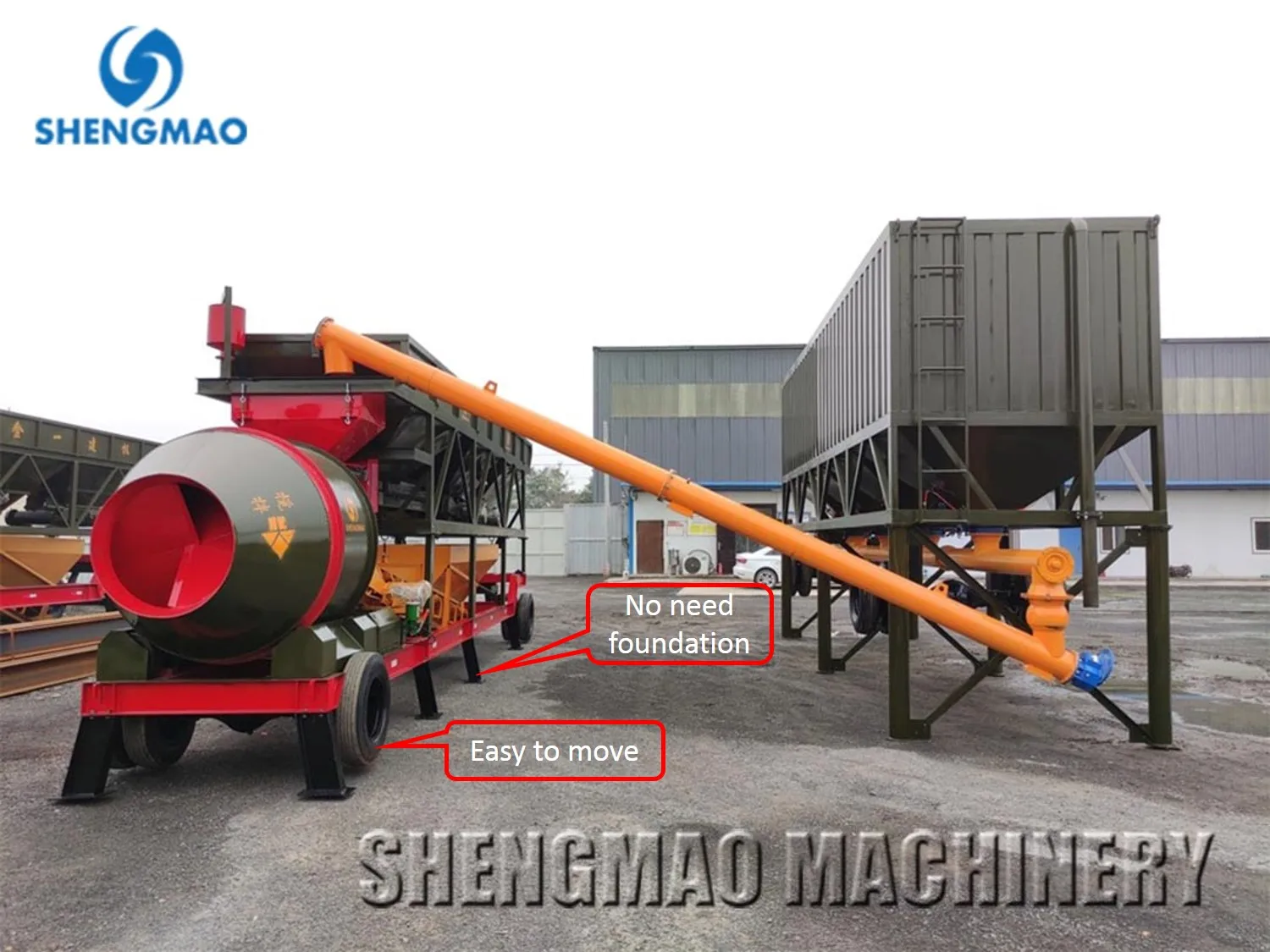

Horizontal cement silo is usually used with mobile concrete mixing plant. No foundation is needed.
1. Popular capacity: 50T, 70T and 100T;
2. Two screw conveyors: one is silo bottom screw conveyor; the other is cement loading screw conveyor;
3. There is one vibration motor on each bin, the power is 0.37kw;
4. Discharging height: 1270mm;
5. Safety valve, promotion device and filter are equipped.

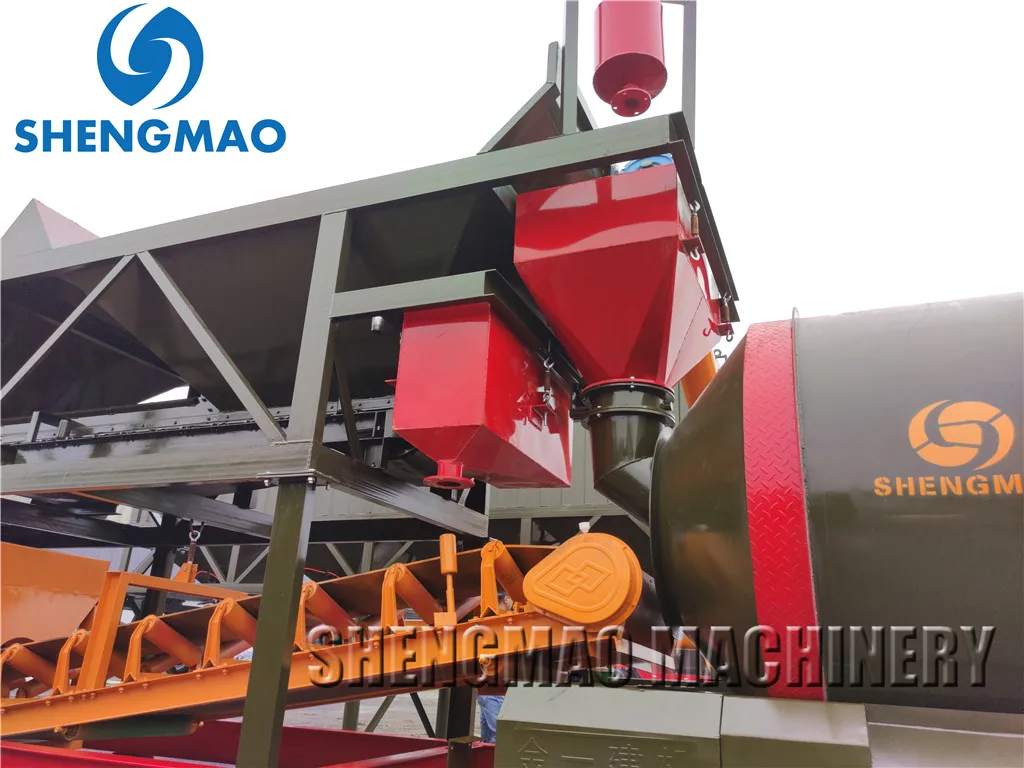

water, cement and additive scales
1. Cement weighing accuracy: +/-1%;
2. Water weighing accuracy: +/-1%;
3. Additive weighing accuracy: +/-1%;
4. Weighing sensor brand: American Transcell;
5. Air cylinder brand: AIRTAC

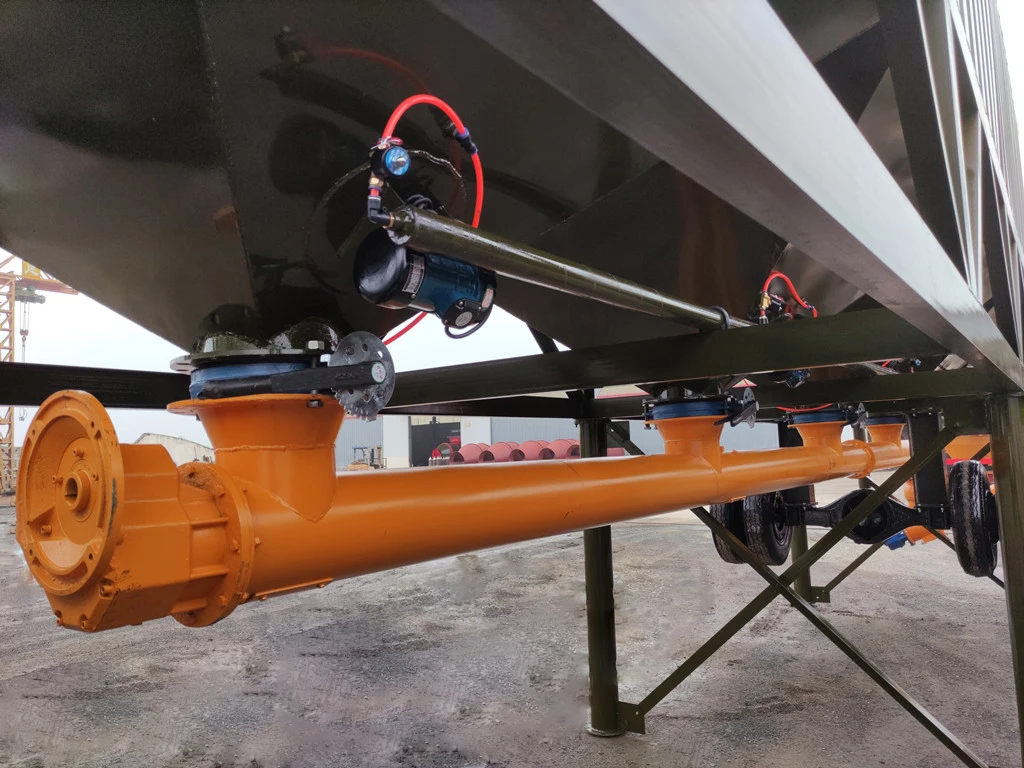

Screw conveyor
1. the screw conveyor length is usually 8m;
2. the screw conveyor with the diameter of 219mm and 273mm are commonly used.
Packing&Shipping
Main parts packing
Main parts of the main is usually put into container and fixed and fastened by steel wire.
accessories packing
accessories are usually packed with carton box or wooden box.
After Sales Service
After sales service:
1. providing foundation drawing, circuit diagra and operation manual;
2. providing commercial invoice, packing list, bill of lading
etc. to help customer with customs clearance;
3. sending engineers to customer's job site to help customer with machine installation and operators training;
4. spare parts supply, machine problems solving.
etc. to help customer with customs clearance;
3. sending engineers to customer's job site to help customer with machine installation and operators training;
4. spare parts supply, machine problems solving.
