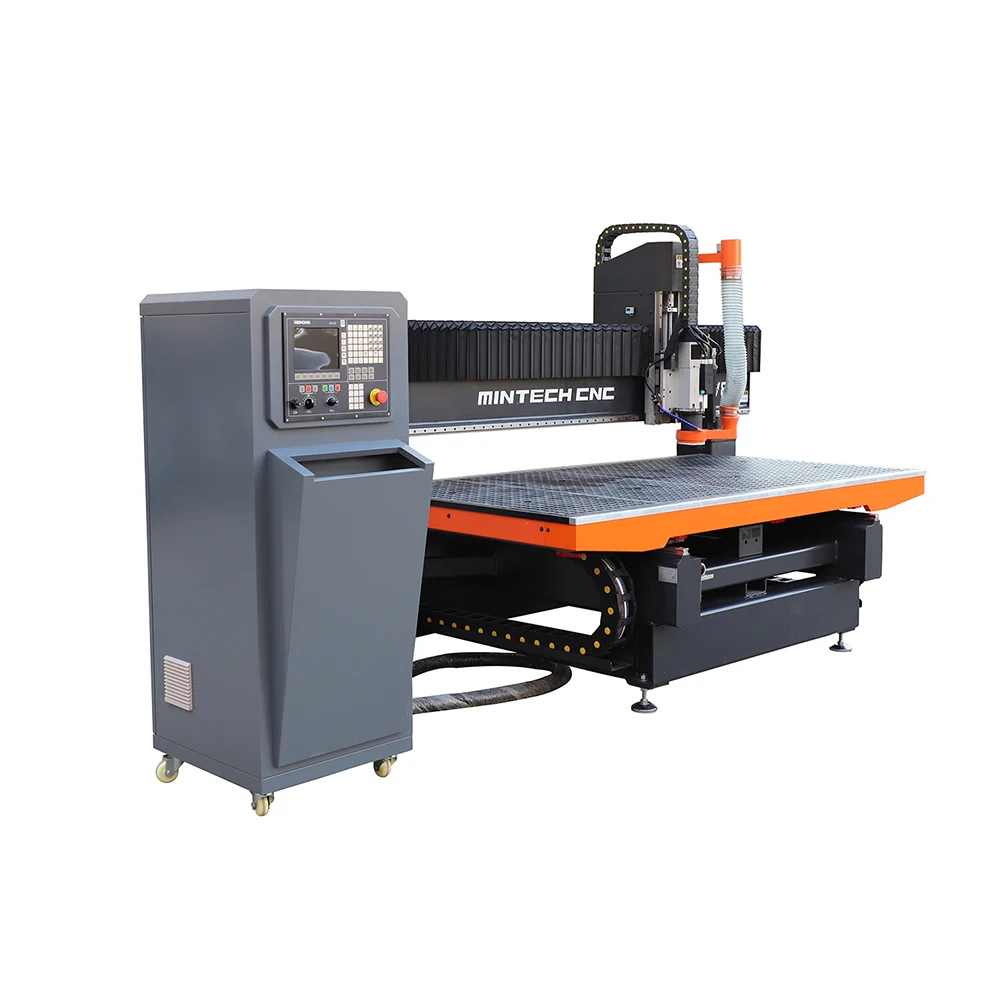

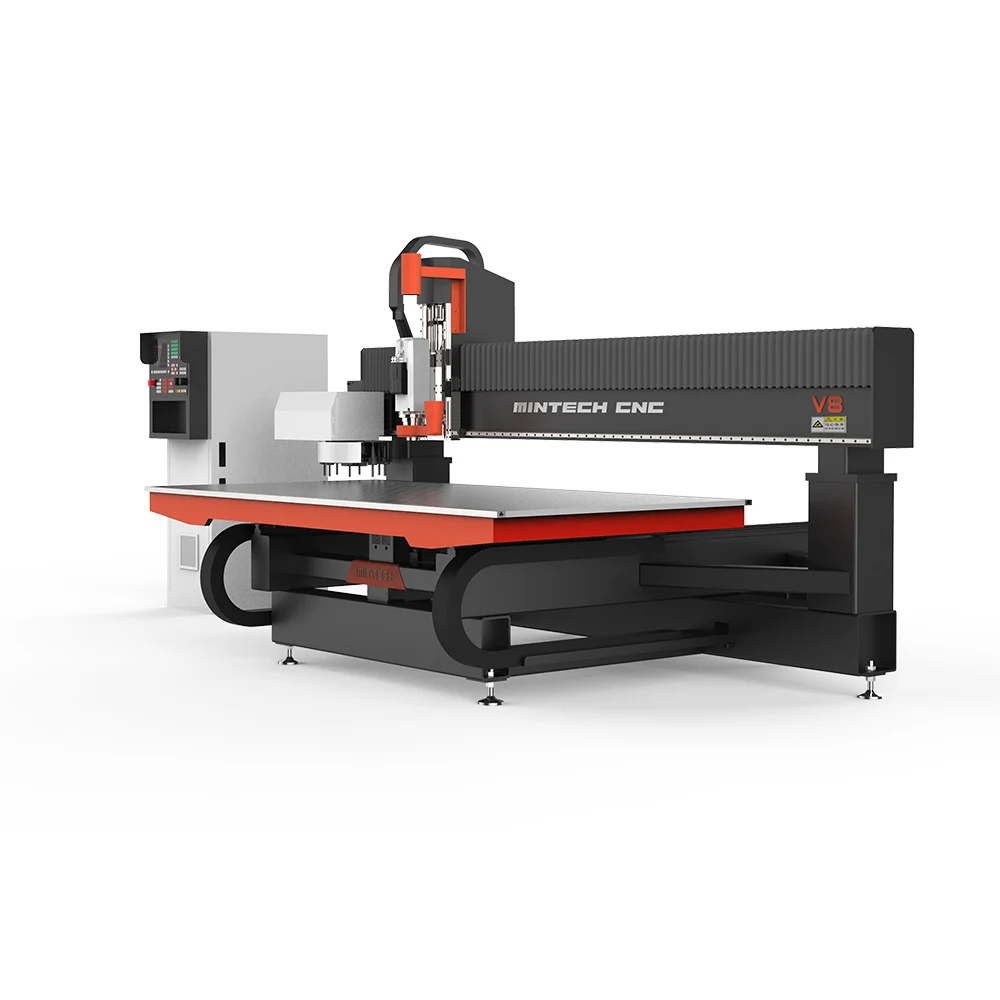

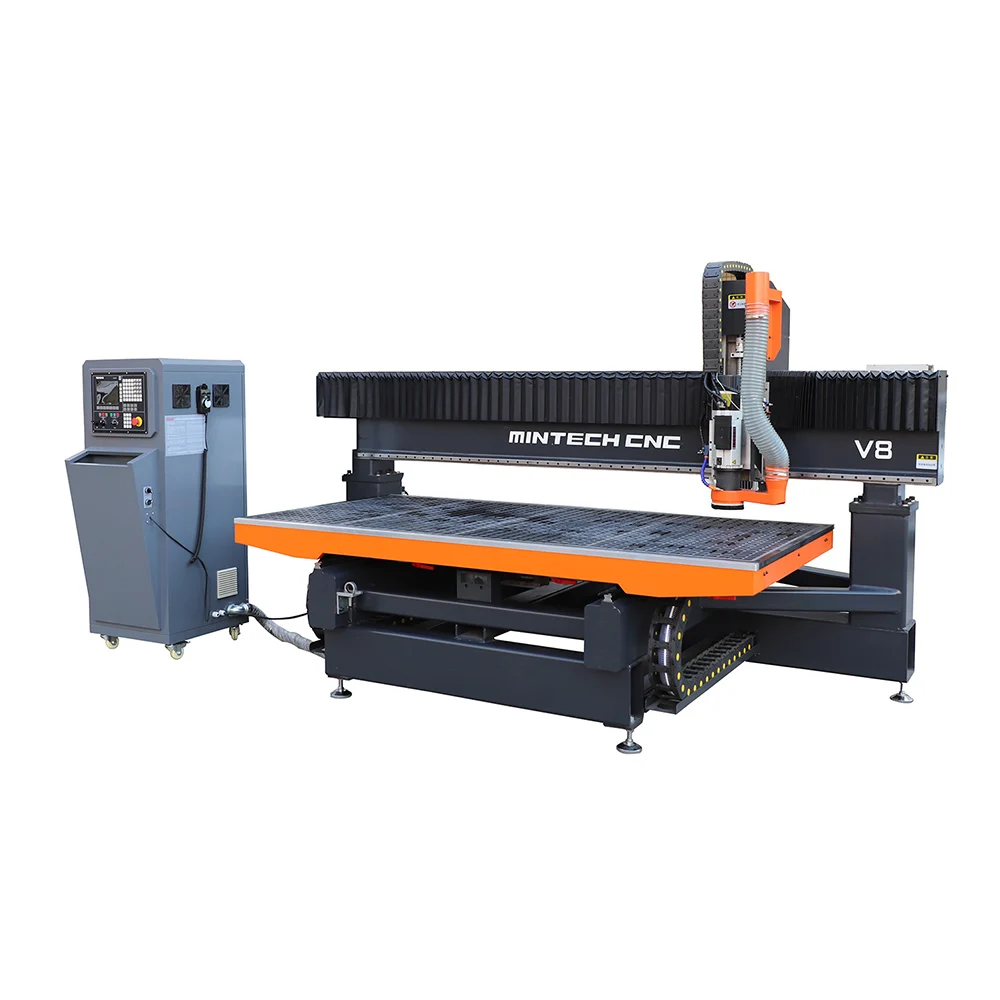

Heavy duty steel construction cnc machine engraving router guangzhou 3d cnc router machine cnc router
- Category: >>>
- Supplier: Dongguan Kilytech Technology Co. Ltd.
Share on (62299997467):
Product Overview
Description
Product Information | Description | Notes |
Dimension | 87" x 137-1/2" x 83" (W x D x H) | |
Machine Weight | 5512 lb | |
Max. Table Weight | 1102 lb | |
Capacity | ||
Cutting Area | 48-3/8" x 96-13/16" x 3-15/16" (X x Y x Z) | Z-Axis Stroke: 17-5/8" |
Repeat Accuracy | ± 0.0019" or ± 0.05 mm | |
Idle Movement Speed | 19-1/2"/s | |
Max. Cutting Speed | 13-1/8"/s | |
Max. Spindle Speed | 24000 RPM | |
Spindle Power Motor | Air Cooled Spindle Motor | With Variable-Frequency Drive (VFD) |
Spindle Power | 9 KW or 12 HP | |
Linear Rail | X-Axis: 1" or 25 mm | XYZ-Axis: Precision Ball Screw |
Y-Axis: 1-3/8" or 35 mm | ||
Z-Axis: 1" or 25 mm | ||
Vacuum Pump | Optional | |
Power | 208 V, 3 Phase, 30 A | |
Vacuum Table | Four Independent Channels | |
Gantry Clearance | 8" | |
Tool Holder | ISO30 | |
Collets | SK16 | |
8 Position Tool Rack | Attached on the Gantry | 4 Position Tool Rack is Optional |
