2020 Transcutaneous Electrical Nerve Stimulation mini TENS therapy device ES200 massager for pain treatment with electrode pads
- Category: >>>
- Supplier: Shenzhen Jumper Medical Equipment Co. Ltd.
Share on (62300001814):
Product Overview
Description
Product Description
Product Introduction:
Mini TENS Therapy Device ES200 can concentrate and diffuse the power spectrum energy transiently according to certain modulation characteristics to simulate the actual feeling of human back pounding, beating, massaging, manipulation, acupuncture and cupping realistically. Frequent planned use of Mini TENS Therapy Device on the meridian point can play the treatment role and the helping role to alleviate the pains. After or during work, you can also use the Mini TENS Therapy Device to massage for ease of body and mind.
![ES200-[]-01-(1)-](http://sc02.alicdn.com/kf/H35b672d8f1d444f2ab694e58a476de47C/200152167/H35b672d8f1d444f2ab694e58a476de47C.jpg)
Technical Parameters:
Product name | TENS JPD-ES200 |
Modes name | Massage, Acupuncture,Tapping,Scraping and Cupping |
Operating voltage | 6V DC |
Maximum output pulse energy | Ω of load resistance
|
Pulse width | 0.150-0.200ms,error ±30% |
Pulse frequency | 1-120Hz |
Setting range of treatment intensity | 0-15 |
Rated load resistance | 500Ω |
Maximum output voltage peak in open circuit | ≤500V |
Dimensions of main unit (L *W*H) | 142.8 mm *63.6 mm *22.2 mm |
Electrode pad dimension | 50mm*50mm |
Host unit weight | 86g (without battery) |
Power supply | 4*AAA batteries |
Product Structure and Composition:

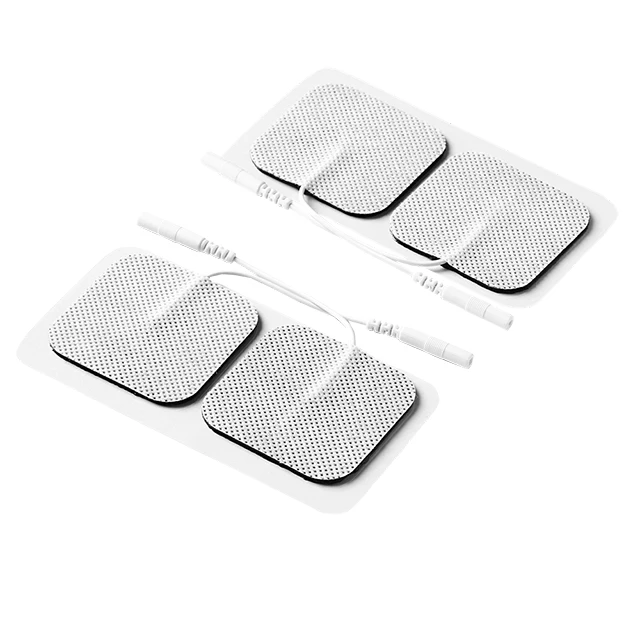

The product is comprised of the TENS Therapy Device host, connecting cable, self-adhesive electrode slice and USB cable.
Intended Use:
It is intended use for low-frequency electrical pulse treatment at the human acupuncture point.
Treatment of back pain, nerve palsy, muscular soreness and other pains and Bi syndromes
Features:
• Treatment and relief body pain such as shoulder, hand, joint, abdomen, waist and leg.
• 5 treatment program options(massage, acupuncture, tapping,scraping and cupping).
• Dual-channel treatment available for two people at the same time.
• Adjustable intensity and time of treatment.
• Automatic alarm and pause when electrode pad off.
• Automatic shutdown when no operation after 2 minutes.
• Delicate appearance,compact design and portable.
• Low battery indication.
![ES200-[]-02-](http://sc01.alicdn.com/kf/Ha75577be64944fc6967a1cc6a0ce36a8u/200152167/Ha75577be64944fc6967a1cc6a0ce36a8u.jpg)
![ES200-[]-06--(1)](http://sc01.alicdn.com/kf/Hf0a5f3220e8844d2a3e9679c51b9b178M/200152167/Hf0a5f3220e8844d2a3e9679c51b9b178M.jpg)
Certifications
Packaging & Shipping
Our Services
We provide OEM service based on MOQ:1000pcs.
Company Information
Shenzhen Jumper Medical Equipment Co., Ltd, founded in 1998 and engaged in ultrasonic medical devices, is a joint venture by USA Jumper Company & Chinese Jumper Industry & Trading Development Co., Ltd. The company is equipped with a team of professionally trained technicians to provide perfect and considerate service for all of customers. That causes an increasing market share of our products and high appraising from medical staff and pregnant women. Nowadays, Jumper has been selling products to over 60 countries and regions around the world.
FAQ
1: Are you manufacturer? And When was you established?
Yes, we are professional manufacturer in home medical devices and a national high-tech enterprise. Our company was established in 1998, and specialized in digital Blood pressure monitor, Infrared thermometer, Pocket fetal Doppler, Fingertip pulse oximeter, Body fat scales home medical devices. Our company located in ShenZhen City, GuangDong. You are always welcome to visit us.
2: Do you have any factory audits?
Yes,now we have passed ISO9001, ISO13485, etc.
3: How is the quality of your factory?
We have strict process control system for raw material control, process control and finished product quality.
4: Can you provide OEM or ODM service?
Yes, we have strong developing team and R&D team to support OEM and ODM service.
