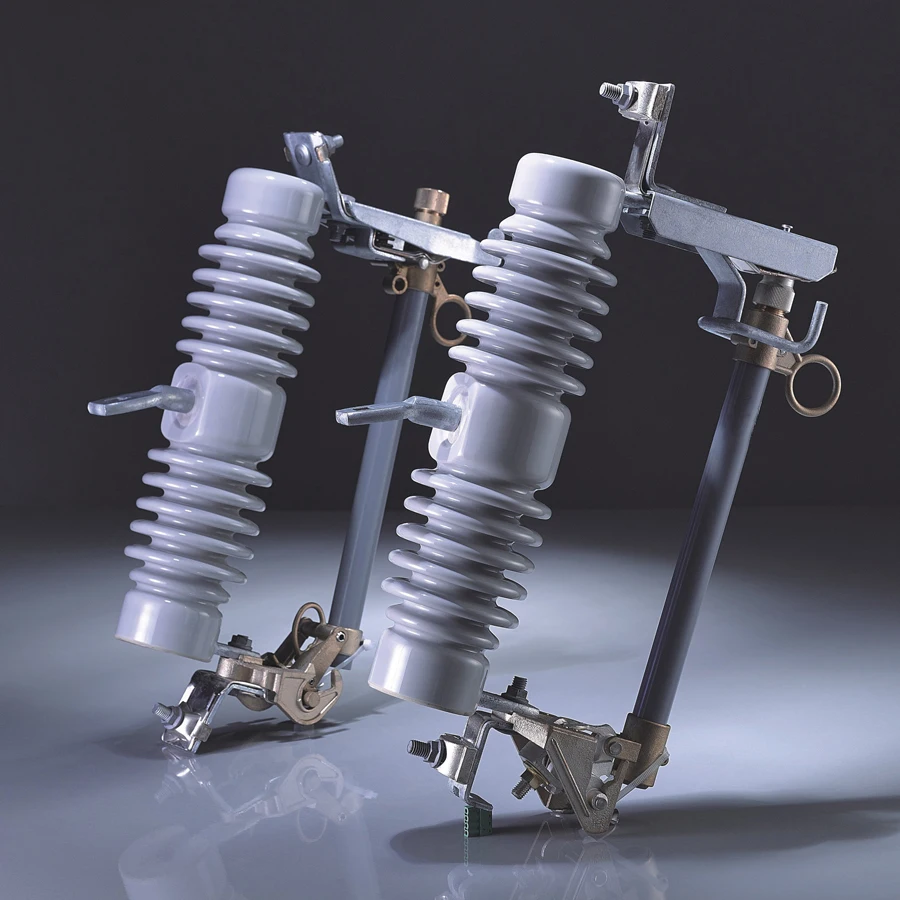

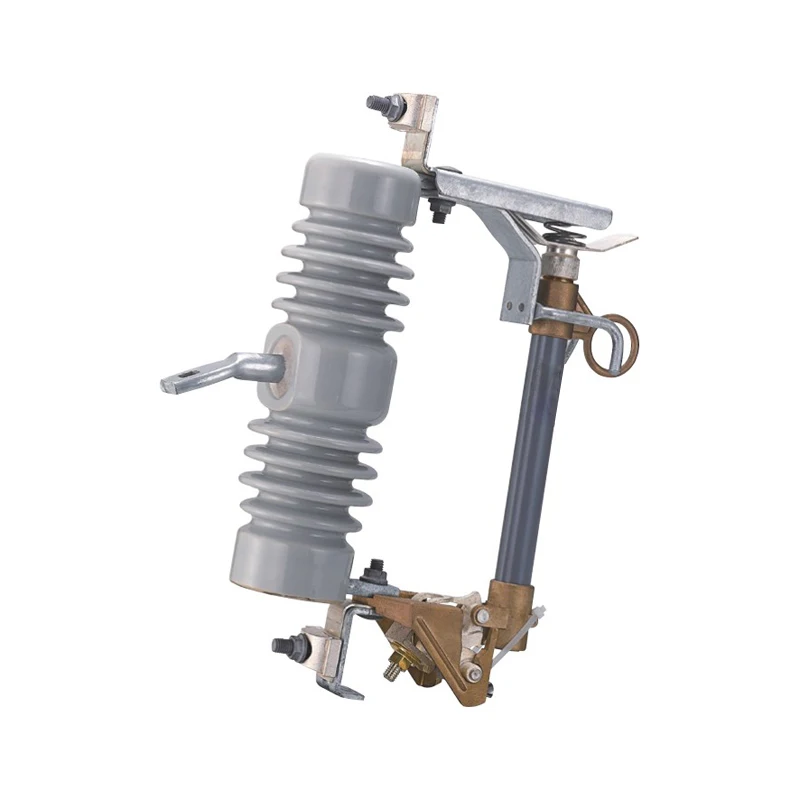

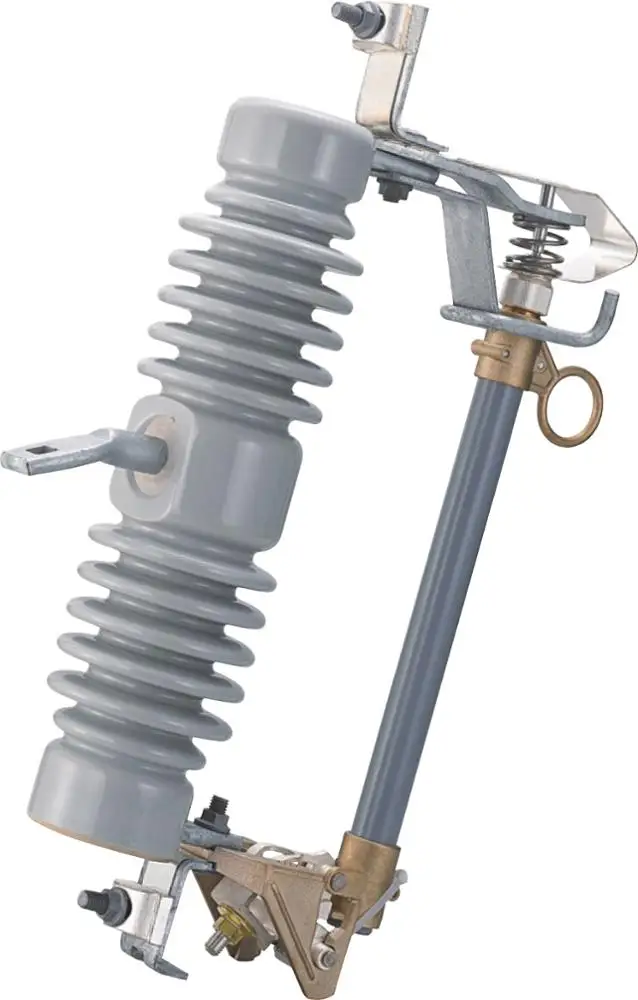

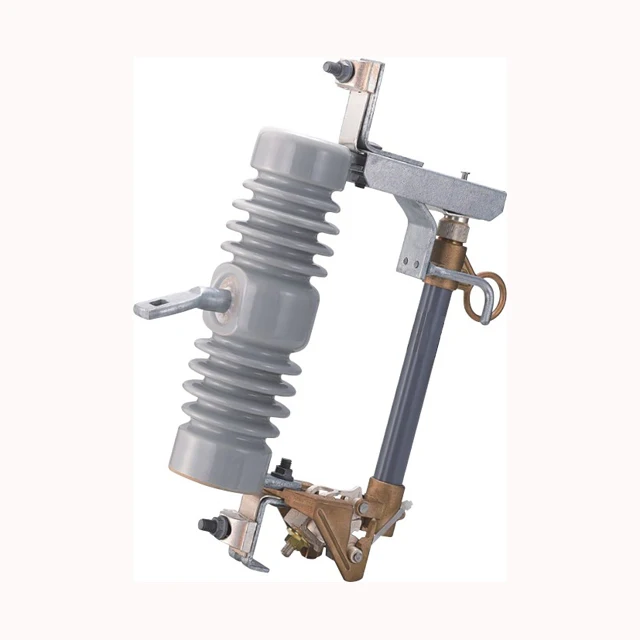

Windproof High Voltage 10 35kv Porcelain Expulsion Dropout Fuse Cutout

Product Overview

Description



Usage:	Power line electrical component
Breaking Capacity:	High
Safety Standards:	IEC
Rated Voltage(KV):	10-35kv
Rated current(A):	100/200A
Breaking current(A):	10000/12000A
Impulse Voltage(KV):	110-170kv
Creepage Distance:	250-820mm
Color:	White
Weight:	6.5-12kg
Climbing distance:	260-1000mm
Service life:	≥50years(Normal environment)
Service available:	OEM,ODM

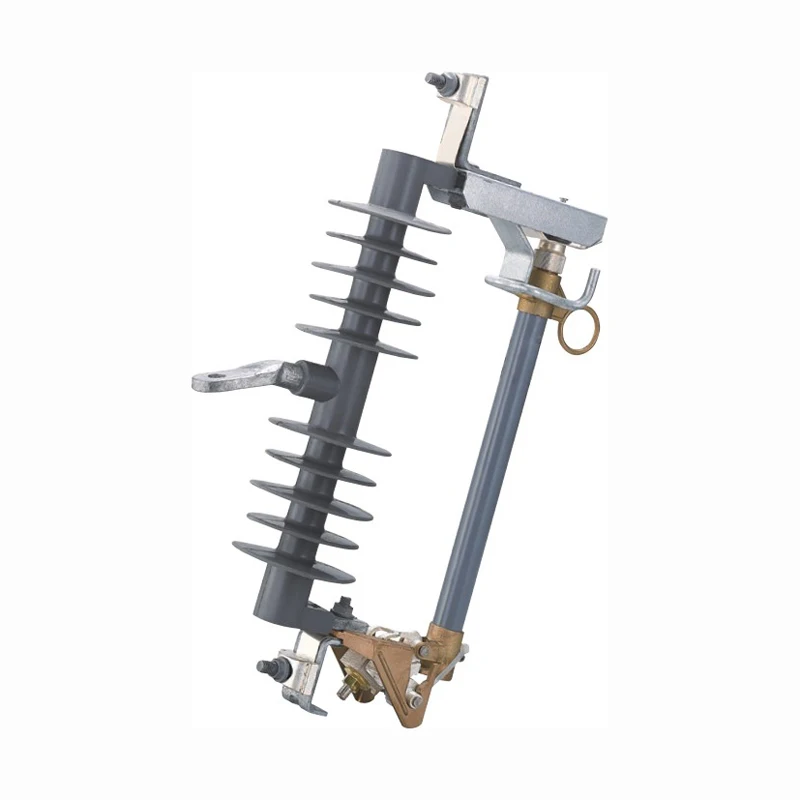

High Voltage Fuse Cutout

Powerlink drop-out fuse used to connect incomiing feeder of distribution transformer or distribution lines it mainly protect transformer or lines from short circuit and overload, and on/off loading current.Drop-out fuse ic composed of insulator supports and fuse tube,static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube, fuse tube is composed of inside arc-extinguishing tube. Outer phenolic compound paper tube or epoxy glass tube, load switching Fuse Cutout provides enfored elastic auxiliry contacts and arc-extinguishing  exclosure switching on-off loading current.







Products Advantage     1.Good current limiting characteristics and high breaking capacity 2.High quality materials and long service life 3.Easy to install, available in a wide range of models
