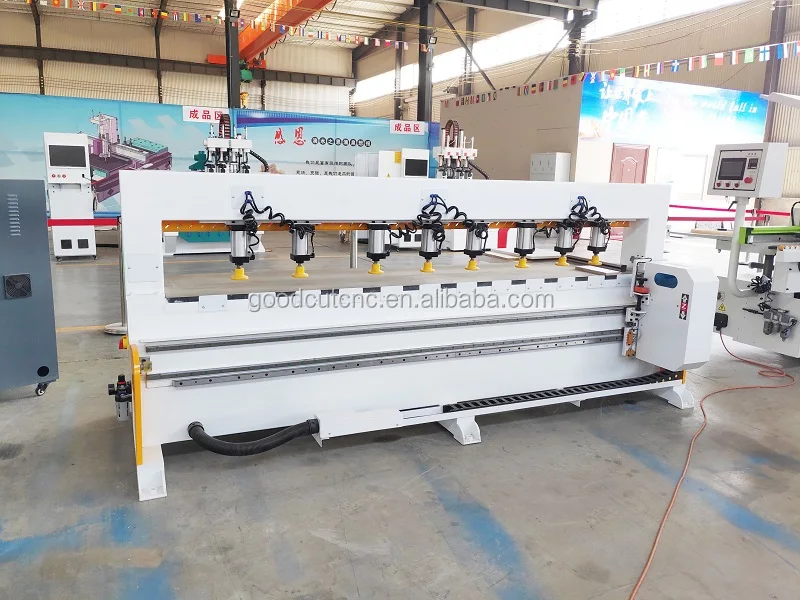

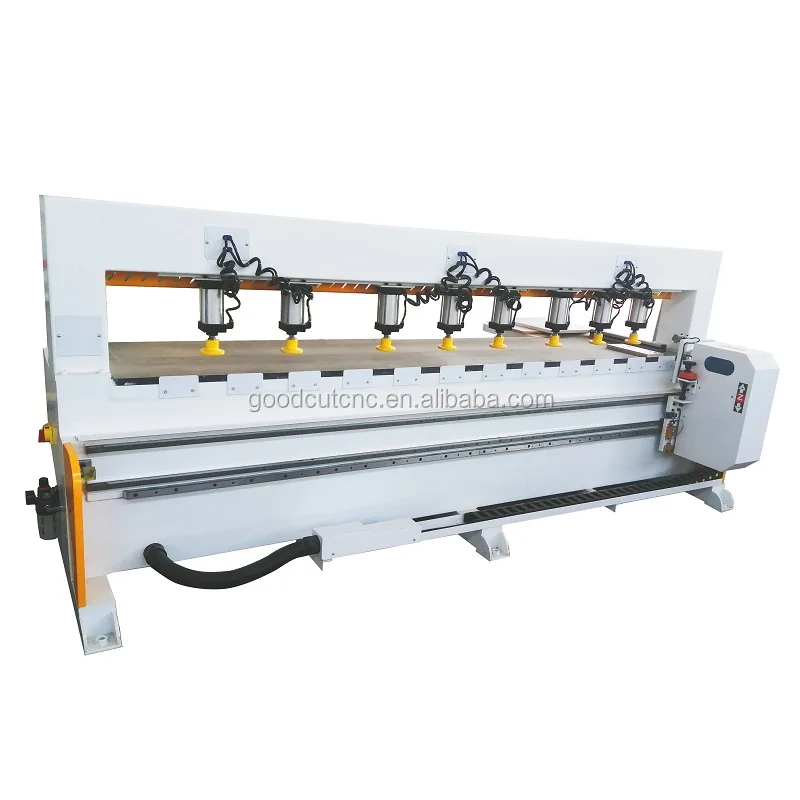

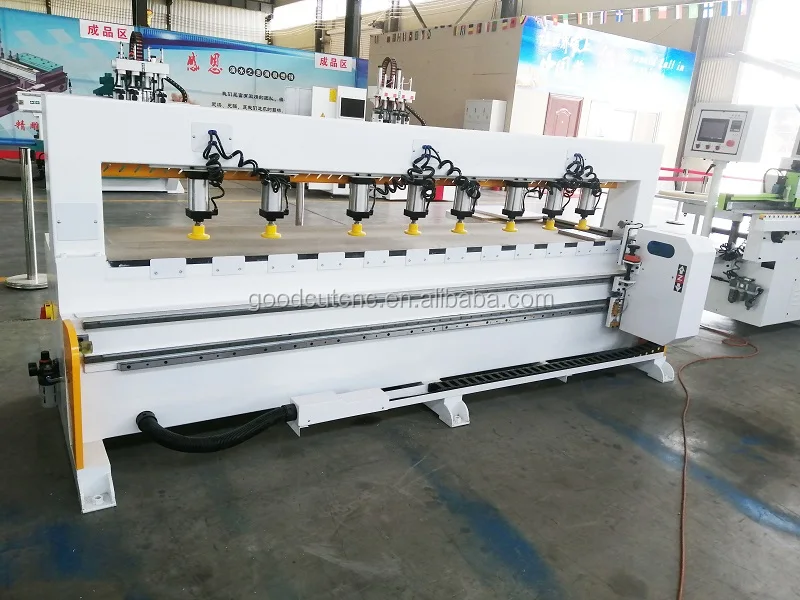

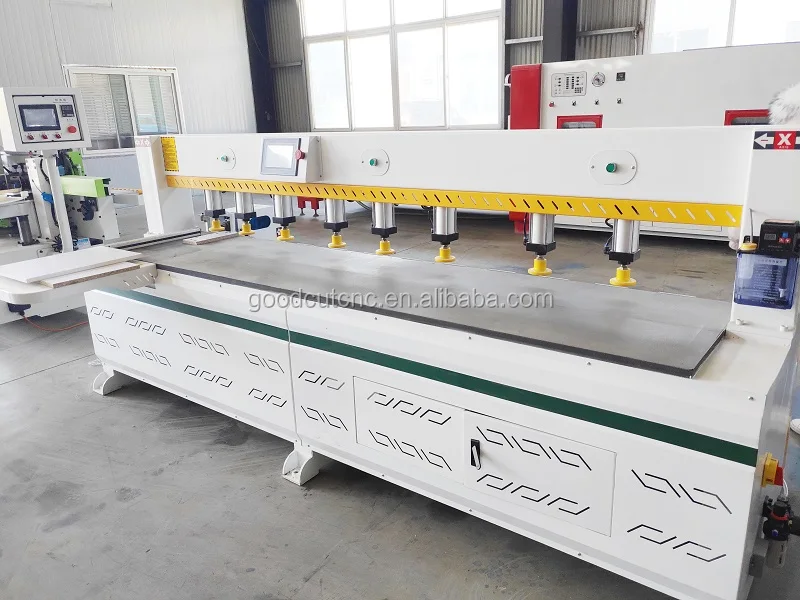

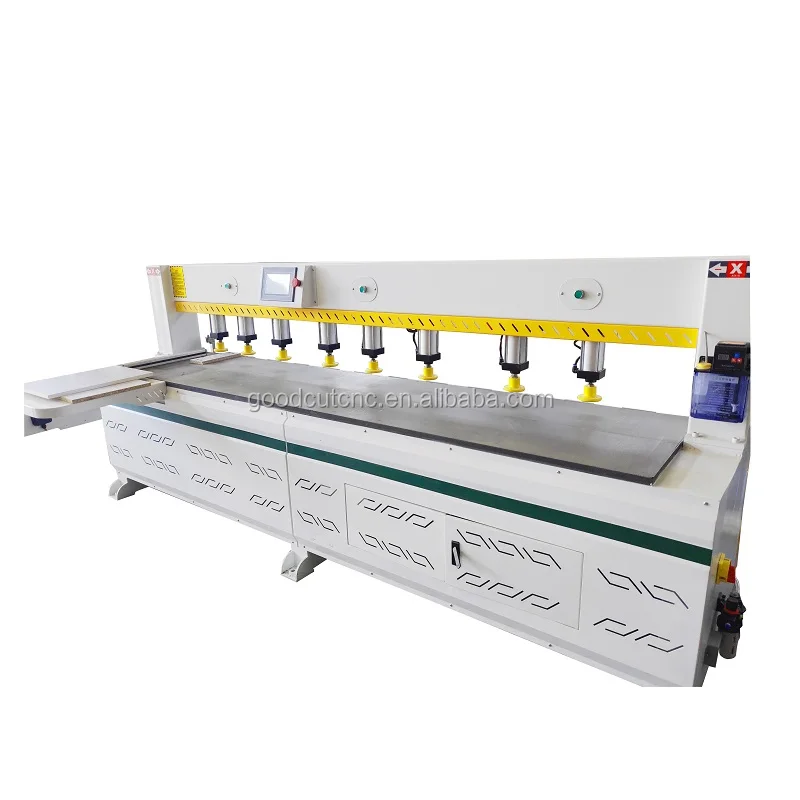

Fast automatic woodworking multi side hole drilling machine for furniture

Product Overview

Description

Fast automatic woodworking multi side hole drilling machine for furniture





What the seller wants to say:

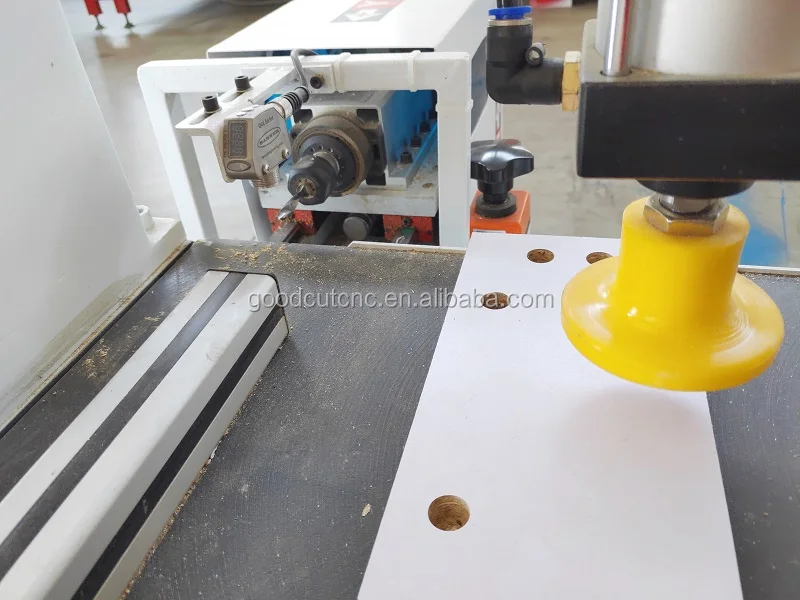

The side hole machine production process can be completed by automatic function without professional drilling Technicians, zero-based operators can start working immediately after one hour of training, which greatly saves labor costs. At the same time, it also has the function of infrared scanning, the data is imported accurately and quickly, the plate is quickly positioned, the hole on the side of the plate is processed, the compatibility is wide, and all kinds of furniture design and production software are matched. The whole punching process is intelligent, no need to pay attention to the placement of the ruler, laser scanning can be accurately positioned, intelligently judge the vacancy, high precision and fast speed. The combination of various fully automatic functions makes this side hole machine play an important role in the panel furniture production line.





Parameters

Brand	GoodCut
Working size	2400*600*50mm
Working Voltage	380V, 3Ph, 50Hz
Control system	Chinese famous brand COTRUST system
Spindle	3.5kw air cooling spindle
Inverter	4kw BEST Inverter
Motor and Driver	Chinese famous brand COTRUST servo motor and driver
Table surface	T-slots working table
Lubrication system	Manually
Machine Frame	White and blue machine structure with yellow guardrail
Structure	Gantry structure gantry fixation
X, Y, Z Rail	Taiwan HIWIN Linear Guide 20#







Application:

This product is mainly applicable to wood furniture industry, for example: Cabinets, Tables,Chairs,fine pattern, antique furniture, wooden door, screen, composite gates, cupboard doors, interior doors,headboards and so on.



Features:

1.Laser Positioning Sidle Holes Drilling Machine is the research and development of a CNC Machine for panel

furniture side holes drilling.

2.The machine is fool-style operation, without any software interfacing, three small plates can be processed at a time for realizing three tools procession.

3.Higher working speeding, higher working efficient.

4.One set sidle drilling machine can work well with two or three sets CNC Router.It is easily to solve the horizontal drilling problem.

5.Meanwhile, it can achieve short switch plate, dowel holes, single switch holes,blind holes and meeting a wide range of technology needs.



Advantage:

1.A professional special machines used for horizontal perforated plate custom furniture.It can completely replace the traditional drill, to get rid of the traditional punching mode,dependence on skilled workers, scan code processing directly through the production with special design software.

2.High quality,automatic design,automatic typesetting,auto labeling.No human intervention,minimizing error rate,ensure the quality of the order for the PTP CNC router.

3. Good parts: adopt Taiwan linear guide domestic ball screw; Taiwan reducer.

4. Reasonable design: independent computer control, operation and maintenance more convenient.

5. Perfect automatic oil lubrication system, prolong the service life of the machine.
