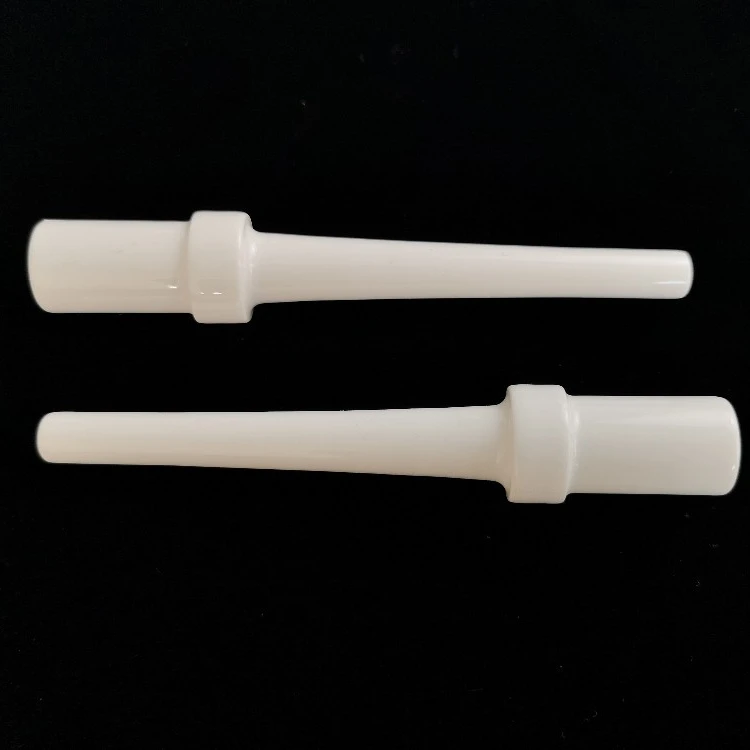

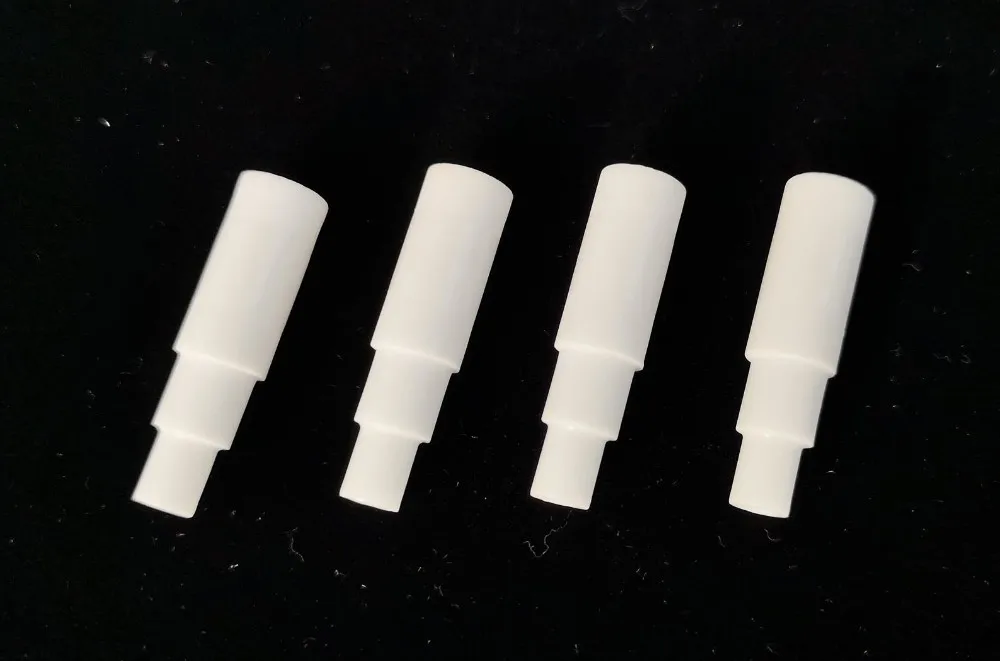

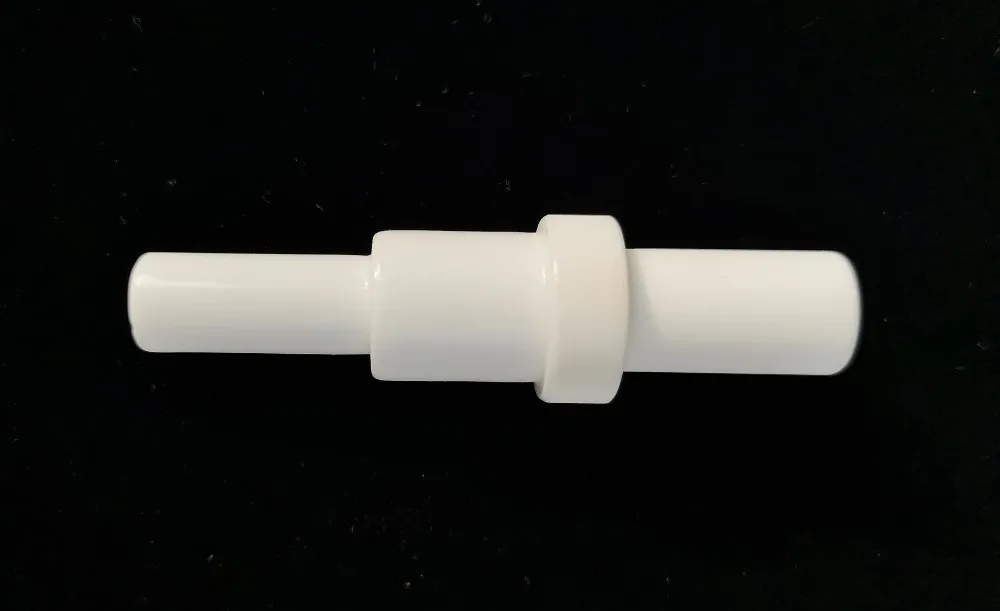

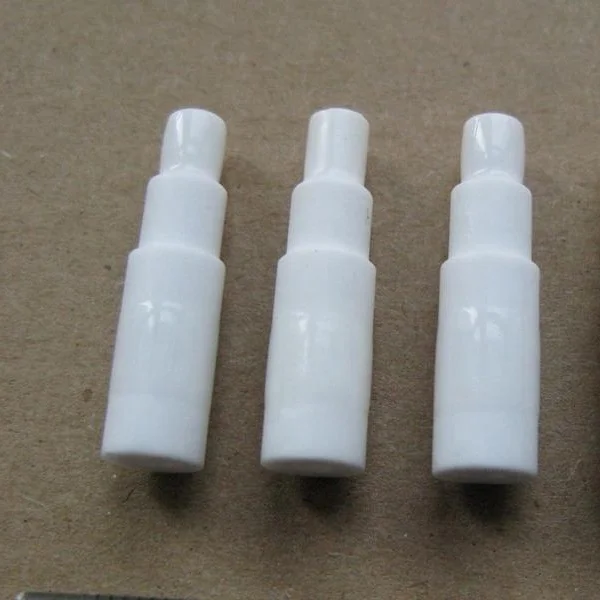

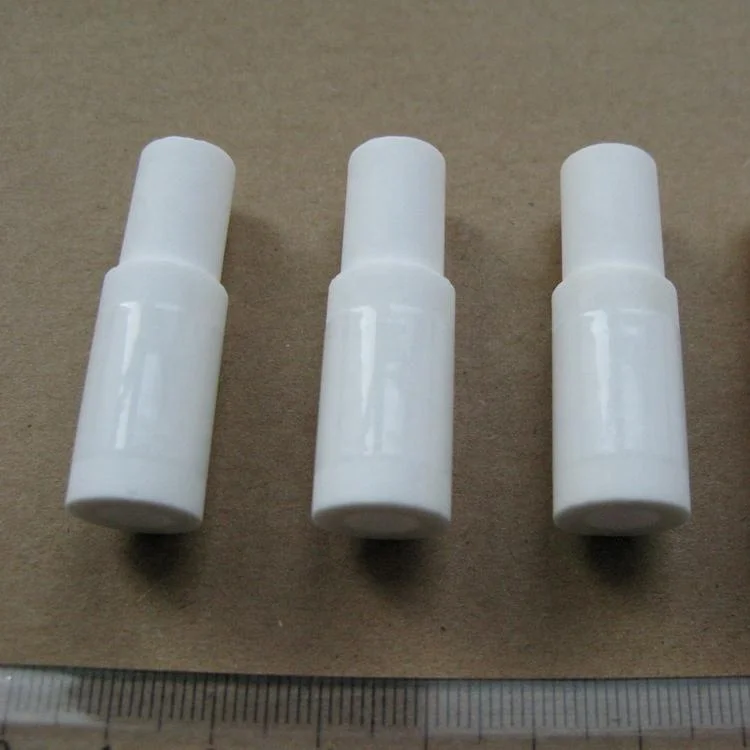

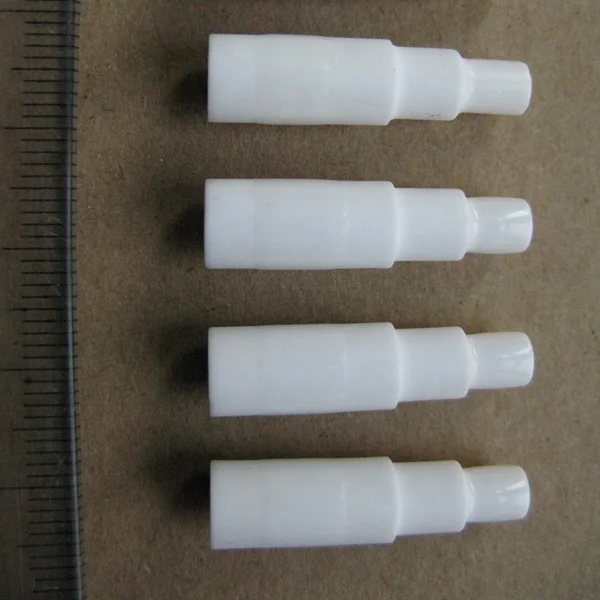

Customized Advanced Industrial Glazed Ceramic Plugs for Insulation
Material : 96.0% alumina or 99.5% alumina with surface glazing
- Either CIP or dry press formed bodies with secondary fine-machining - High precision and good appearance after glazing
- Surface glazing for improved insulation capability
- Good insulation, anti-magnetic, static electricity-free character
- Excellent magnetic quenching capability for high votage and large current - Excellent thermal shock resistance and good thermal stability - Outstanding physical strength and toughness
- Complying with CE, CQC, ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly - Professional ceramic R&D team is available for your requests of various ceramic parts
Product Name
Customized Advanced Industrial Glazed Ceramic Plugs for Insulation
Compositions
96.0% alumina or 99.5% high purity alumina (Al2O3)
Metalization
Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating
Mo+Mn Layer
25 +/-10μm in thickness
Nickel Layer
2 -10μm in thickness
Helium Leak Testing
1×10-12 Pa·m3/s
Tensile Strength
≥800Kg/cm2
Material Density
3.68 - 3.90 g/cm3
Tolerance
+/- 0.005mm
Finishing
Ra 0.02
Max. Using Temperature
1650 oC
Using Fields
DC Relayer, Fuel Cell Units, New Energy Vehicles, Charging Piles, Electrical Appliance, Electric Products
Ceramic Relay Shells
Belows are the Various Standard Alumina Performance Characters Data Sheets
& Various Zirconia Performance Comparison sheets with other ceramic materials
Production Equipment
Press Machines
We can provied extrusion, dry press and CIP press forming for ceramics green bodies.
Sinter Furnaces
We have many electric sintering furance with different size available for green body sintering use.
Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory Birdview
Our factory for various ceramic plugs production
Workshops View
Our workshops for various metalized ceramic plugs production
Packing & Delivery
Packing Details: Individual bubble bags for each ceramic plug, seaworthy package
Delivery Details: 30 days after purchase order of ceramic plugs was issued
1. Shockproof bubble bags for each metalized ceramic plug separately in carton
2. All cartons are loaded in ply-wood standard pallets with plastic films wraped
3. All shipping methods are available for your choice
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional ceramic factory with exporting office in Shanghai.
Q: How long is your delivery time for ceramic plugs?
A: Generally it is 30 days for our ceramic plugs after your purchase order was issued to us
Q: Do you provide glazed ceramic plugs? is it free or charged?
A: Yes, we could offer the sample of our own glazed ceramic plugs for free, but don't afford freight.
Q: What's your terms of payment for glazed ceramic plugs?
A: Payment<=1000USD, 100% in advance before shipping.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question for our glazed ceramc products, pls feel free to contact us as below:
