Product Overview

Description

Combined Rice And Wheat Harvester Thresher With Tractor

Brief Introduction of wheat and rice harvester machine

1. Mini combine harvester for rice and wheat, is not only for rice, also for wheat. Two functions of paddy harvester combine thresher machine: cut the paddy,and then thresh the paddy, get the rice at same time.

2. The machine head can adjustable up and down. It is very safe, convenient and quick when up and downhill or transfer at field. Header can rise and fall with a handle, it will make the header close to ground enough and harvest laid crop.

3. Adopting new vibrating screen, sundries will clean out after vibrating screen. It makes grain more clear and few sundries.

4. Rubber crawler have a longer service life and have a stronger pass performance at the field.

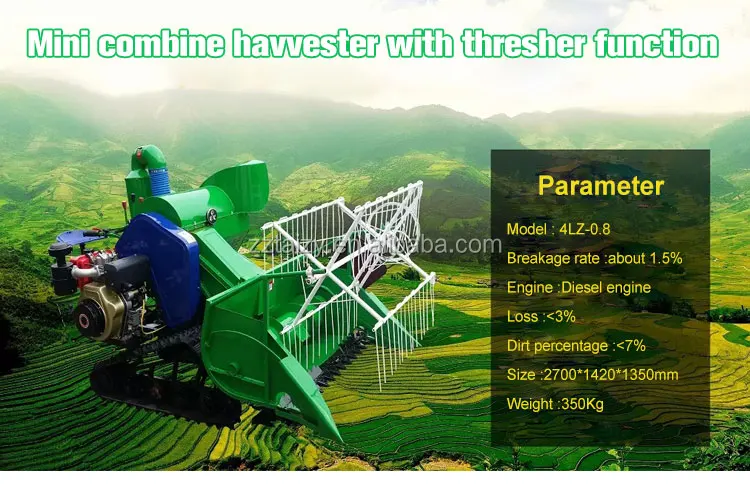

Parameter of wheat and rice harvester machine

Name	Paddy wheat harvester combine thresher machine
Model	4LZ-0.8
Capacity	1000m³
Breakage rate	about 1.5%
Engine	Diesel engine
Loss	<3%
Dirt percentage	<7%
Oil consumption	0.9-1.5L/1000m³
Size	2700*1420*1350mm
Weight	350kg

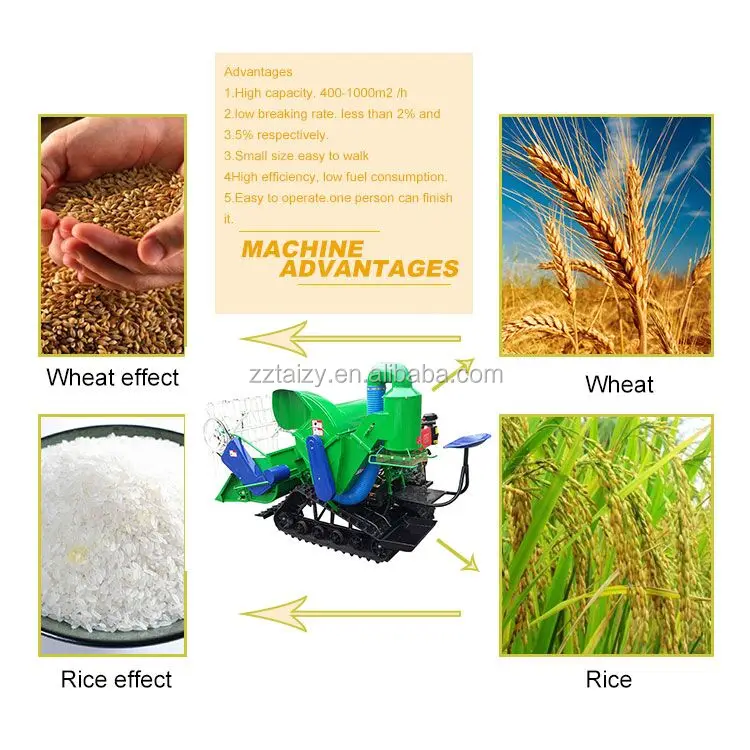

Advantage of wheat and rice harvester machine

1.High capacity. Combined rice harvester machine can reach 400-1000m2 /h

2.low breaking rate.as for rice and wheat,the breaking rate is less than 2% and 3.5% respectively.

3.Small size, exquisite structure, easy to walk

4.High efficiency, clean harvest.Strong stability and low fuel consumption

5. Mini combined harvesting machine is suitable for mountainous areas, hills, plain, paddy field etc.Most important,it is easy to operate and one person can finish it.

Working Process of wheat and rice harvester machine

1. Start the engine

Disengage the total clutch, shift the shift lever, and then open the throttle to start the diesel engine.

2. Test run

After the engine is started, let the working parts run, and pay attention to observe the operation status of each part.

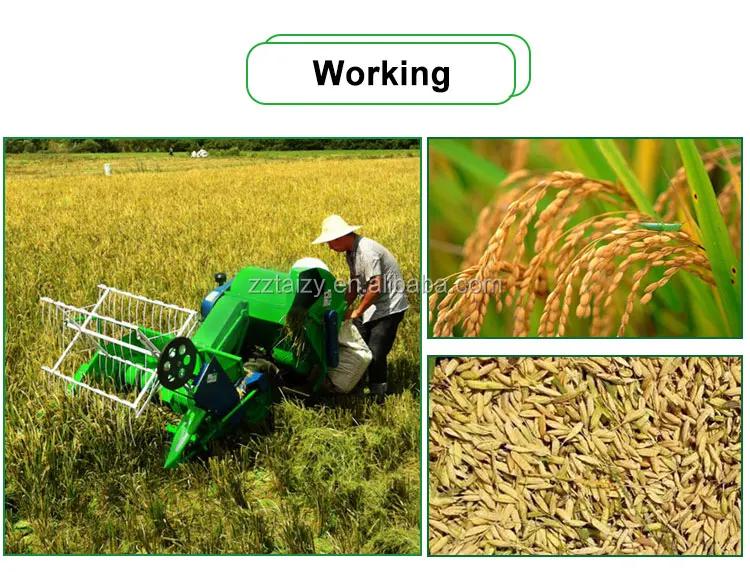

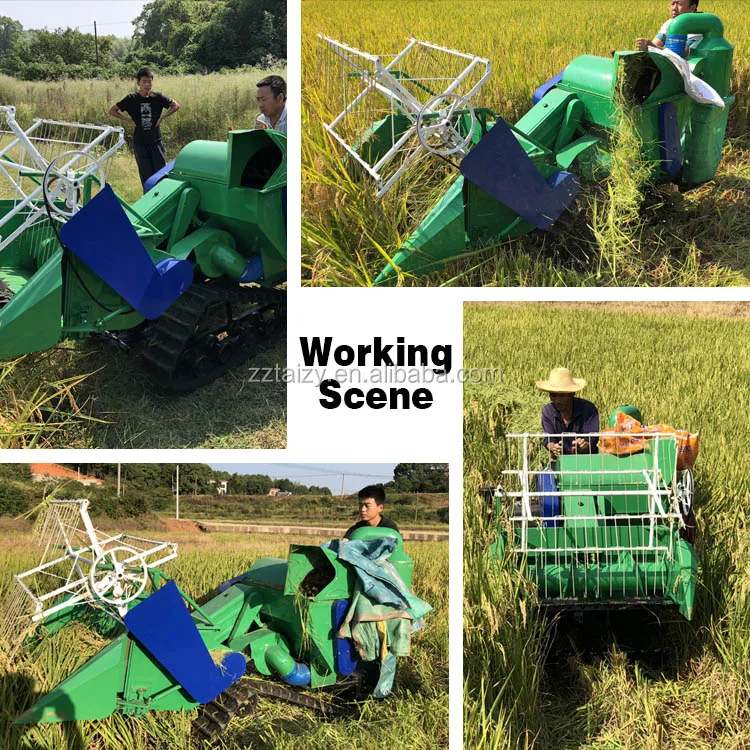

3. Harvesting operations

When the harvester goes down, align the harvesting line, put down the header, shift the shift lever, and the harvester starts to work. After cutting a line, the machine turns and aligns with the next line to continue harvesting. This is repeated.

4. Turn to use

When the harvester is walking in a straight line, in order to correct the deviation, the manual operation of the handrail can correct the deviation.

Application of wheat and rice harvester machine

Mini combined harvesting machine is suitable for mountainous areas, hills, plain, paddy field etc.Most important,it is easy to operate and one person can finish it.

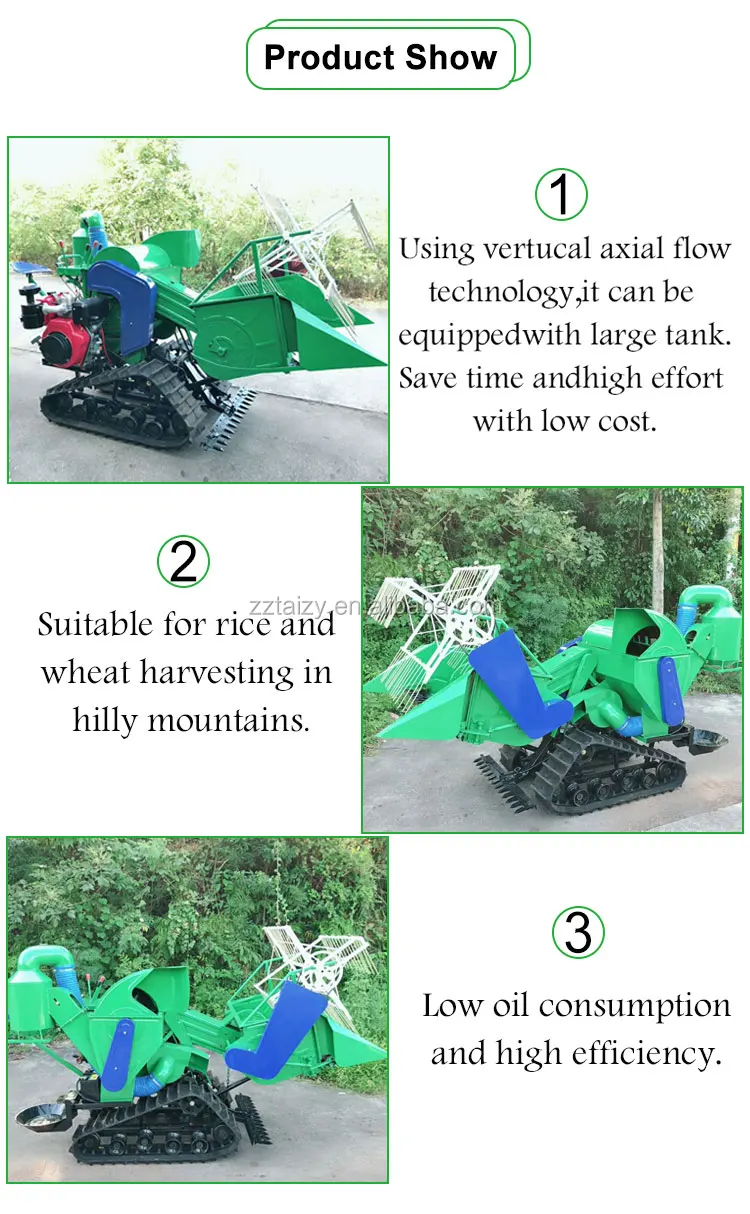

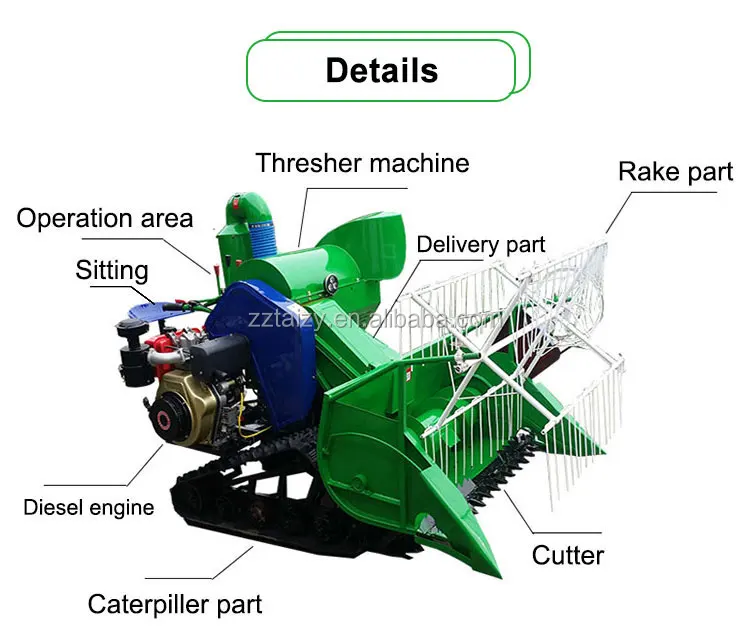

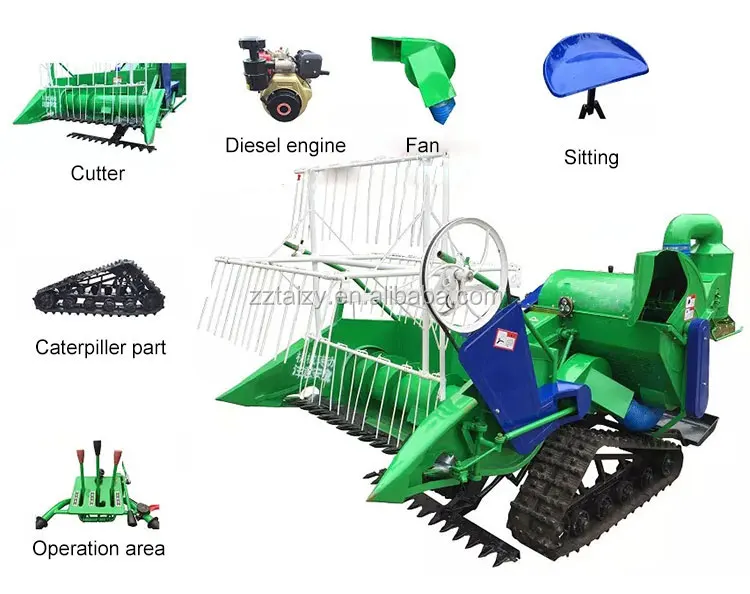

Parts show of wheat and rice harvester machine
