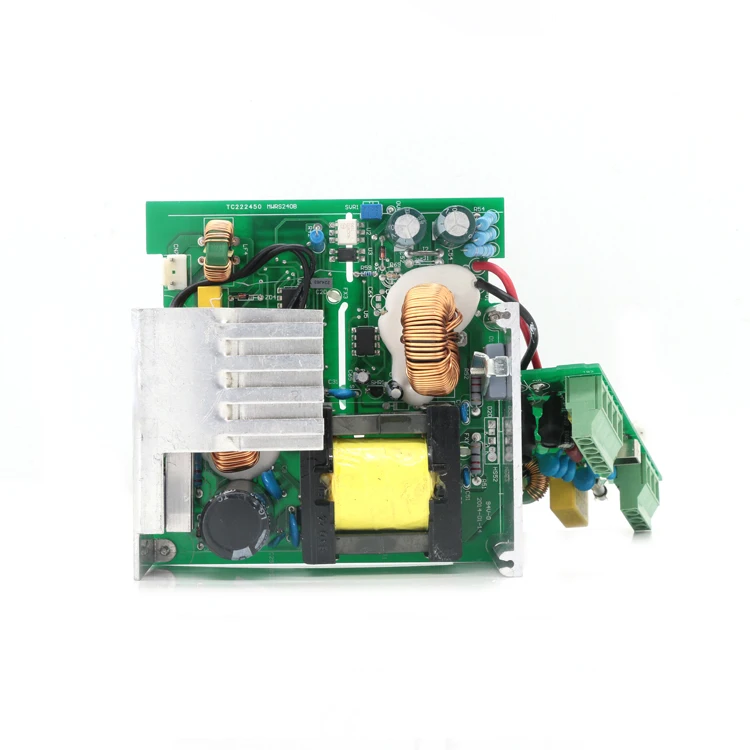

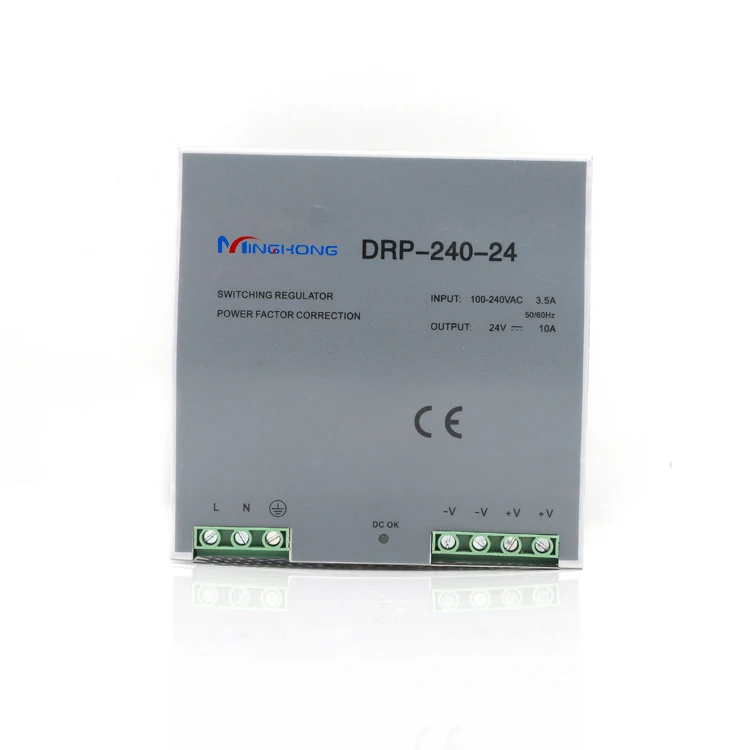

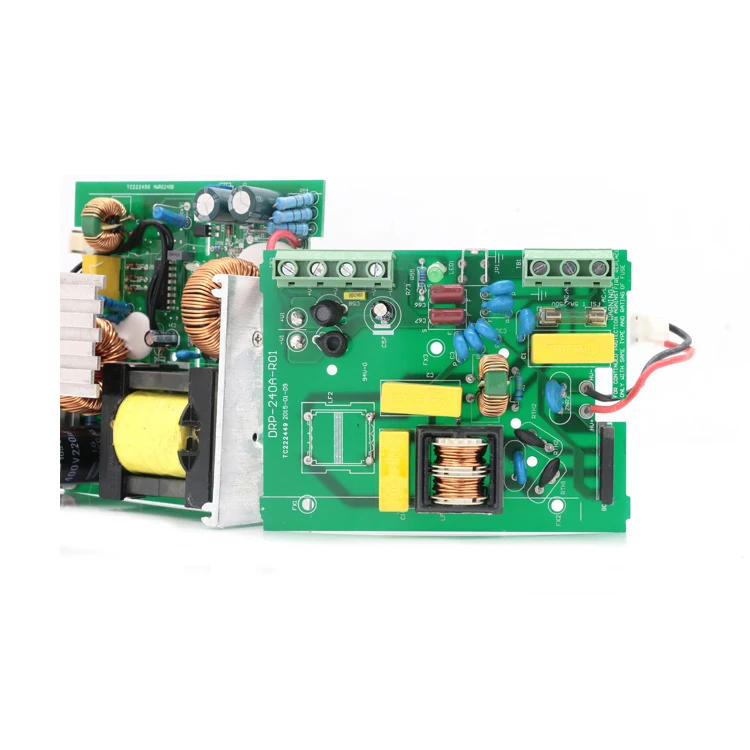

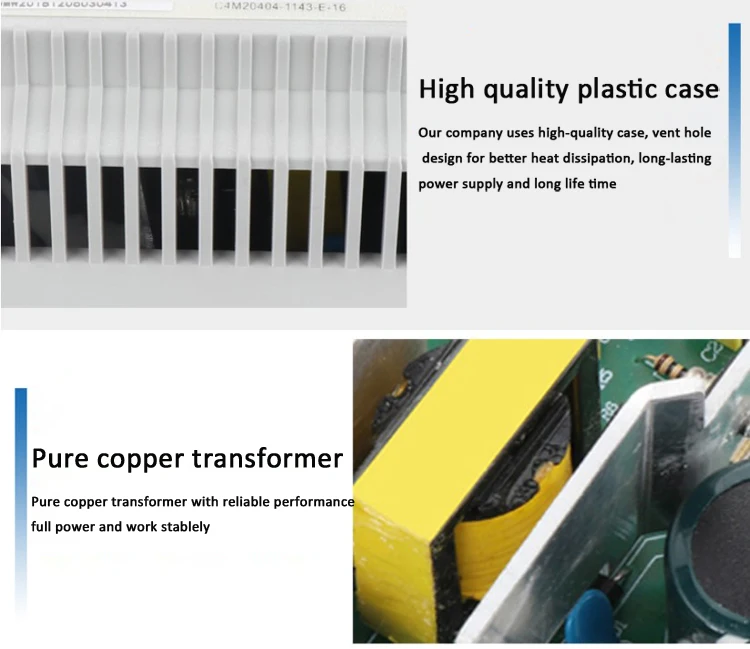

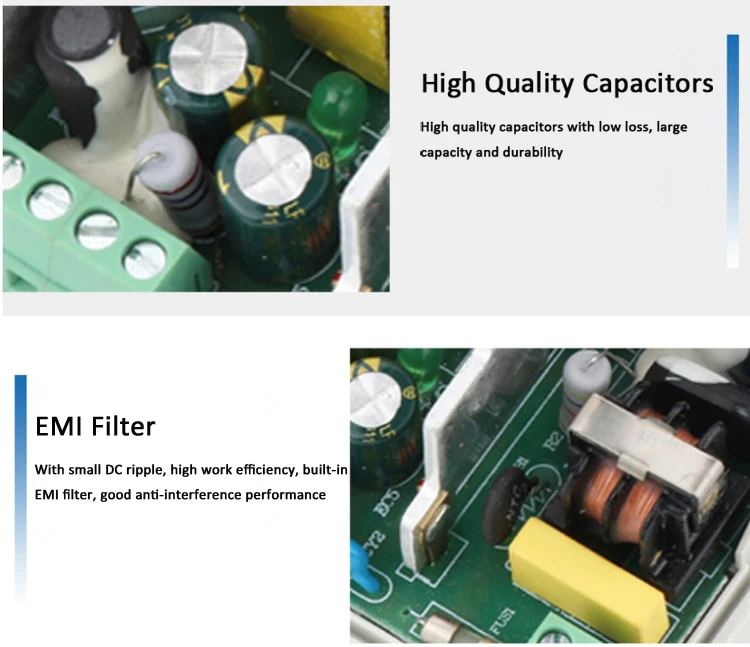

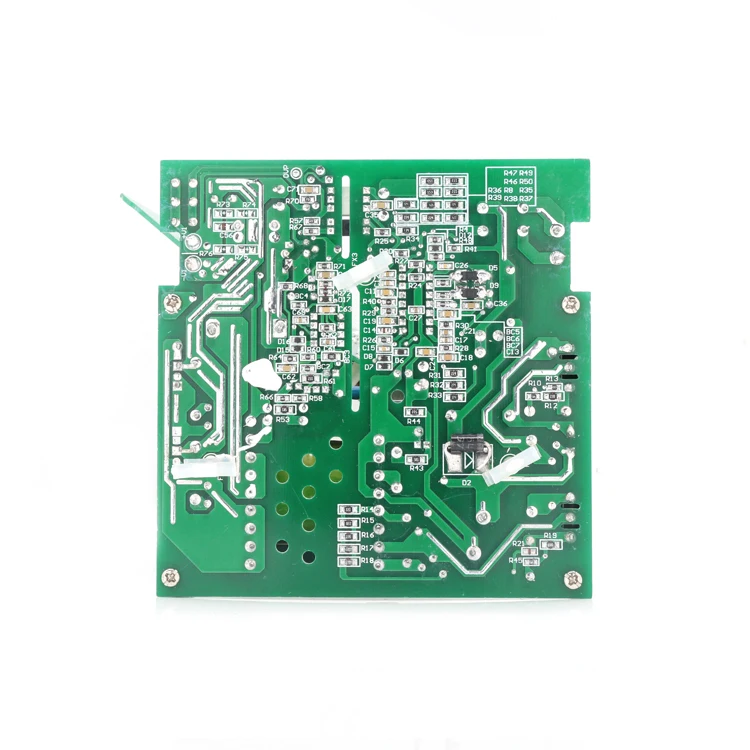

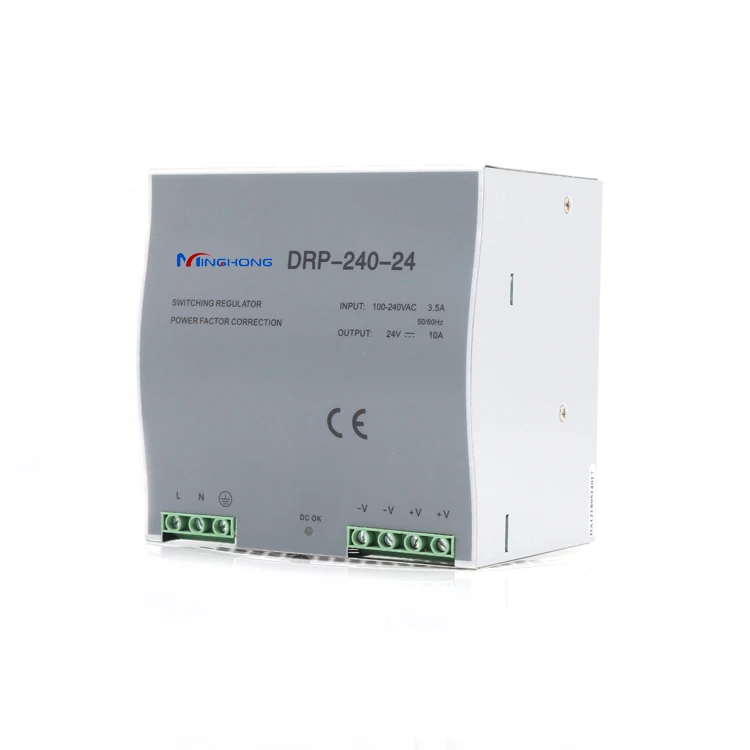

Minghong CE approval Din rail type DR 240 12 240W 12V 20A Din rail power supply for Industrial automation

SPECIFICATIONS

OUTPUT

Model

DR-240-24

DR-240-48

DC Voltage

24V

48V

Rated Current

10A

5A

Current Range

0-10A

0-5A

Rated Power

240W

240W

Ripple & Noise

80mVp-p

150mVp-p

Voltage Adj. Range

24-28V

48-53V

Voltage Tolerance

±1%

±1%

Line regulation

±0.5%

±0.5%

Load regulation

±1%

±1%

Setup, Rise Time

800ms,40ms/230VAC   800ms,40ms/115VAC at full load

Hold Up Time

24ms/230VAC   24ms/115VAC at full load

INPUT

Voltage Range

85~264VAC   47~63Hz; 120~370VDC

AC Current

2.8A/115V   1.4A/230V

Efficiency

84%

85%

Inrush Current

Cold start 27A/115VAC   45A/230VAC

Leakage Current

<3.5mA/240VAC

PROTECTION

Over Load

105%~150% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

30-36V

54-60V

Protection type: Shut down o/p voltage, re-power on to recover

Over Temp.

Protection type: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

Working Temp., Humidity

-10℃~+70℃; 20%~90%RH non-condensing

Storage Temp., Humidity

-20℃~+85℃; 10%~95%RH

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL508,UL60950-1, TUV EN60950-1

EMC Standard

EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2), heavy industry level, criteria A

OTHERS

Dimension

125.5*125.2*100mm(W*H*D)

Weight

1.2Kg

Packing

12pcs/15.5Kg/1.29CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.

3 .Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5 . Derating may be needed under low input voltages. Please check the derating curve for more details.
