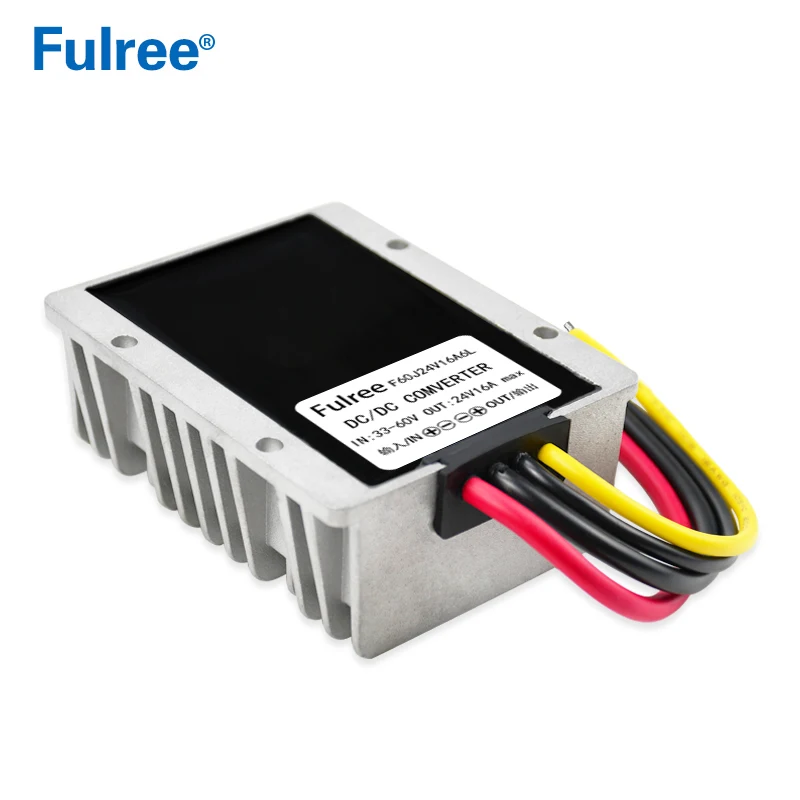

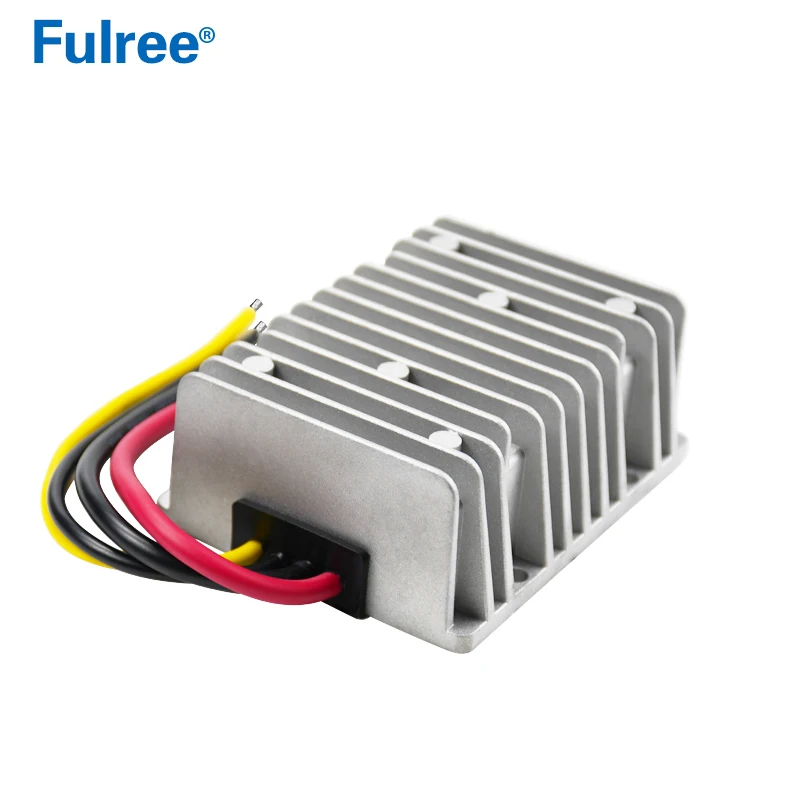

36V 48V 60V 72V DC to 24V 20A 480W DC Step Down Power Converter 36 48 60 72 Volt to 24 Volt Buck Voltage Regulator
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (62300266210):
Product Overview
Description
36V 48V 60V 72V DC to 24V 20A 480W DC Step Down Power Converter 36 48 60 72 Volt to 24 Volt Buck Voltage Regulator
Product Description
Product Name | Fulree DC DC Converter 36V 48V 60V 72V to 24V 16A 20A | |
Brand | Fulree | |
Model No. | F60J24V16A6L/F60J24V20A6L/F80J24V16A6L/F80J24V20A6L | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input ( Cable:16CM 12AWG ) | ||
Input Voltage | DC 48V / 60V / 72V | |
Input Voltage Range | DC 33-60V / DC 33-80V | |
Output ( Cable:16CM 12AWG ) | ||
Output Voltage | DC 24V | |
Output Current | 16A / 20A optional | |
Output Power | 384W / 480W optional | |
Conversion Efficiency | 96% (half load), 95.5% (full load) | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | <100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Over-voltage protection | ||
Overheat protection | ||
Short-circuit protection | ||
Input/Output Reverse Polarity Protection | No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive. | |
Certification | CE/RoHS | |
Case Material | Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |
Product Size (L x W x H) | 100*80*39mm | |
Product Weight | 500g | |
Packing Information | 30PCS/CTN, Carton Size:42.5*21*20.5CM, G.W 16.50KG/CTN | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |

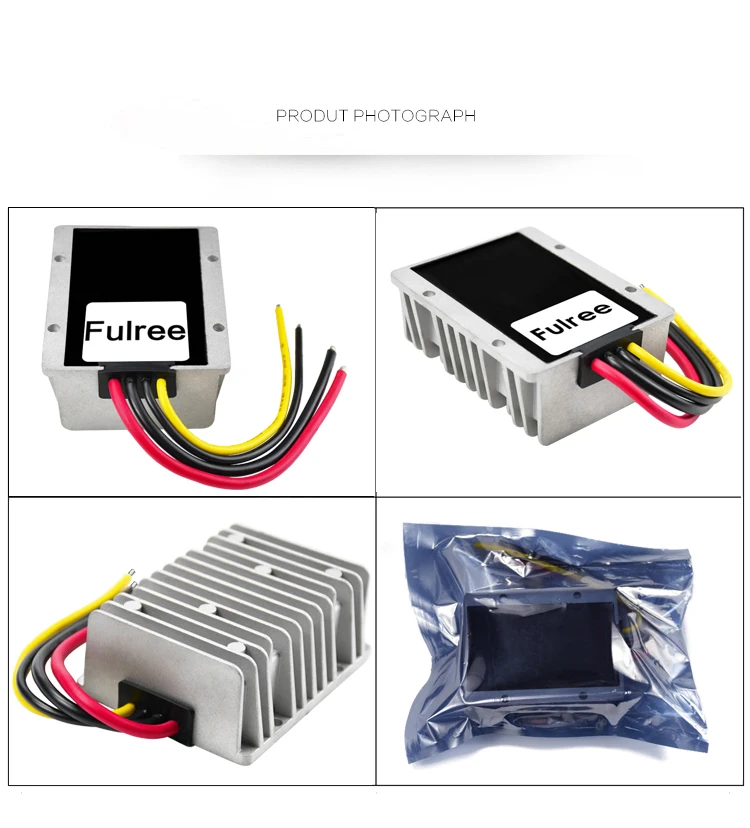

Product Picture
