Product Overview

Description

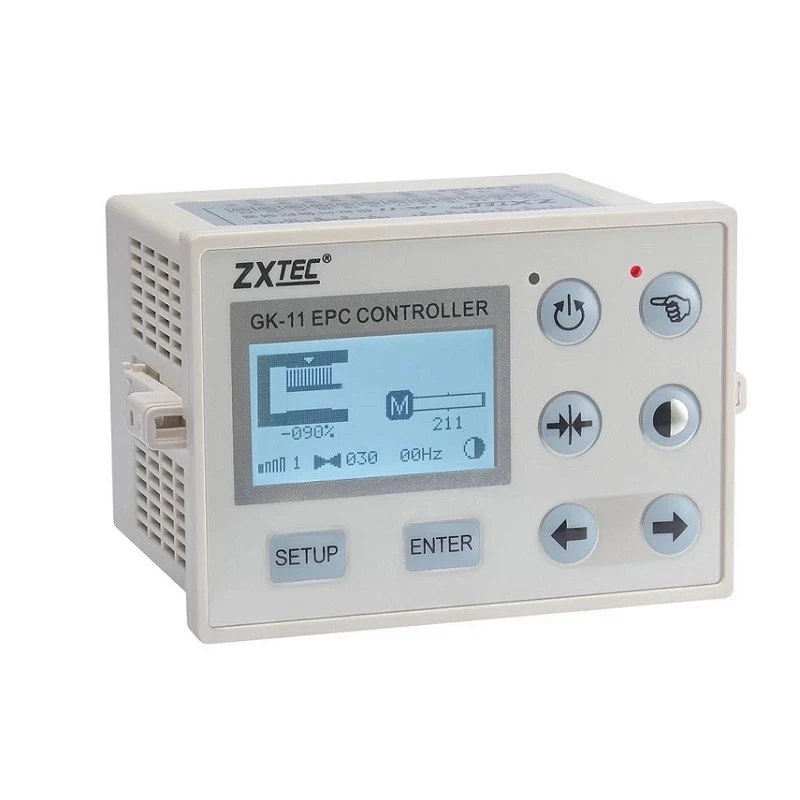

GK-11 EPC  web guide controller , Photoelectric Error controller



GK-11 EPC web guide  Controller is a high-performance analog rectification controller. It uses three-phase AC synchronous motor as the rectifying motor, and uses the variable frequency drive technology to control the direction and speed of the rectifying motor (patented technology). The analog signal input interface has a wide signal voltage range and can be matched with a photoelectric eye or an ultrasonic sensor with an analog output for edge correction correction control. The rectification control system has the characteristics of fast resolving response speed, large thrust and long service life, and can be widely applied to high-precision rectification control in printing, packaging and other machinery.



Features:

1. High cost performance

2. Correction response is fast

3. Long service life

4. LCD display



Parameters:

Response time	<=50ms
Output Power	<200W
Control method:	Analog correction control
External switch:	Automatic / manual switch, left turn / right turn switch
Dimensions(mm)	108×77×78
Installation size(mm)	105×70×73
Operating Voltage	AC220V+-15% 50Hz







Application :



it is widely used in the equipments of plastic and thin film splitting machines, other splitting machines, coating machines, printing machines and compound machines, etc.g
