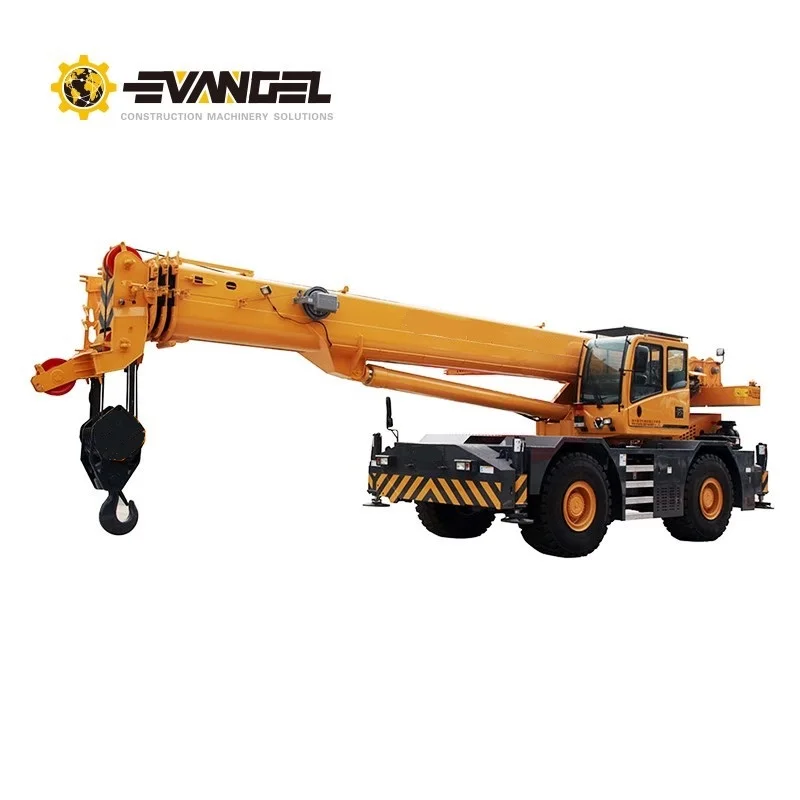

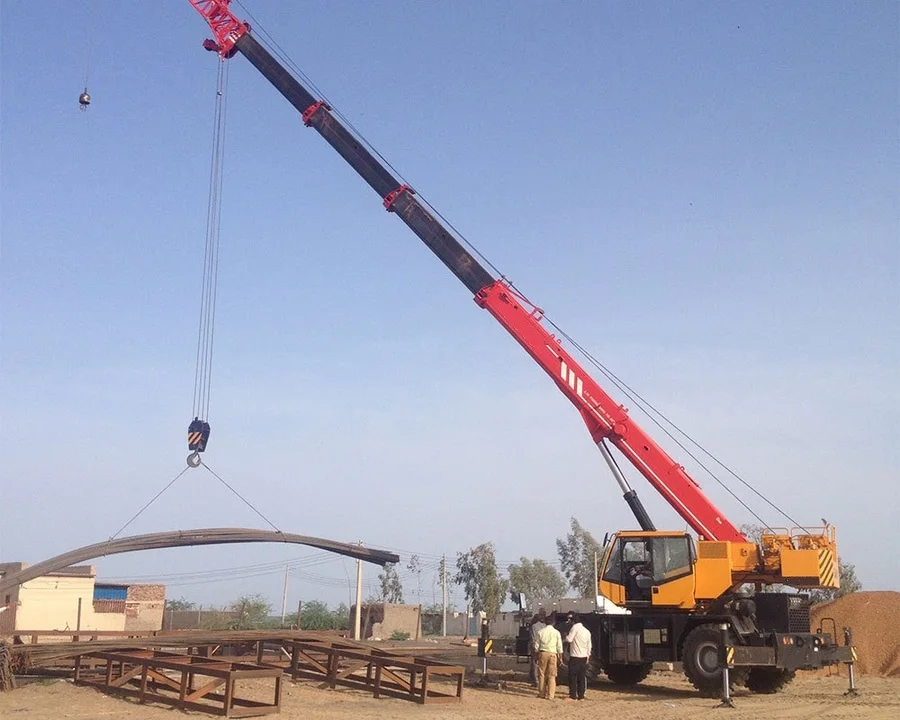

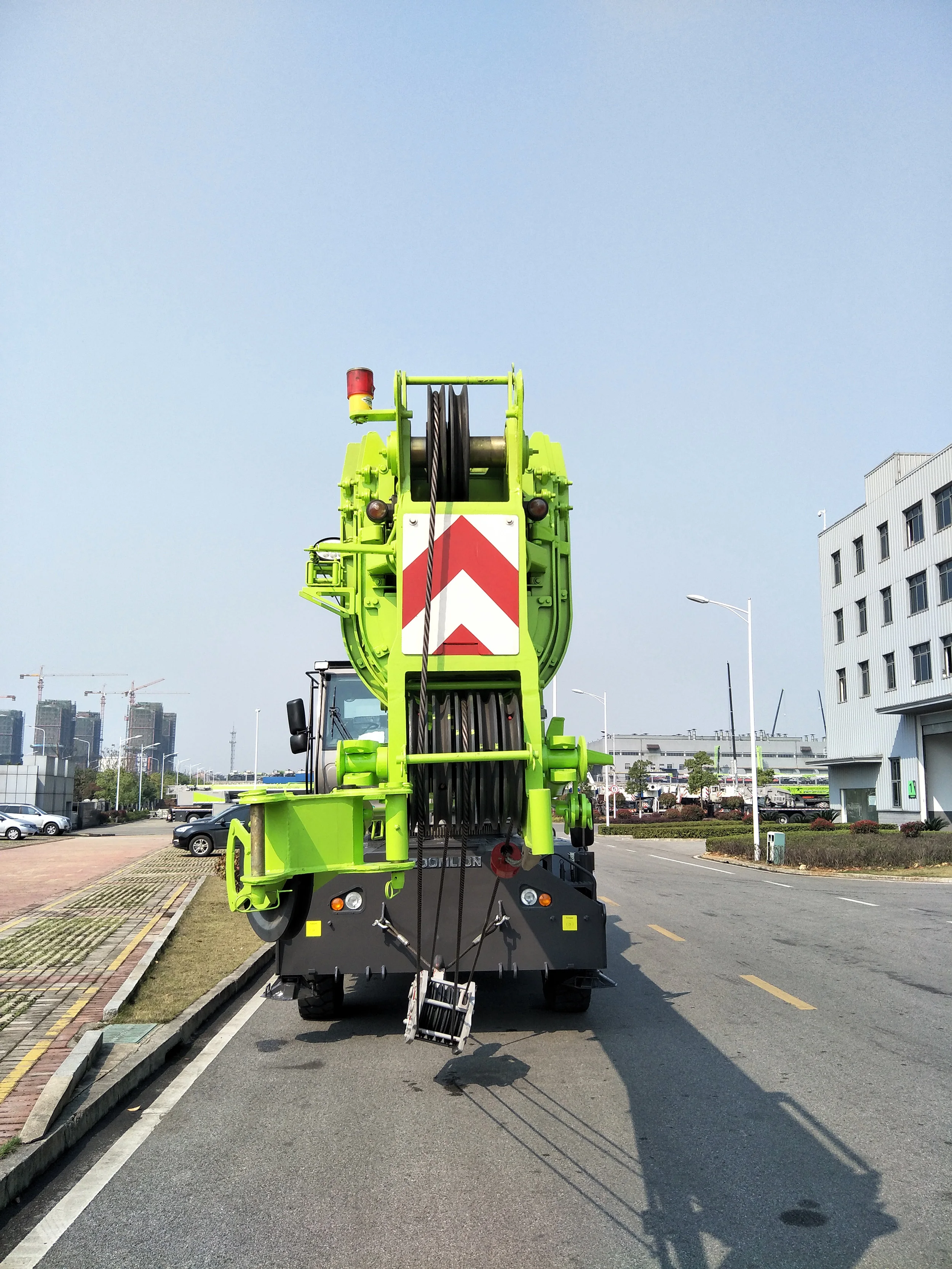

25 ton rough terrain crane SRC250 rt crane hot sale in Philippines Algeria
Product Description
25t Rough-terrain Crane SRC250:
| Dimensions and Weight | |
| Overall length | 11740 mm |
| Overall width | 2620 mm |
| Overall height | 3600 mm |
| Axle distance | 2940 mm |
| Overall weight | 27400 kg |
| Load of front axle Load of rear axle | 13700 kg 13700 kg |
| Crane Carrier | |
| Model of engine | Cu m-mins ISDe210-30 Tier 3 |
| Rated engine power | 209/154/2200 hp/kw/rpm |
| Max. engine torque | 800 N.m/1400 rpm |
| Max. travelling speed | 40 km/h |
| Working fuel consumption per hour | 10 l/h |
| Turning radius | 5500 mm |
| Wheel formula | 4×4 |
| Min. ground clearance | 350 mm |
| Approach angle | 18.6° |
| Departure angle | 17.2° |
| Max. gradeability | 55% |
| Standard toolbox | included |
| Fire extinguisher | included |
| Heating system in cab | included |
| Crane Superstructure | |
| Max. rated lifting capacity | 25 t |
| Min. rated range | 3.05 m |
| Tail slewing radius of swingtable | 3.8 m |
| Boom section | 4 |
| Boom shape | U-shaped |
| Max. lifting moment | 96.8 t.m |
| Boom length Base boom Full-extended boom Full-extended boom+jib | 9.9 m 31.5 m 45.2 m |
| Outrigger span (Longitudinal x Transversal) | 6700 x 6500 mm |
| Jib offset | 0° 15° 30° |
| Max. single rope lifting speed of main winch (no load) | 125 m/min |
| Max. single rope lifting speed of auxiliary winch (no load) | 126 m/min |
| Full extension/retraction time to boom | 65/40 s |
| Full lifting/descending time to boom | 45/60s |
| Slewing speed | 2.5 r/min |
| Temperature range | -25°C till +40°C |
| High Voltage Detector | included |
30t Rough-terrain Crane SRC300C:
Operation
Full Counterweight 2.8T
Max Lifting Capacity 30T
Max Boom Length 31.5m
Max Jib Length 13.7m
Max Lifting Height 46.5m
Max Lifting Moment 976kN·m
Traveling
Available Districts LHD countries
Engine Model (Emission Standard) DF Cu-m mins ISDe 270 30 (Stage Ⅲ)
Max Gradeability 65%
Max Traveling Speed 46km/h
Wheel Formula 4 × 4
Full Counterweight 2.8T
Max Lifting Capacity 30T
Max Boom Length 31.5m
Max Jib Length 13.7m
Max Lifting Height 46.5m
Max Lifting Moment 976kN·m
Traveling
Available Districts LHD countries
Engine Model (Emission Standard) DF Cu-m mins ISDe 270 30 (Stage Ⅲ)
Max Gradeability 65%
Max Traveling Speed 46km/h
Wheel Formula 4 × 4
40t Rough-terrain Crane SRC400C1:
Operation
Full Counterweight 4T
Max Lifting Capacity 40T
Max Boom Length 31.5m
Max Jib Length 13.7m
Max Lifting Height 47.4m
Max Lifting Moment 1175kN·m
Traveling
Available Districts Outside USA
Engine Model (Emission Standard) DF Cu-m mins QSB6.7 C260 31
Max Gradeability 92 (at stall)%
Max Traveling Speed 40km/h
Wheel Formula 4 x 4
Full Counterweight 4T
Max Lifting Capacity 40T
Max Boom Length 31.5m
Max Jib Length 13.7m
Max Lifting Height 47.4m
Max Lifting Moment 1175kN·m
Traveling
Available Districts Outside USA
Engine Model (Emission Standard) DF Cu-m mins QSB6.7 C260 31
Max Gradeability 92 (at stall)%
Max Traveling Speed 40km/h
Wheel Formula 4 x 4
