HD 1080p HDMI Extender Support EDID Copy Function, 3D Displaying, Transmit 50m Without Signal Loss
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (62300368957):
Product Overview
Description
Product Description
HD 1080p HDMI Extender Support EDID Copy Function, 3D Displaying, Transmit 50m Without Signal Loss

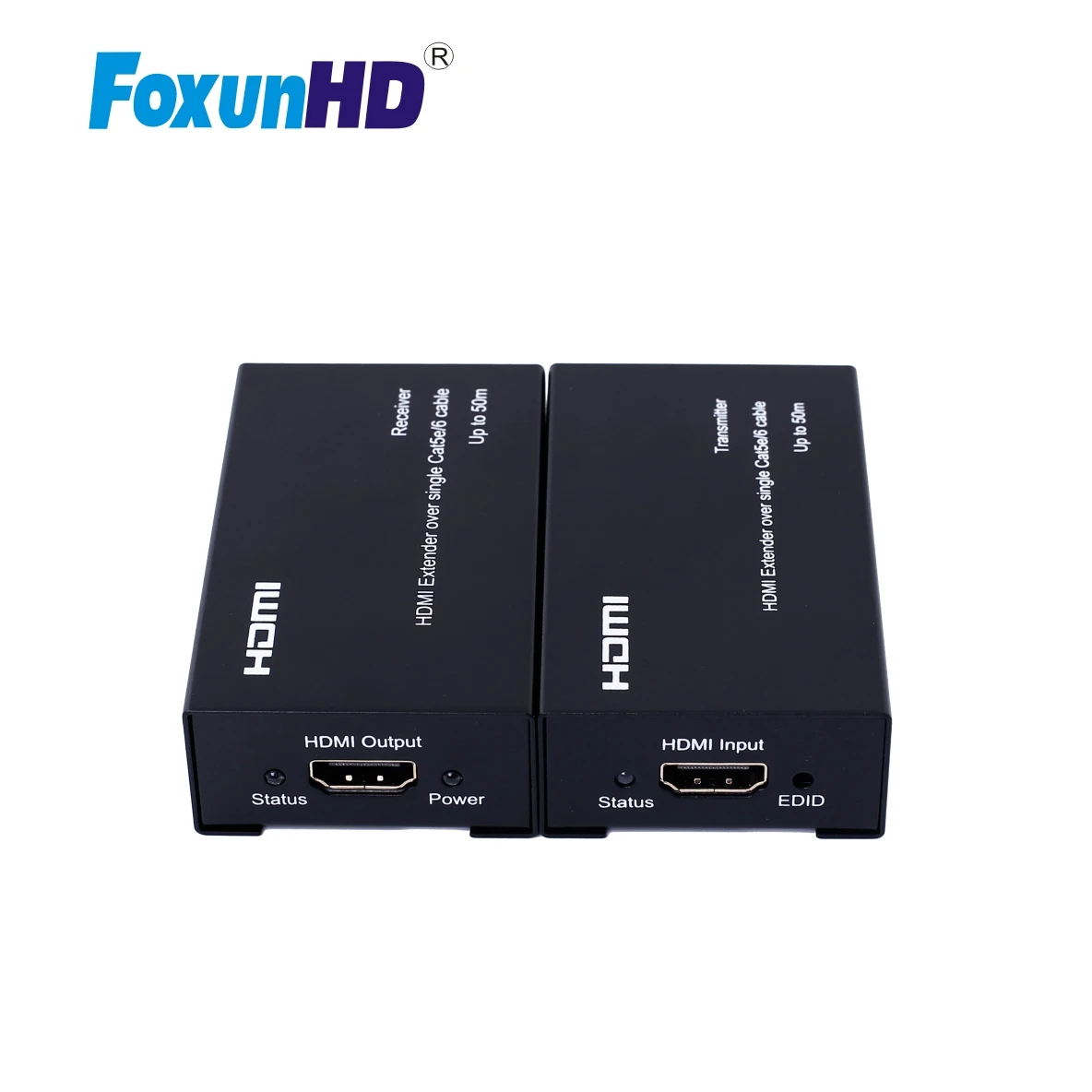

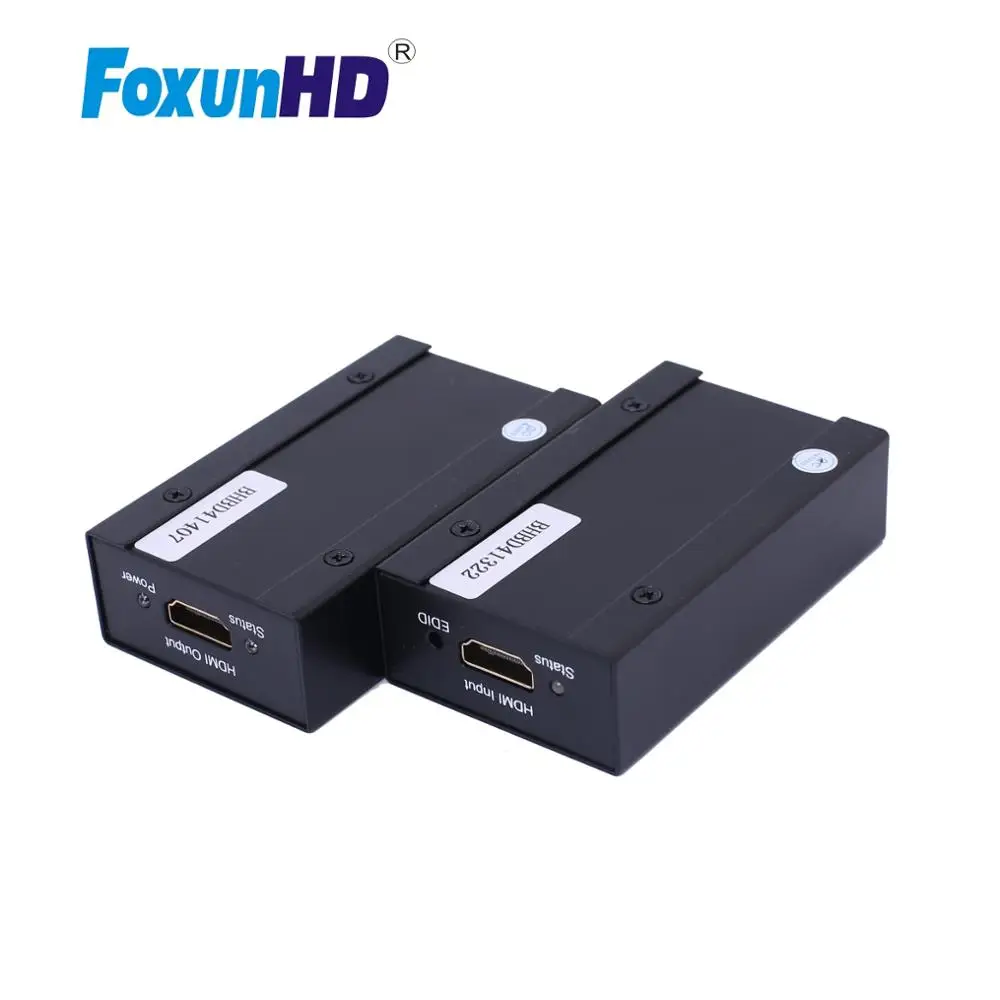

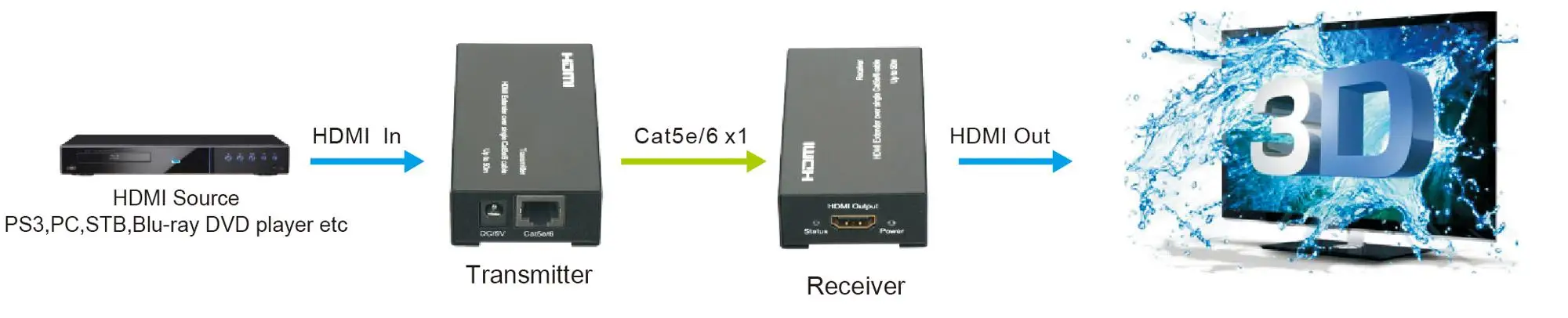

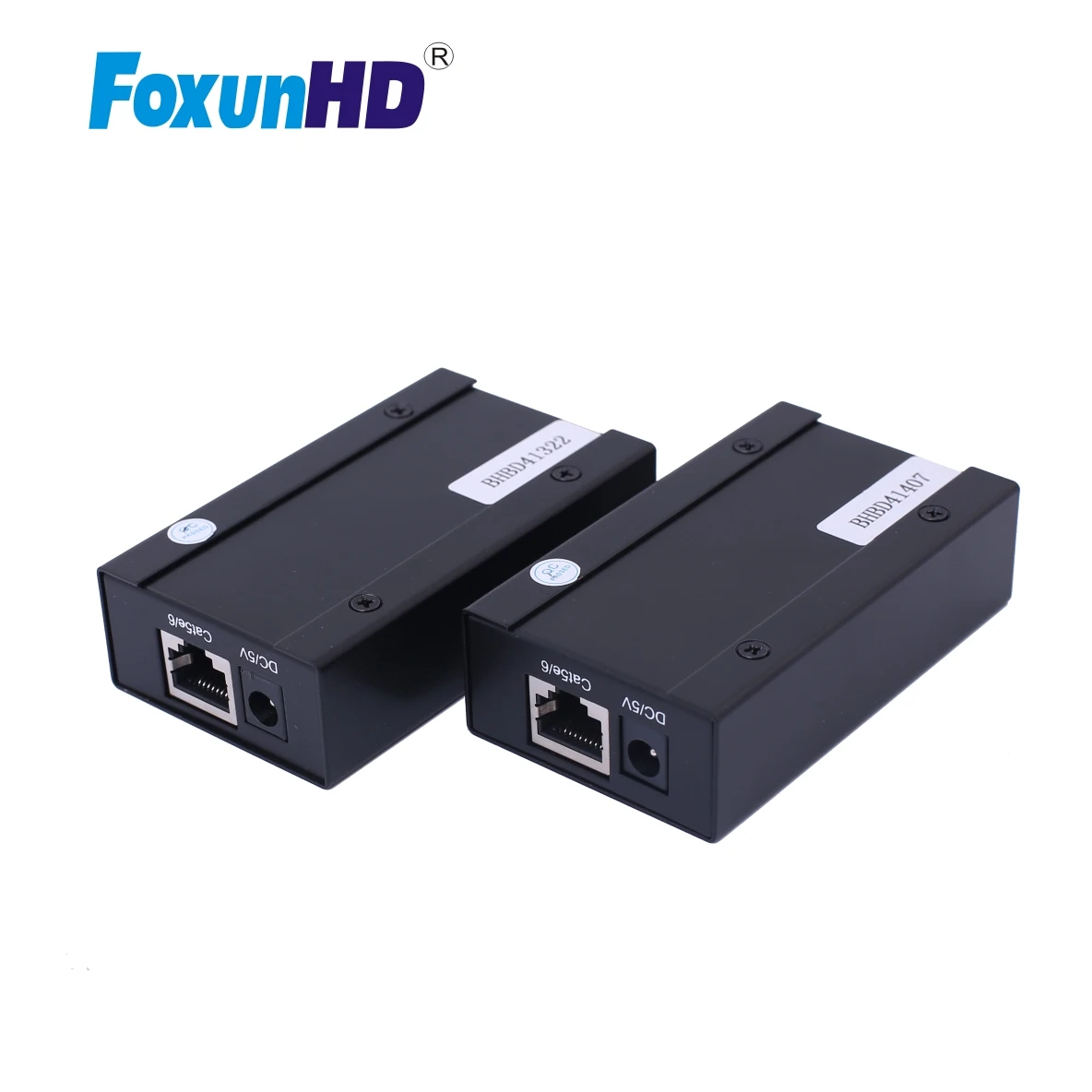

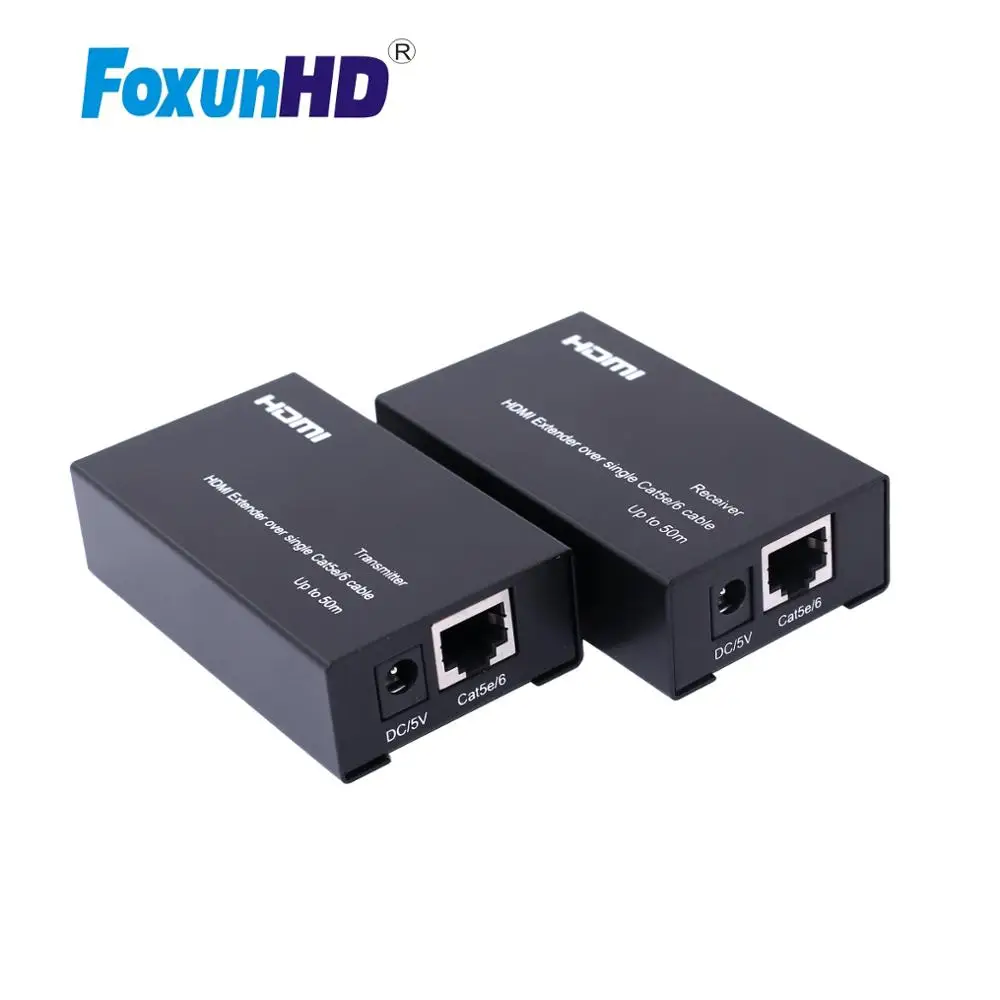

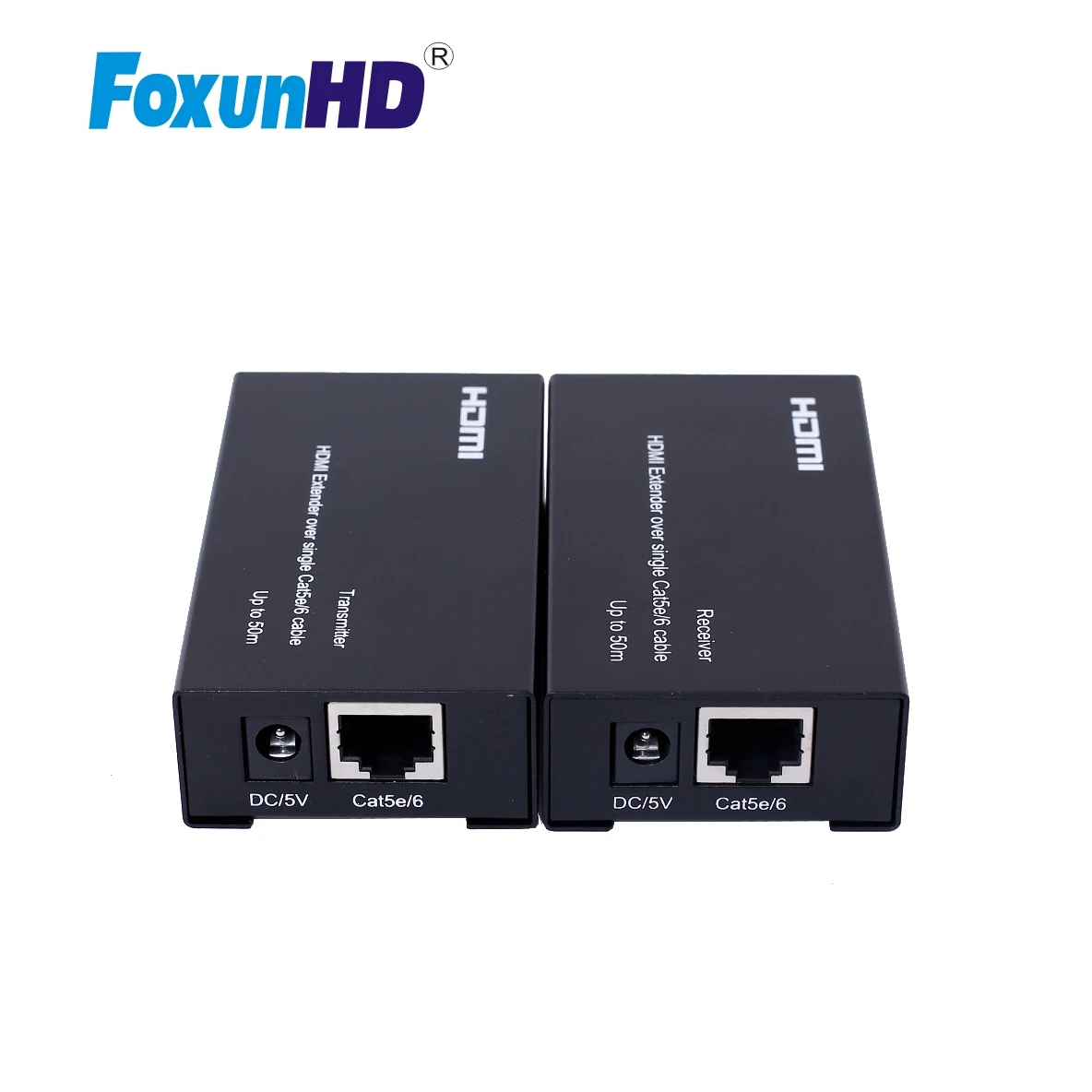

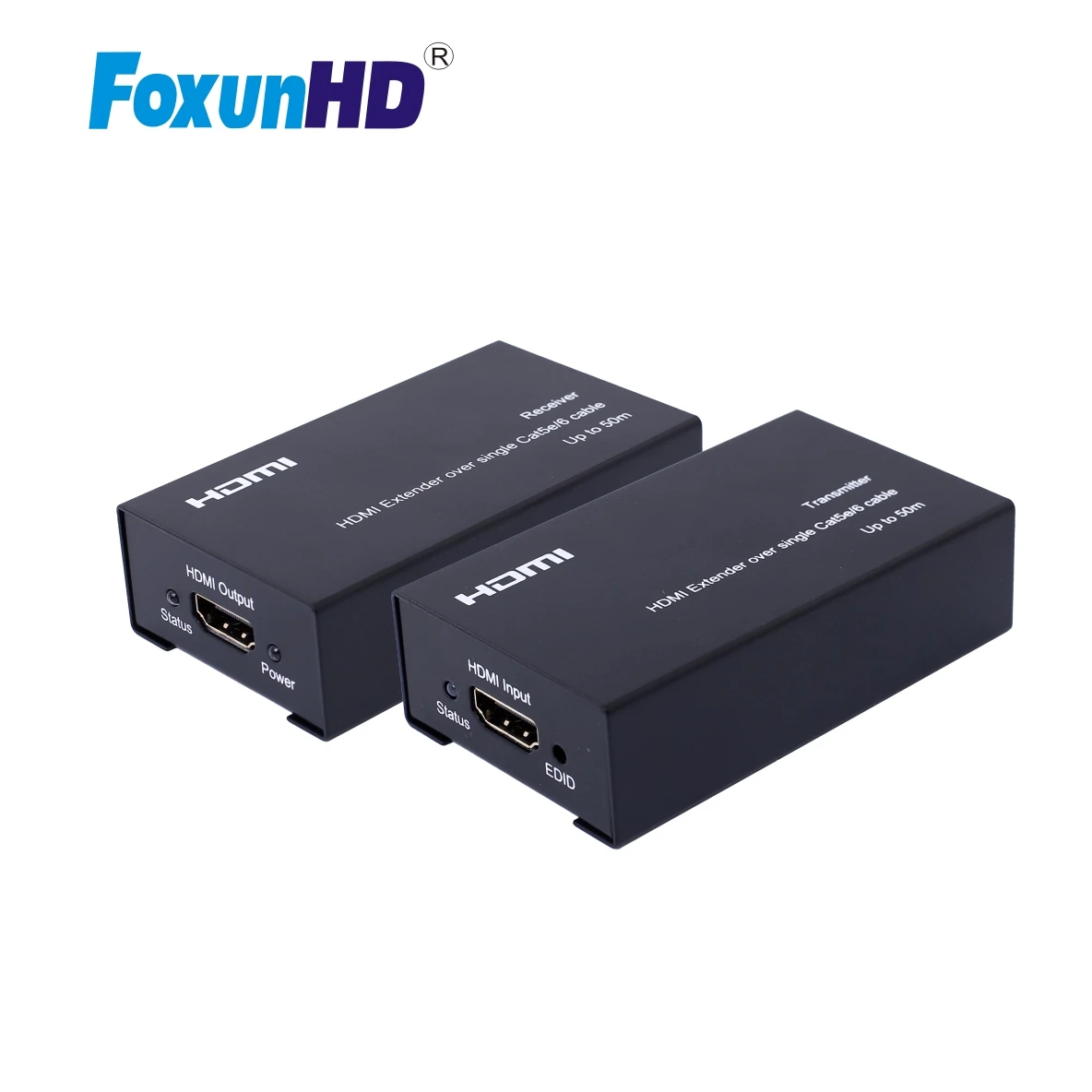

1). Each set includes one transmitter and one receiver
2). Easy installation, no need setting
3). Transmit over 50m single Cat5e/6 without signal loss
4). The CAT5e/6 follows standard of IEEE-568B
5). Support high definition resolution up to Full HD 1080p
6). Support Dolby True-HD, DTS-HD Master audio
7). EDID reading and saving from display
8). Support bandwidth up to 6.75 Gbps
9). Support deep color up to 36 bit
10). Support 3D
11). DC 5V 1A power supply
12). Size: L83xW48xH25mm
13). Transmit Over 50m single CAT5e/6 without signal loss
Detailed Images
Product Paramenters
Operating Temperature | -5 to +35℃(+23 to +95℉) |
Operating Humidity Range | 5 to 90 % RH (no condensation) |
Input Video Signal | 0.5-1.0 Volts P-P |
Input DDC Signa | 5 volts p-p(TTL) |
Support Video Format | DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P 3D video① |
Video Output | HDMI ,HDCP |
Support Audio Format | DTS-HD Master Audio、Dolby true-HD etc. |
Transmission Distance | 1080P 8-bit 50m(Maximum) over single CAT5E/6 /24AWG/Solid② |
Power consumption | 5watts(Maximum) |
Dimension (L×W×H) | 83x48x25mm |
Net Weight | 250g(Pair) |
