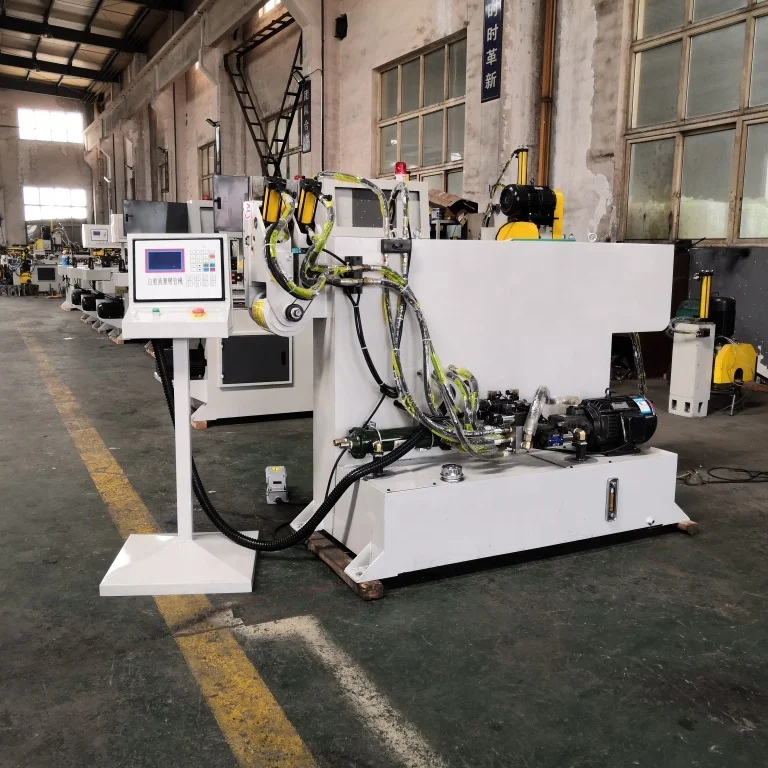

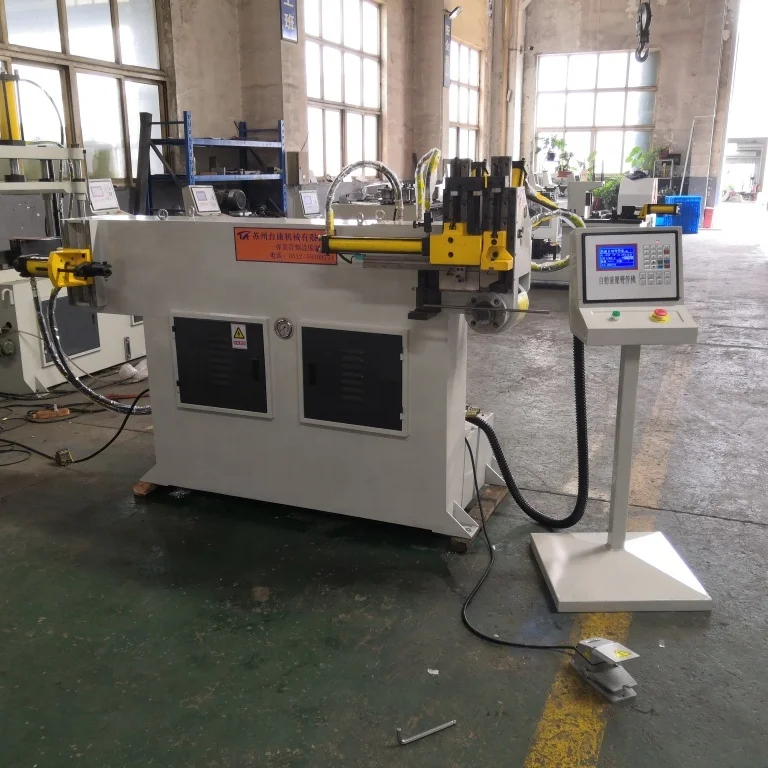

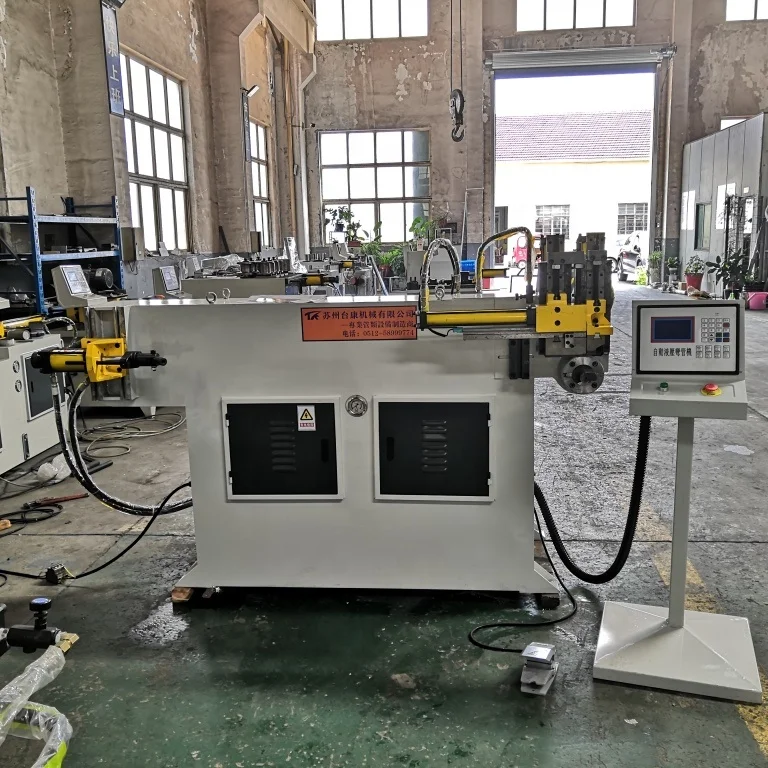

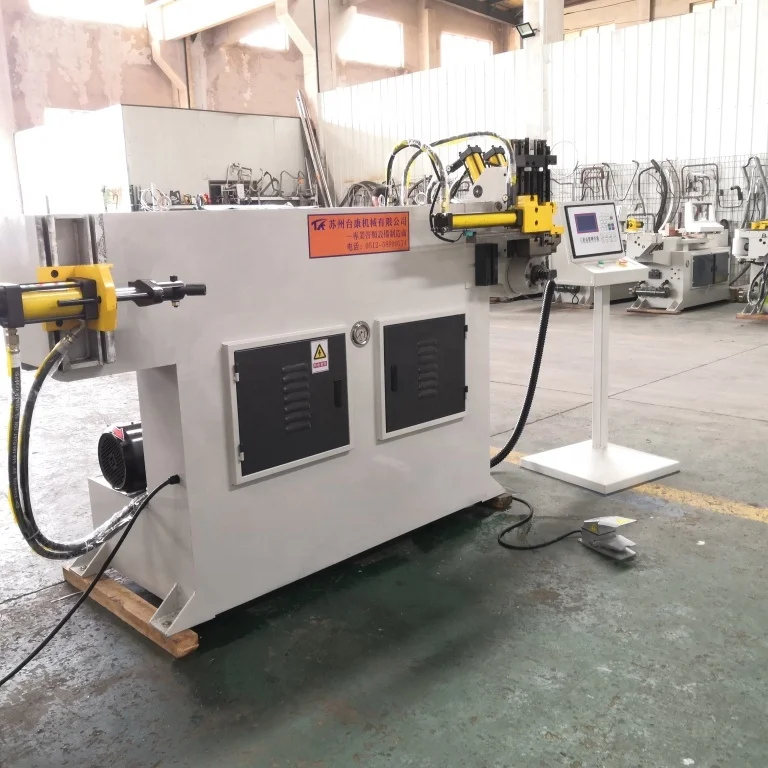

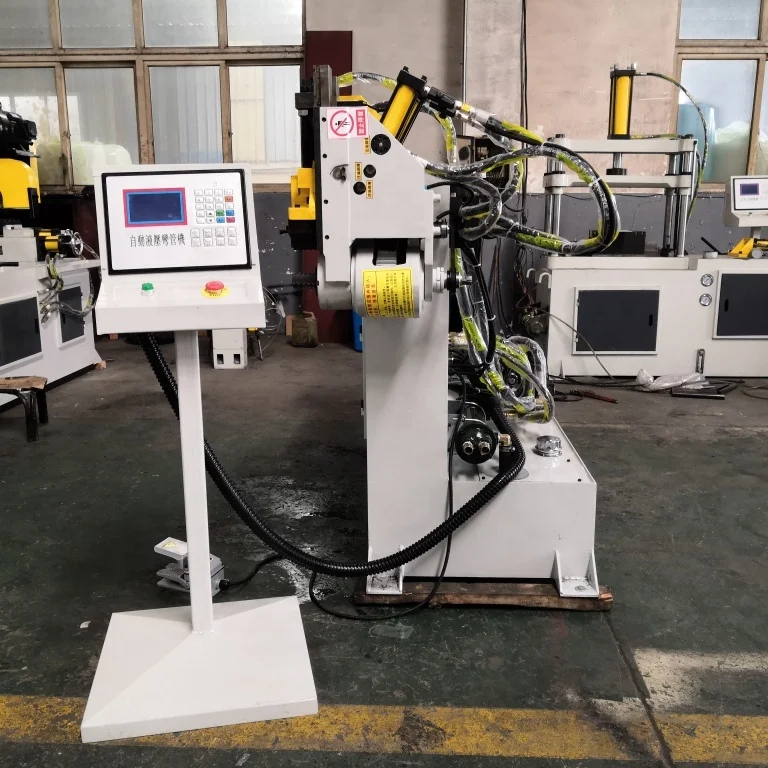

Вертикальный Полуавтоматический гидравлический гибочный станок DW38NC для труб, гибочный станок для арматуры, гибочный станок с U образным болтом (62300551558)

Share on:


Price:1 000,00 $ - 4 700,00 $
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

Product Application

DW38NC vertical Semi Automatic Hydraulic Stainless Pipe bending machine Rebar Bending Machine U Bolt Bending Machine , operated by NC control unit, with fast bending speed ,16 groups of bending information can be stored, multiple different angles can be finished once. Dw38NC Single Head Hydraulic Pipe Bending Machine was widely used in Automobile spare parts (brake line, bumper bar, silencer and etc.). Motorcycle manufacturing, electromobile manufacturing, iron art, fitness equipment, air conditioning, bicycle, steel furniture, sanitary and bathroom equipment, chairs, petroleum pipeline, shipbuilding and boiler Industries.

Specification
Unit
Model:DW38NC
Remark
Max bending diameter x wall thickness
mm
Φ38×2
Max bending radius
mm
R260
Max bending radius according to customer
Min bending radius
mm
R50
According to pipe diameter
Max bending angle
Degree
190
Standard effective length of mandrel
mm
1600
Max effective length of mandrel according to customer
Control system
NC
Max bends
Unit
16
Max storage
Unit
16×16
Hydraulic motor
KW
4
Max system pressure
Mpa
12
Hydraulic system control
Electromagnetic valve
Hydraulic oil tank capacity
L
110
Dimensions
mm
2600×600×1000
Weight
Kg
750




DW38NC vertical Semi Automatic Hydraulic Stainless Pipe bending machine Rebar Bending Machine U Bolt Bending Machine

Main Features

DW38NC vertical Semi Automatic Hydraulic Stainless Pipe bending machine Rebar Bending Machine U Bolt Bending Machine

1) Using the microcomputer control, automatic bending.
2) On the bending arm and control pannel installed emergengcy stop button to avoid accident.
3) Dialogue operation, easy to understand.
4) Partition hypothesis speed, pipe-bending high precision up to ±0.15°.
5) Multi-group programs, multi-angle settings, make your operation simple.
6) The mandrel automatically in and out, saving time.
7) Suitable for bending steel pipe, stainless steel pipe, copper pipe, aluminum pipe, profiles and etc.
8) Optional auxiliary push die, low returning-core function, can bend thin pipes.
9) Special optional fitting: special mould, anti-wrinkle mould, auxiliary push installation, etc.

Standard accessories.

1) One pair of standard mould (wheel mould, clamping mould and sliding plate mould)
2) One set of common tools

Special accessories for option.

Auxiliary pushing device, core rod, wrinkle-proof mould, shaped mould, forming mould
Tailor made mould for shape like square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle bar, I-steel and flat steel, etc.

Detailed Images

DW38NC vertical Semi Automatic Hydraulic Stainless Pipe bending machine Rebar Bending Machine U Bolt Bending Machine

Machine Parts

Name: Electromagnetic Valve

Brand: 7 Ocean

Original: Taiwan China

Domestic famous electromagnetic valve, accurate flow control and high reliability

Electrical Parts

Name:Mold
Brand: : TK made
Original: China

Samples

DW38NC vertical Semi Automatic Hydraulic Stainless Pipe bending machine Rebar Bending Machine U Bolt Bending Machine

Our Service

Pre-Sales Service

* Inquiry and consulting support.

*Provide technical suggestion and package solution

* Sample testing support.

*Reply within 24 hours

*Provide progress information

* View our Factory.


After-Sales Service

* Test the machine before shipment

* Provide technical training relate to use the machine.

* Engineers available to service machinery overseas.

* Free spare parts within one-year warranty period
* Reasonable price for spare parts after warranty
* Provide long-term technical assistance.


Packing & Delivery

DW38NC vertical Semi Automatic Hydraulic Stainless Pipe bending machine Rebar Bending Machine U Bolt Bending Machine

Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use PE film for packing or pack it according to customers special request.
Our Company

About our company.

Suzhou TaiKang Machinery Co.,Ltd. Founded 2015.One of top manufacturer in China.Specializing in design and manufacturermachines for pipe process equipment and
tailor made solutions for the global supplier.
Our business philosophy is Client First,Quality First and Honesty First. We sincerely welcome worldwide potential buyers and overseas distributors to contact and visit us for cooperation.

FAQ

What kind of pipe materials can bend ?
Carbon Steel ,Stainless steel ,Aluminum ,Copper pipes, tubes.
How to choose pipe/tube bending machine

According following information to choose  type:
1)Pipe/tube materials
2)Max. outside diameter of the pipe/tube
3)Wall thickness range of the pipe/tube
4)Max bending radius  (general 1.5*OD)
5)Bending drawing or samples
Do you provide training to operating pipe bending machine?
1)Will provide operating video and manual with machine.
2)Also welcome to our factory for training, we will arrange everything at our factory.
Any optional functions for pipe bending machine

1)Servo motor for axis: 2axis(standard for CNC type),3axis,4axis,5axis,6axis..
2)Control System: PLC(strandard) or IPC
3)Bending mould layer: single layer(standard) ,double layers,triple layers and more.
What about your machine warranty?
One year warranty after machine reached customer's workshop.
And use famous brand components for long working lifespan.
What certificate for pipe bending machine
We have ISO certificate for our factory and CE Certification for our machine.
What delivery time for pipe bend machine

30 working days after received advanced payment.
Payment term for pipe bending machine

Alibaba.com Trade Assurance accepted. T/T and LC accepted.
