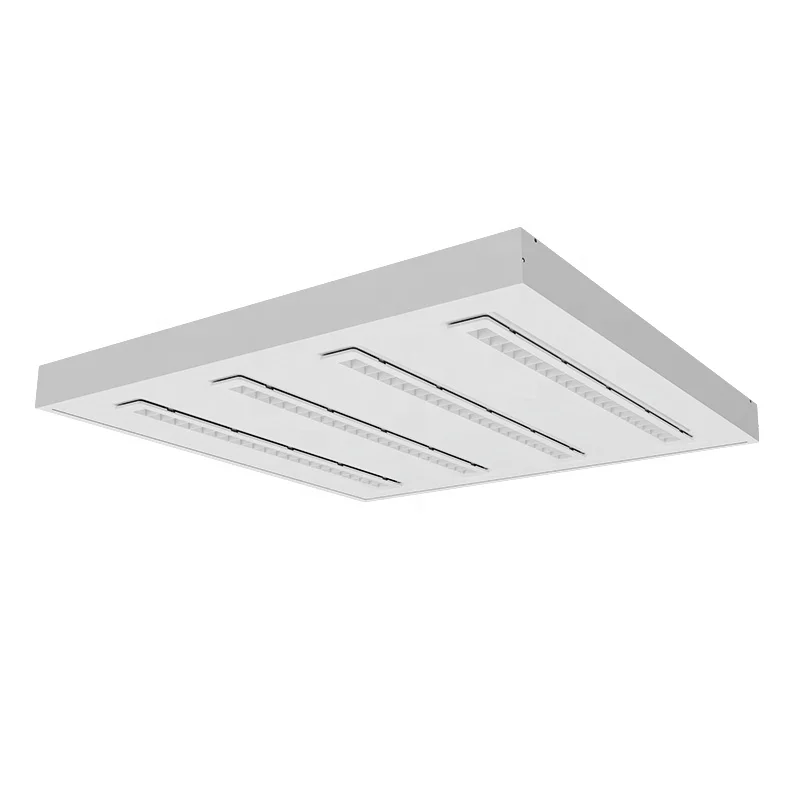

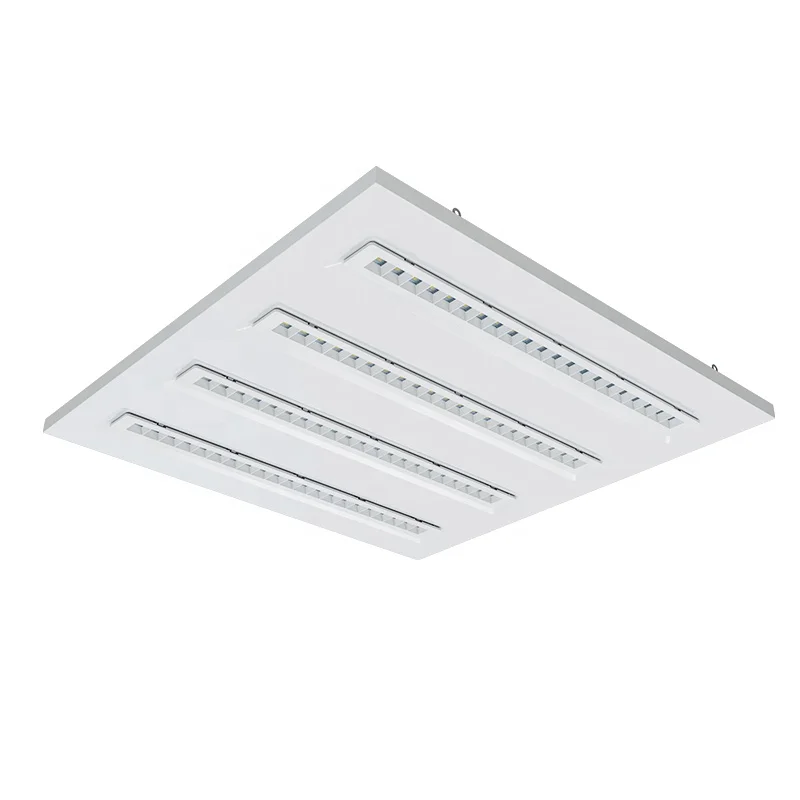

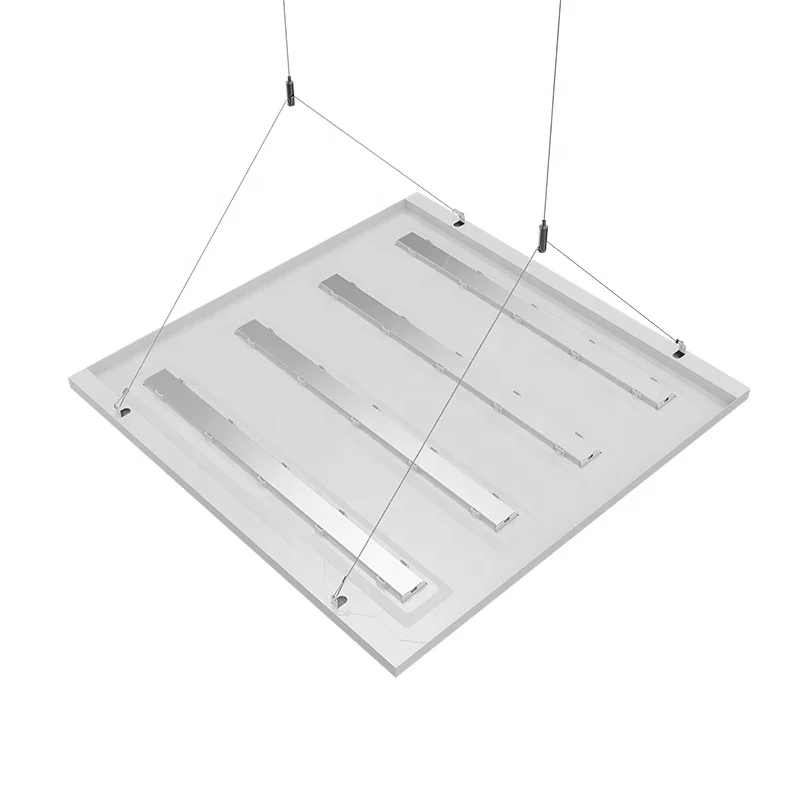

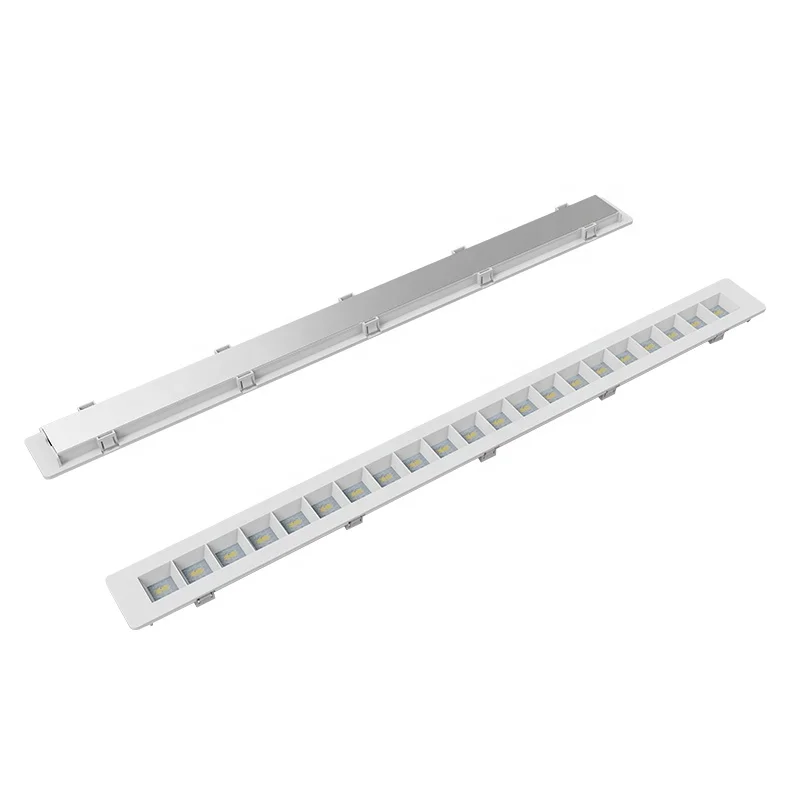

Professional manufacture 620*620 led modular strip UGR<16 for office lighting LED polar luminaire
Professional manufacture 620*620 led modular strip UGR<16 for office lighting LED polar luminaire
Professional manufacture 620*620 led modular strip UGR<16 for office lighting LED polar luminaire
Professional manufacture 620*620 led modular strip UGR<16 for office lighting LED polar luminaire
Professional manufacture 620*620 led modular strip UGR<16 for office lighting LED polar luminaire
Professional manufacture 620*620 led modular strip UGR<16 for office lighting LED polar luminaire

Professional manufacture 620*620 led modular strip UGR<16 for office lighting LED polar luminaire

Share on (62300729445):


Price:RUB 1,606.96

Quantity:


Product Overview

Description

LED troffer light UGR<16
. NO LGP, which can make higher light efficiency(110~140lm/w) easier, won't get yellow; . Glare free: UGR<16; . Could be import and shipped as SKD; . Reduce stock for different color temperature, no need whole lamp in stock, only stock different color temperature led module; . Suitable for different installation way: embedded, suspending, surface mounted; . Fire retardant optional; . Direct replacement for T8-3x18W/4x18W; T5-3x14W/4x14W . More useful light: over 90% useful lumen in cone 90°(zonal lumen); Beam angle 75°; . Warranty 5 years.
Detailed Images
2 LED lights
LED luminaire with integrated electronic control gear Technological guarantee Optimal lighting curve, homogeneous lighting throughout the projection area. Low consumption and high efficiency.
4 LED lights
Average service life >50,000 hours. Does not require maintenance. Careful with the environment, it does not contain mercury The whole lamp material can be flame retardant
Specifications
Specifications
Luminous Efficiency
Stand 110lm/W,120lm/W, up to 140lm/W
Input Voltage
AC 220V-240V,50/60Hz
Operating Temp./Storage Temp
-20℃to 45℃/-40℃to 80℃, 5%-95%RH
CRI
>80
UGR
<16
PF
>0.9
THD
<15%
IP Rating
IP20
Housing Material
Iron base
Beam angle
60°x80°，more useful light
Out Put Power
4400Lm@4000K CRI80,24W, 140lm/W under request
Reference beam angle
REFERENCE
Power
Efficiency
Lumen
Colour temperature
Dimm DALI
0-10V
ES-295*1195-40W-T2
40W
110lm/W
4400LM
4000K
√
√
ES-295*1195-40W-T4
40W
110lm/W
4400LM
4000K
√
√
ES-620*620-40W-T2
40W
110lm/W
4400LM
4000K
√
√
ES-620*620-40W-T4
40W
110lm/W
4400LM
4000K
√
√
ES-595*595-40W-T2
40W
110lm/W
4400LM
4000K
√
√
ES-595*595-40W-T4
40W
110lm/W
4400LM
4000K
√
√
3000K and 6000K, under request
