10W 50W COB suspension or surface mount COB LED downlight
- Category: >>>
- Supplier: Guangzhou Honvally Electronic Technolog Co. Limited
Share on (62300731224):
Product Overview
Description

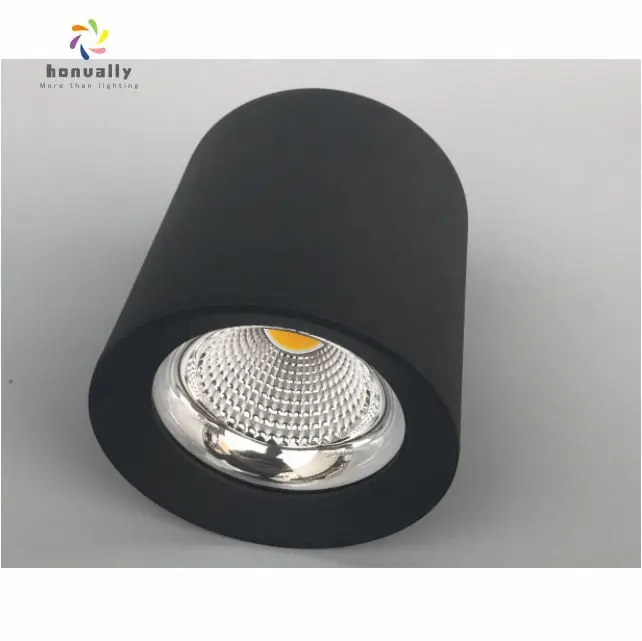

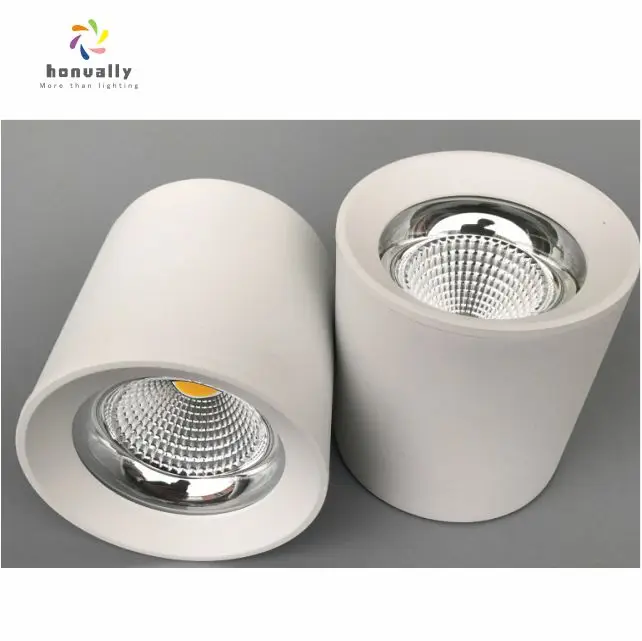

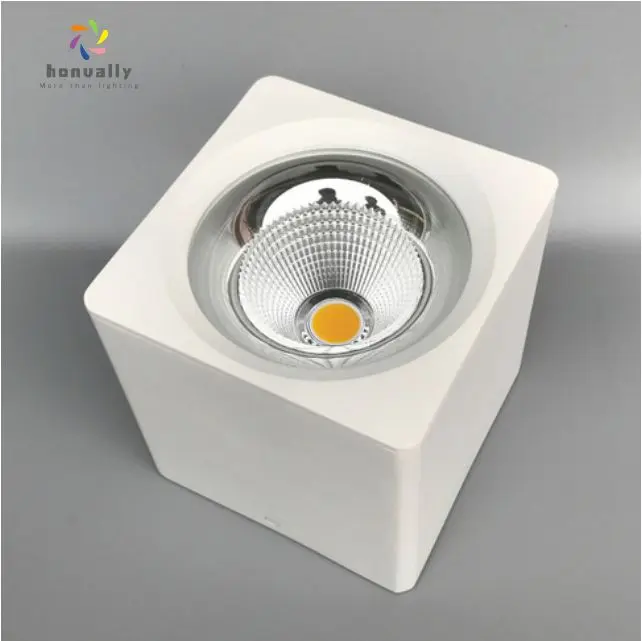

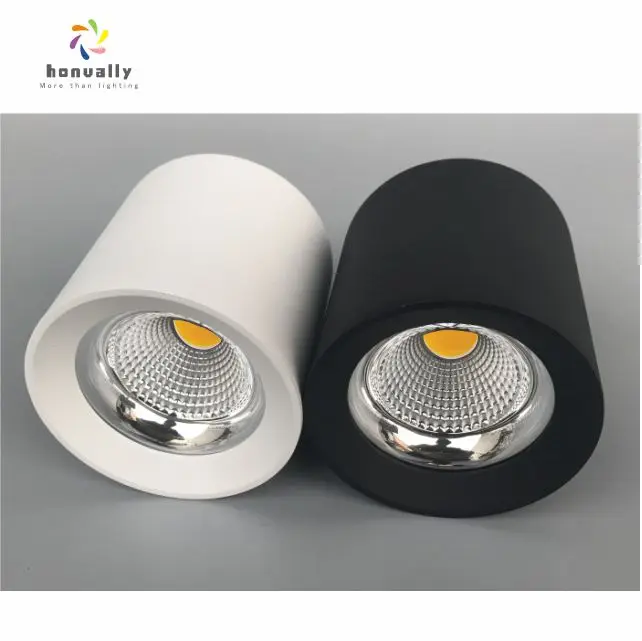

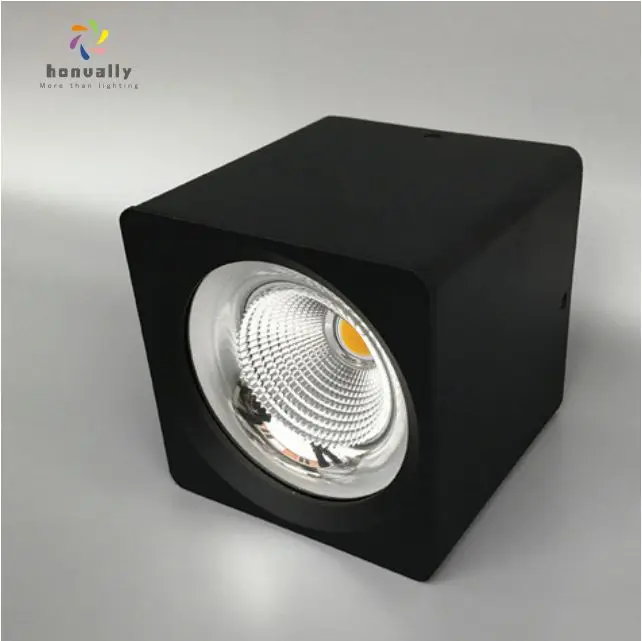

10W-50W COB suspension or surface mount COB LED downlight
Product Description
 | Technical Data | |||||
| Model number | SDL-7W-R02 | SDL-15W-R02 | SDL-20W-R02 | SDL-30W-R02 | SDL-40W-R02 | |
| Watt | 7W | 15W | 20W | 30W | 40W | |
| Sizes | D90*H90mm | D110*H120mm | D130*H152mm | D170*H185mm | D193*H193mm | |
| Input voltage | 180-240V AC/100-277V AC | |||||
| Light effect (lm/W) | 100lm/W | |||||
| CRI | 80 Ra/ 90 Ra/ 97 Ra | |||||
| CCT | 2200K/2700K/3000K/4000K/5000K/6000K | |||||
| Beam angle | 20°/45° | |||||
| Bright attennat | <3% (per year) | |||||
| Dimmable | Triac dimming/0-10V dimming/Dali dimming for choices | |||||
| Flicker free | YES | |||||
| Insallation | Recessed | |||||
| Housing color | black, white, grey | |||||
| Warranty | 5 Years | |||||
 | Technical Data | ||||
| Model number | SDL-10W-S02 | SDL-20W-S02 | SDL-30W-S02 | SDL-40W-S02 | |
| Watt | 10W | 20W | 30W | 40W | |
| Sizes | D90*90*H90mm | D110*110*H120 | D130*130*H135 | D160*160*H165 | |
| Input voltage | 180-240V AC/100-277V AC | ||||
| Light effect (lm/W) | 100lm/W | ||||
| CRI | 80 Ra/ 90 Ra/ 97 Ra | ||||
| CCT | 2200K/2700K/3000K/4000K/5000K/6000K | ||||
| Beam angle | 20°/45° | ||||
| Bright attennat | <3% (per year) | ||||
| Dimmable | Triac dimming/0-10V dimming/Dali dimming for choices | ||||
| Flicker free | YES | ||||
| Insallation | Recessed | ||||
| Housing color | black, white, grey | ||||
| Warranty | 5 Years | ||||
