a control panel for LCD liquid crystal display timed aerosol dispenser timer
- Category: Timers >>>
- Supplier: Shenzhen Liyan Modern Technology Co. Ltd.
Share on (62300798541):
Product Overview
Description
Quick Details
| Place of Origin | Guangdong,China(Mainland) | Brand Name | kenshap | |
| Model Number | LYXD-ADT02 | Usage | Timer | |
| Input Voltage | Battery 3.0V | Output signal | High and low | |
| Color | Brown | Line Lenhth | ||
| Quiescent Current | ≤100uA | Scan cycle | 500ms(Custmizable) |
Supply Ability
Supply Ability: 5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details 500PCS/ctn
Port ShenZhen
Lead Time With 5 working days

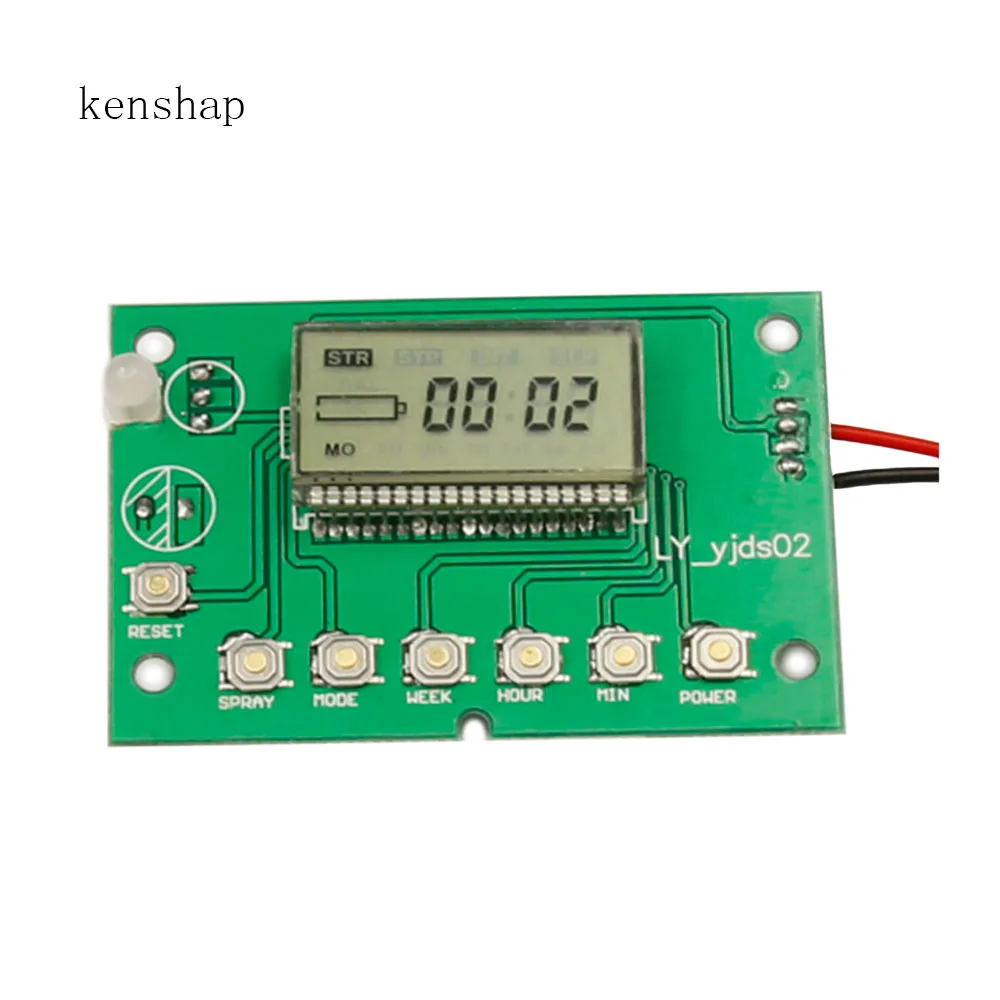

LYXD-ADT02 is a control panel for LCD liquid crystal display timed aerosol dispenser. It can be set for any number of days in a week, any time interval, spray perfume time, for aerosol dispensers, timer supplies, etc.
Features:
1 \\LCD screen display;
2 \\Battery power supply, easy to install;
3 \\LED two-color work instructions;
4 \\ low power indication;
5 \\ seven settings buttons, respectively:
1> REST: reset button;
2> SPRAY: Spray button, press this button, the machine will delay spraying for 4 seconds, the indicator will flash green and red 3 times each time.Of course After the injection, to test whether the working state of the machine is normal;
3> MODE: mode button, each time you press the following five parameters: START-start injection time, STOP-stop injection time, INTERVAL - injection time interval setting, WEEK - week work setting, CLOCK - time setting,
4> WEEK: can be set to work days in any day of the week
5> HOUR: set the hour of the time;
6> MIN: set the minute of the clock;
7> POWER: power switch;
2 \\Battery power supply, easy to install;
3 \\LED two-color work instructions;
4 \\ low power indication;
5 \\ seven settings buttons, respectively:
1> REST: reset button;
2> SPRAY: Spray button, press this button, the machine will delay spraying for 4 seconds, the indicator will flash green and red 3 times each time.Of course After the injection, to test whether the working state of the machine is normal;
3> MODE: mode button, each time you press the following five parameters: START-start injection time, STOP-stop injection time, INTERVAL - injection time interval setting, WEEK - week work setting, CLOCK - time setting,
4> WEEK: can be set to work days in any day of the week
5> HOUR: set the hour of the time;
6> MIN: set the minute of the clock;
7> POWER: power switch;
Specifications:
1 \\Battery supply: 3.0V;
2 \\Power consumption: <100uA;
3 \\ indicator: work red indication;
4 \\ working temperature: -20-80 ° C;
5 \\PCB board shape and function can be customized;
2 \\Power consumption: <100uA;
3 \\ indicator: work red indication;
4 \\ working temperature: -20-80 ° C;
5 \\PCB board shape and function can be customized;

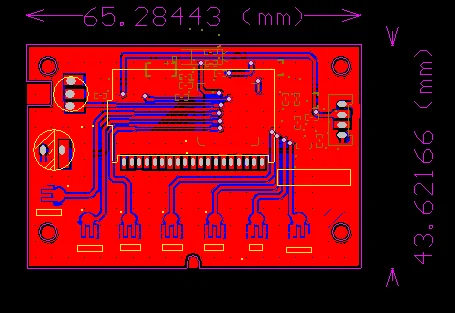

PCB LAYOUT:
