Product Overview
Description
Product Description

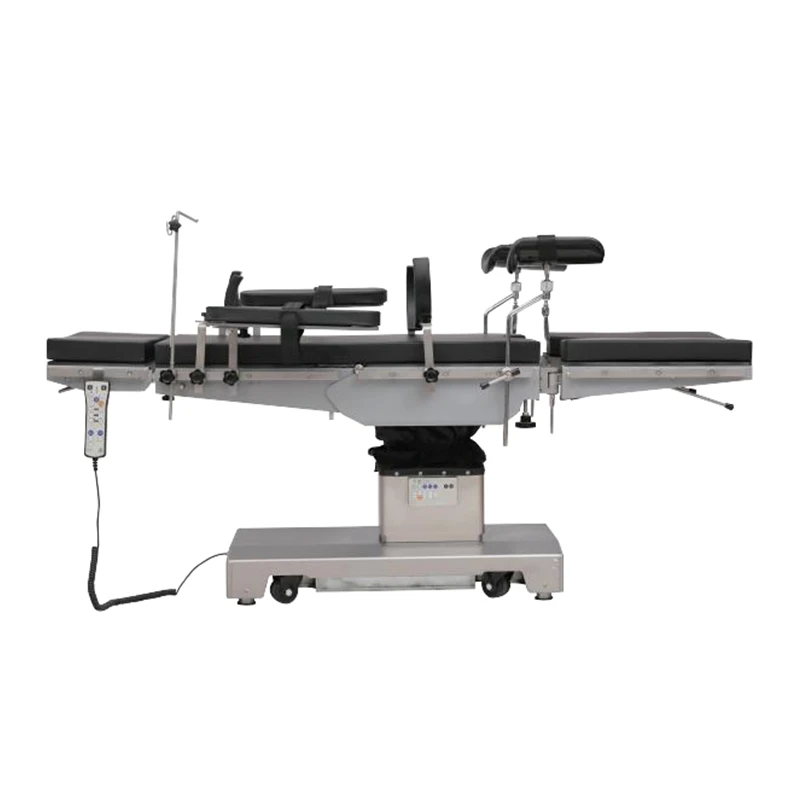

Hydraulic operating room table pump for operating table
Product Name | Hydraulic operating room table pump for operating table |
Size: | 2020*550*590-1020mm |

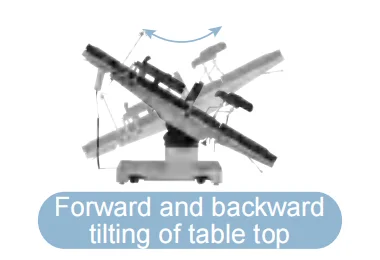

Angle of reclining in front of the bed | Forward ≥25°, Backward ≥25° |

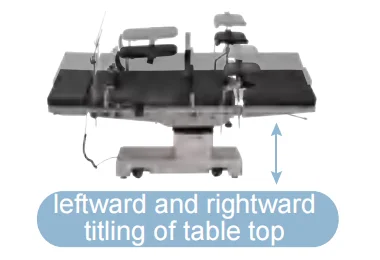

The angle of the bed surface | Left tilt ≥20°, right tilt ≥20° |
Headboard turning angle (manual) | Fold up≥30°, Fold down≥60° |
Leg turning angle (manual) | Down fold ≥90°, Abduction ≥90° |
Backboard turning angle | Fold up≥80°, Fold down≥30° |
Built-in waist bridge lifting stroke | ≥110mm(±10mm） |
One-button buckling anti-buckling | V-shaped posture: ≤100°, reverse V-shaped posture: ≤220° |

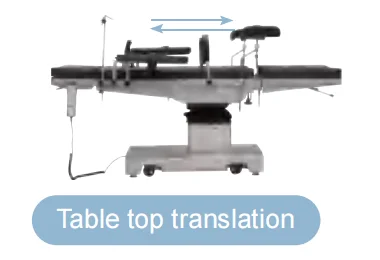

Maximum translation distance of table | ≥300mm |
Rated load | 225kg |
Power | 220V±10％ ,50Hz |
The hydraulic system uses imported parts and enables stable and reliable working with great load-bearing, low noise. It meets the needs of different surgeries in thoracico-abdominal surgery, brain surgery, gynecology, urology, E.N.T, orthopedics departments and so on.

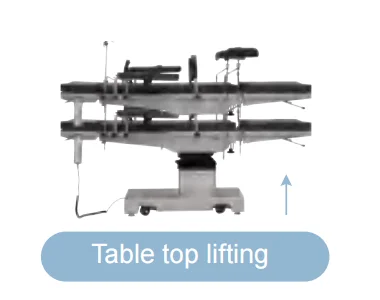

1. The low position and long lifting distance provide sufficient space to use with the C-shaped arm;
2. A built-in emergency power supply is equipped to ensure that the operating table can work normally when the mains supply is cut off.
3. The built-in waist bridge is electrically lifted to facilitate the adjustments of various positions required by lumbar, spinal and other surgeries;
4. The mattress made of memory foam is corrosion resistant, acid & base resistant, breathable, and easy to clean;
5. The leg boards are detachable and can be extended outward to facilitate gynecological and urological surgeries;
6. The one-key reset function can return the operating table back to the horizontal zero position by just pressing one key;
2. A built-in emergency power supply is equipped to ensure that the operating table can work normally when the mains supply is cut off.
3. The built-in waist bridge is electrically lifted to facilitate the adjustments of various positions required by lumbar, spinal and other surgeries;
4. The mattress made of memory foam is corrosion resistant, acid & base resistant, breathable, and easy to clean;
5. The leg boards are detachable and can be extended outward to facilitate gynecological and urological surgeries;
6. The one-key reset function can return the operating table back to the horizontal zero position by just pressing one key;

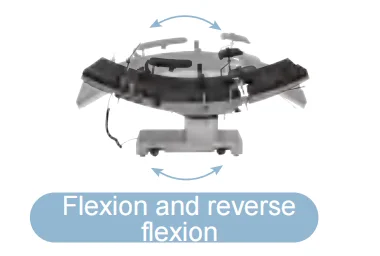

7. One-key flexion and reverse flexion The waist bridge position can be easily realized to meet the need of biliary and kidney surgeries;
8. The hydraulic system is started by one-key oil cylinder startup, which is safe and stable;
9. Locking by electric brake;

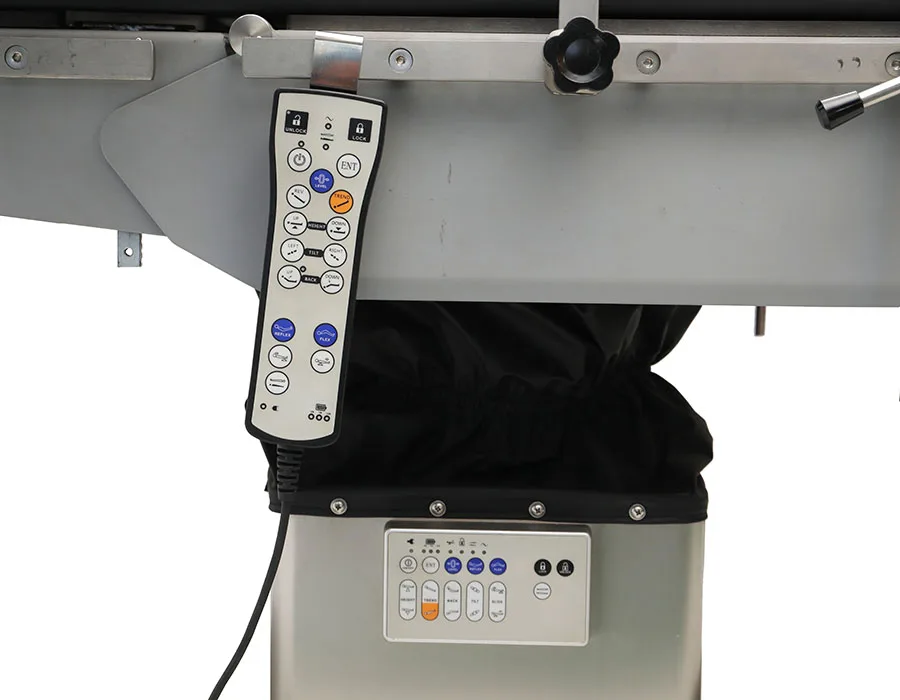

10. The movement of the operating table is controlled by two independent systems, a hand controller and a column panel, to provide stable and accurate operation, which are easy to operate, safe and reliable;
8. The hydraulic system is started by one-key oil cylinder startup, which is safe and stable;
9. Locking by electric brake;
10. The movement of the operating table is controlled by two independent systems, a hand controller and a column panel, to provide stable and accurate operation, which are easy to operate, safe and reliable;
11. The main body is made of SUS304 stainless steel and has a rectangular base composed of high-strength cast iron and aluminum alloy that is strong and rigid to ensure the stability of the
operating table;

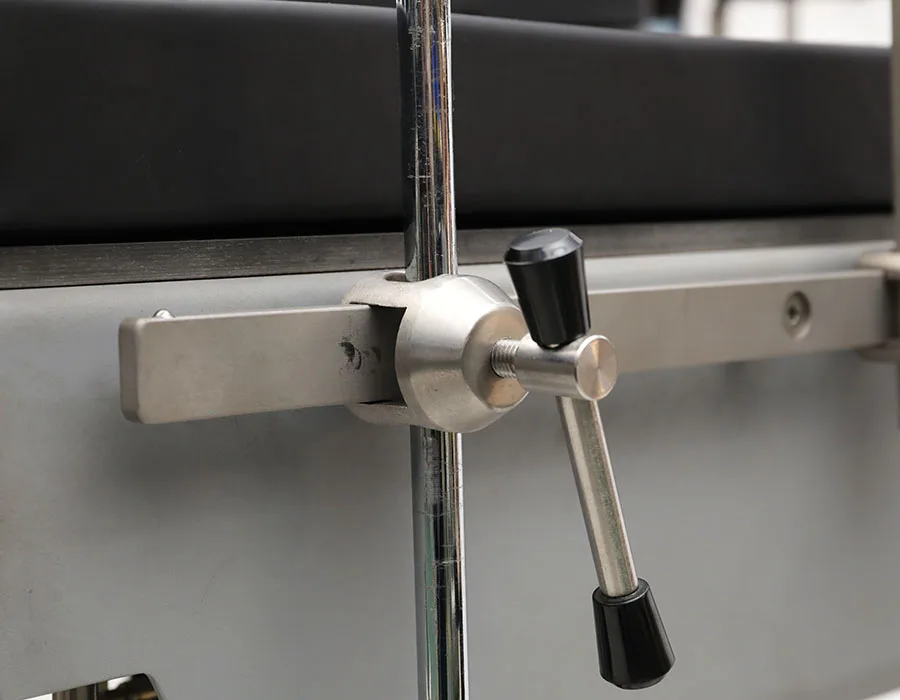

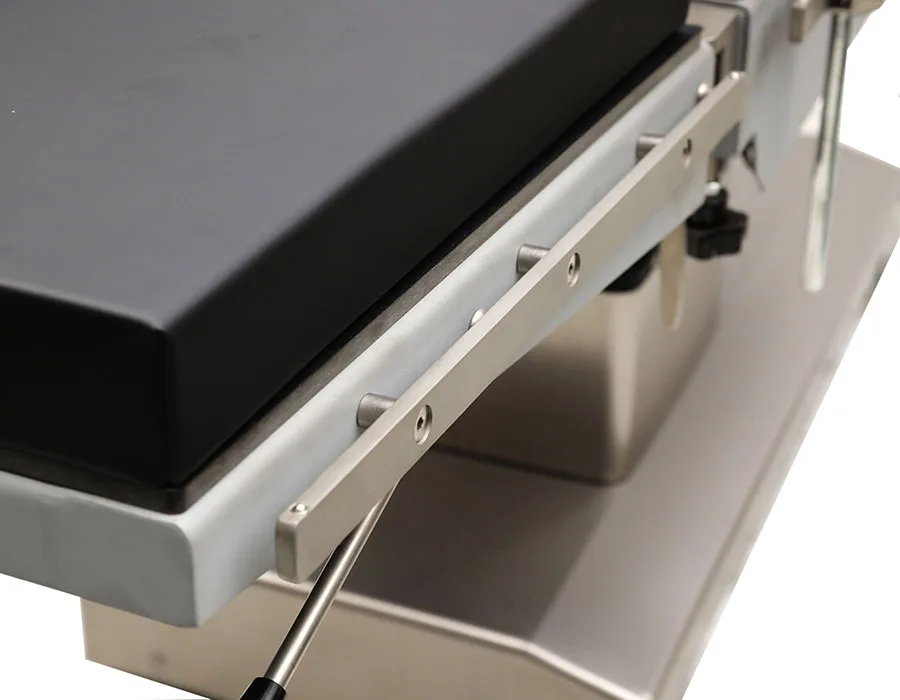

12. The side rails are made of stainless steel according to international standard size, which can be installed and used with various accessories;
13. The operating table is equipped with a built-in battery to ensure normal use of the device in case of a power failure.
operating table;
12. The side rails are made of stainless steel according to international standard size, which can be installed and used with various accessories;
13. The operating table is equipped with a built-in battery to ensure normal use of the device in case of a power failure.
Functions

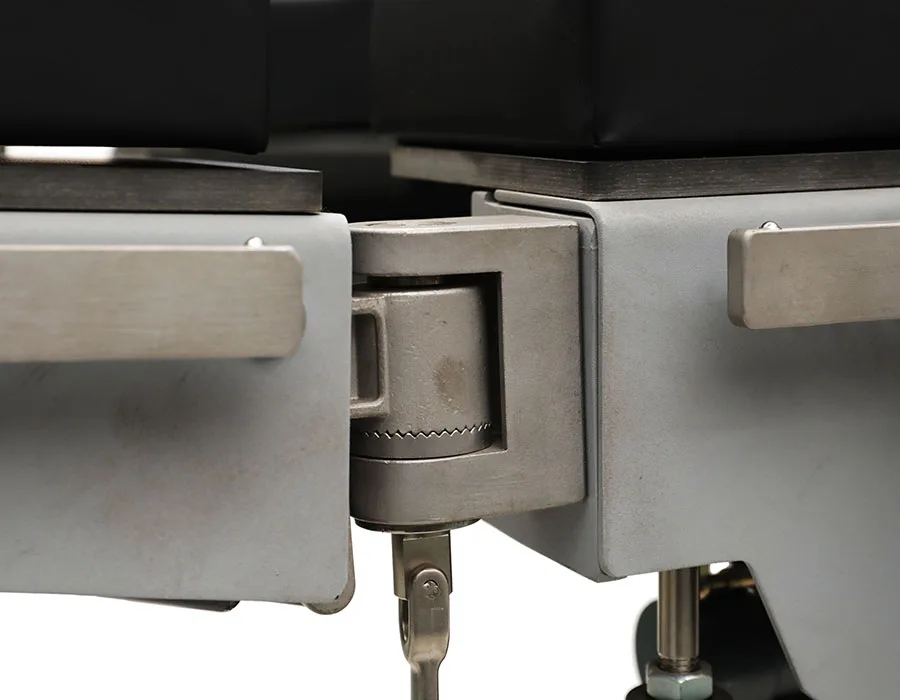

Details Images
Our Company
Our Certifications
Customer Photo
FAQ
Q1. Are you a factory or trading company?
We are factory.OEM&ODM orders are avaliable here.
Q2. Where is your factory located? How can I visit there?
Our factory is located in Luoyang City,Henan Province,China.2 hours by air from Guangzhou to Luoyang.You can go to Luoyang by train or by air,and then we will pick you up there.
Q3. How long is your delivery time?
If we have raw material in stock,usually 15-25 days,if not ,kit will take 20-30 days ,which depends on the quantity.
Q4. How can I get some samples?It is free or extra?
We are honored to offer you samples for free.
Q5. Which certification do you have?
Our company has passed ISO 9001/ISO 14001/ISO 18001/ISO 13485/ISO 45001 certification.
Q6. What is your terms of payment?
L/C,T/T,Western Union,Paypal,Cash,Credit ect.,
