Steel Making Ladle Refractory Sliding Gate Plates 1QC

Product Overview

Description

Steel Making Ladle Refractory Sliding Gate Plates



1. Our Factory



Jinan Linquan Industry and Trade Group Co., Ltd. is a collection of scientific research, design, development, production, and import and export trade in one group of Companies, a national large-scale backbone enterprise for refractory materials. Our company covers an area of more than 300 thousand square meters, have advanced technology and equipment, testing equipment and instruments. We mainly produce fireclay refractories, high aluminum refractories, carbon-containing refractories, and have the production line of a variety of high-purity synthetic materials.

Our most popular products: All series of Ladle and Tundish refractories

Our annual production capacity of slide gate plates is more than 80,000 tons.



List of our main products:

Ladle Slide plate, ladle and tundish nozzle, well block, porous block, refractory castable, refractory brick, parts of raw materials..

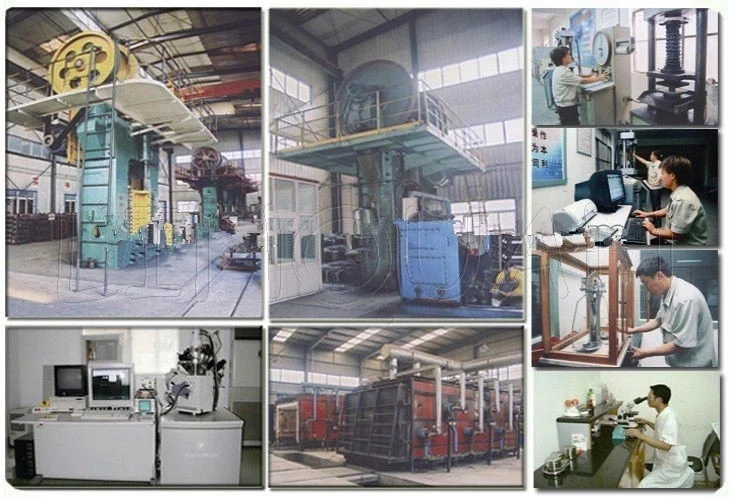

Main Production Equipment:

Friction brick press 400t 1 units

Friction brick press 500t 2 sets

Friction brick press 630t 5 sets

Friction brick press 1000t 4 sets

Vacuum composite PRESS 1000t 3 sets

Hydraulic press 630t 2 sets

Wet grinding machine 8 sets

The mixing machine 4sets

Tunnel kiln 8 sets

Shuttle kiln 3 sets

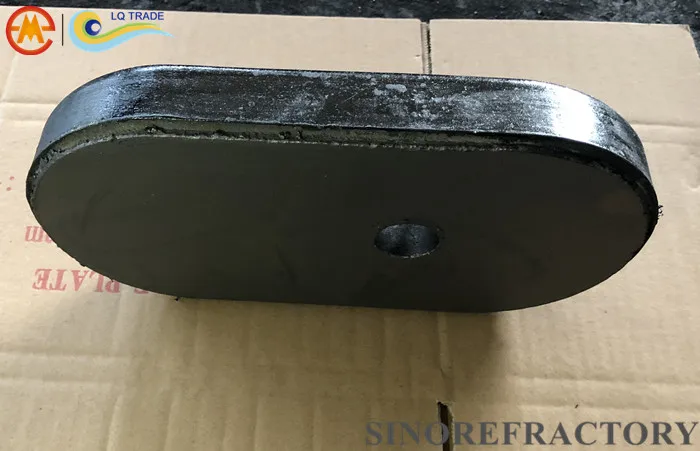

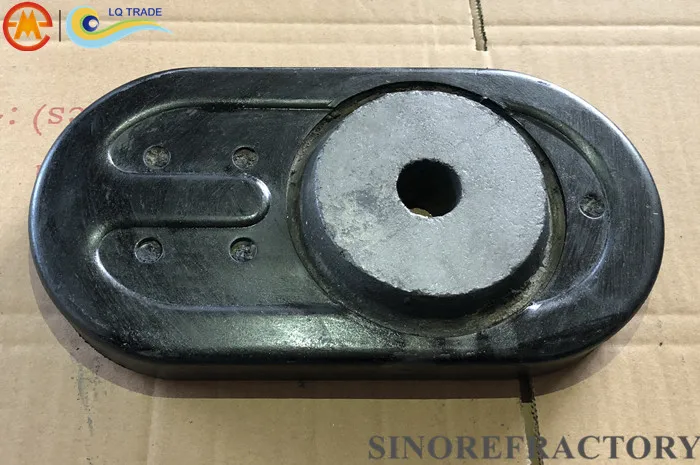

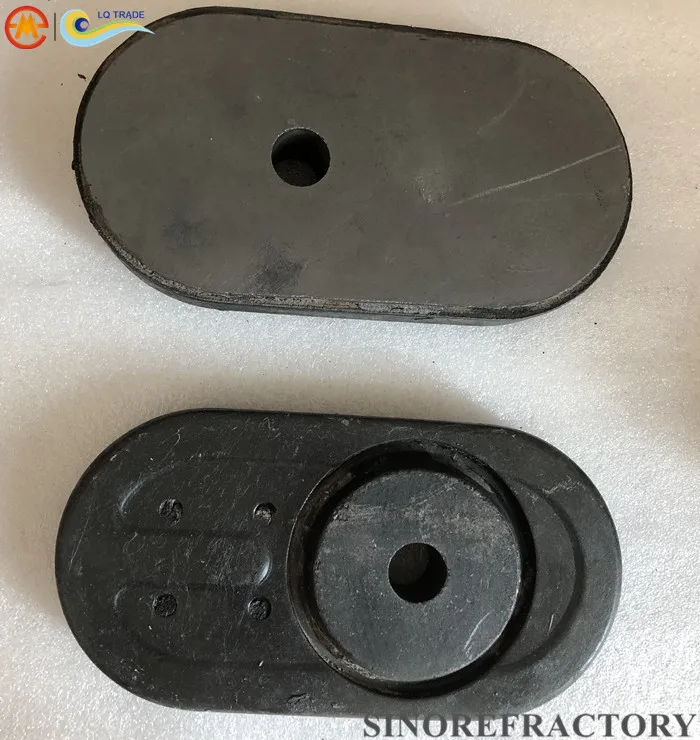

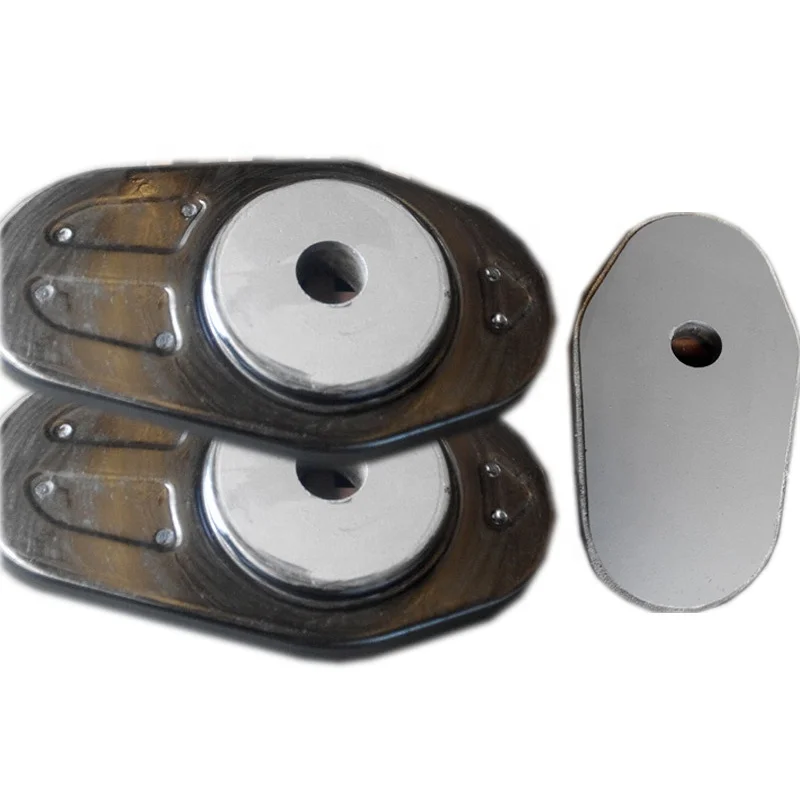

1.  Details of Steel Making Ladle Refractory Sliding Gate Plates

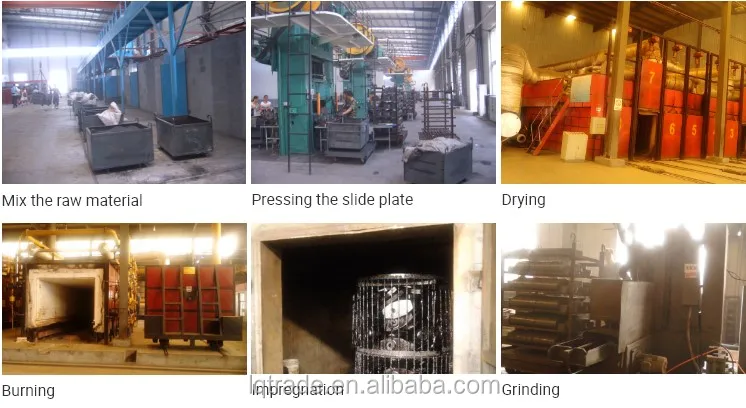

This product adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.



















Al-Zr-C Material
Al2O3	C	ZrO2	Apparent porosity	Bulk density	C.C.S
(% minm)	(% minm)	(% minm)	(% max)	(gm./cc minm)	(MPa minm)
85	3	5	7	3.1	120



Al-C Material
Al2O3	C	Apparent porosity	Bulk density	C.C.S
(% minm)	(% minm)	(% max)	(gm./cc minm)	(MPa minm)
90	3	9	3.00	120



Depending on the requirements of the customers, these plates are manufactured in different qualities, namely Alumina Carbon, Alumina Spinnel Carbon, Magnesia Spinnel Carbon and Alumina Zirconia Carbon.







3. Package of Steel Making Ladle Refractory Sliding Gate Plates



Packaging: carton+ wooden case+pallet.

Transportation&storage:Keep dry and handle with case.
To be kept upright.









Welcome to inquiry, give you a best solution!
