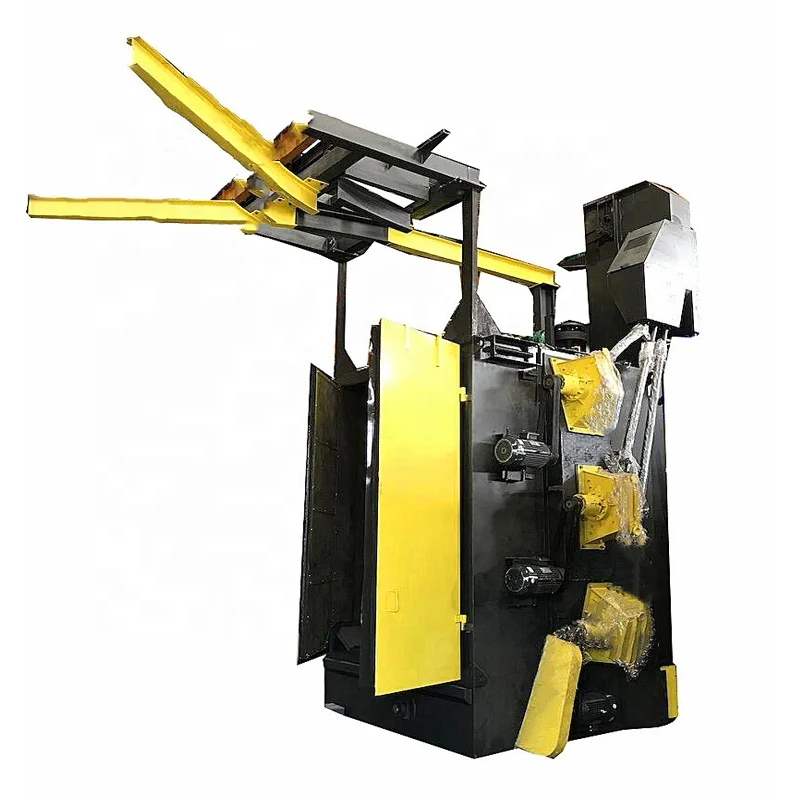

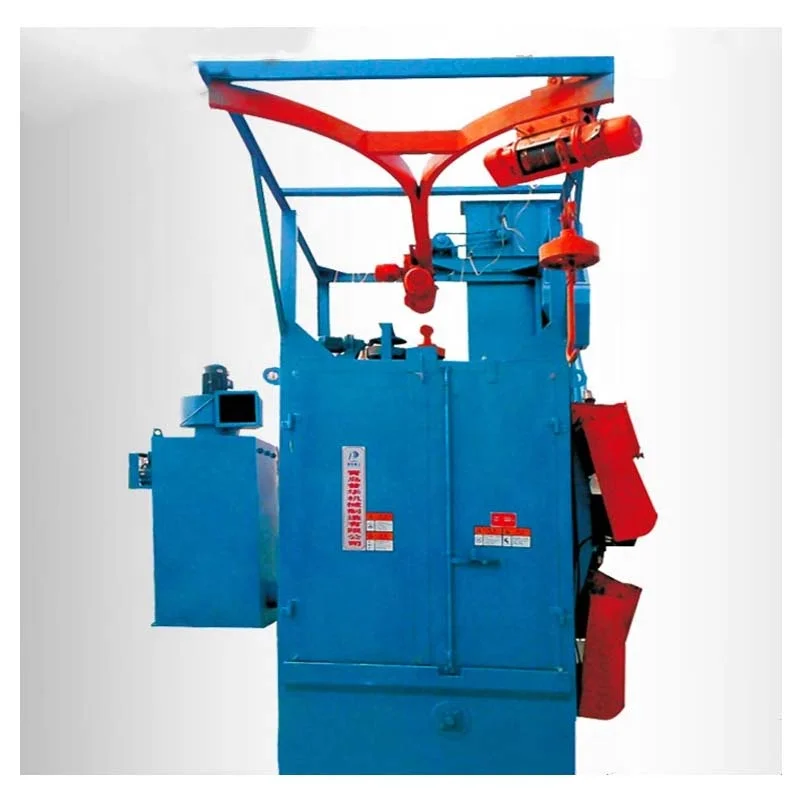

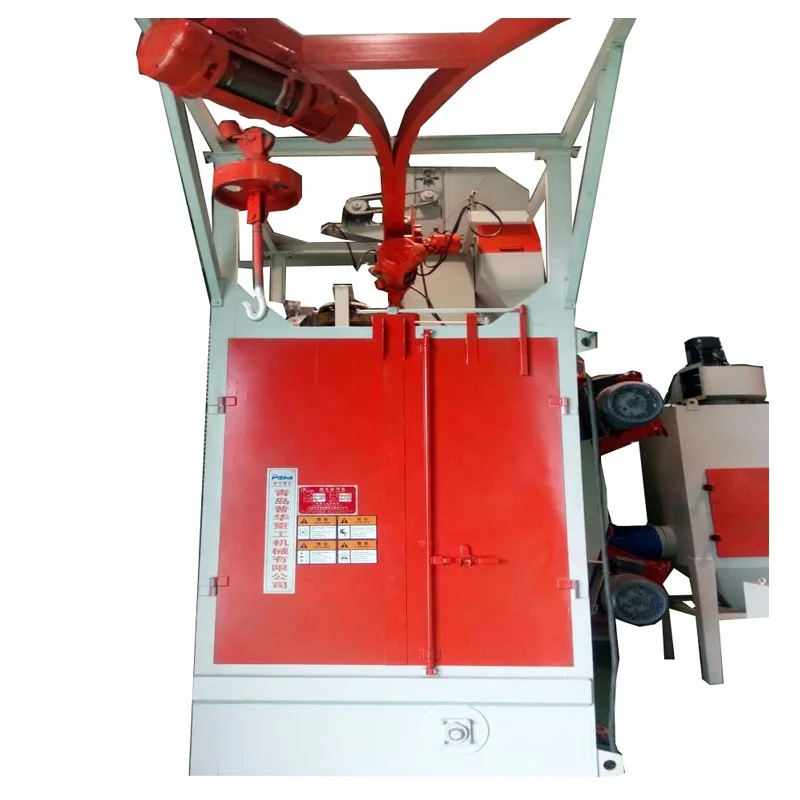

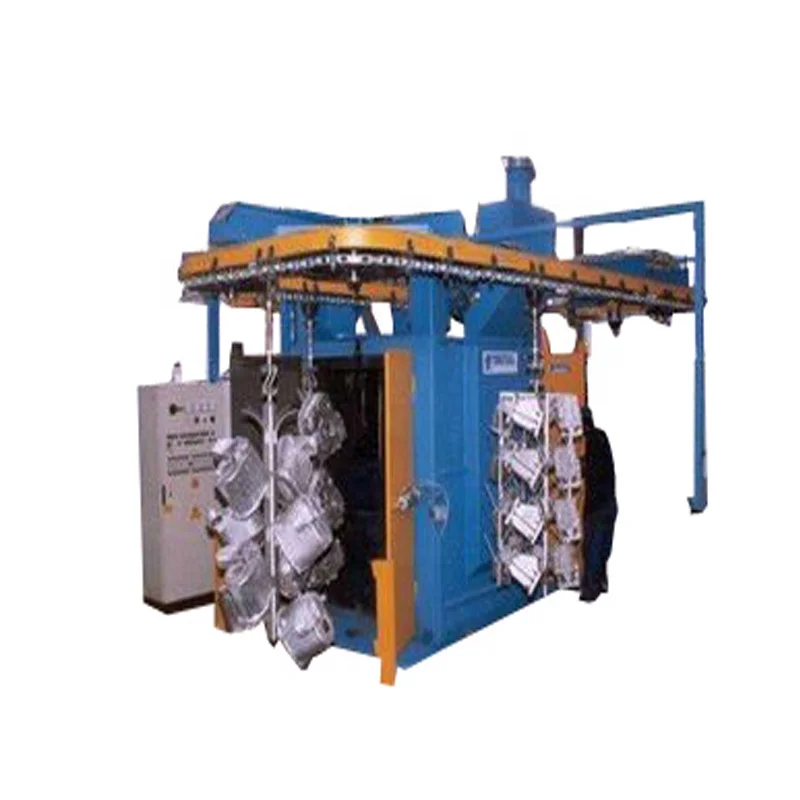

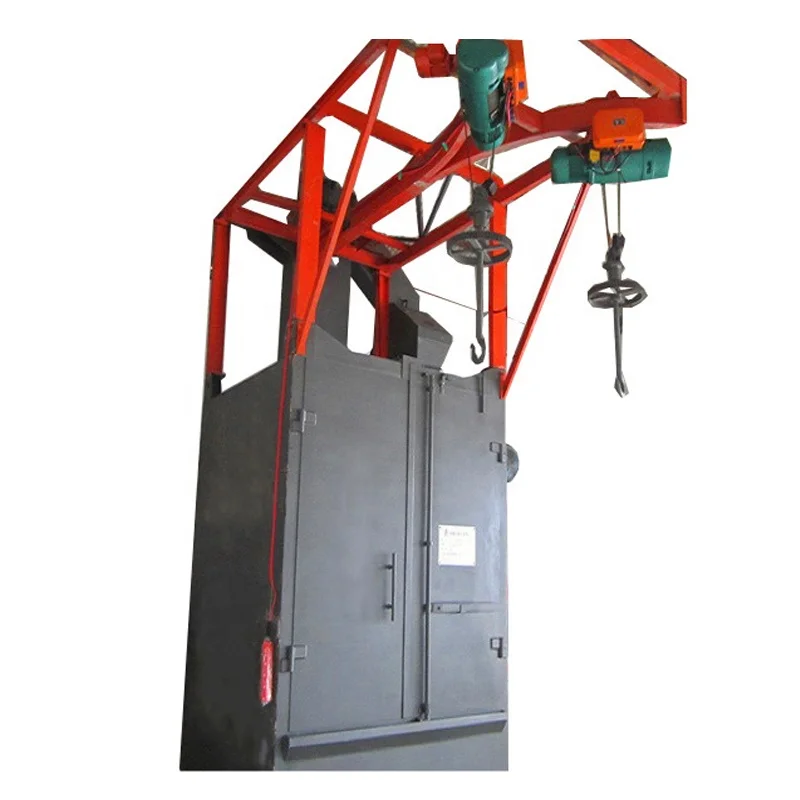

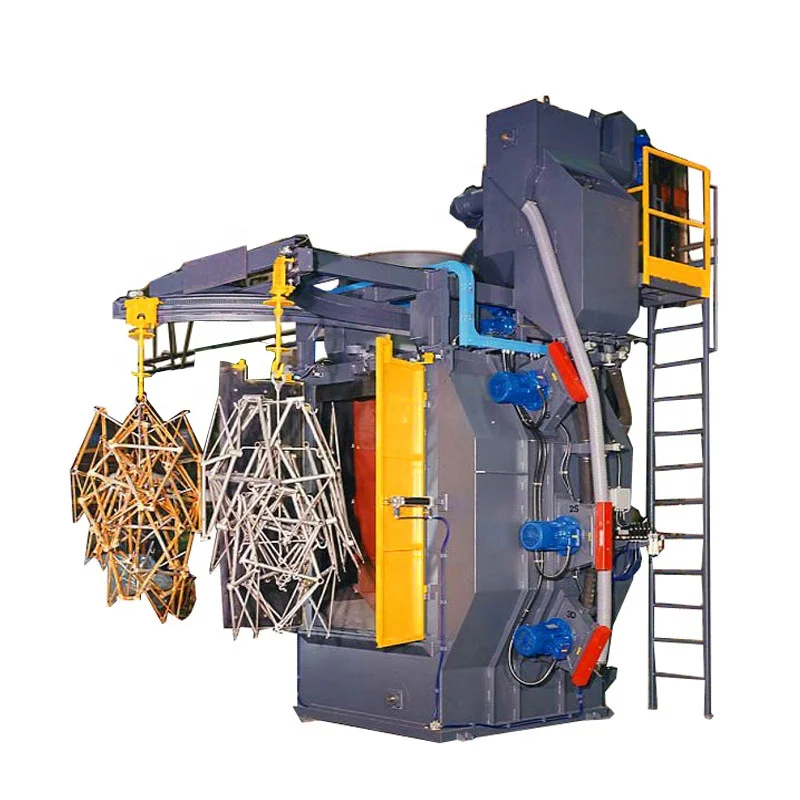

High efficiency hook type shot blasting machine/sand blasting machine/wheel blasting machine

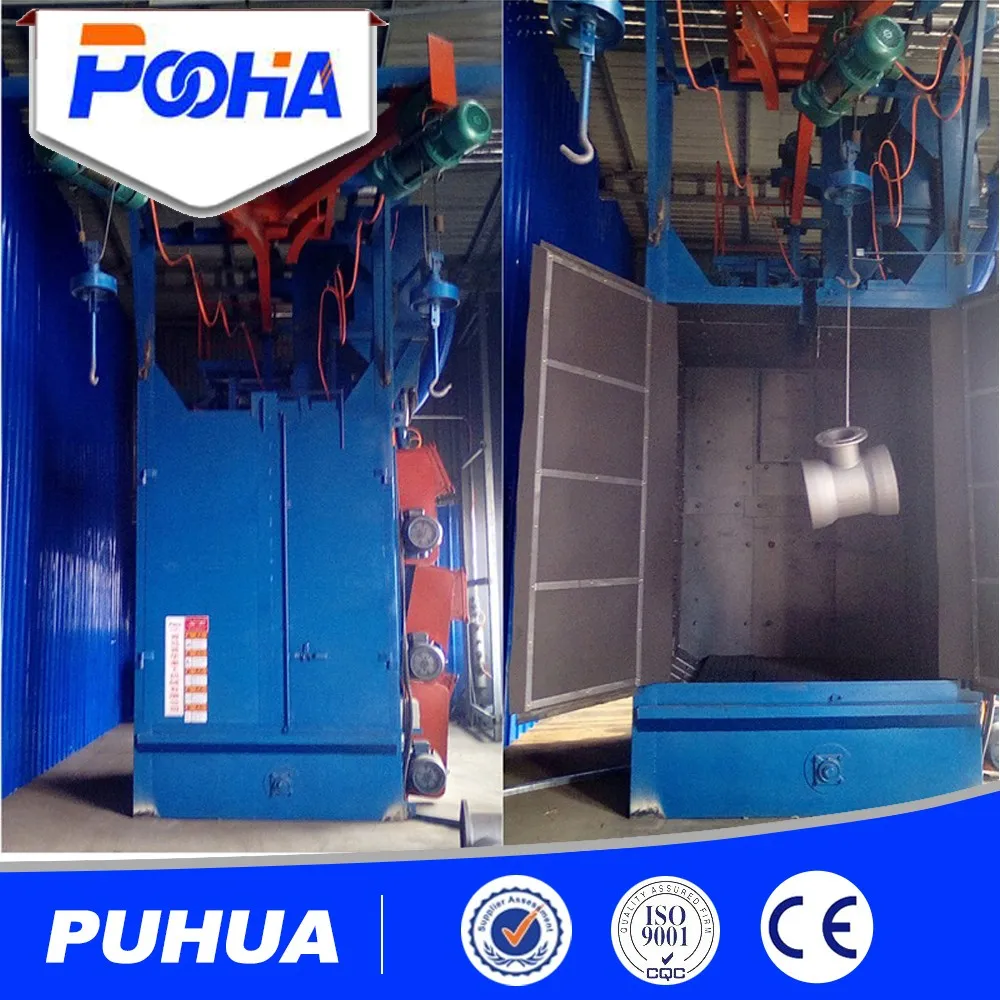

Q37 hook shot blasting machine automation as standard type shot blasting machine, Drum diameter from 900-1300 mm, Its height from 1300 to 3500 mm, Standard shot blasting machine with 2-7 shot blasting wheel, The maximum load capacity of 10,000 kg, The shot blasting machine production efficiency is very high, flexibility span is quite large, is ideal for cleaning equipment to strengthen, and easy operation, the workpiece to be processed simply loaded on the machine, press the start button, after a very short time (typically 5-7 minutes), to complete the entire cleaning process, remove any dust and residue pellets, mainly suitable for the surface treatment of large castings, forgings, weldments, heat treatment member, and includes a frangible irregularly shaped workpieces.
Technical Parameters:

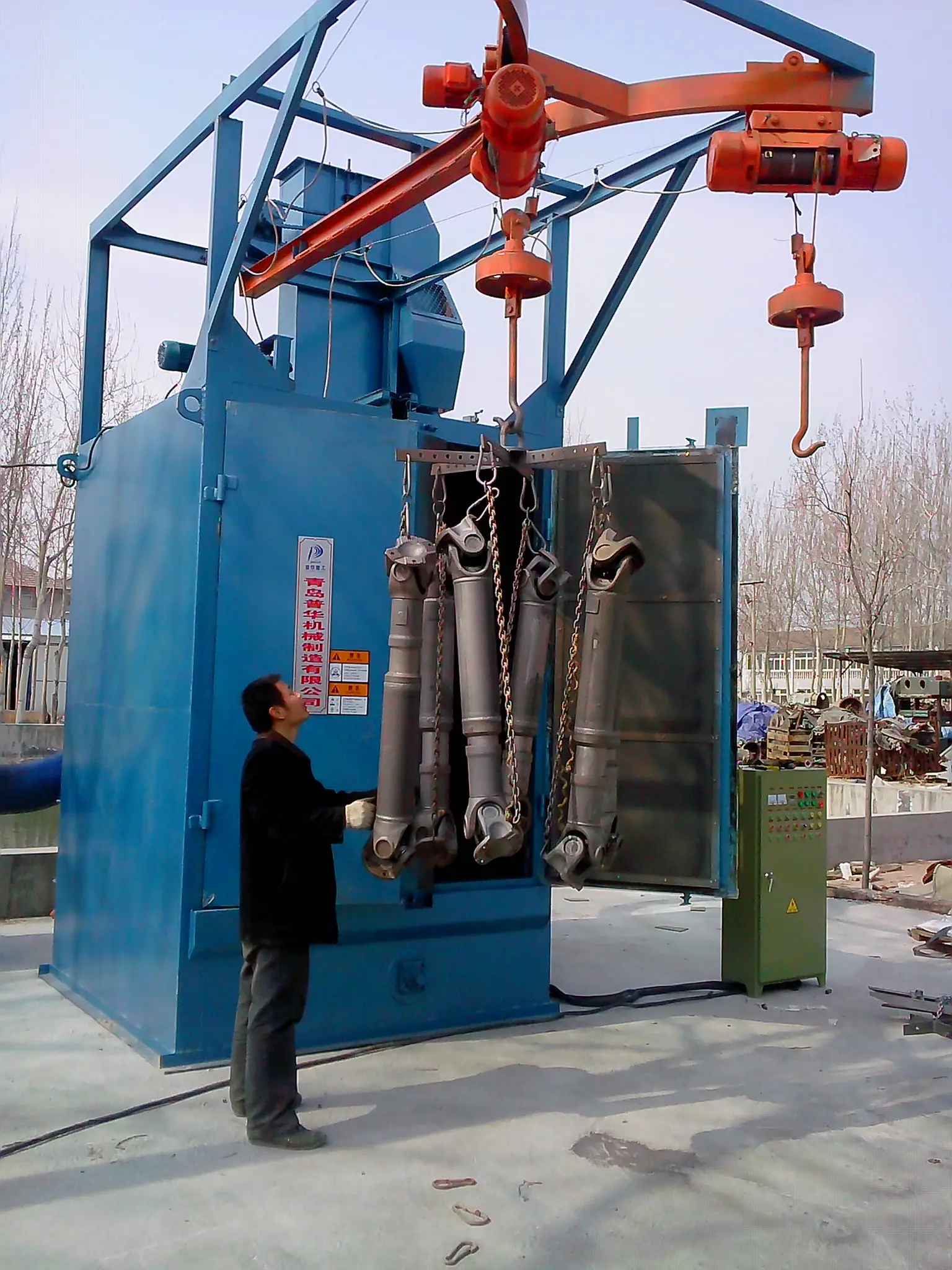

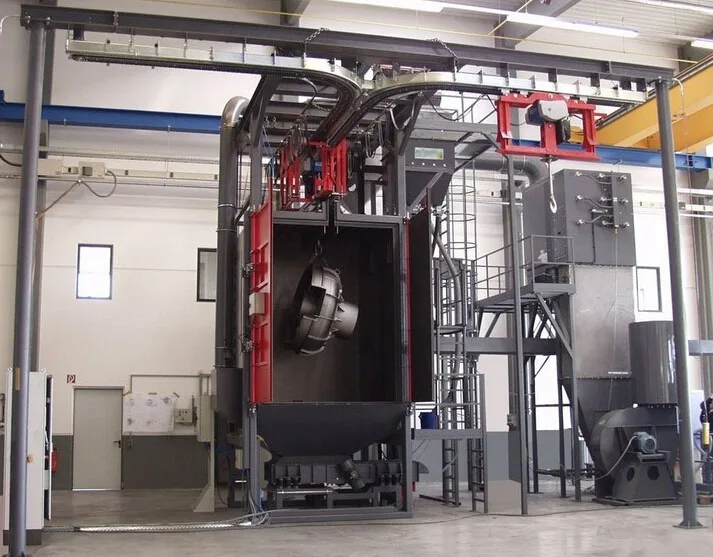

Hanging load shot blasting machines ideal to treat parts of all sizes and/or particularly fragile parts. The available units are provided with hooks or hoists for heavier parts. By installing magnetic drums and with appropriate devices it is also possible to carry out desanding operations.
Item
Unit
Q376
Q378c
Q3710
Q3720
Q3730
Q3750
Q37100
Maximum weight of cleaning
Kg
500
800
1000
2000
3000
5000
10000
Abrasive flow rate
Kg/min
2*200
2*250
2*250
3*250
3*250
4*250
5*250
Ventilation capacity
m3/h
5000
5000
5000
9000
11000
14000
16000
Elevator lifting amount
T/H
24
30
30
45
45
60
75
Separating amount
T/H
24
30
30
45
45
60
75
Max overall dimensions of
suspender
mm
Ø600
*1200
Ø1000
*1600
Ø1200
*1800
Ø1400
*2200
Ø1600
*2300
Ø1800
*2500
Ø3000
*3000
Mian Product
Our Services
1.Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
Company Information
Qingdao Puhua Heavy Industrial Group was established in 2006.It focus on design, research, development, manufacturing and export of sand blasting booths, sand processing equipment, environmental protection equipment, a variety of shot blasting machine, including roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type etc. All products are professionally designed by our highly-experienced engineers with Auto CAD.
