Central Tube All Dielectric Outdoor Optic Cable Price Duct Buried Armored Gyxtw 12 Fiber

Single Mode Outdoor Nepal Optical Able Manufacturer G662d 12 Core Gyxtw Fiber Optic Cable

Single Mode Aerial Optical G652d Micro Types Direct Buried 12 Core Optic FiberUnitube Non-Metallic Aerial Outdoor Steel Tape Armored 12 Core Optic Fiber Price Per MeterSingle Mode Outdoor Nepal Optical Able Manufacturer G662d 12 Core Gyxtw Fiber Optic Cable

 Deacription:

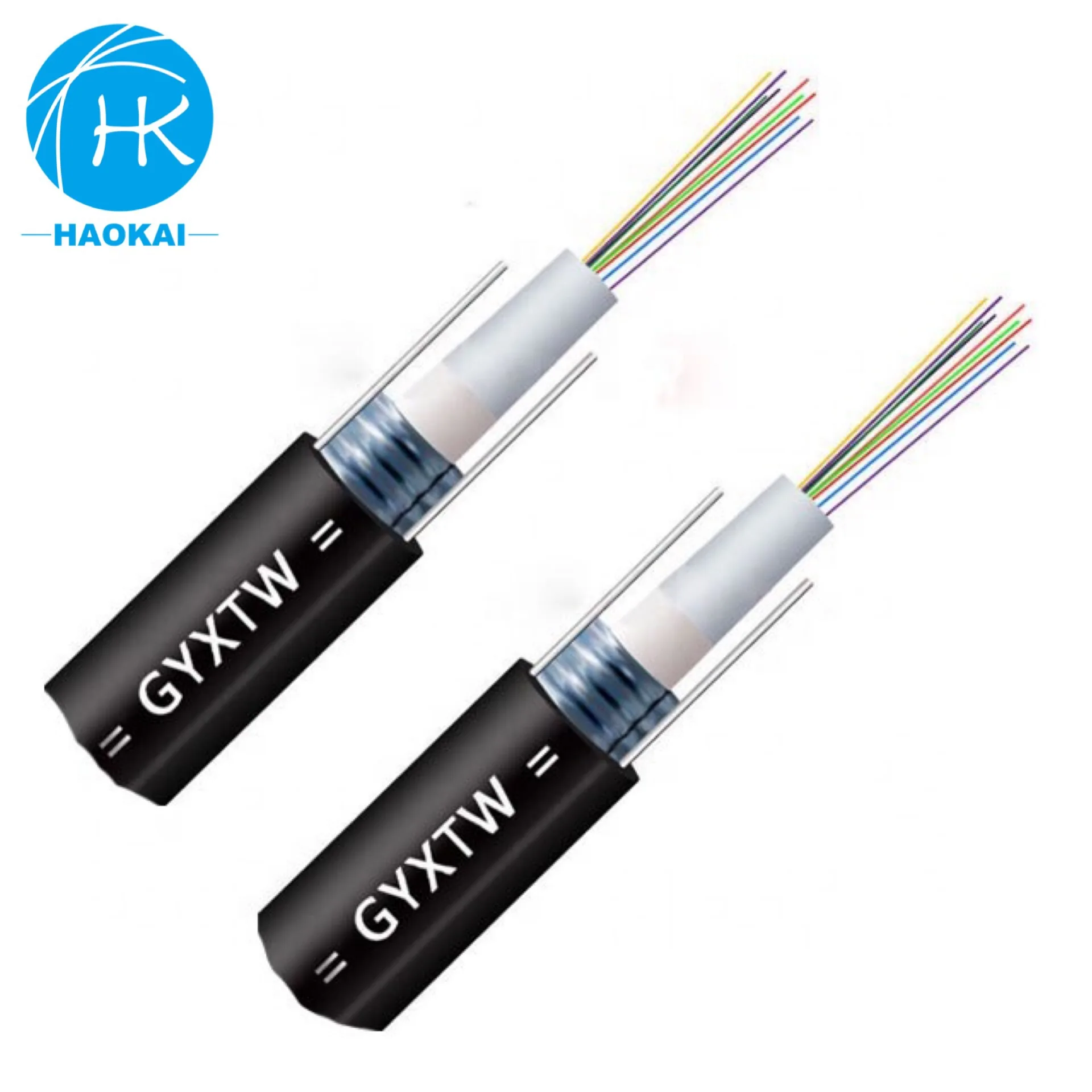

 GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW fiber optic cable from 2 fiber cores to 12 fiber cores. Both single mode type and multimode types are available.

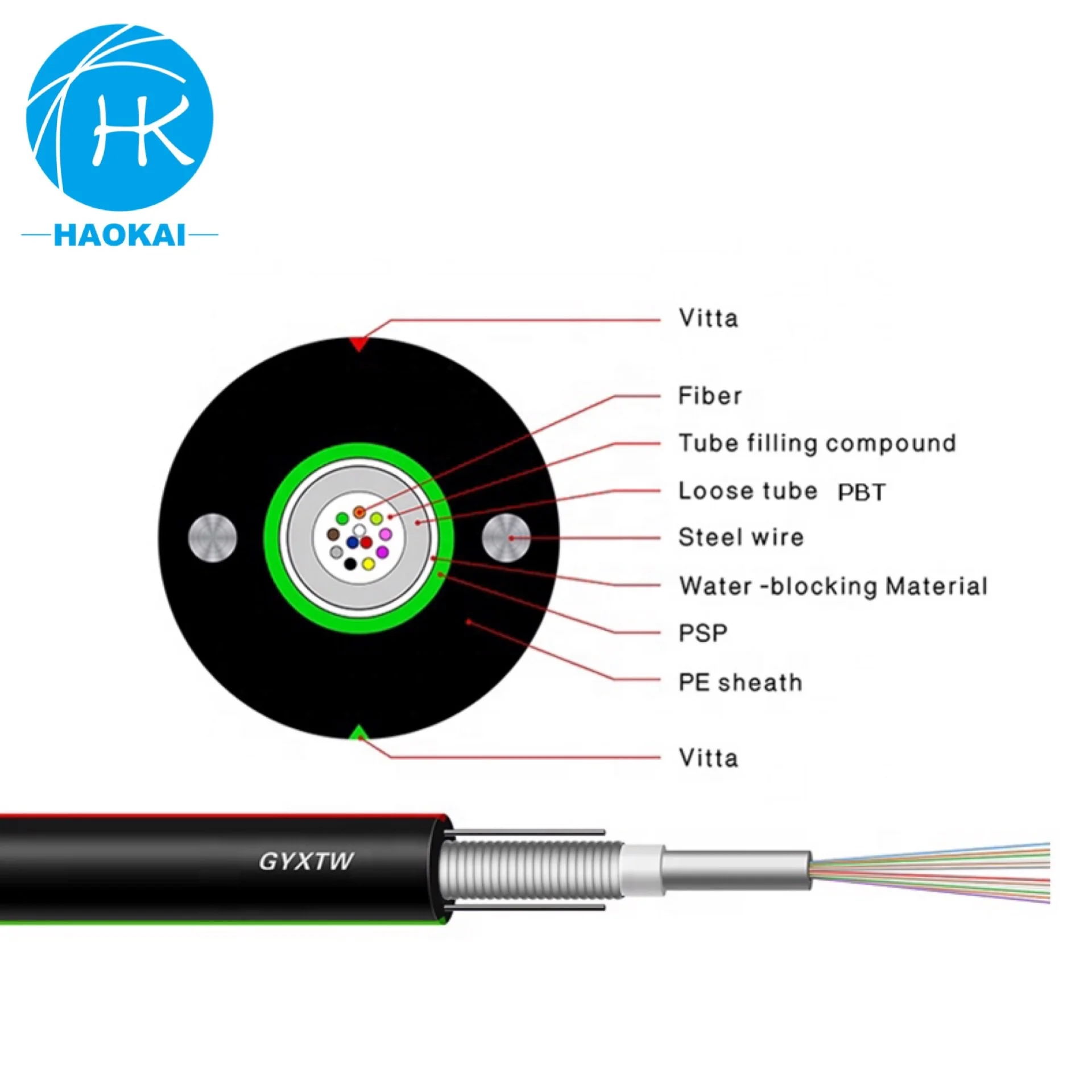

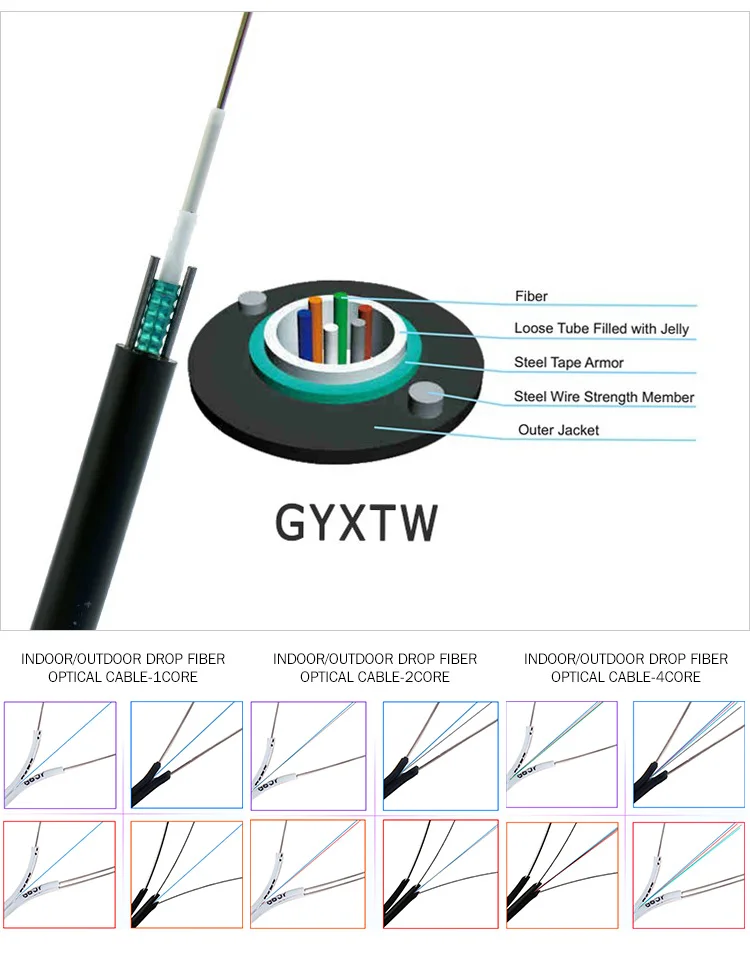

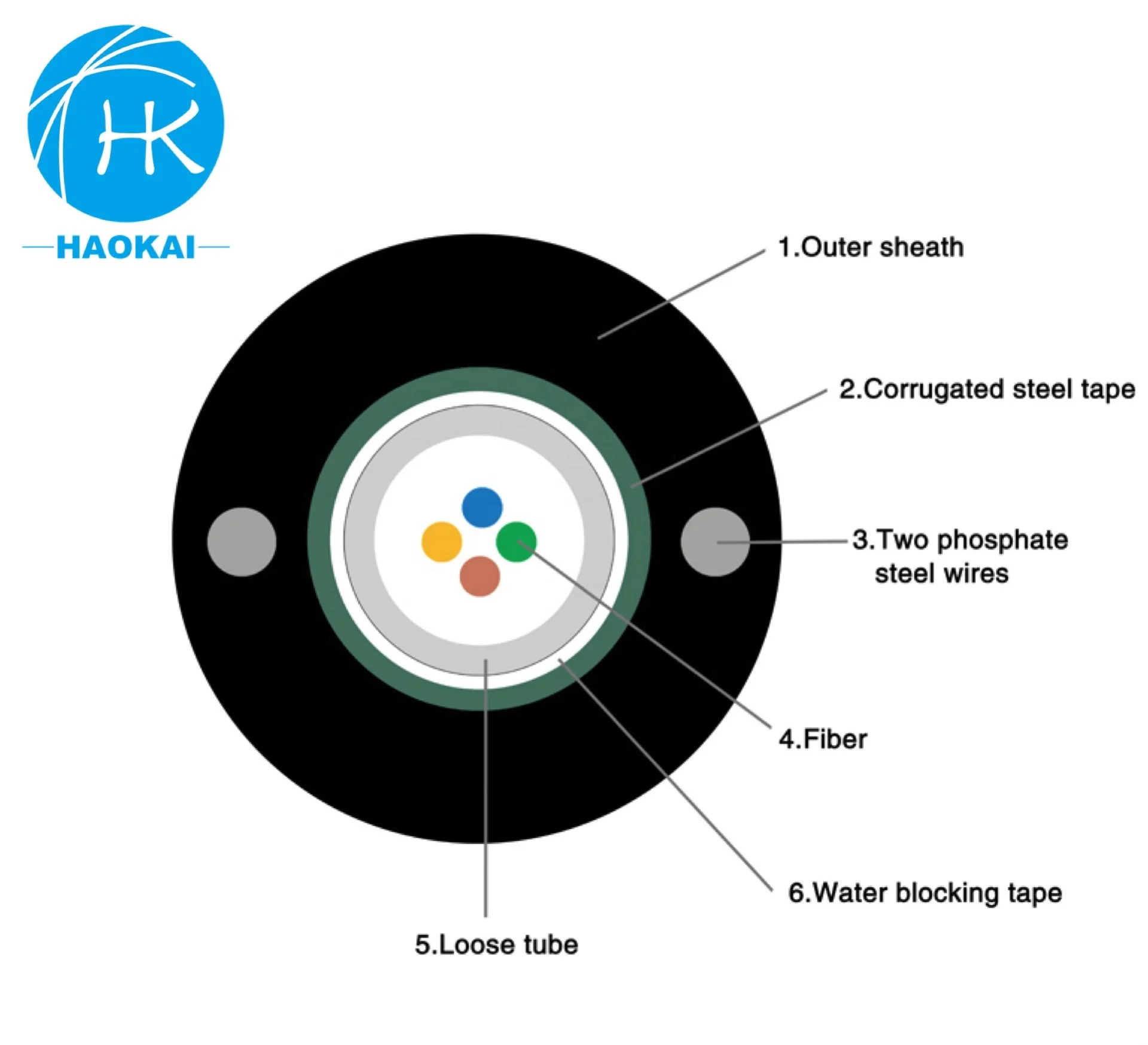

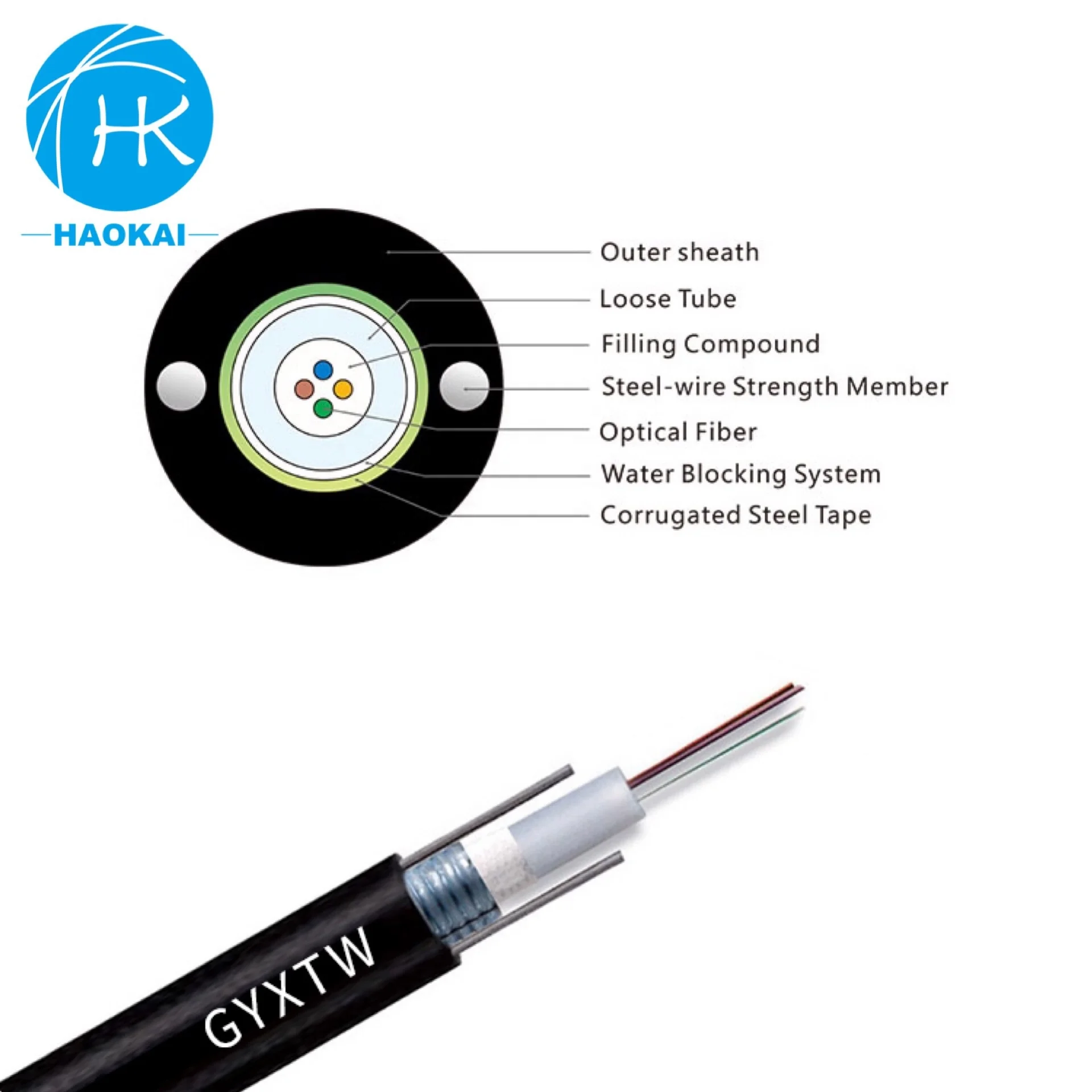

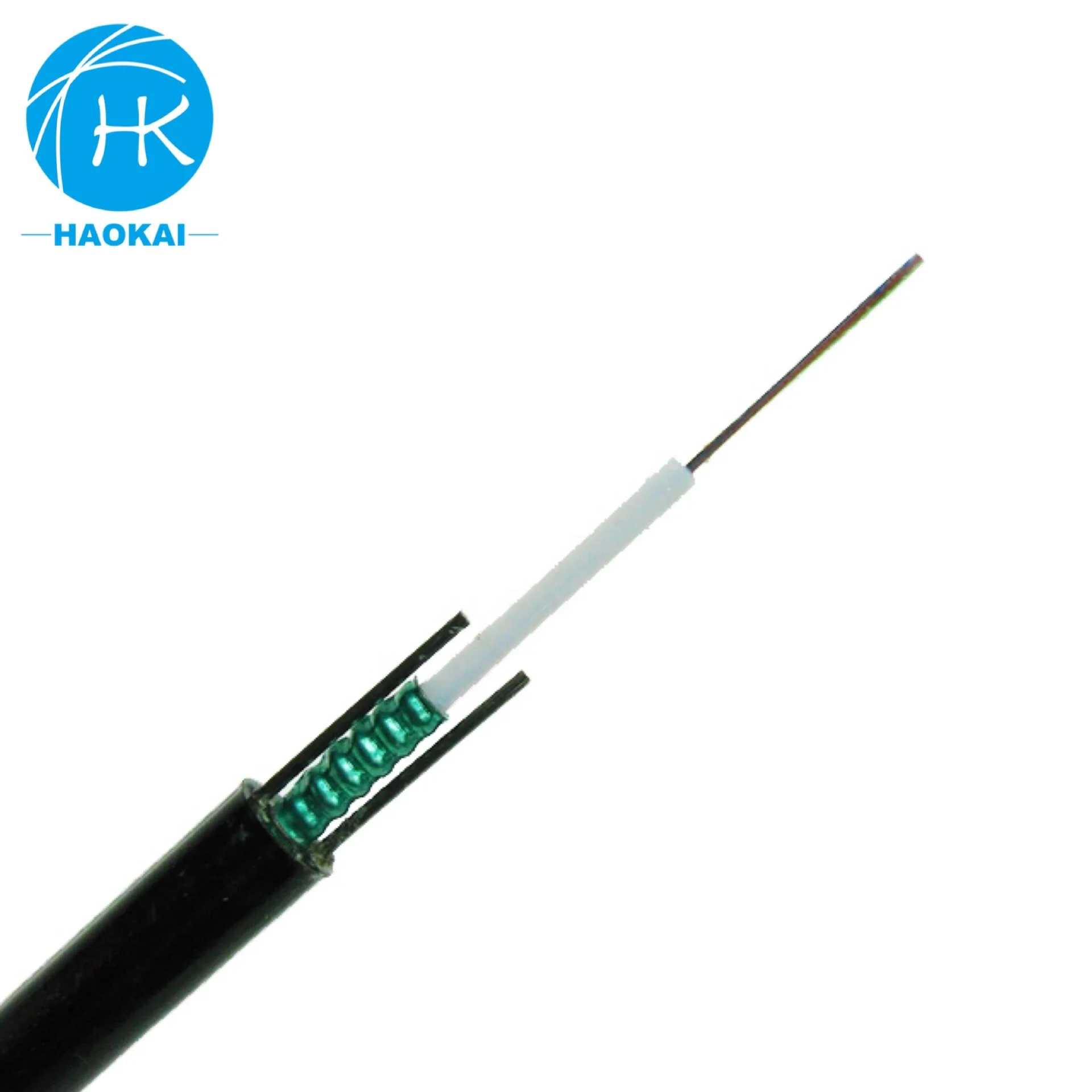

 ·The fibers, 260μm, are positioned in a loose tube made of a high modulus plastic.   · The tubes are filled with a water-resistant filling compound.   · The tube is wrapped with a layer of corrugated steel tape longitudinally.   · Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.   · Two parallel steel wires are placed at the two sides of the steel tape.   · The cable is completed with PE sheath.
 Feature 6 core fiber optic cable
 Low dispersion and attenuation Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.6 core fiber optic cable The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance.6 core fiber optic cable Operating Temperature : -40~+60 ℃



 Cable Parameters
 Items Specifications
 Fiber Count 2~24
 Colored Coating Fiber Dimension 260µm±15µm
 Color Blue, Orange, Green, Brown, Gray, White
 Loose Tube Dimension 2.10mm±0.05mm Dimension 2.10mm±0.05mm
 Material PBT
 Color Natural
 Strength Member Diameter 1.0mm
 Material Steel
 Outer Jacket Dimension 8.0mm±0.1mm
 Material PE
 Color Black



 Technical Parameter
 Fiber  Count Cable  Diameter  (mm) Cable  Weight  (kg/km) Tensile Strength  Long/Short Term (N) Crush Resistance  Long/Short Term (N/100mm) Bending Radius  Static/Dynamic (mm)
 2~12 10.6 124 1000/3000 1000/3000 10D/20D
 14~24 12.0 147 1000/3000 1000/3000 10D/20D
