10km 20dBi long range video transmitter wireless ap outdoor cpe router
- Category: >>>
- Supplier: Zibo Zunzhi Trading Co. Ltd.
Share on (62301338523):
Product Overview
Description
Product Description

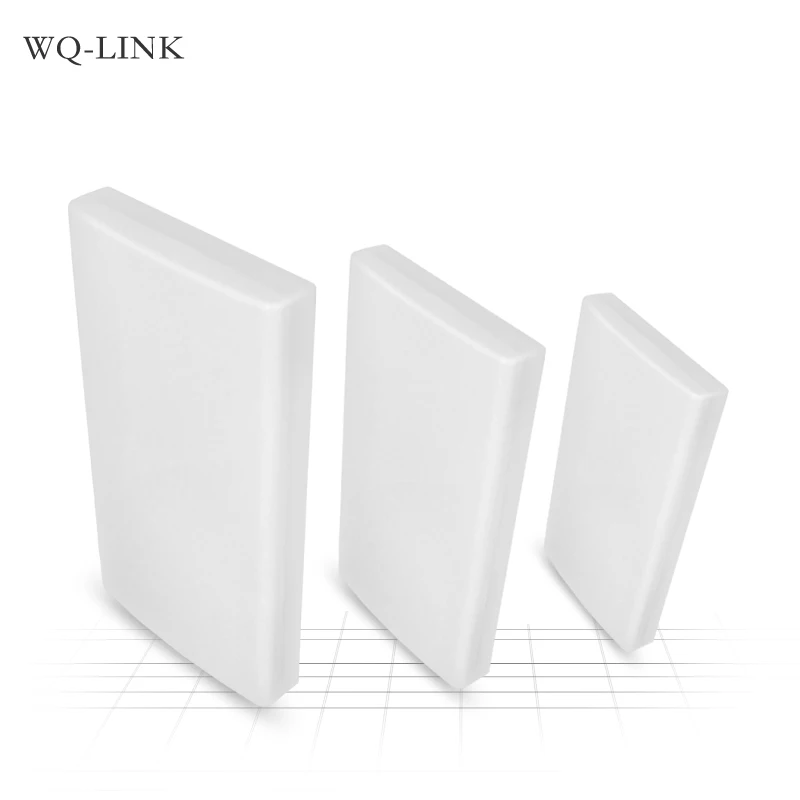

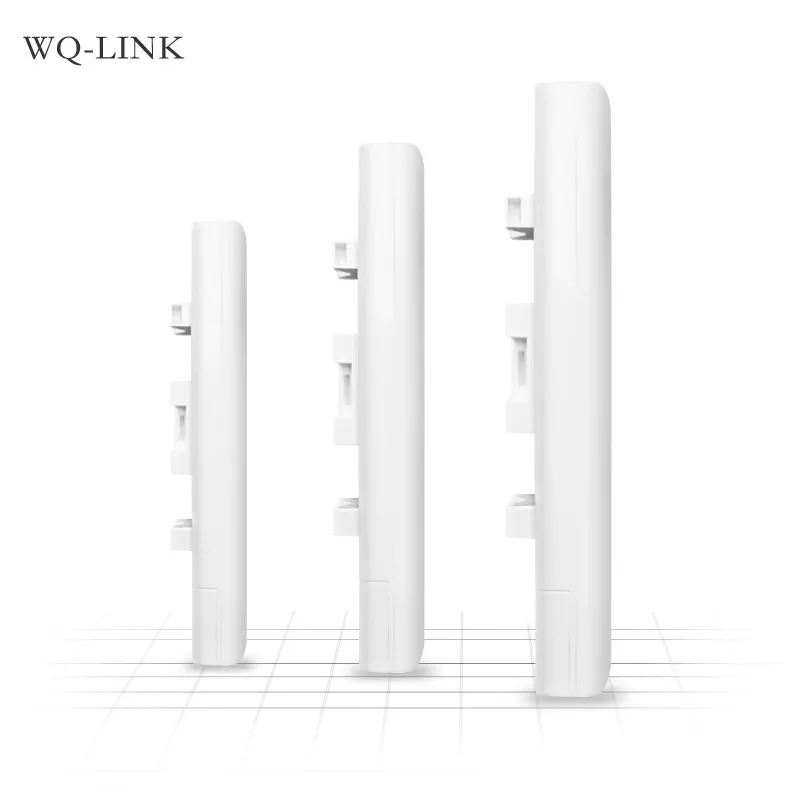

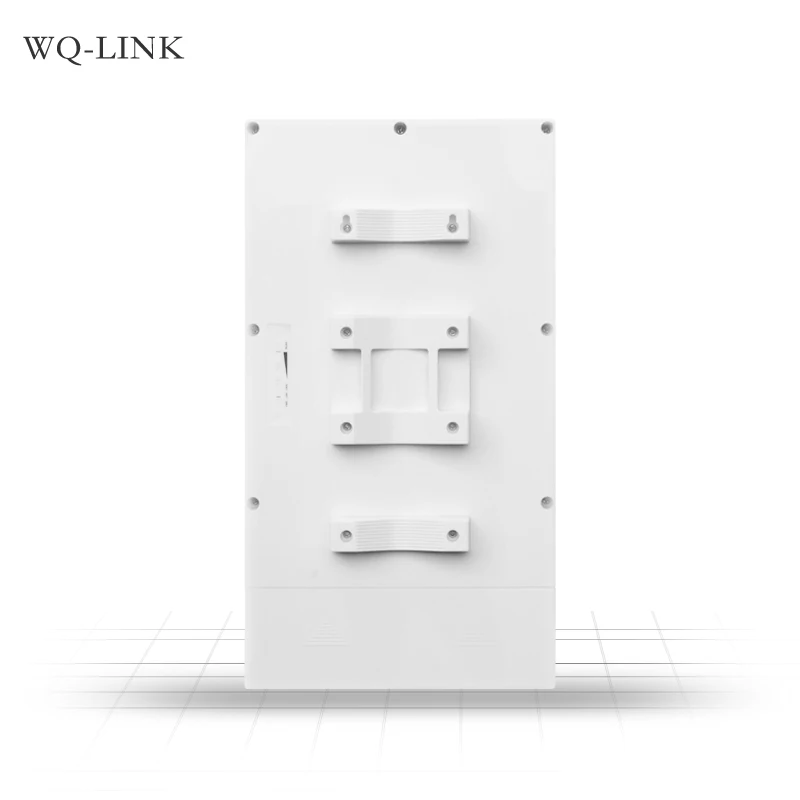

WQ-730L is made of engineering ABS plastic, it is waterproof and anti-oxidant.
It's used for point and point, point to multi-point wireless network transfer or video transfer.
Specification
| Model number | WQ-730L |
| Product Name | 10km 20dBi high power 802.11a/n wireless backhaul radio cpe ap wifi bridge rj45 |
| WLAN standard | IEEE 802.11 a/n, iPoll (proprietary) |
| Radio mode | MIMO 2x2 |
| Frequency band | 5.150 - 5.850 GHz |
| Tools | Site survey, link test, antenna alignment |
| Interface | 10/100 Base-T, RJ45 |
| Processor Specs | Atheros AR9342 |
| Memory Information | 64M |
| Flash | 16M |
| Antenna gain | 20dBi |
| Max VSWR | <1.8 |
| H-pol/V-pol BeamWidth | 16 deg |
4-Layer PCB Board
- Ultra-thin appearance and industrial Grade Design
- Qualcomm QCA9342 chip, skywork se5012 Power Amplifier performing powerful and stable

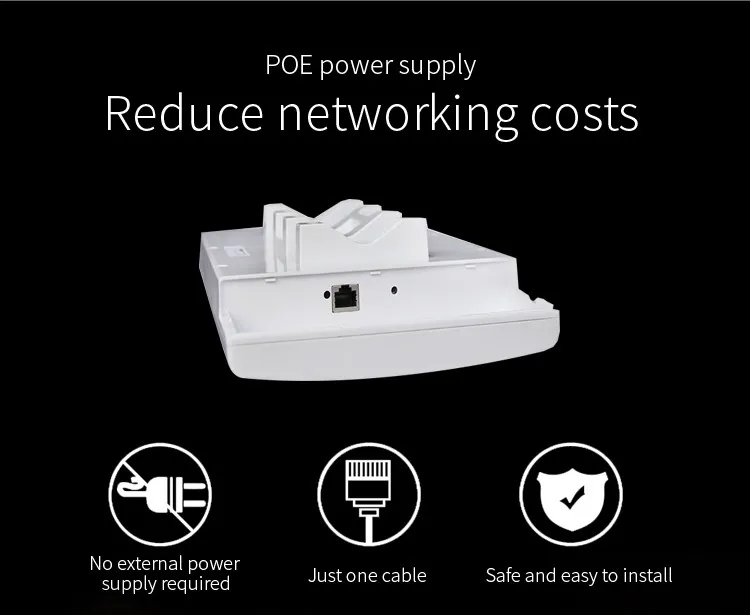

- 802.3af / at is compatible with standard POE power supply
- Build-in hardware smart antenna system

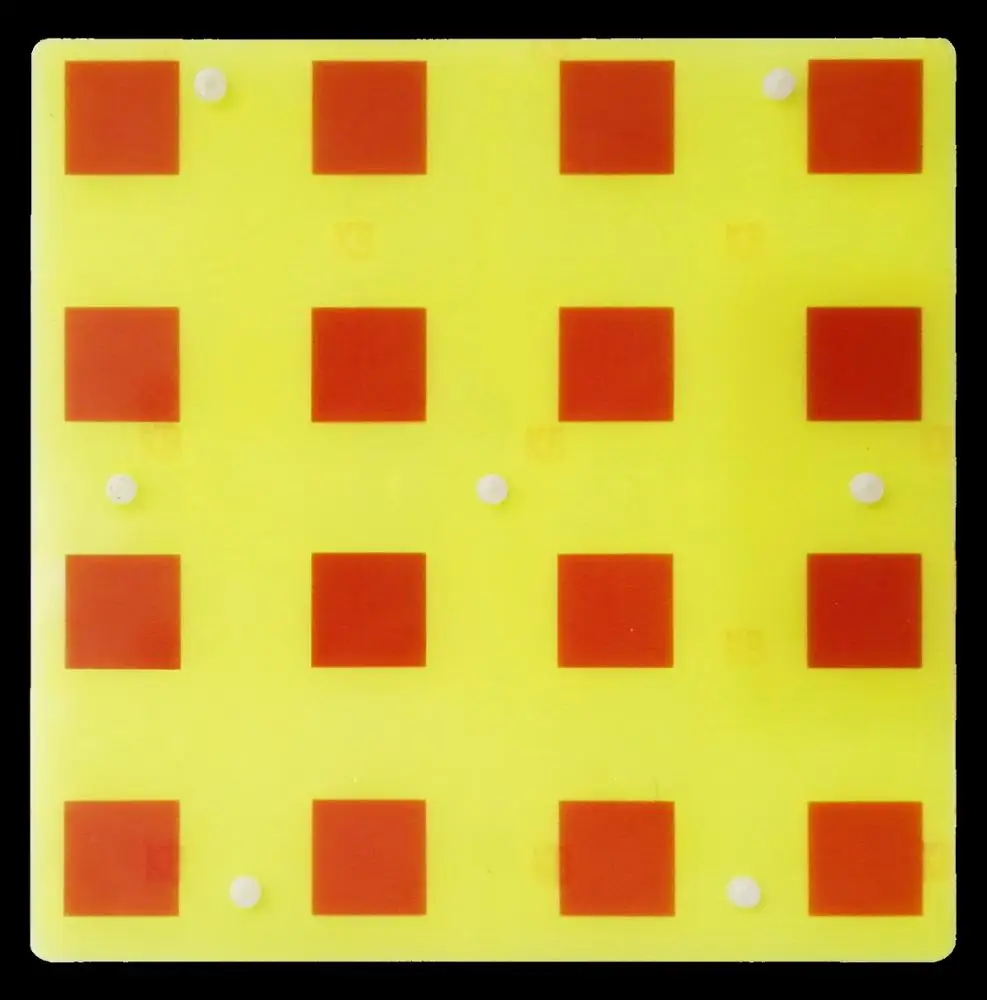

- The 32 oscillators antenna
- High frequency board material with the 32 oscillators antenna, make it powerful performance.
- Equipped with 32pcs antenna oscillators, make the Beam Width up to 16 deg.
- High antenna gain for 20dBi
- Help to increase the transmission distance to 10km.

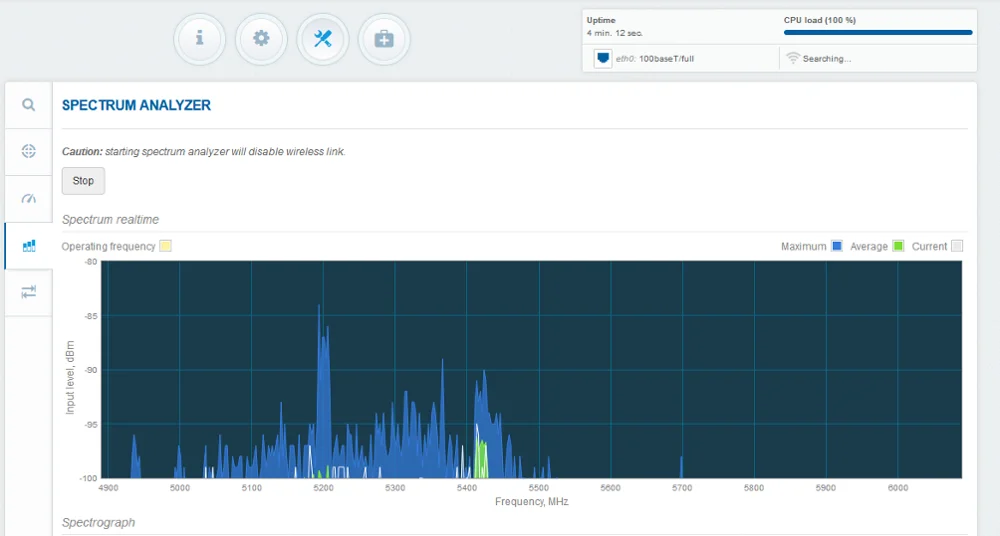

Advanced Software
·Ping Dog ·Cloud Management
·Schwarze Liste ·Private Protocol
·6 Modes(Access Point, Station, Repeater)
Product Overviews

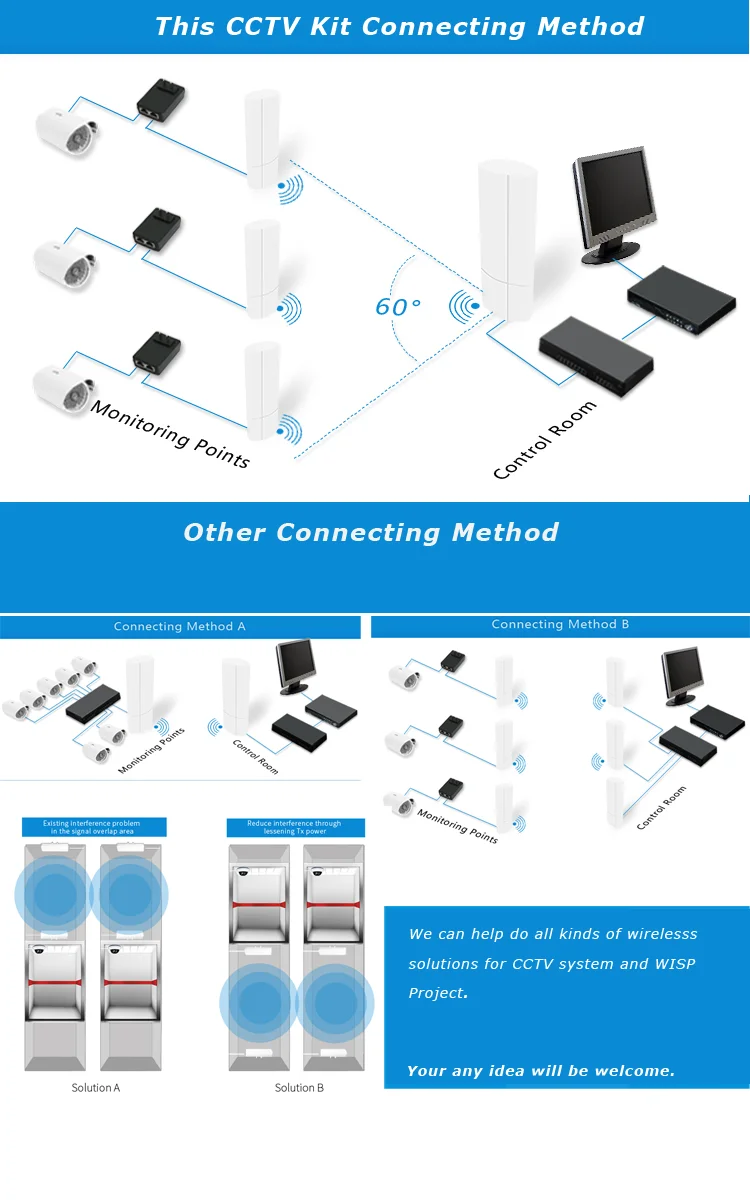

Connecting Method A
WQ-730L can be used for long range wireless cctv camera sytem, as long as 10km transmission.
Thanks to its high-gain 20dBi and 32 oscillators antenna, we can use WQ-730L for long range no wired CCTV transmission.
Why should we use CPE for wireless CCTV transmission?
If the project is in the mountains, there is no way to carry out the cable transmission, we can use CPE.
Connecting Method B
WQ-730L also can be used for remote network coverage, just like PTP wireless transmission.
WQ-730 always use as wireless backhaul device in this application scene.
Company Information
FAQ
How can i get product price list?
Contact us by email, trademanager, skype or send inquiry to us.
Can i get samples to test before placing an order?
Yes, welcome to get samples to test and check their quality.
Can we use our logo and design?
Yes, customization is acceptible for bulk order.
What is the product warrenty policy?
Twelve-month warranty. If any problems appear when you use, please feel free to contact us.
I don’t know how to install it. Can you help me?
Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours.
How do we pay you?
We accept T / T , Western Union, Money Gram, L/C and Alibaba Trade Assurance Order.
