Product Overview

Description



Product Description

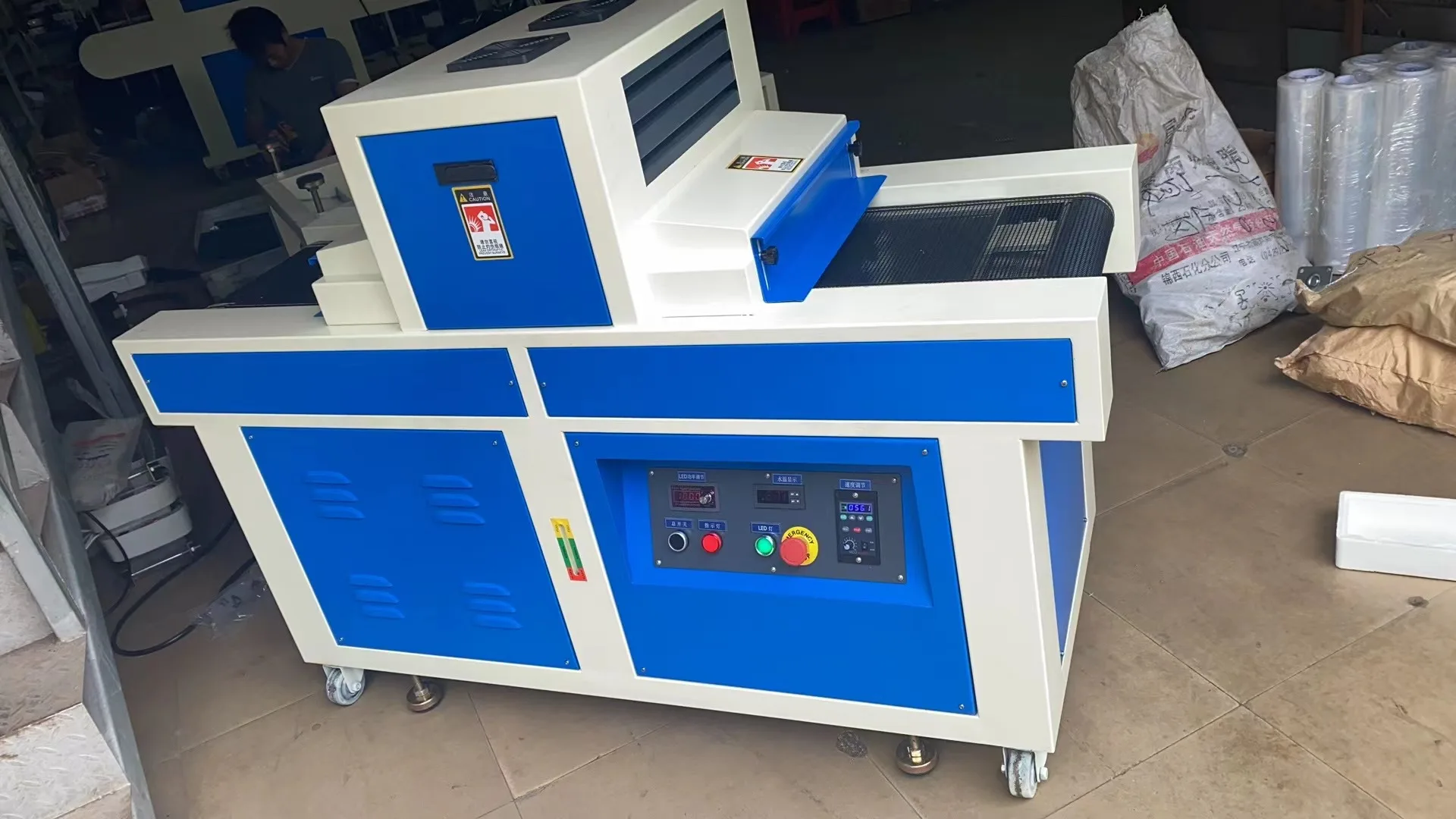

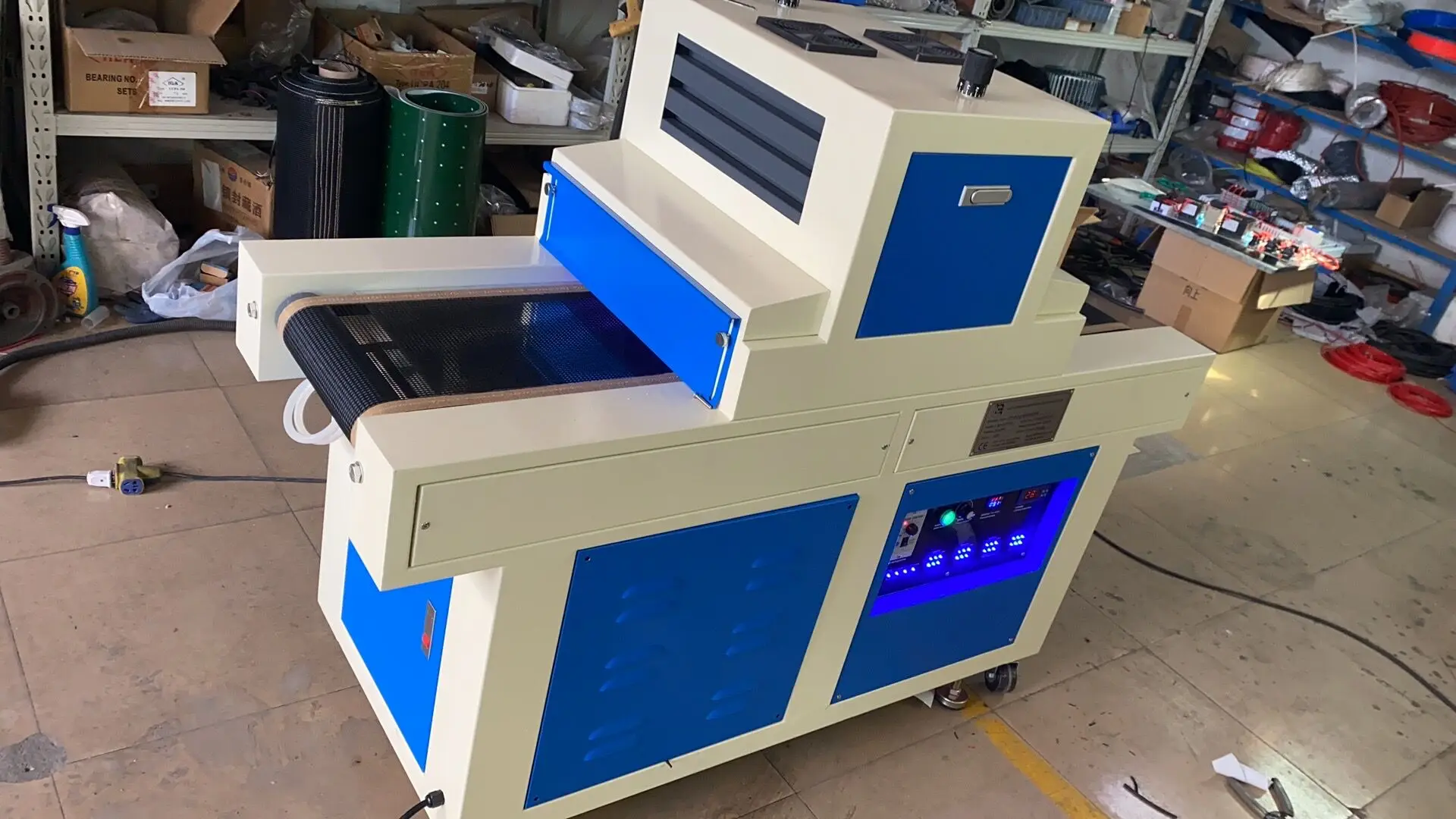

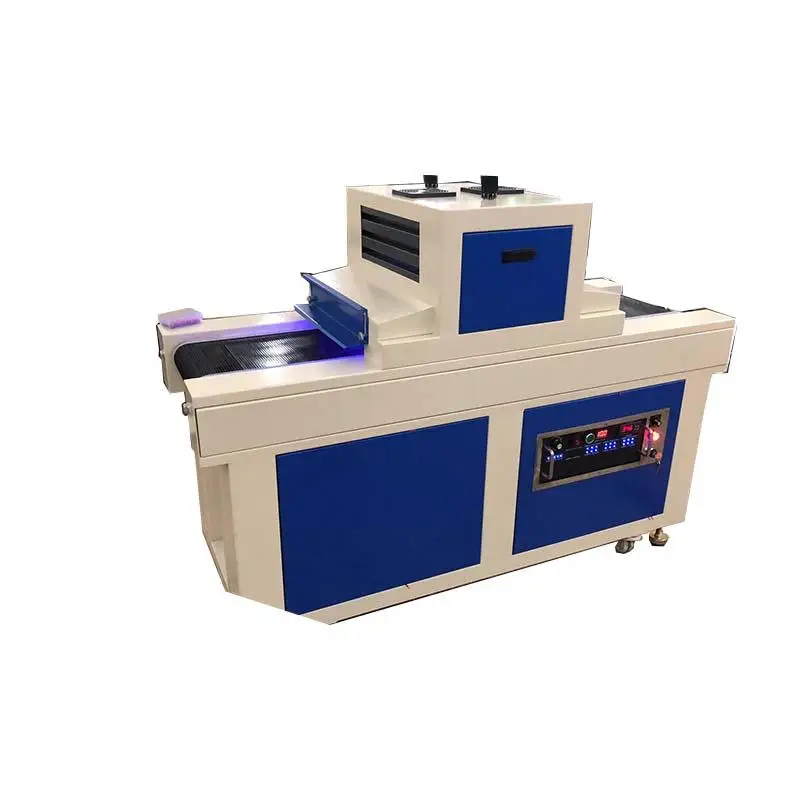

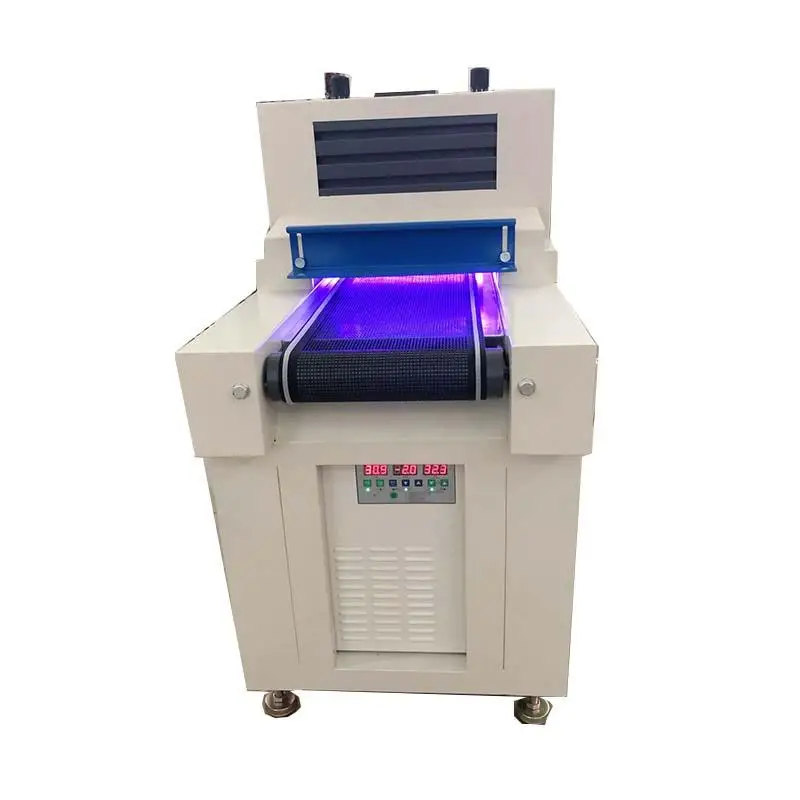

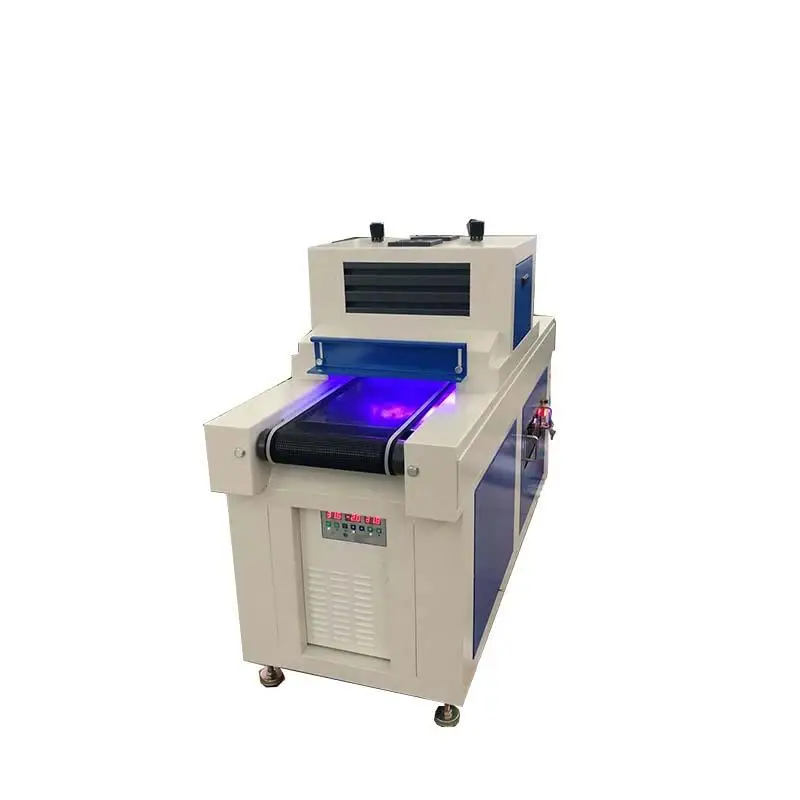

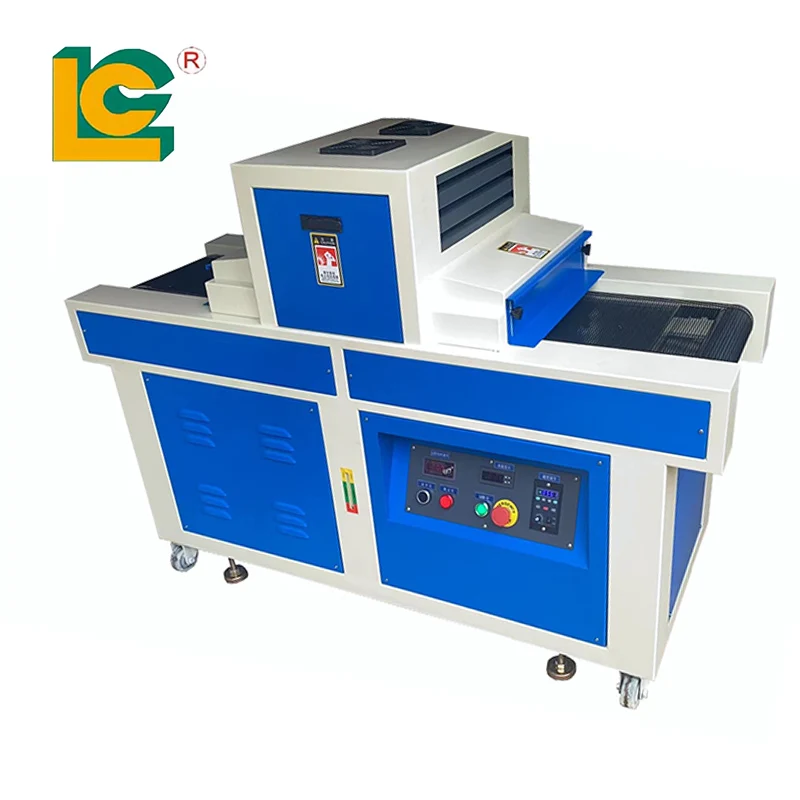

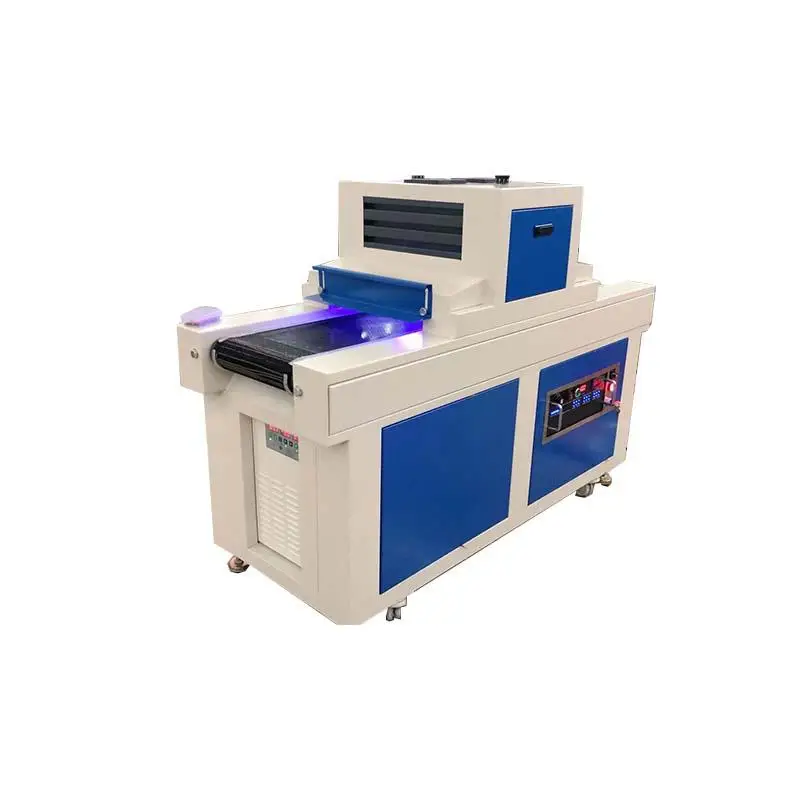

Post-press equipment flat uv led curing machine for screen printing




Favorable price and high quality UV dryer.
Our last new LED UV Curing Machine is small Volume and easy carrying. Widely used for drying printing LED UV ink, LED UV paper printing, LED UV glue, LED UV tunnel drying, LED UV ink, LED UV testing and so on.




Advantage:

1. Cold light source, no heat radiation, suitable for bonding heat sensitive materials.
2. Iimmediately on and off without preheating. The irradiation intensity can reach 500mw/cm2-- 12000mw/cm2 or higher.
3. Compact size, making it easy to integrate into fully automated production lines and equipment.
4.More environmentally friendly and safer. UV LED has no infrared radiation, no harmful gas, and meets ROHS standards.
5. Long service life(over 20,000 hours) can greatly reduce operating costs and maintenance work hours.
6. Bending-resistant cable can be installed at the movable part at will, to meet the needs of repeated
movement.


Specification


Model number
TM-300LEDUVF
Style
Standing
Max product width
300mm
UV Lamp power
1.5KW ×1PCS/
Max product length
1200mm
Conveyer belt size
300×1200mm
UV Process shine area
300×400mm
UV Machine Dimension
1300×320×1350mm
Conveyer speed
0-10m/min
Net Weight
150kg
