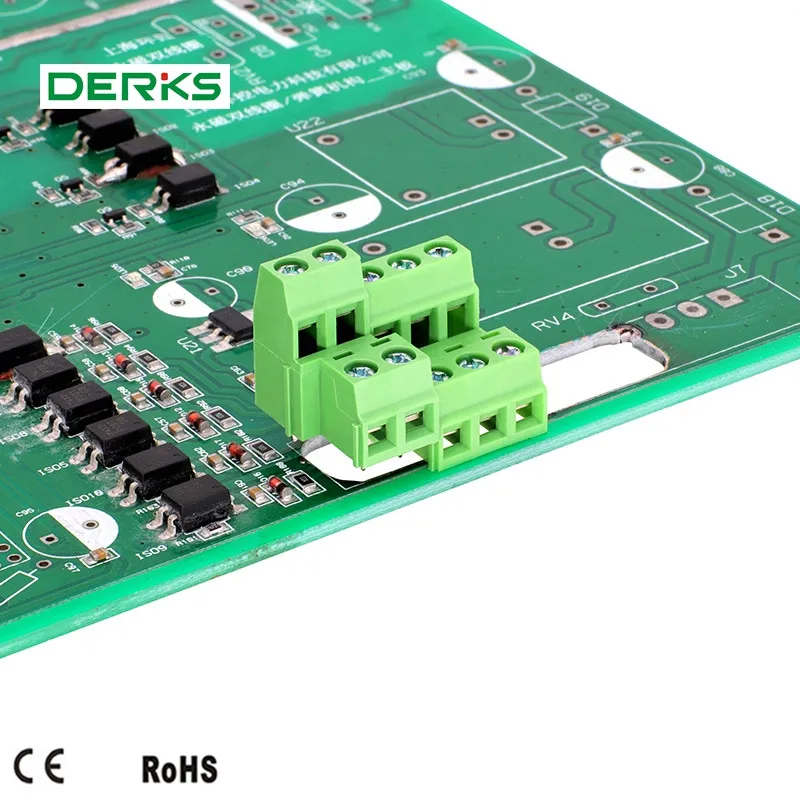

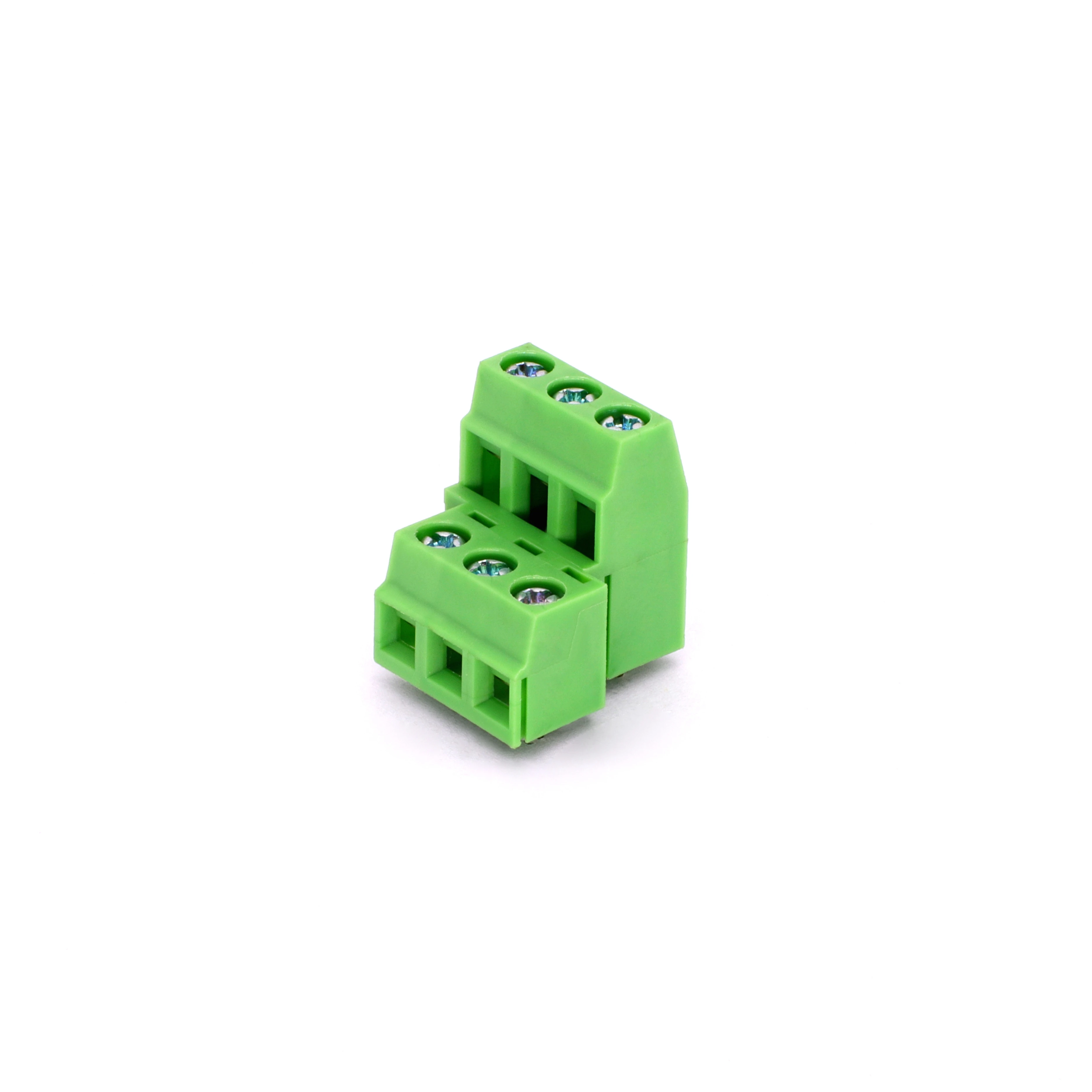

5.08 pitch YB642-508 2-3 pole waterproof terminal block PCB connector
Product Features:
1.ROHSed
2.Made of PA66,UL94V-0
3. Good performance in quick connection of wires
Material and plate | Electrical Specifications | ||
Crimping frame | Brass nickel plate | Rated Voltage | 300V |
Plastic Parts | PA66,UL94V-0 | Rated Current | 16A |
Screw | M2.5,steel zin plate | Contact resistance | 20MΩ |
Color | Green | Insulation resistance | 5000 MΩ DC500V |
Working Conditions | Insulation withstand voltage | AC2000V/1Min | |
Operation temperature | -40°C ~105°C | Wire range | 28-12 AWG 2.5MM2 |
Instantaneous temperature | 250°C 5SEC | Stripping Length | 5-7MM |
