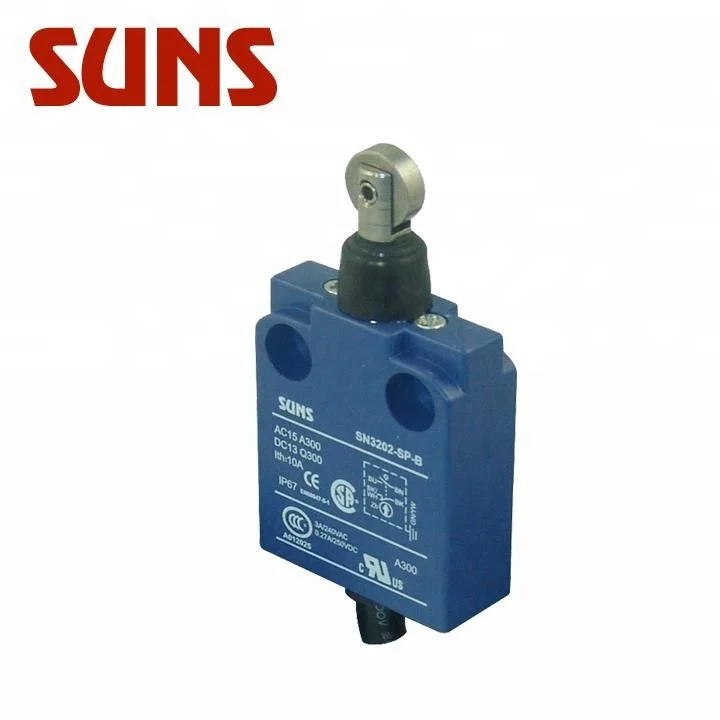

Safety Limit Switch SN3202 Compact Size
- Category: >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (62301571845):
Product Overview
Description
Basic Parameters: Compact Safety Limit Switch SN32 Series
| Specifications: | |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: | Mechanical:120ops/min Electrical: 30ops/min |
| Insulation Resistance: | >100mΩ@500V DC |
| Contact Resistance: | <25mΩ |
| Rated Voltage: | 300V AC(EN60947-5-1) |
| Rated Current: | 10A |
| Electrical Rating: | AC15 A300 DC13 Q300 |
| Dielectric Strength: | 1000VAC for 1 min between non-continuous terminals |
| 2500VAC for 1 min between each terminal and ground | |
| Service Life: | Mechanically 1×107 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -25~+80 (-13~+176) without formation of ice |
| Humidity: | <95%RH |
| Weight: | ~300g |
| Cable: | 5 cores, 0.75mm2 |
| Contact Form | zb |
| Degree of Protection: | IP67 |
Technical Drawing:Compact Safety Limit Switch SN32 Series
