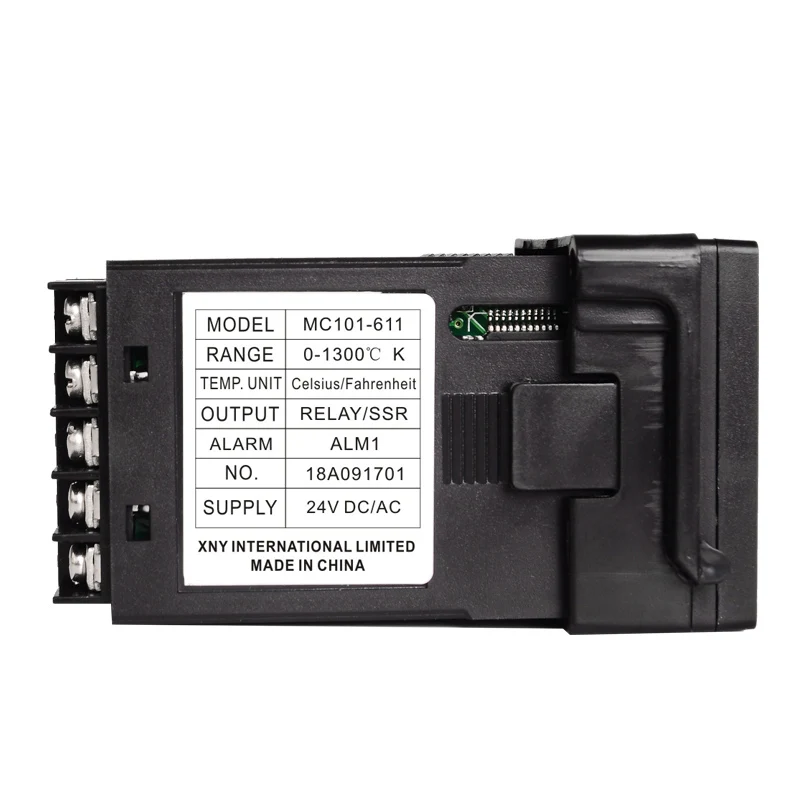

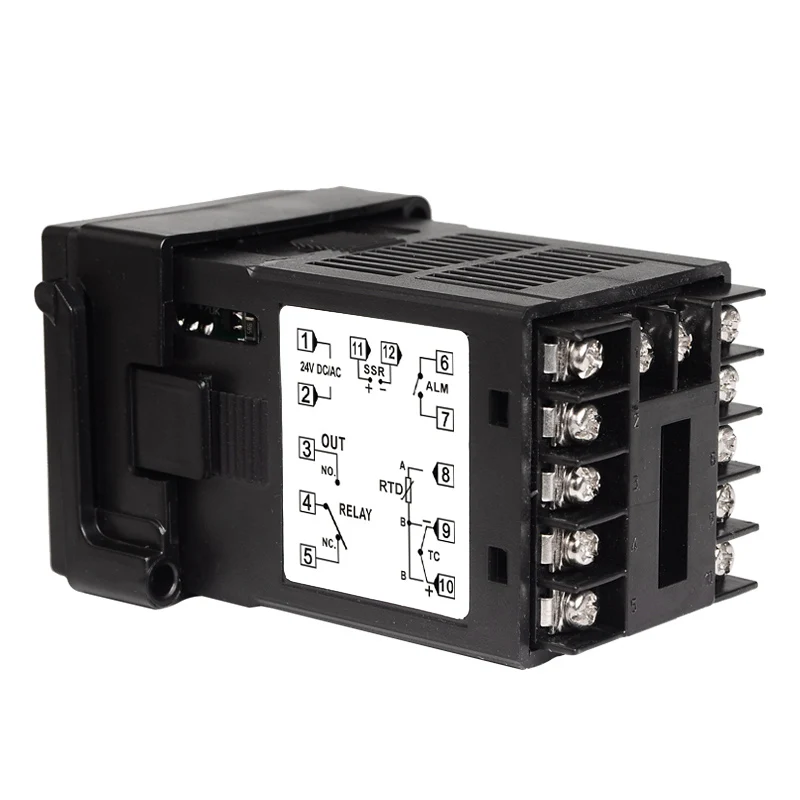

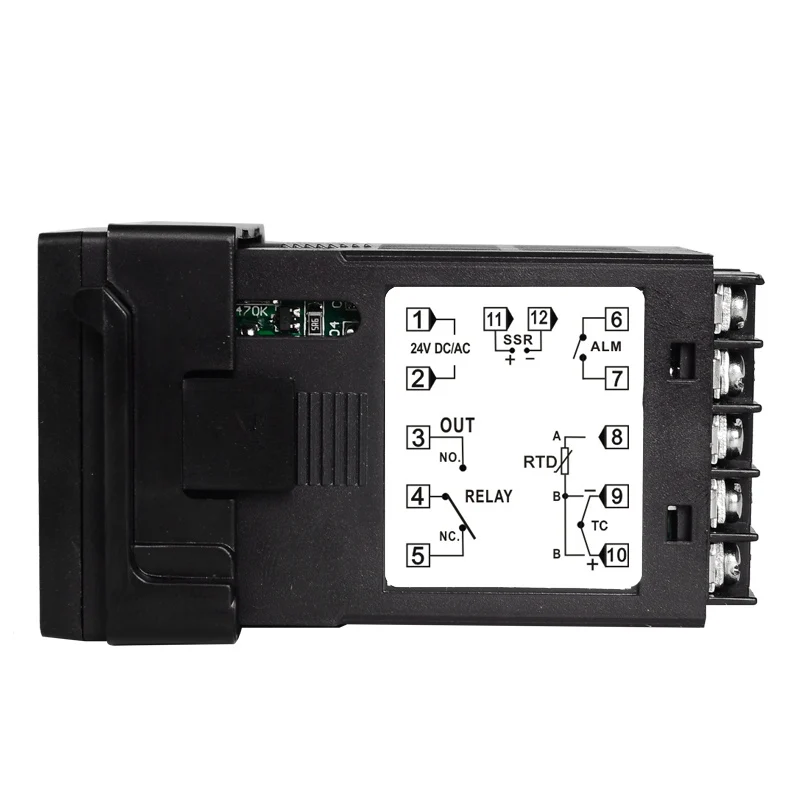

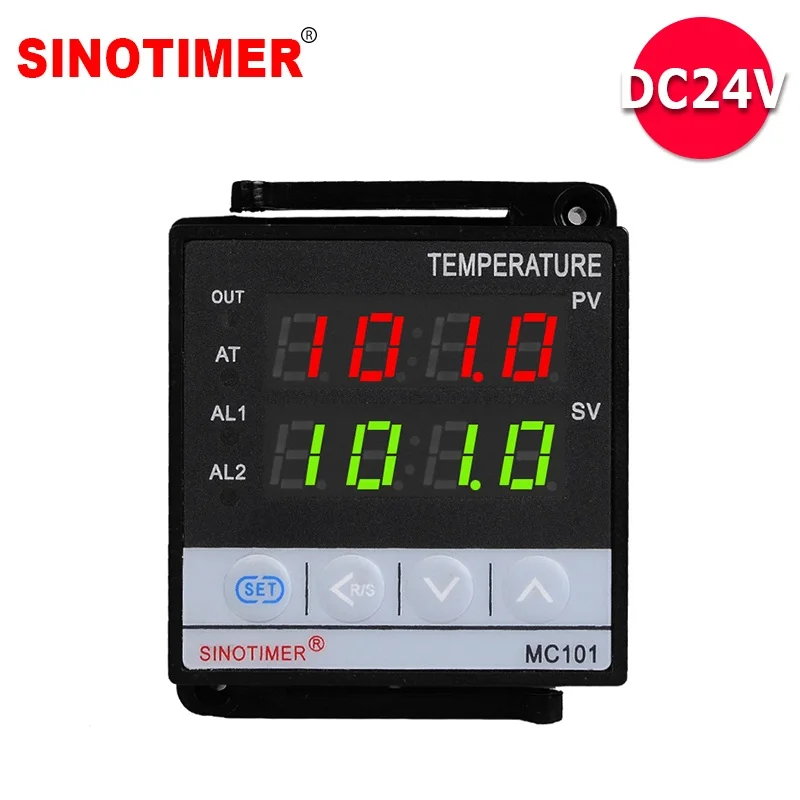

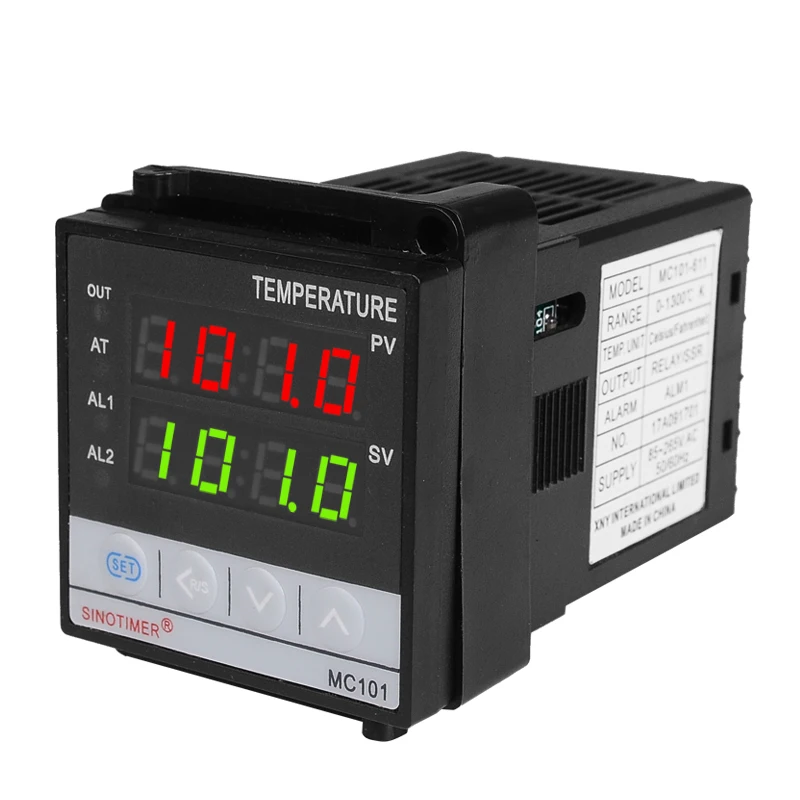

MC101 Power Supply 24VDC Fahrenheit or Celsius Display PID Temperature Controller SSR with Relay Output for Heat with Alarm
- Category: >>>
- Supplier: Yueqing Xinyang Automation Equipment Co. Ltd.
Share on (62301614840):
Product Overview
Description
Product Description
Product Features:
- 1.MC101 series instruments: four-digit LED digital display,measurent accuracy 0.3%.
- 2.The maximum resolution 0.1 degree at thrmocouple and thermal resistance input,the maximum resolution 0.001 at analong input.
- 3.Size 48*48mm,48*96mm,72*72mm,96*96mm
- 4.Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.
- 5.The thermocouple and thermal resiatance of instrument input signals can be set freely.
- 5.Uses it in Heating Control as well as for Cooling control
- 6.Auto-tune function can find the best PID parameter automatically.
- 7.Displays temperature in Celsius (degC) or Fahrenheit (degF).
- 8.Four digits LED display can go up to "9999
- 9.Uses it for Kiln,Furnace,Oven,Incubator temperature control.
- 10.It is used in various industries to control and monitor process temperature
- 11.Short Shell
- 12.Relay contract + solid-state relay( SSR) voltage output (just support one group output)
Model number | MC101-24V |
Size | DIN 1/16, 48*48mm |
Power supply | 85~265VAC 50/60Hz |
Control mode | PID |
Input | TC: K, E, S, R, J, T, B, WRe3-WRe25. RTD: Pt100, Cu50 |
Output | Relay+SSR(just support one group output) |
Display | Two lines, Four digits in Celsius degC / Fahrenheit (degF) |
Resolution | 0.1°C |
Accuracy | ±0.5% or ±1 unit of full input range |
Alarm | Upper-limit bias alarm |
Power consumption | <2 Watt |
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking & delivery \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1: Why choose SinoTimer Switch for Power Saving ?
1.SinoTimer is not only an amazing brand since 2002 but a symbol of power saver.
2.Full range of timer choice,from TM610 to TM619 Seiries, Best seller in Europe, USA, Braiz,RUSSIA etc.
3.Easy program, everyone can program it after he reads the manual JUST one time.
4.Stable performance because of professional manufacturing in power saver since 2002.
5.Confirm to CE RoHS standard, and with LVD, EMC certificate passed.
Q2: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q3: What is the MOQ for SINOTIMER product?
There is no MOQ, we deal with any quantity of your order.
Title goes here.
We accept T/T, L/C, Western Union,MoneyGram and Paypal.
Q5: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q6: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
