Product Overview

Description



Product description

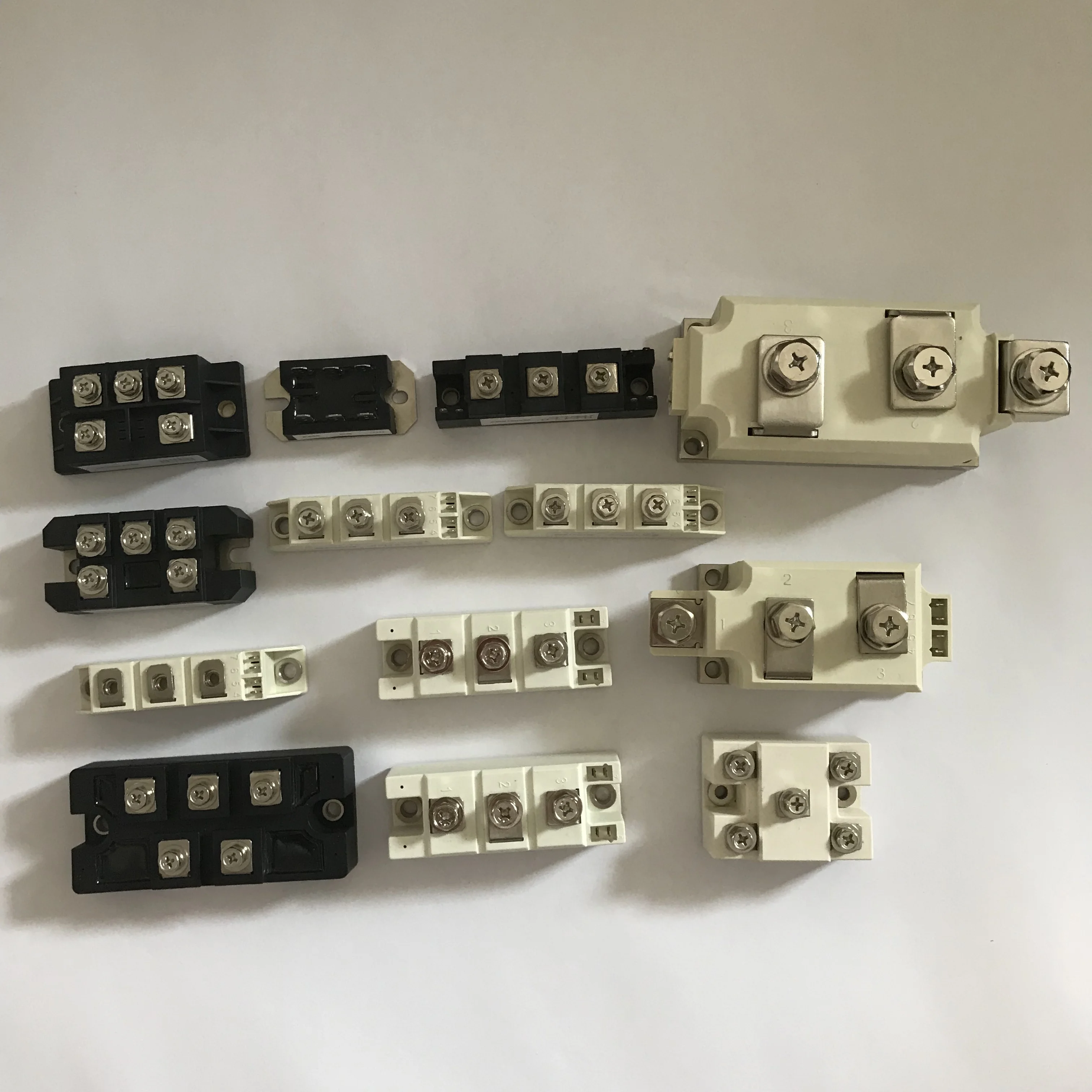

   Model No. SKKT162/16  (we can offer other models such as MTT,PK,TT,SKKT,SKKH,IRKT,MCC,CTT,PD,TM...)



Produc Name: diodes thyristor power modules semiconductor components skkt162 16e
Applications:
1. ac/dc electric-machine's control and various rectifying controlling&industral-heating controlling
2. light-regulation
3. non-touch switch
4. soft-starters for electromotor
5. electric welder / frequency transformer/ ups power
6. charging and discharging of battery
7. building industry machinery


Product Paramenters


Specification
Test Condition
TJ
parameter values
Unit
Specification
Test Condition
TJ
Min.
Typical
Max.
It(AV)
Tongtai average current
Sine wave at 180℃, 50Hz, double-sided heat dissipation, TC=85℃
125
55
A
It(RMS)
Square mean root current

125
86
A
Vdrm
repetitive peak off-state voltage
VDRM & VRRM tp=10rms
VDSM & VRSM= VDRM& VRRM +200v
125
500
2500
V
Vrrm
repetitive peak reverse voltage
125
500
2500
V
Idrm
repetitive peak off-state current
VDM = VDRM
VRM= VRRM
125
8
mA
Irrm
repetitive peak reverse current

150
8
mA
Itsm
Forward non-repeating surge current
10ms bottom width,half-sinusoid Vr=0.6Vrrm
125
1.25
KA
I²t
Surge current squared time product
Ifm=150A
25
7.80
A2S103
Vto
threshold voltage

125
0.85
V
rt
slope resistance

125
3.47
m
Vtm
peak forward voltage
ITM= 170A
25

1.10
V
dv/dt
Critical rise rate of on-state voltage
VDM=0.67VDRM
125

800
V/us
di/dt
Critical rise rate of on-state current
IMT=52A
Gate trigger current amplitudeIGR=1.5A
Gate current rise time tr≤ 0.5us
125

50
A/us
Igt
gate trigger current
VA=12V,IA=1A
25
30
100
mA
Vgt
gate trigger voltage

125
0.8
2.5
V
Ih
holding current
20
150
mA
Vgd
gate non-trigger voltage
VDM=0.67VDRM
125
0.2

V
Rth(j-c)
Thermal impedance (knot to shell)
180℃ sine wave, single side heat dissipation
0.530
℃ /W
Rth(c-h)
Thermal impedance (shell to radiator)
180℃ sine wave, single side heat dissipation
0.2
℃ /W
Viso
isolation voltage

2500

V
Fm
mounting torque(M5)

4

N-m
mounting torque(M6)

6

N-m
Tstq
Storage temperature

-40
125
℃
Wt
Quality
110g

g

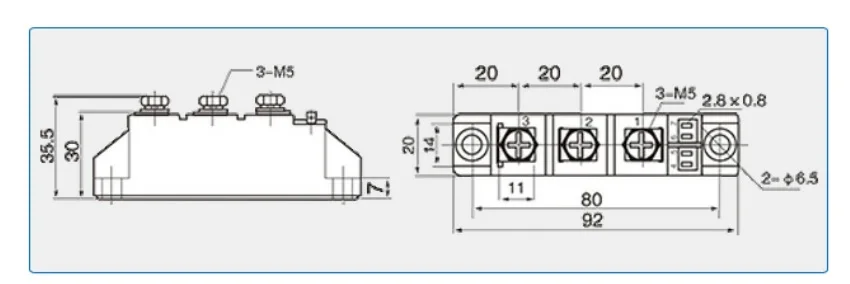

outline
Appearence
101f

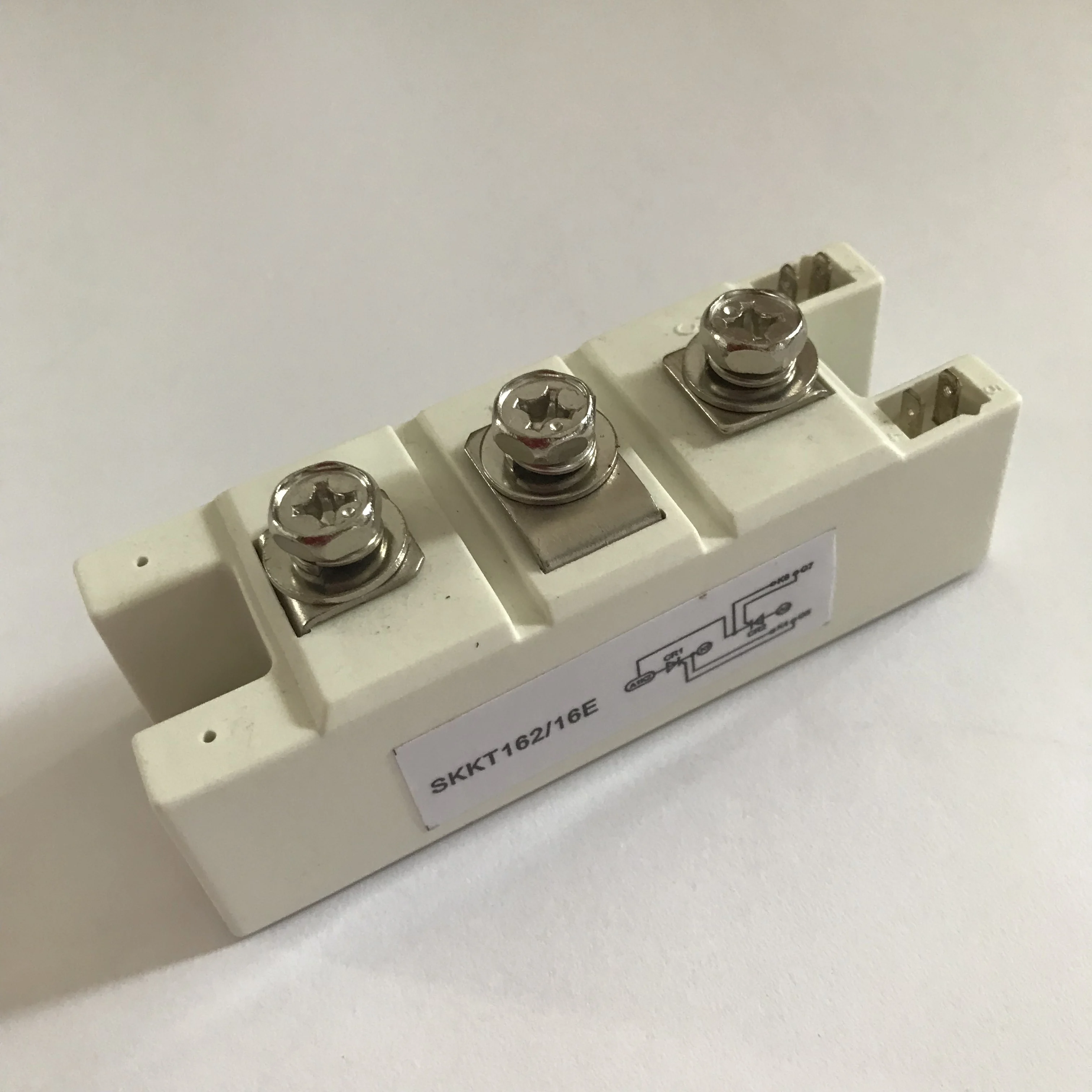

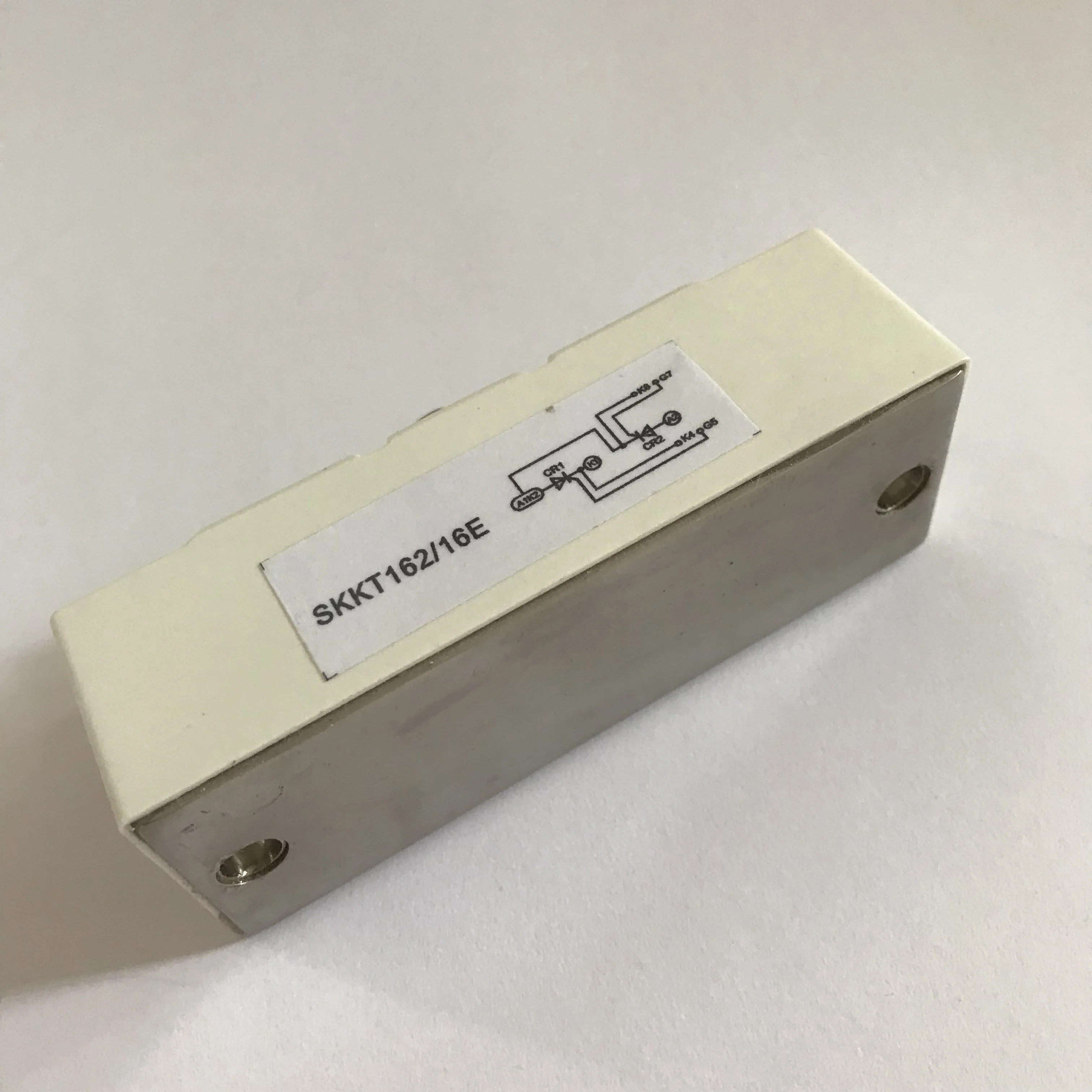

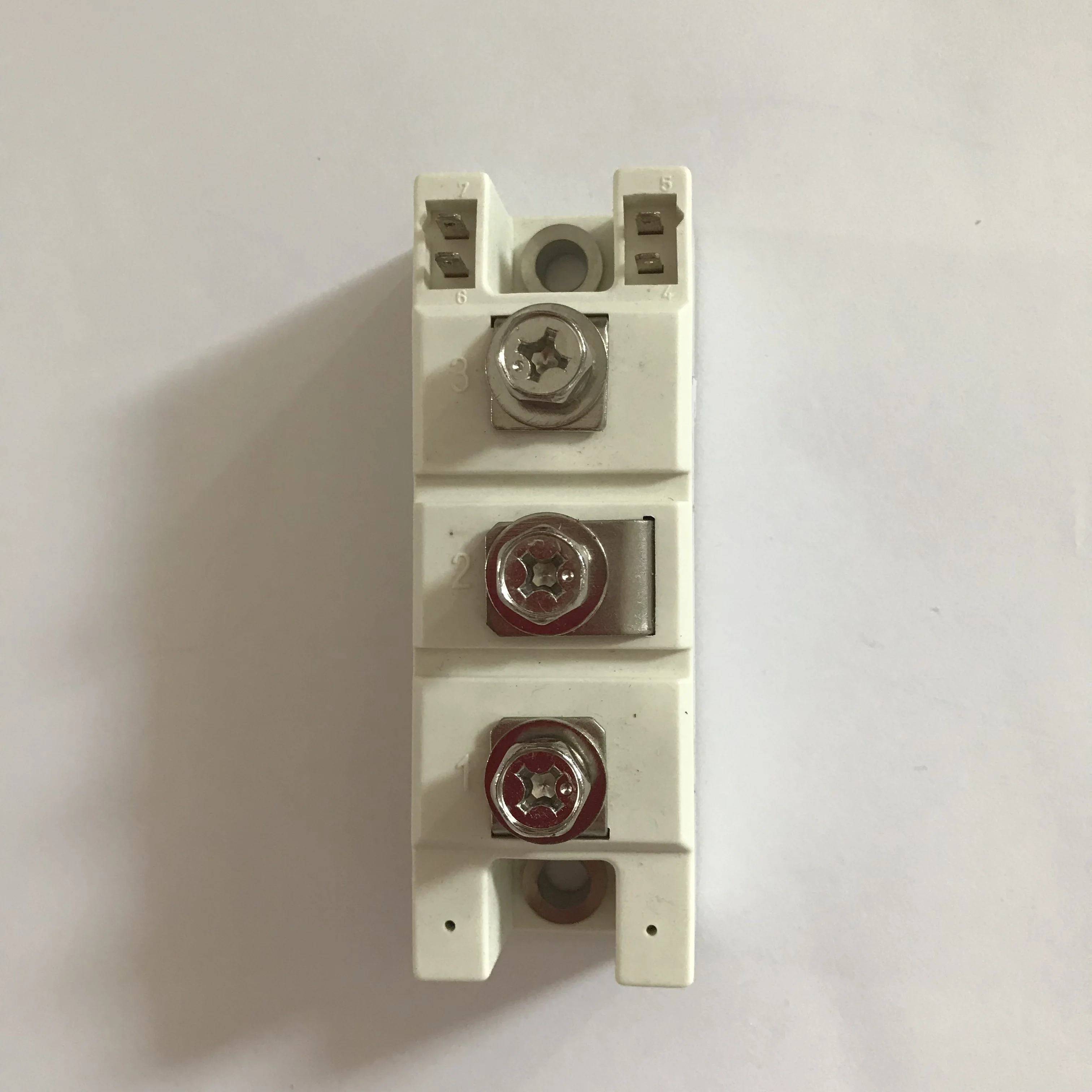

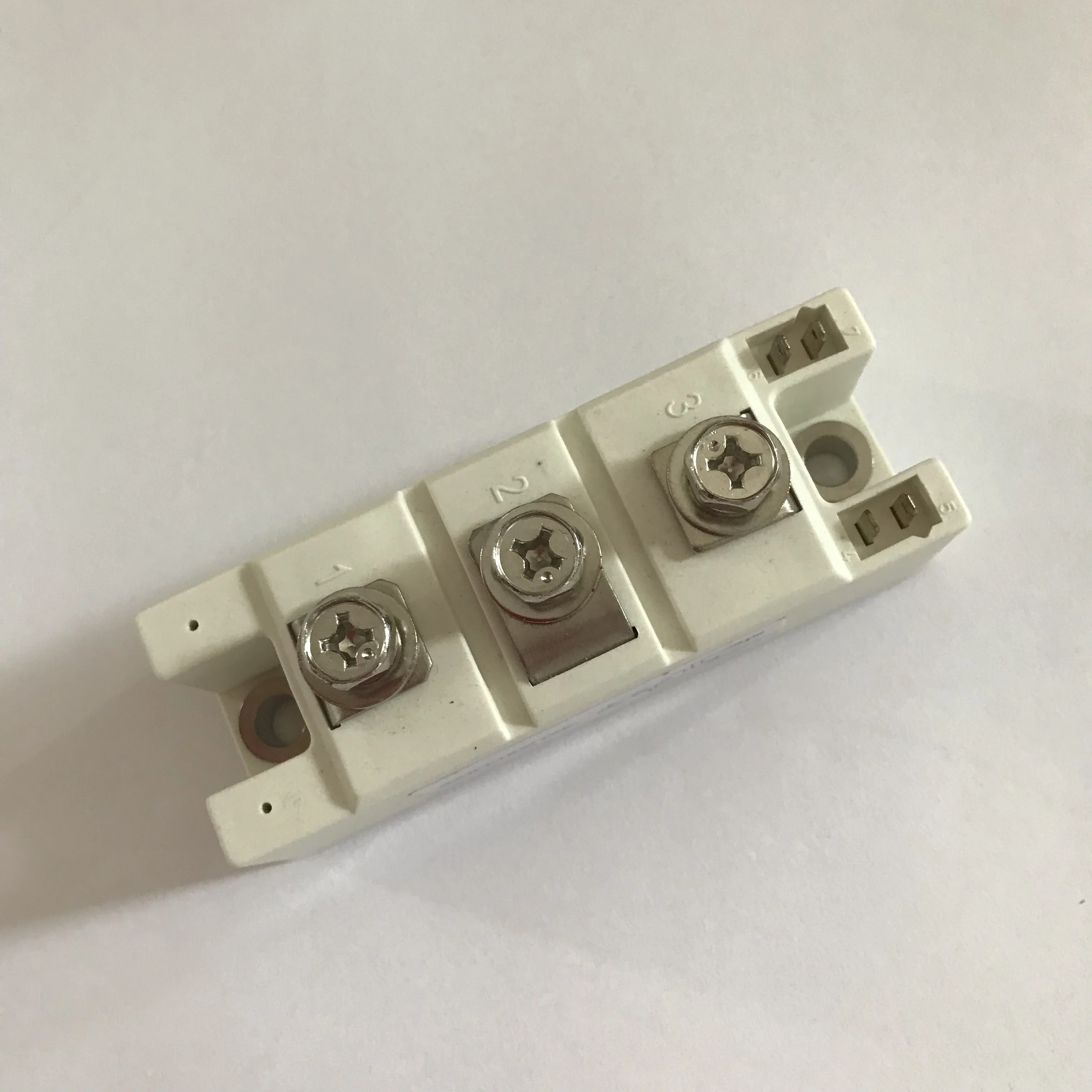

Products Show




Packing & Delivery


Packing Details  : carton

Delivery Details : 7 days after getting payment.








Certifications




Our Company




Why Choose Us




FAQ
1. Are you manufactuer? Yes,  we have our own thyristor module factory with more 20 years production experience.
2. Can you do OEM? Yes,OEM will be accepted.
3. Warranty: We can keep long life for our thyristor module because we use importing high and stable quality material for production and we have to do at least 24 hours inspection for our thyristor module before they exw factory.
