made in china price photovoltaic 7kw solar tracker system sun tracking system
- Category: Solar Tracker >>>
- Supplier: Shandong Jinhong New Energy Co. Ltd.
Share on (62301893094):
Product Overview
Description
Products Description

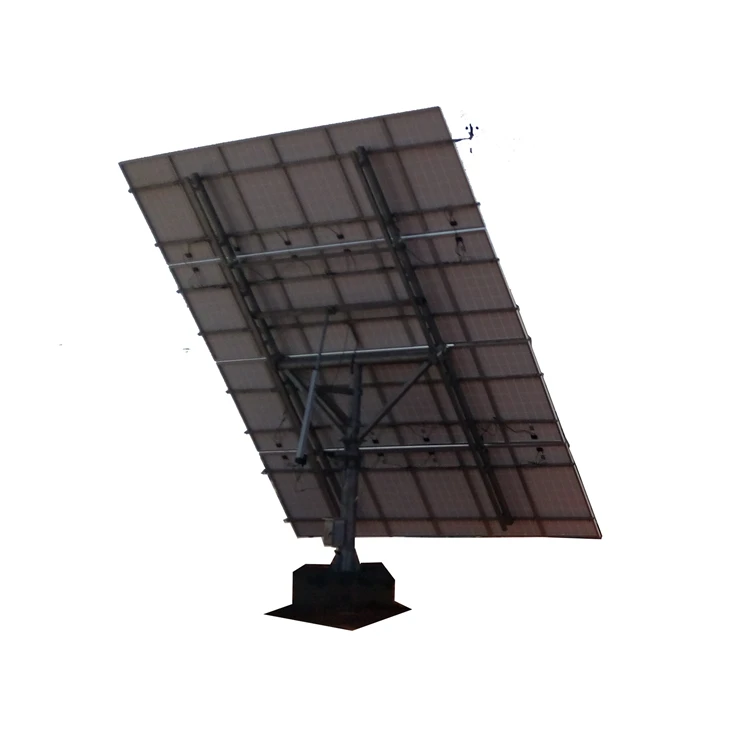

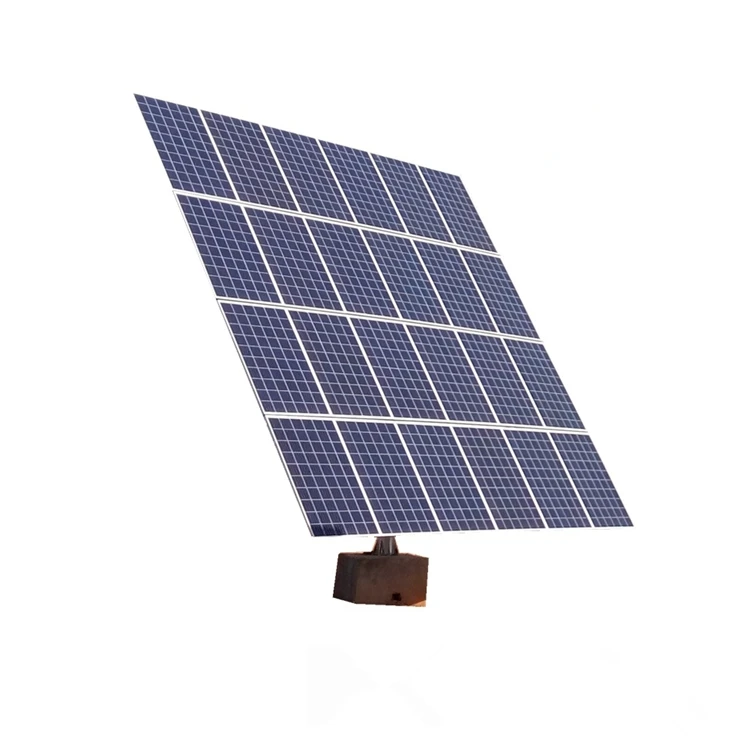

7.2kw dual axis tracking system
7.2kw dual axis tracking system,one of the major prouducts of our company ,can entirely eliminate the stent eccentricity because of the design of the zigzag symmetric structure which is no ecccentricity .It can also enhance the capacity of anti-wind, strengthen the intensity of support ,save energy consumption of the bracket when running in the shortest torque to compel the revolving . Its generating capacity can be increased by 30%-50% compared with the fixed bracket.
Main Features
It can remote control by mobile app and computer.
HIGH intelligence :self-leveling at night,strong wind...Automatically start anti-wind mode.(manual adjust ok)
Rotate :(like a sunflower，you can seach video of sunflower,see how rotate it)
Azimuth angle tracking range -120°---+120°
High angular tracking range 30°---90°
Shadowless back tracking :The power generation can increased by 30%-50% compared with fixed bracket.
The warranty :bracket≥5years,electrical parts ≥1year,actually the life time of bracket can reach to 25 years.
Customized (provide any components which you want)
Provide installation video,instruction book,free groud foundation design.

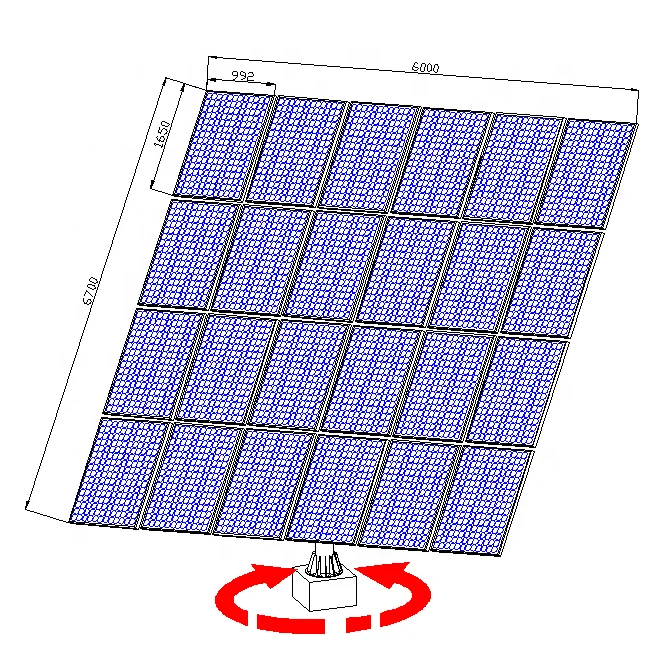

7kw Solar tracker technical parameters | ||||||

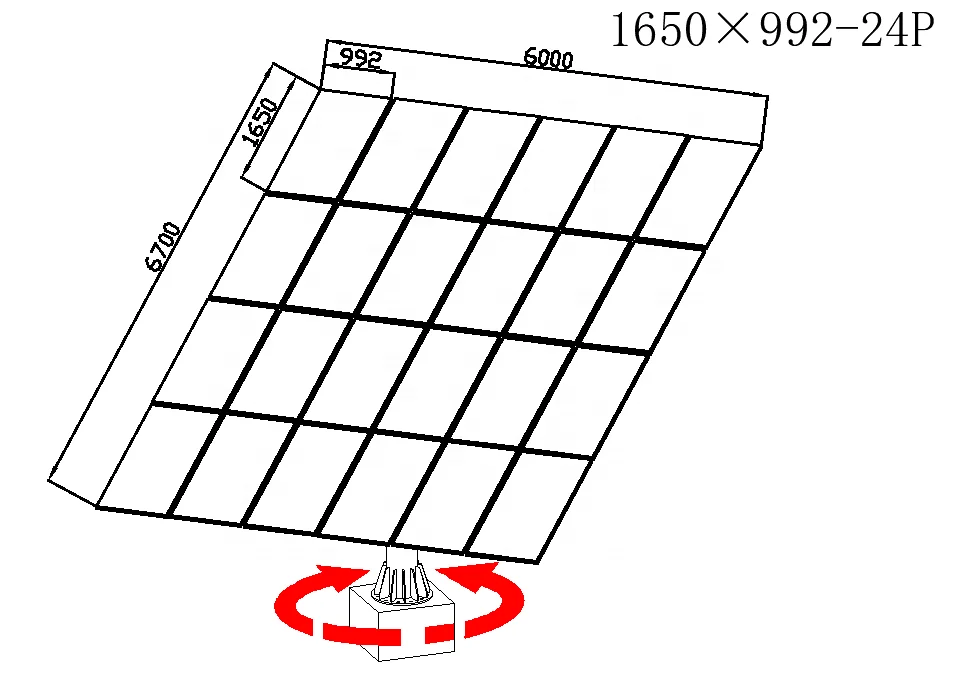

Module Number | 24unit | Module Size | 1650 * 992mm | |||
Tracking Precision | ≤ 1° | Communicating Protocol | RS485-MODBUS | |||
Power Supply | 90~264VAC,47~63HZ | Electricity Consumption | ≤0.25(KW.h) | |||
X tracking Angle | -120°~ +120° | Y tracking Angle | +30°~ +90° | |||
Bracket Area | ≈ 36 m2 | Operating Temperature | -40 ~ +70 ℃ | |||
Bracket Material | Hot Galvanizing | Device Weight | ≥950 KG | |||
Standard | GBT 29320-2012 | Design Life | ≥25 years | |||
Product Paramenters
Fixed system
Dual axis tracking system

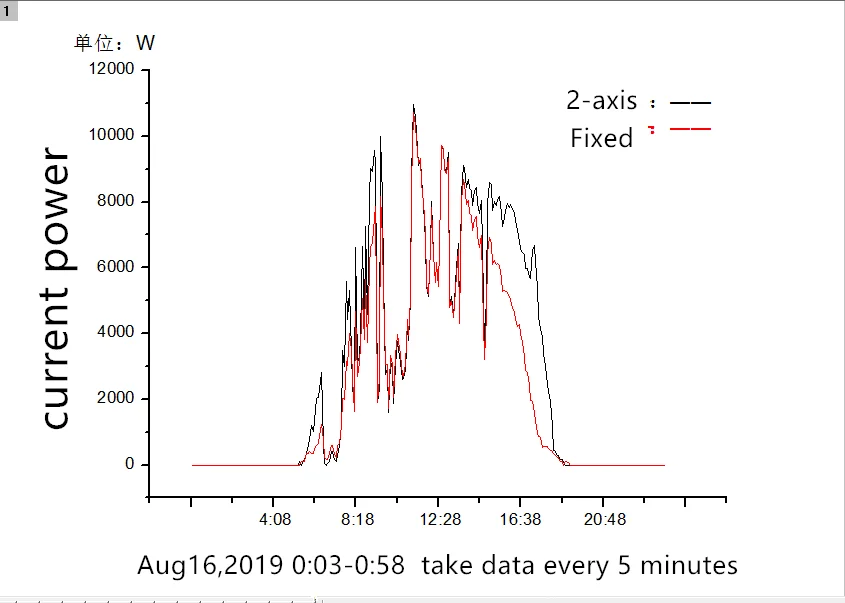

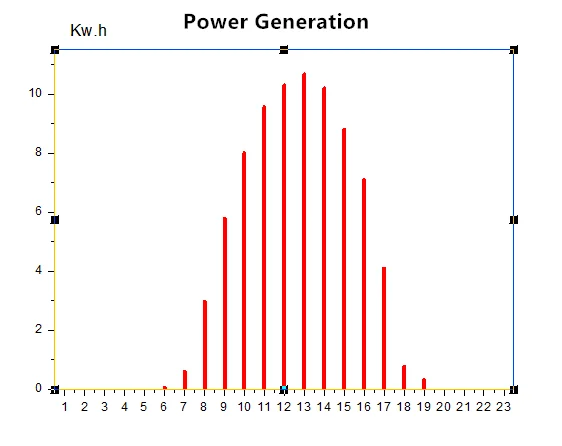

Rainy day

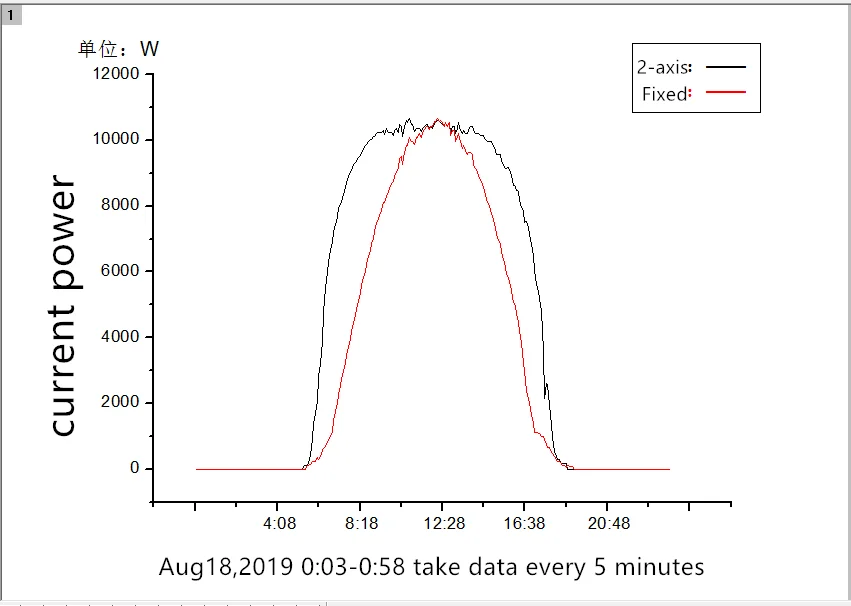

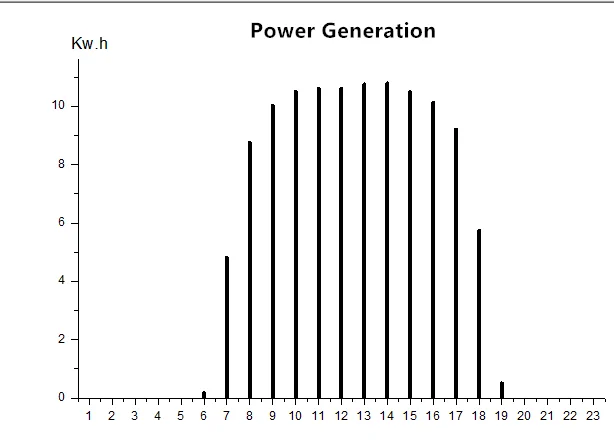

Sunny day

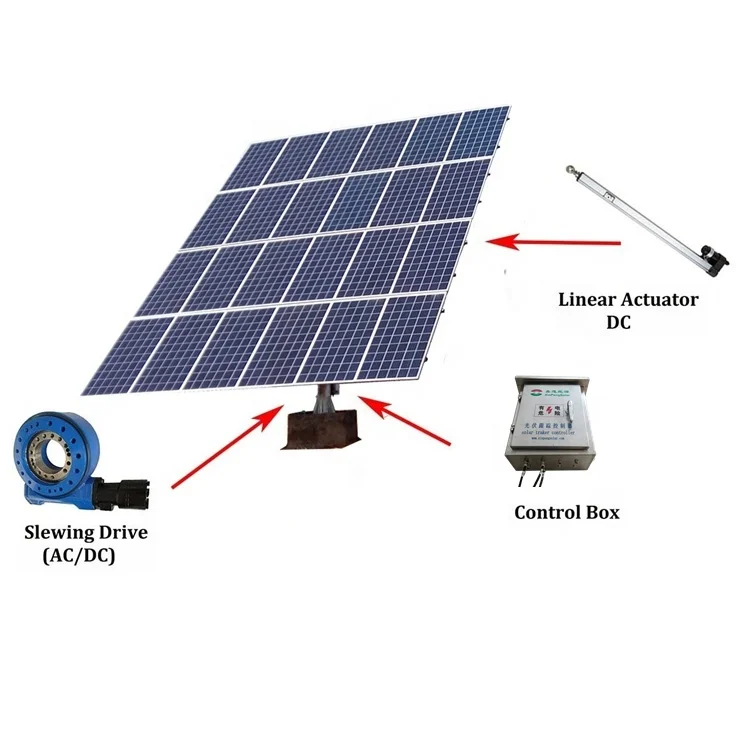

Manufacturing Technique
Self developed back tracking algorithm to further improve the efficiency of power generation to ensure that the solar panels has always been working in the shadowless state ,increase the solar power generation and prelong its service life.
Self designed intelligence solar tracker controller time control ,can be control automatically and manually,RS485 MODBUS standard communication interface,automatically levelling function.
Our company develops the cloud object control platform,which can upload and save the data in real time to the cloud control center.Users can view the tracking data and remote control in real time through the computer or mobile app.

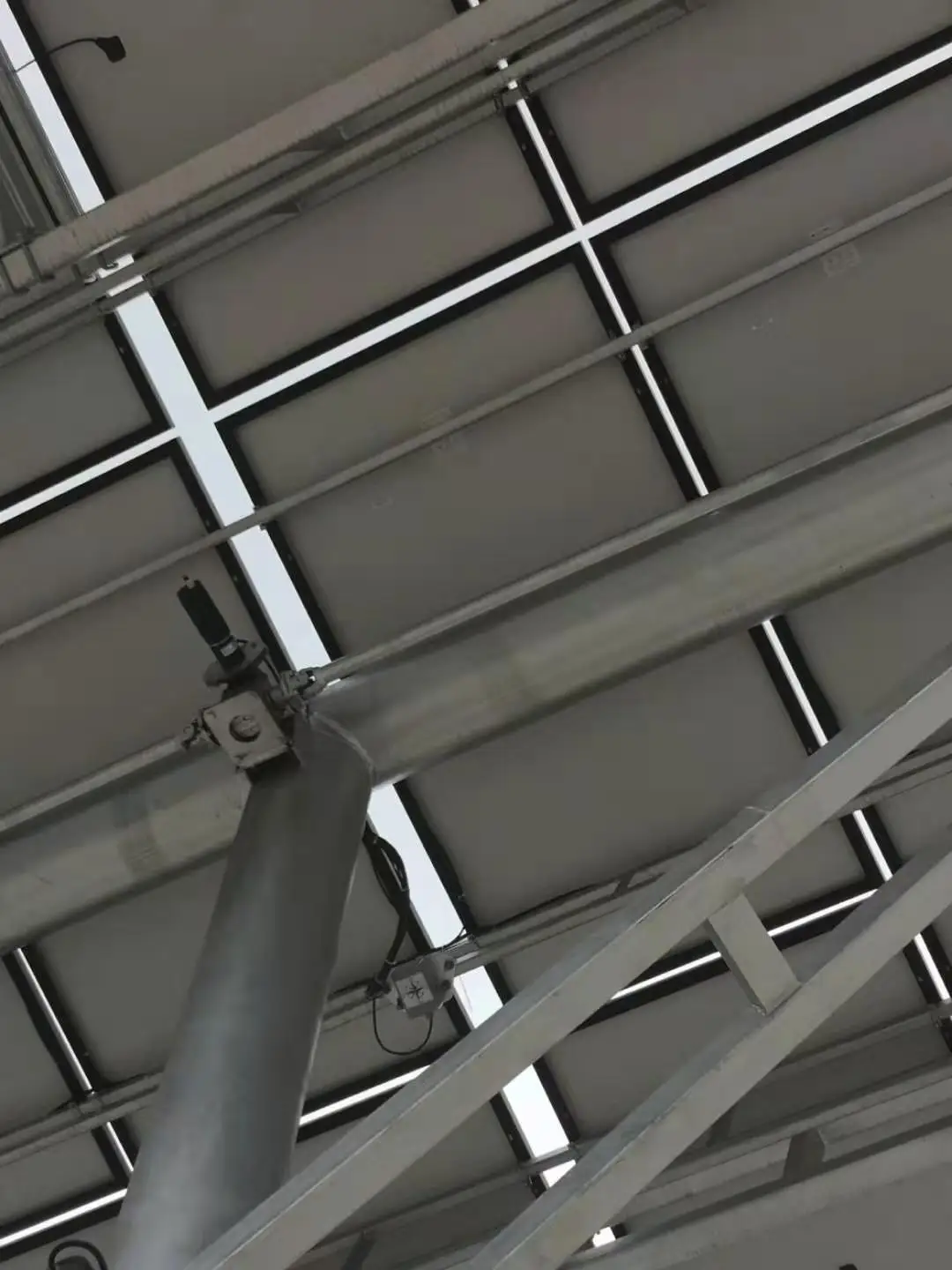

Details Images

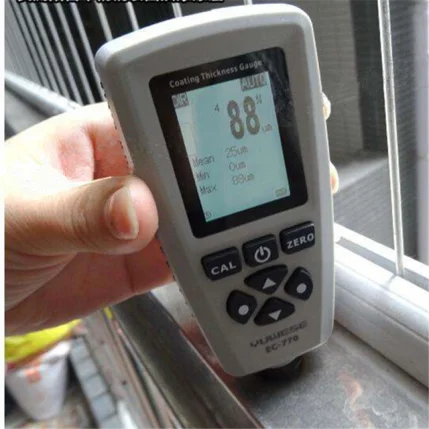

Materials use Q255B STEEL with above 85um Hot dipped zinc galvanization to ensure the 25 years life adapt to all kinds of outdoor environment.
Projects
10KW SOLAR SYSTEM CASE1
10KW SOLAR SYSTEM CASE2
10KW SOLAR SYSTEM CASE3

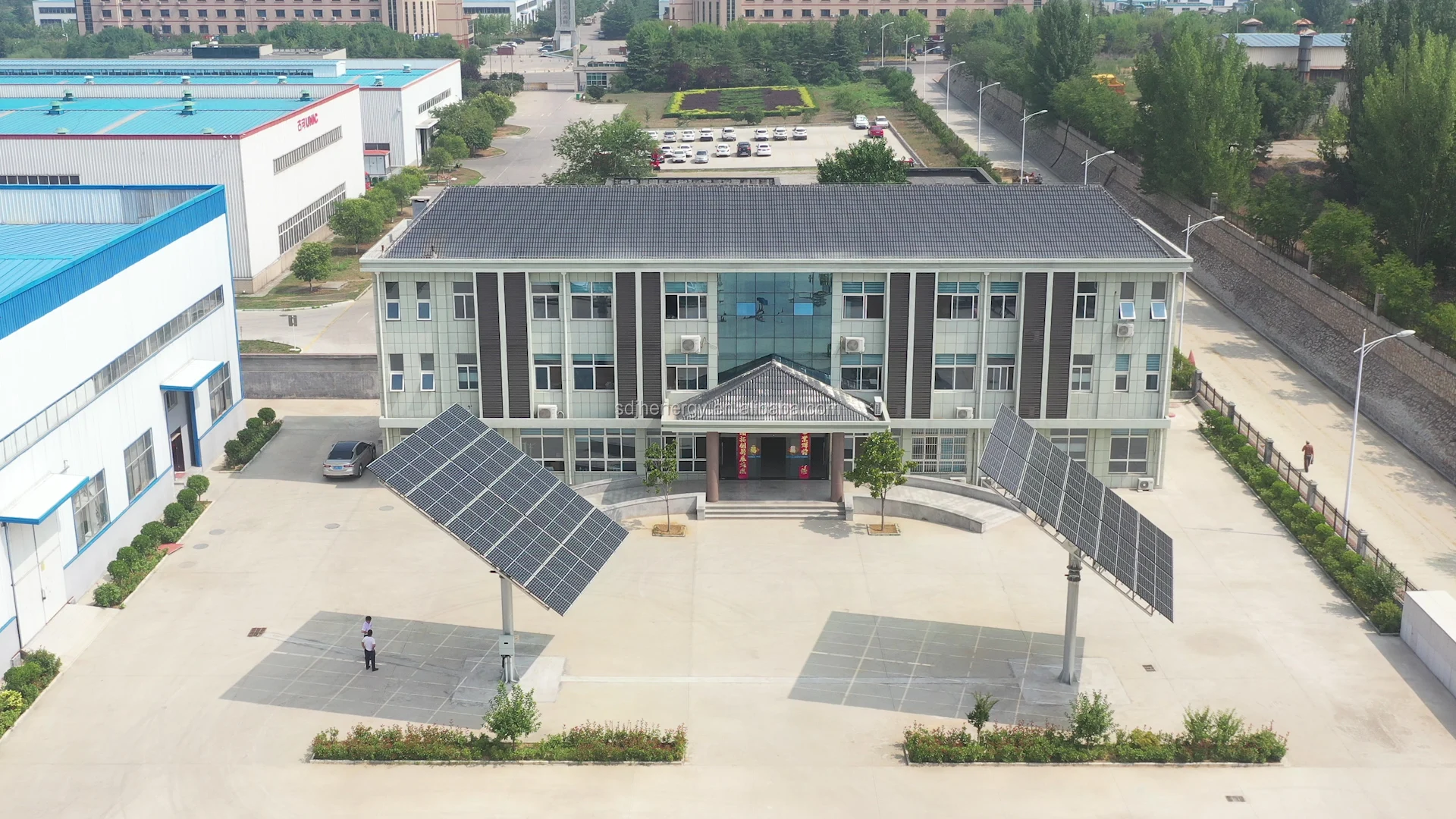

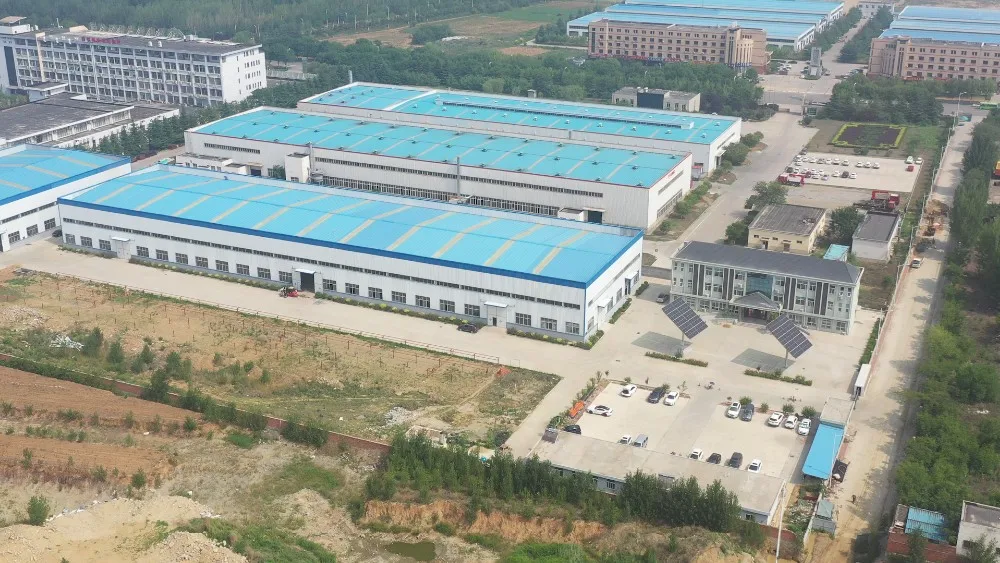

Company Profile
SHANDONG JINHONG ENERGY is a high-tech enterprise.With 18 years of successful design experience in photovoltaic tracking system,more than 20 patented technologies in the field of PV tracking,successfully developed China first dual axis solar tracking system in 2005,and launched the world largest single unit 20.8kw dual axis power station in 2008.
Customer Photos
FAQ
Delivery
1. Lead time is within 50 days after receive advance payment.
2.The price is valid for 30 days.
3.Payment terms 50% T/T in advance, balance before shipment.
