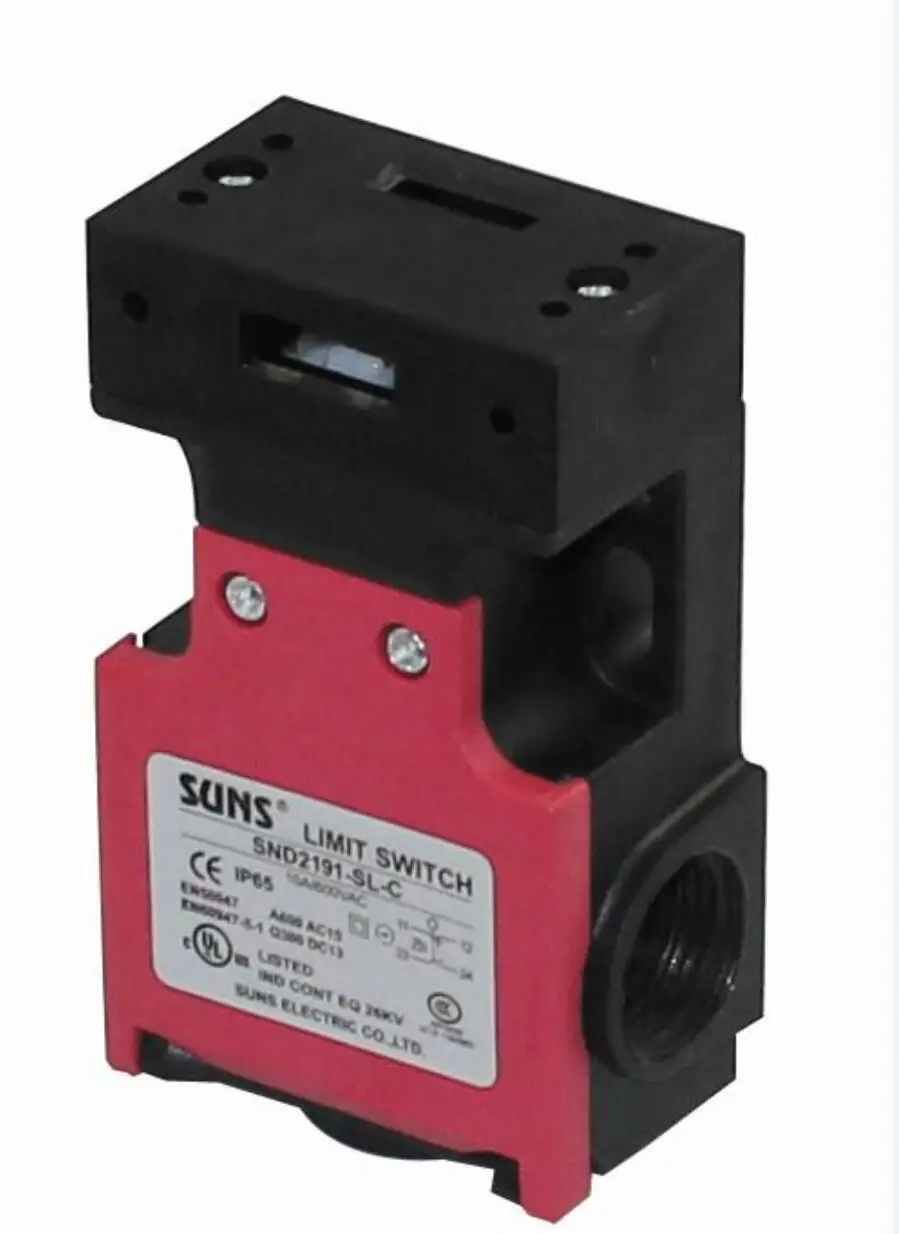

Interlocking Safety Switch SND2191
- Category: Limit Switches >>>
- Supplier: Suns Electric (zhangzhou) Co. Ltd.
Share on (62301926556):
Product Overview
Description
Basic Parameters:Interlocking Safety Switch
| Features: | |
| 1)Glass-fiber reinforced plastic enclosure | |
| 2)Mechanical movement and electrical line separtes | |
| 3)Positive Opening Mechanism | |
| 4)4×90º actuator positions | |
| 5)Double insulation | |
| 6)Cable entry available:M 20,PG13.5 AND 1/2"NPT | |
| 7)EN50047 Compatible | |
| 8)Contact form zb | |
| Specifications: | |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: | Mechanical:120ops/min Electrical: 30ops/min |
| Insulation Resistance: | >100mΩ@500VDC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage | 10A/600V AC(EN60947-5-1) |
| UL/CUL Listed(E216958)for AC15 A600/DC 13 Q300 | |
| Dielectric Strength: | 1000VAC for 1 min between non-continuous terminals |
| 2500VAC for 1 min between each terminal and ground | |
| Service Life: | Mechanically 1.5×107 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -25~+80℃ (-13~+176°F) without formation of ice |
| Humidity: | <95%RH |
| Weight: | ~70g |
| Degree of Protection: | IP67 |

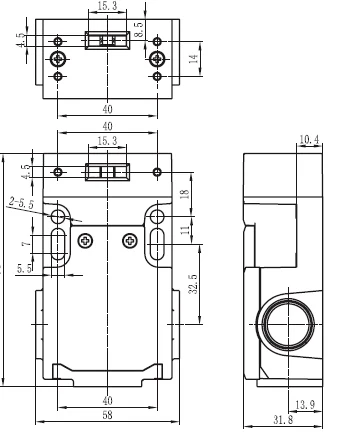

Technical Drawing:Interlocking Safety Switch
