fanuc 3 axis cnc vertical machining center vmc850
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (62302032137):
Product Overview
Description

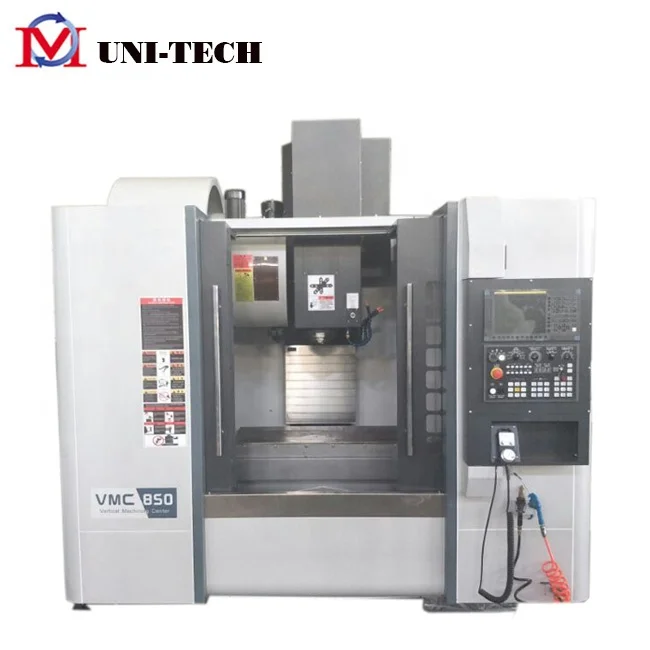

fanuc cnc vertical machining center vmc850
Product Description

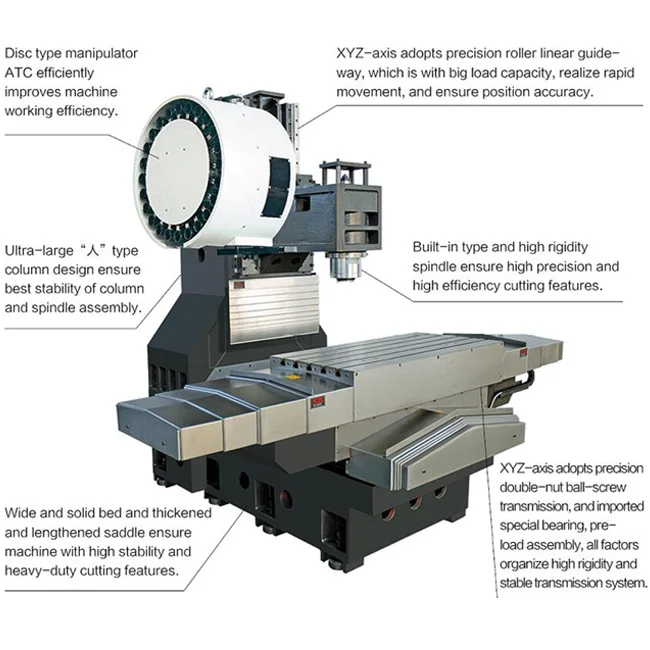

Features of VMC 850
1.Disc type manipulator ATC efficiently improves machine working efficiency.
2.XYZ-axis adopts precision roller linear guide-way, which is with big load capacity, realize rapid movement, and ensure position accuracy.
3.Ultra-large type column design ensure best stability of column and spindle assembly.
4.Built- - in type and high rigidity spindle ensure high precision and high efficiency cutting features.
5.Wide and solid bed and thickened and lengthened saddle ensure machine with high stability andheavy-duty cutting features.
6.XYZ- -axis adopts precision double -nut ball-screwtransmission, and imported special bearing, pre-
load assembly, all factor sorganize high rigidity and stable ransmissin system.
| ITEM/MODEL | Unit | VMC850 | |
| TABLE | Table size(L*W) | mm | 1000 x 500 |
| Max.loading capacity of table | Kg | 500 | |
| TABLE T-slot number | 5 | ||
| T-slot width | mm | 18 | |
| T-slot space | mm | 90 | |
| STROKE | X-axis stroke | mm | 800 |
| Y-axis stroke | mm | 500 | |
| Z-axis stroke | mm | 500 | |
| STROKE Min.distance from spindle end to table | mm | 150 | |
| Spindle center line to Z-axis guide-way surface | mm | 550 | |
| SPINDLE | Spindle motor power | Kw | 7.5/11 |
| Spindle motor torque | N.m | 35.8 | |
| Spindle Max.spindle speed(belt) | rpm | 10000 | |
| Spindle hole | BT40 | ||
| MOVING SPEED | X-axis rapid speed | m/min | 48 |
| Y-axis rapid speed | m/min | 48 | |
| Z-axis rapid speed | m/min | 36 | |
| Max.cutting speed | m/min | 20 | |
| ATC | ATC capacity | T | 24 |
| Max.diameter of tool | mm | ¢85 | |
| Max.length of tool | mm | 300 | |
| Max.weight of tool | Kg | 7 | |
| ACCURACY | XYZ-axis positioning accuracy | mm | 0.012 |
| XYZ-axis repeatability | mm | 0.006 | |
| Overall | Machine size(L*W*H) | mm | 2700*2400*2650 |
| Machine weight | Kg | 5000 | |
| Configuration: | ||
| Vertical machining center VMC850 | ||
| ITEM | DESCRIPTION | |
| 1 | Model | VMC 850 |
| 2 | Color | BLACK AND WHITE |
| 3 | Voltage | 380V 50HZ 3PH |

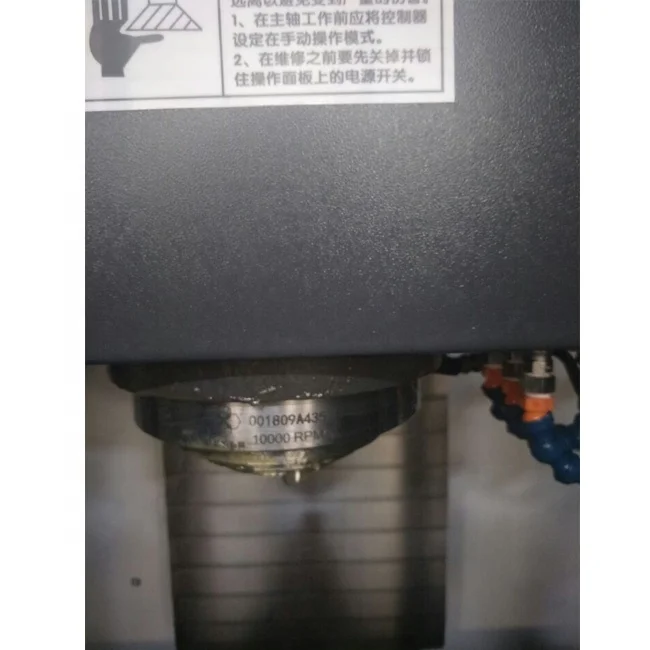

| 4 | Spindle | Taiwan spindle BT40/10000RPM (highest speed 10000rpm) |
| 5 | Axis | X,Y axis Taiwan or Germany linear guide ways and Z axis Harden box type |
| 6 | Leadscrew | Taiwan or Germany ball screws |
| 7 | Tool magazin | Taiwan round type tool magazine with 24 tools |
| 8 | Bearing | Germany FAG bearings |
| 9 | Linear guideway | Taiwan linear guideway |
| 10 | Other configuration | spindle blowing chip removal system |
| spindle air curtain protection | ||
| auto centralized lubrication system | ||
| rigid tapping | ||
| two water cooling, one air cooling | ||

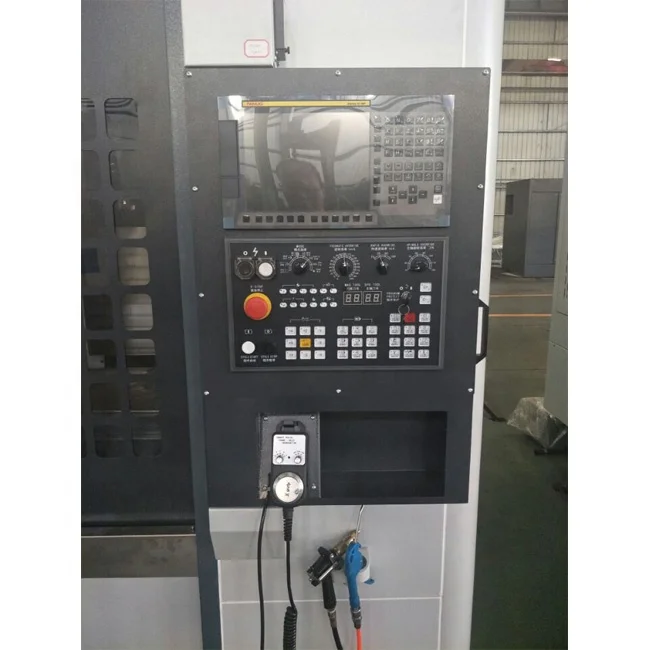

| electrical hand wheel, working lamp, RS232 interface, alarm light | ||
| DNC online processing | ||
| CE Electrical | ||
Ø Optional accessories:
1.Front chip-removal full-closed cover with chip removal device
2.Water flow through spindle
4.4 axis function
5.Oil coolant type spindle
6.Direct connected spindle
7.Oil and water separator
8.Working-piece and tools measuring device
9.Open-door power off function
10.High speed and precision function
11.Heightened column(bridge type or rising block)

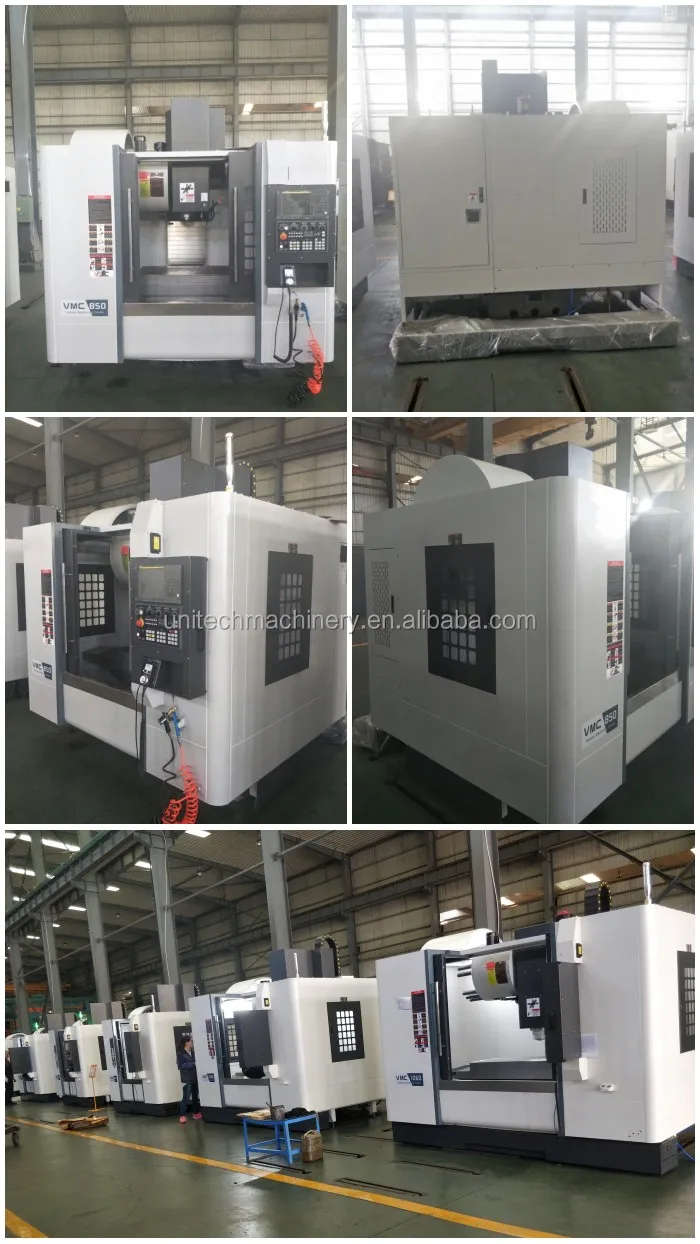

workshop show
Exibition
Our Services
Customized services
We accept customized services around the world
Afer-sale services
contact
If you are interested in our vmc850 fanuc cnc machining center , pls contact me
whatsapp: +8615263282652
skype: haubiao.kitty
