Best quality wooden tongue depressor making machine supplied by KUNCHI!

Wooden Ice Cream Stick Making Machine

Wooden Tongue Depressor Making Machine

Wooden Coffee Stirring Stick Making Machine

Our factory is the earliest one in China who started to produce the wooden ice cream stick machines as well as producing high grade ice cream sticks, wooden ice cream spoon, tongue depressor and coffee stirring sticks. So we not only can supply professional ice cream stick making machines, but also can provide whole production technical support, if you want to start this business in your country, we will be your best choice!

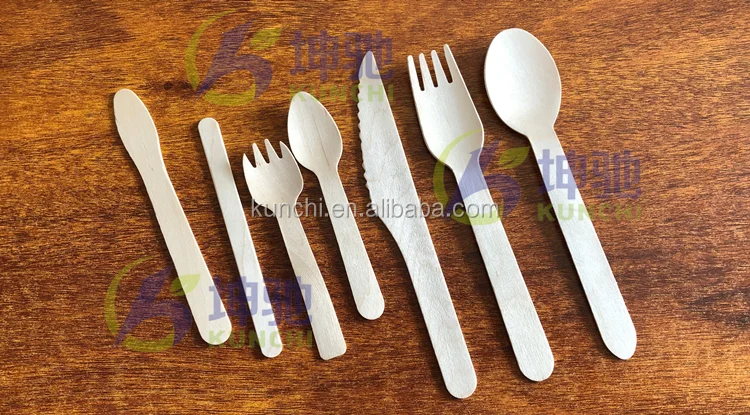

This production line is used to produce wooden ice cream stick, ice cream spoon, coffee stirring sticks and tongue depressor for medical purpose.

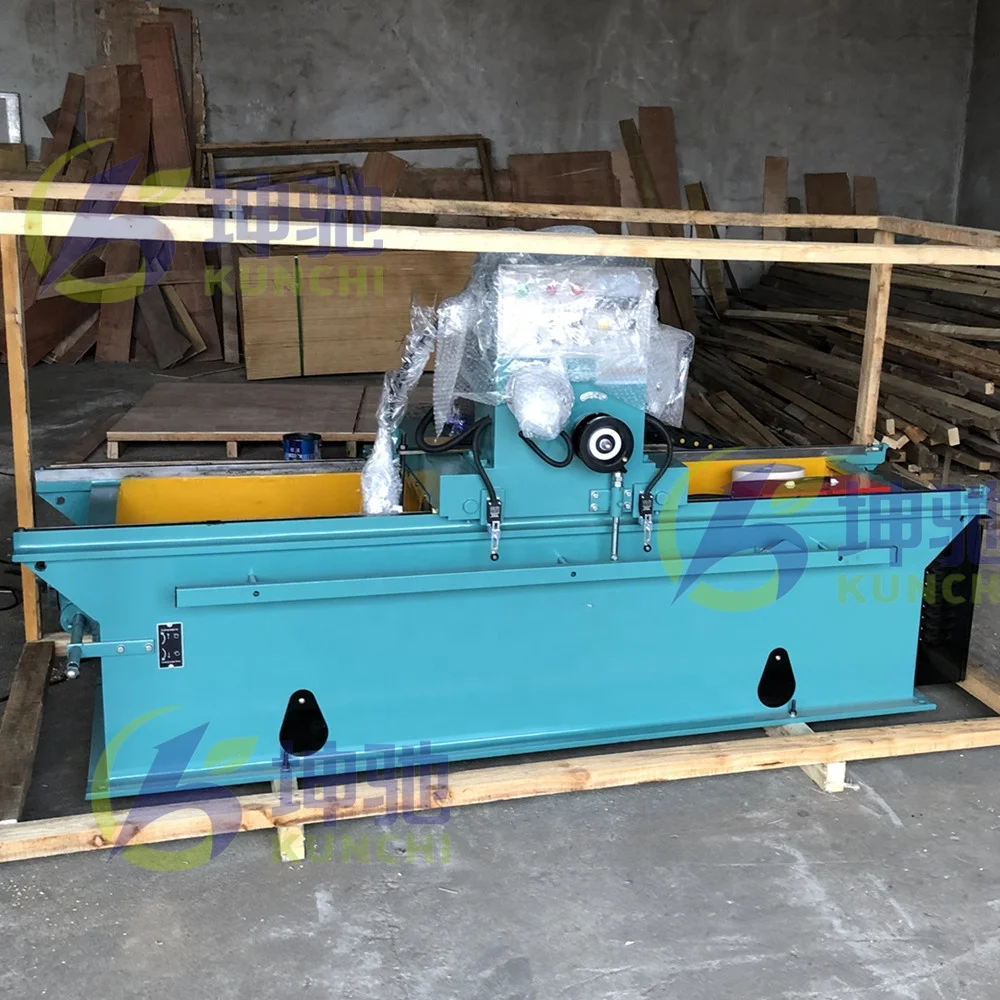

The wooden ice cream stick production line basically includes Rotary cutter, Carve cutting machine, Drying and polishing machine, Special blades sharpener,Selecting machine, Chamfering machine, branding machine, bundling machine, packing machine, etc. Of course, some of them are not the necessary equipment, so you can choose the machines according to your real situation.

The popular wood used in China is the Birch, if yo do not have this wood available in your country, you can use other wood, it is better for you to send samples to us for testing to check whether it is accepted.

*The general producing process of tongue depressor making machines:

1.Cutting the wood logs into segments with certain length as required.

2.Soaking and boiling the wood segments with required time.

3.Peeling the wood segments and then using the rotary cutter to process them into wood veneer.

4.Cutting the veneer into ice cream shape by die cutting machine.

5.Drying and polishing the ice cream sticks by drying and polsimachine.

6.Selecting the unqualified sticks out by selecting machine.

7.Chamfering the ice cream sticks into smooth half round edge and more standard shape.

8.Branding the stick with logos

9.Bundling or Packing the ice cream sticks.

*Machine list of wooden tongue depressor making machines

*Output: 2000000pieces/shift( 8 hours)Regarding the equipment for boiling, you can consult your boiler supplier in your local market, we will supply the technical support.

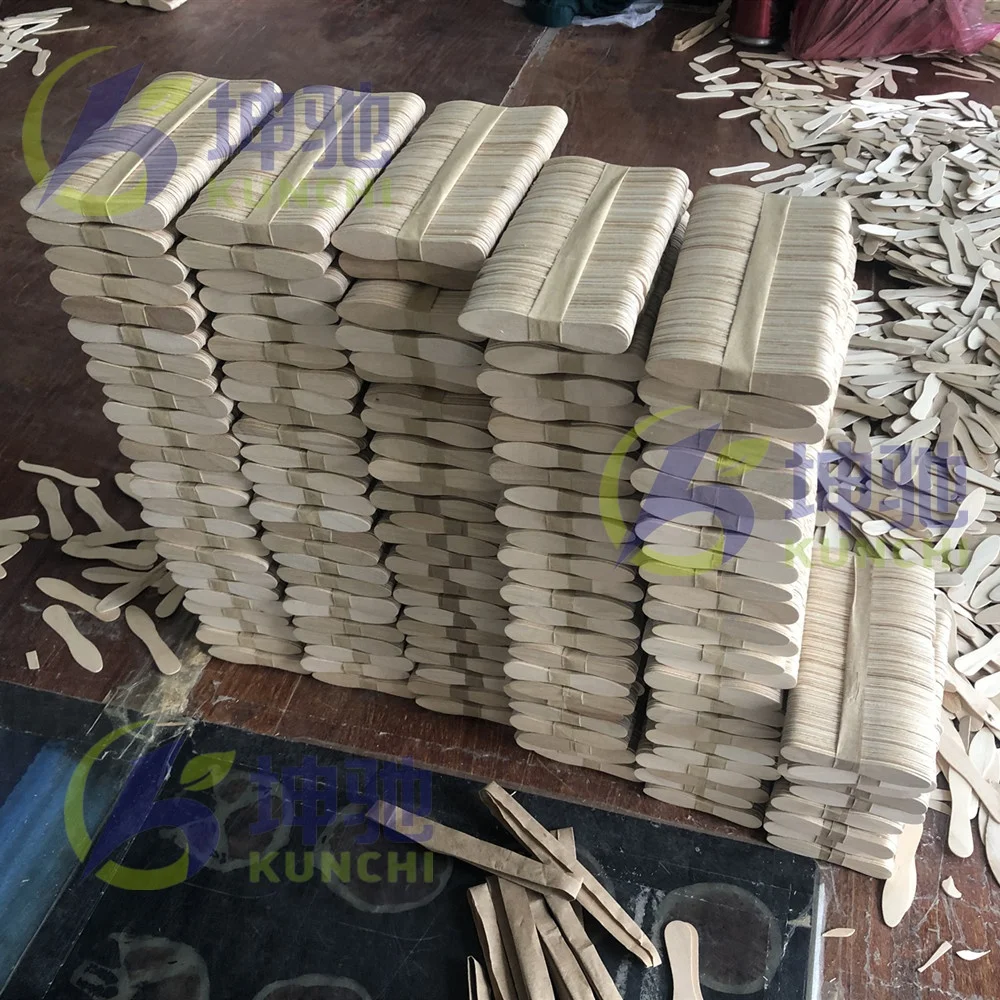

*The popular size of the ice cream stick is 93*10*2mm/114*10*2mm.

*I CBM wood can produce 270000pcs(93*10*2mm)/230000pcs(114*10*2mm)

* One production line can process about 15-20 CBM wood per day(8 hours)

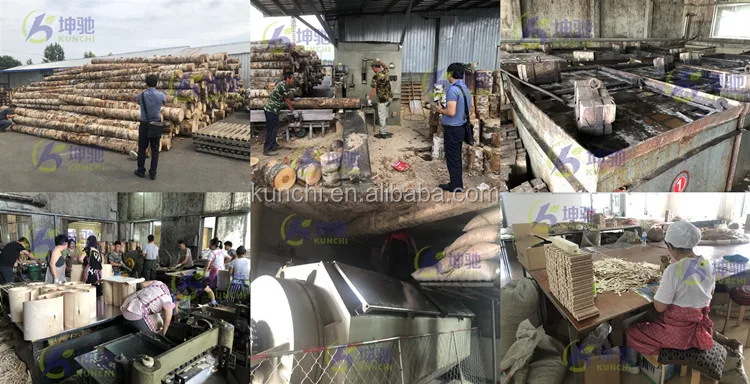

*Main production flow of tongue depressor making machines

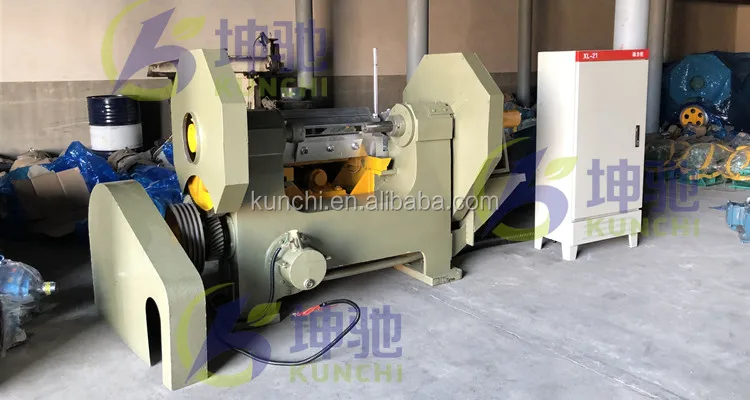

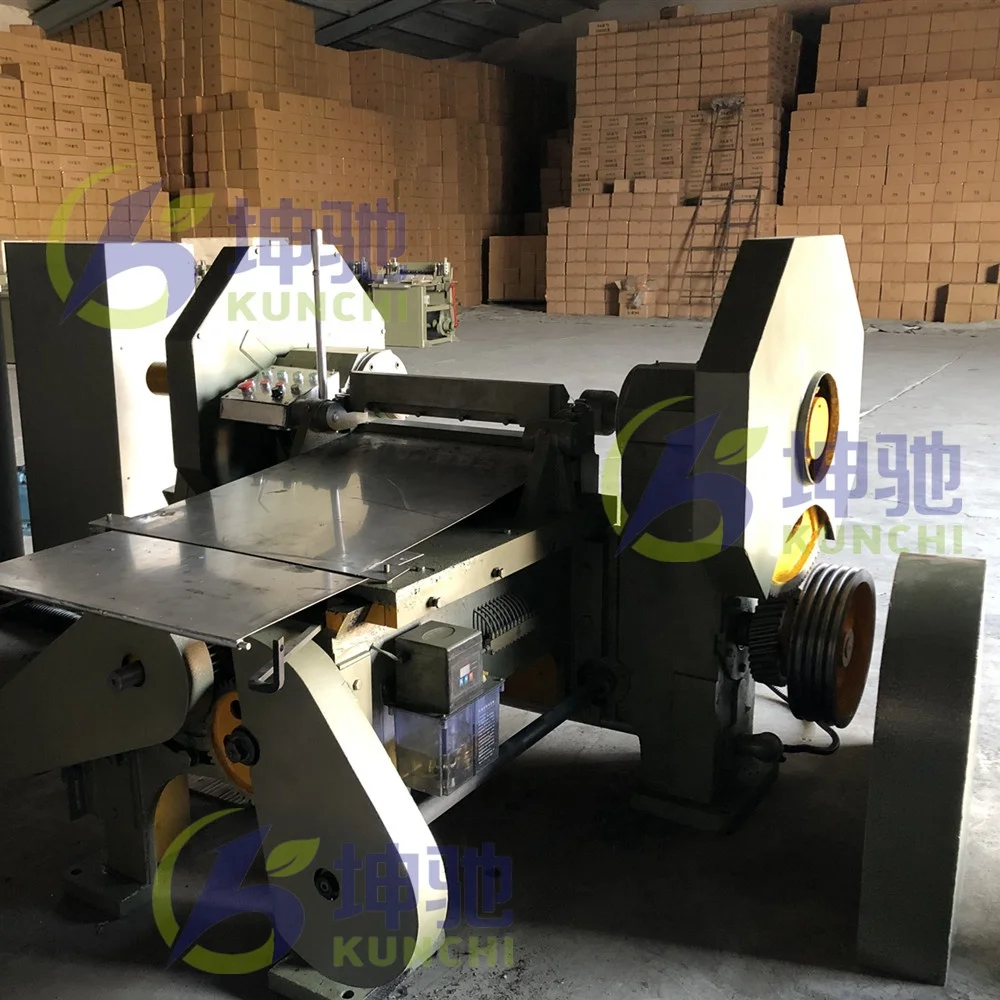

*Heavy double segments rotary cutting mahine(producing the wood veneer)

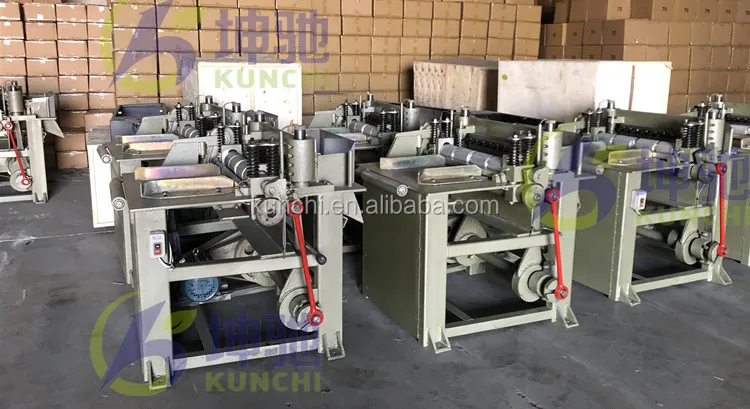

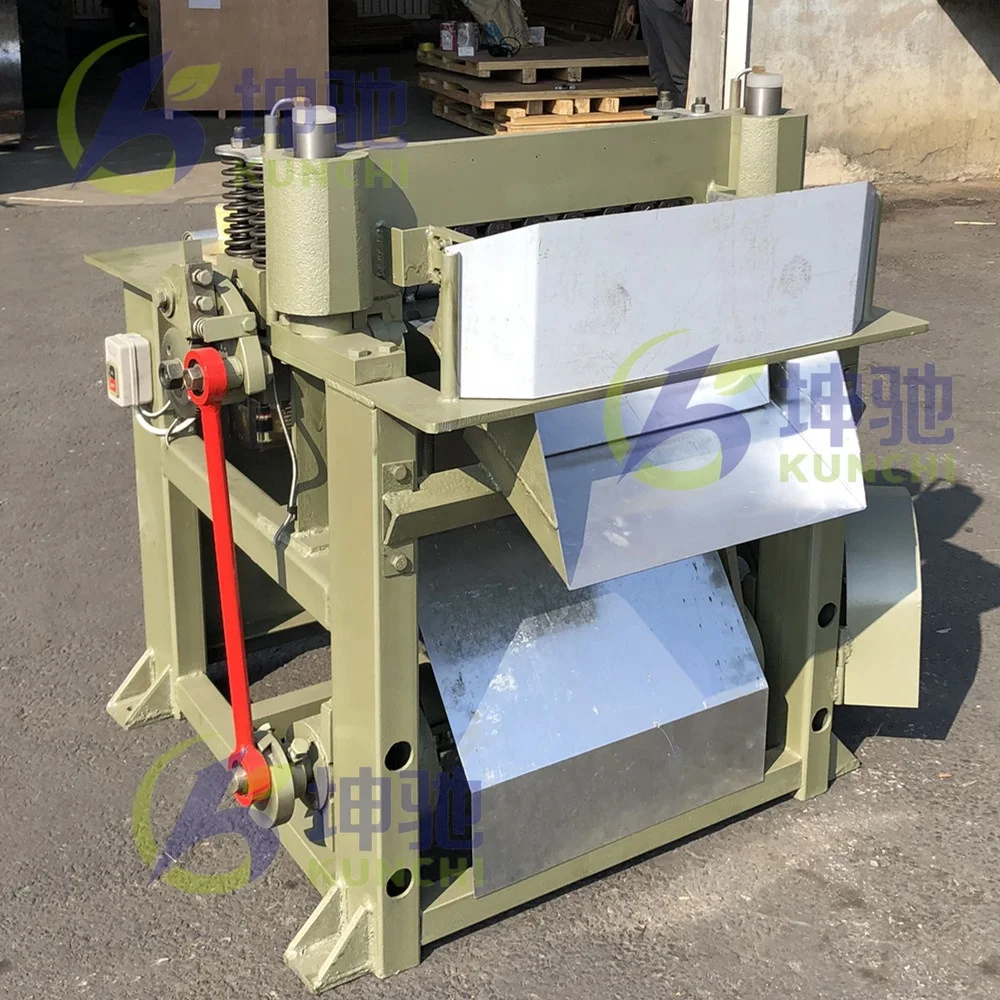

*Die cutting machine(producing the sticks with different shapes)

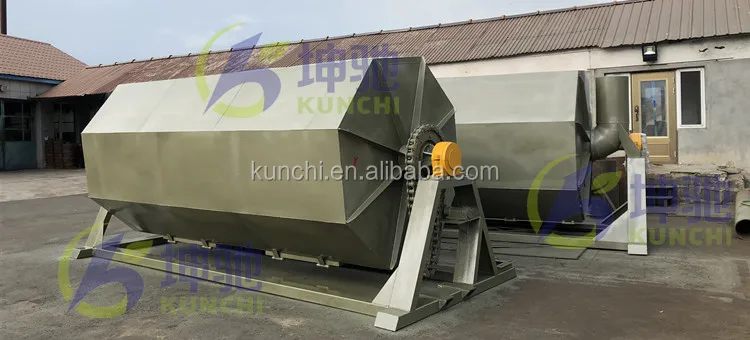

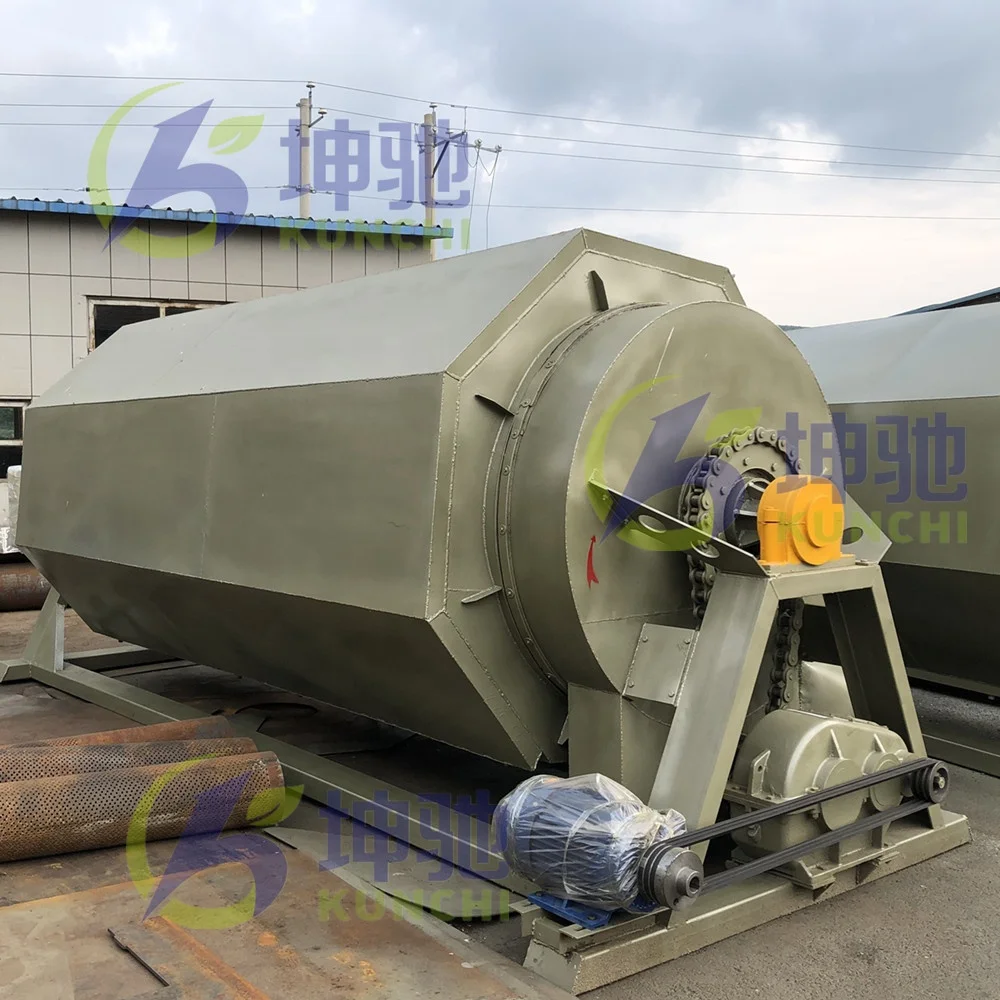

 *Drying and polishing machine(drying and polishing the sticks)

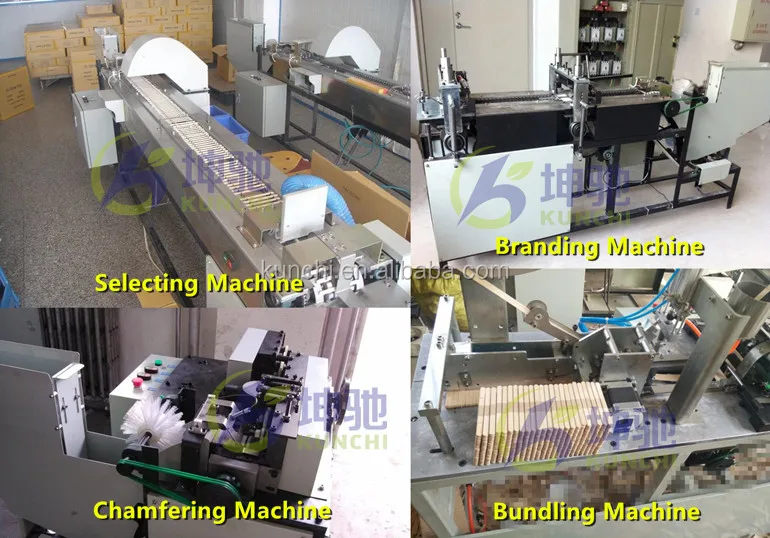

*Other relevant machines

For detailed information, please send us your inquiry! You will get quick response with professional information!

All the machines will first packed with film and then packed into high quality wooden case and well fixed.

Generally speaking, machines will be ready within 20 days after we recieved the deposit. FOB, CNF,CIF are all accepted.
