LED light bar hand sweep control panel LED hand sweep dimming module
- Category: >>>
- Supplier: Shenzhen Liyan Modern Technology Co. Ltd.
Share on (62302807626):
Product Overview
Description
Quick Details
| Place of Origin | Guangdong,China(Mainland) | Brand Name | kenshap | |
| Model Number | LYXD-S04 | Usage | Automatic Infrarde Tap Sensor | |
| Input Voltage | DC 24V | Output Power | 8W | |
| Color | Brown | Line Lenhth | ||
| Quiescent Current | ≤10mA | Scan cycle | 500ms(Custmizable) |
Supply Ability
Supply Ability: 5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details 500PCS/ctn
Port ShenZhen
Lead Time With 5 working days

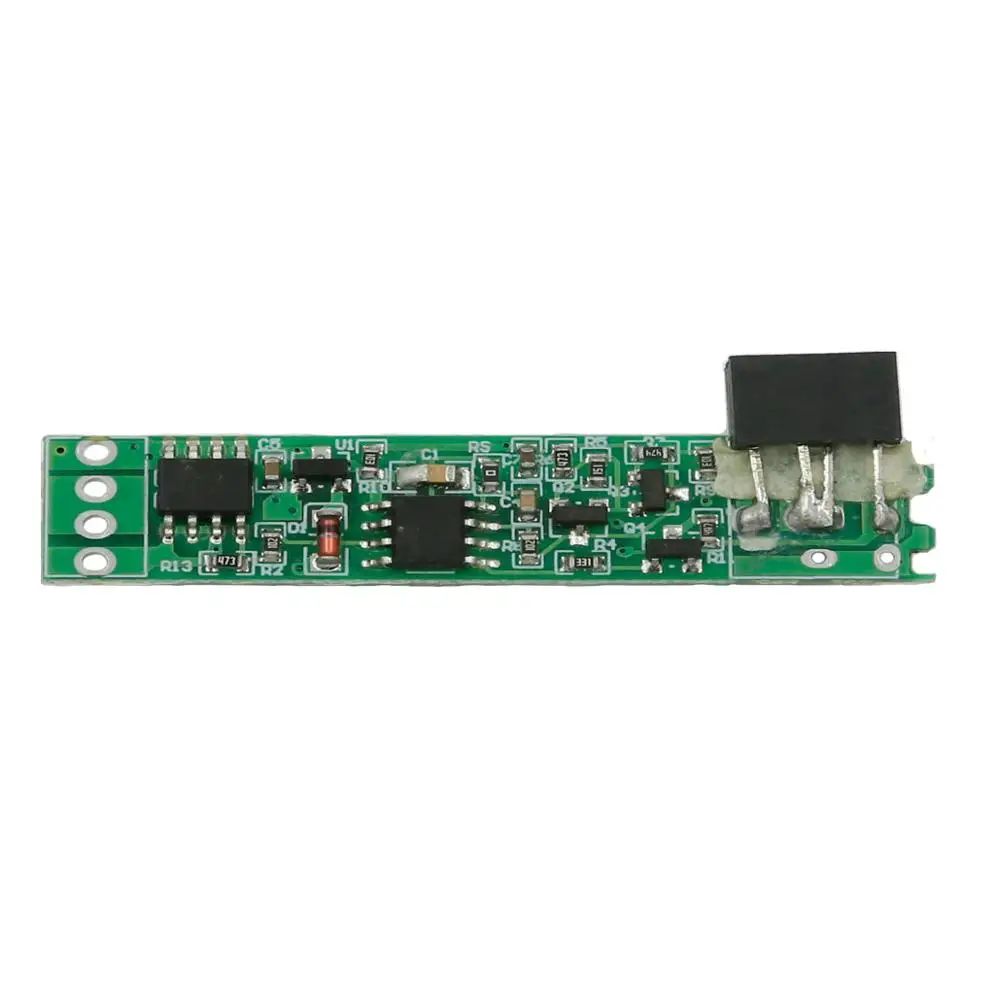

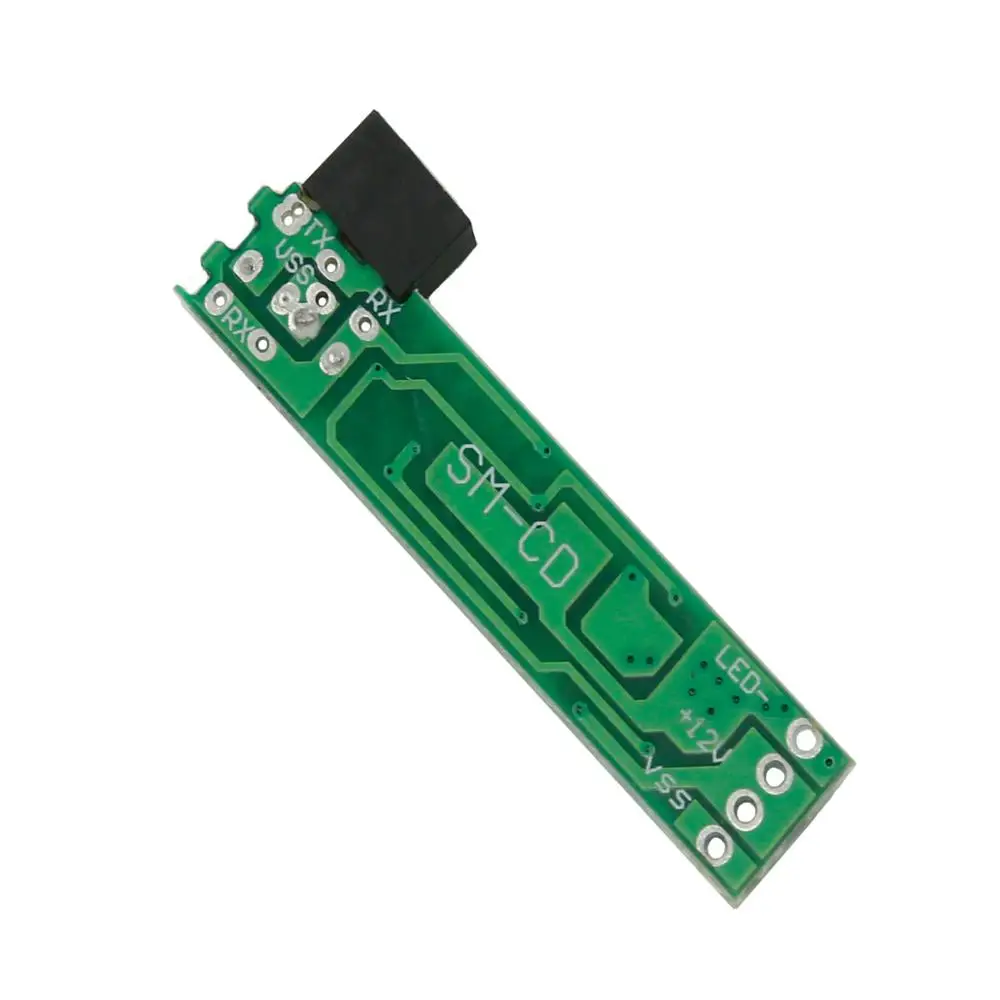

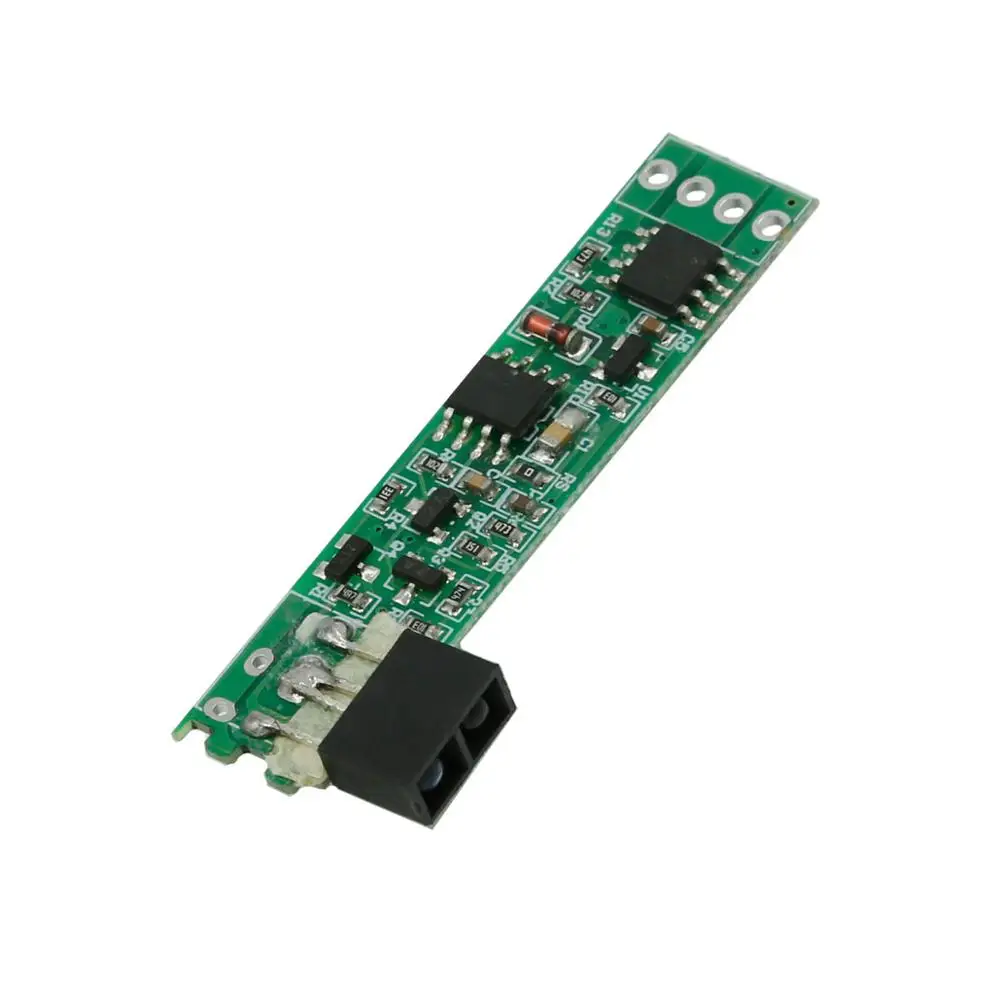

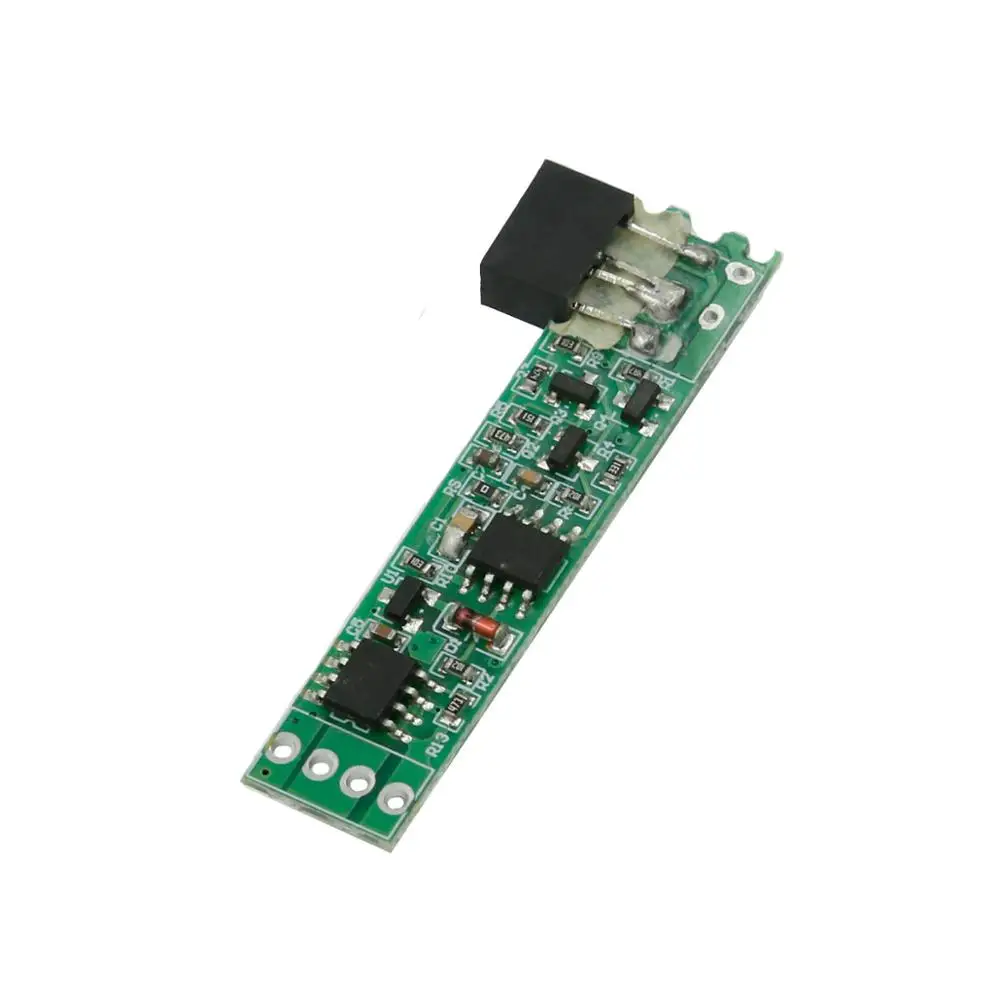

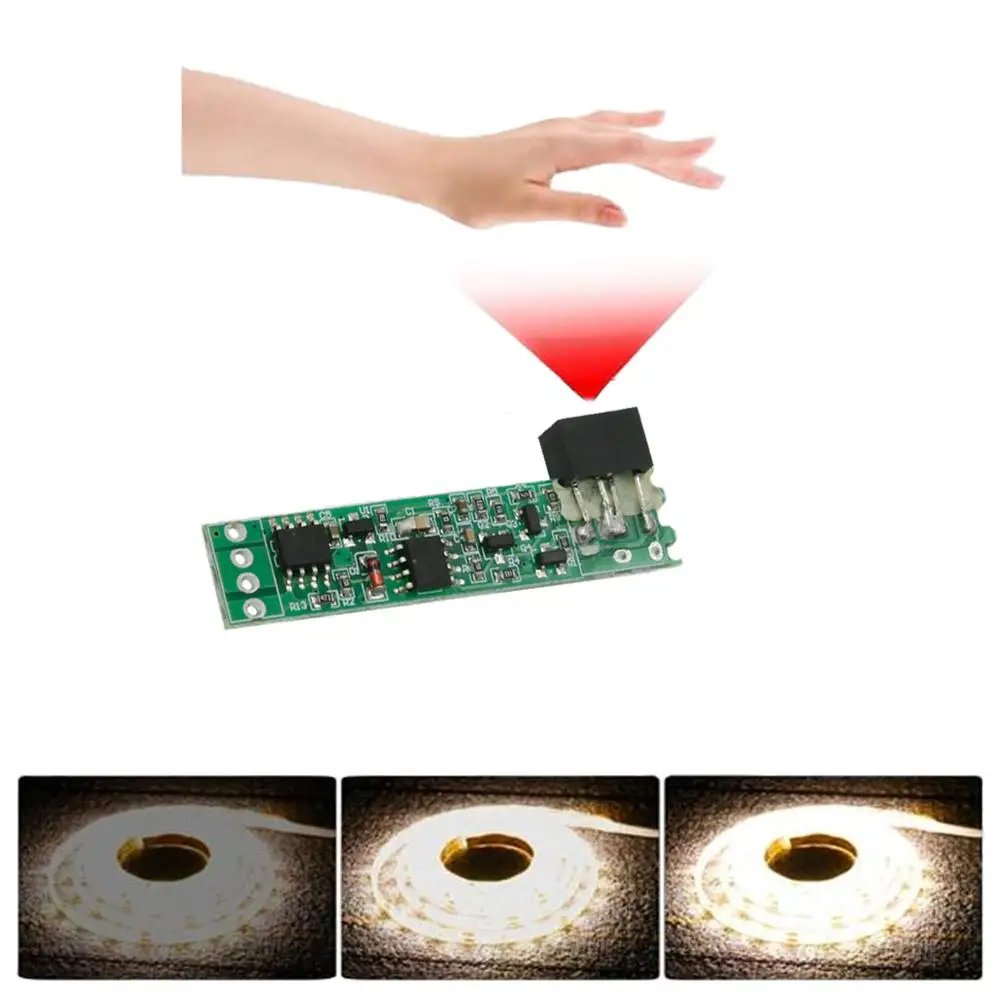

LYXD-S04 is an ultra-small intelligent non-contact sensor switch developed by the principle of infrared diffuse reflection. It consists of an infrared emitting diode and an infrared receiving diode. It can be used for alarm, intelligent switch, etc. by receiving the infrared wave reflected by the front obstacle and reflecting it.
Features:
1 infrared induction;
2 induction angle ≤ 20 °;
3 After induction, the three output modes can be customized, respectively, switch, third gear dimming, cabinet door sensing mode, default switching mode;
4 sensing distance can be customized, the default is 5-7CM;
5PCB board structure shape and module scheme can be customized;
6 applications: LED induction lighting.
Specifications:
1 \Power input: DC24V;
2 \ \Induction angle: ≤20°
3 \ sensor type: infrared diffuse reflection induction;
4 \Power consumption: <1MA;
5 \Output mode: default switch;
6 \ working temperature: -10-60 ° C
Schematic design:
PCBLAYOUT:
