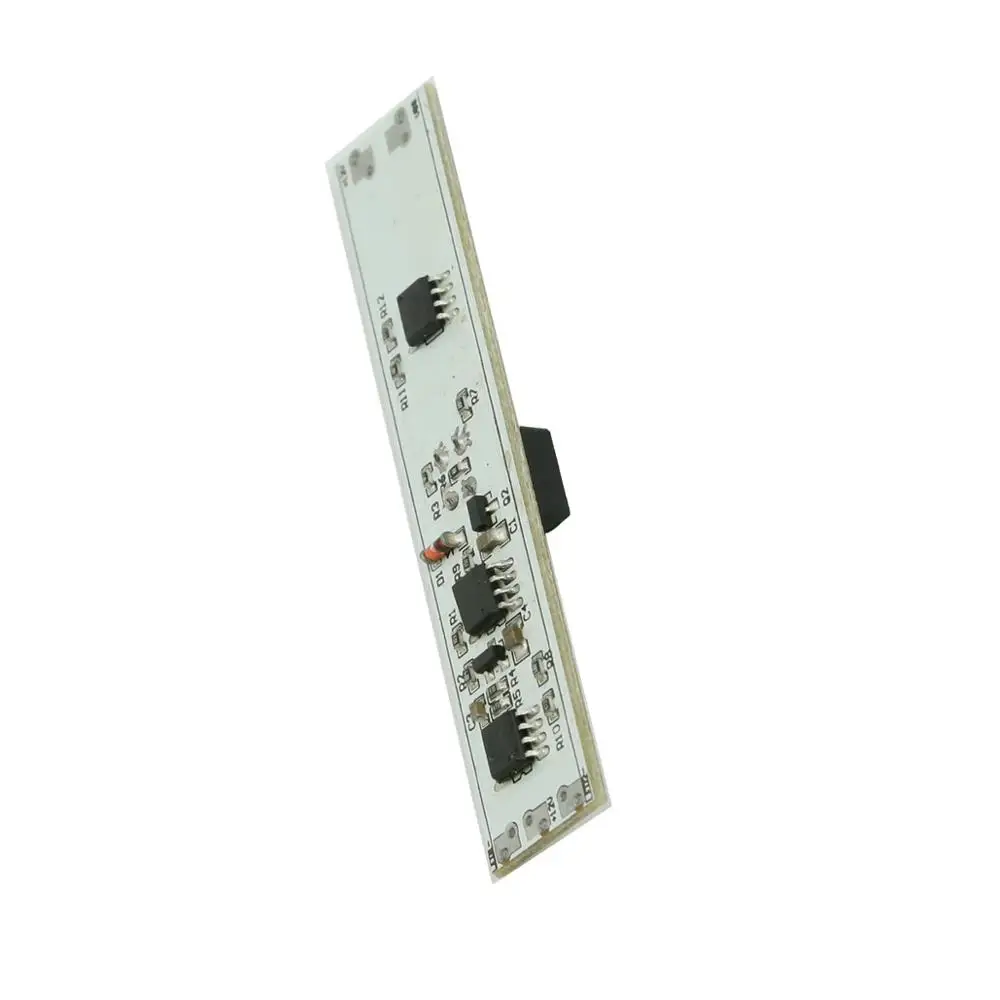

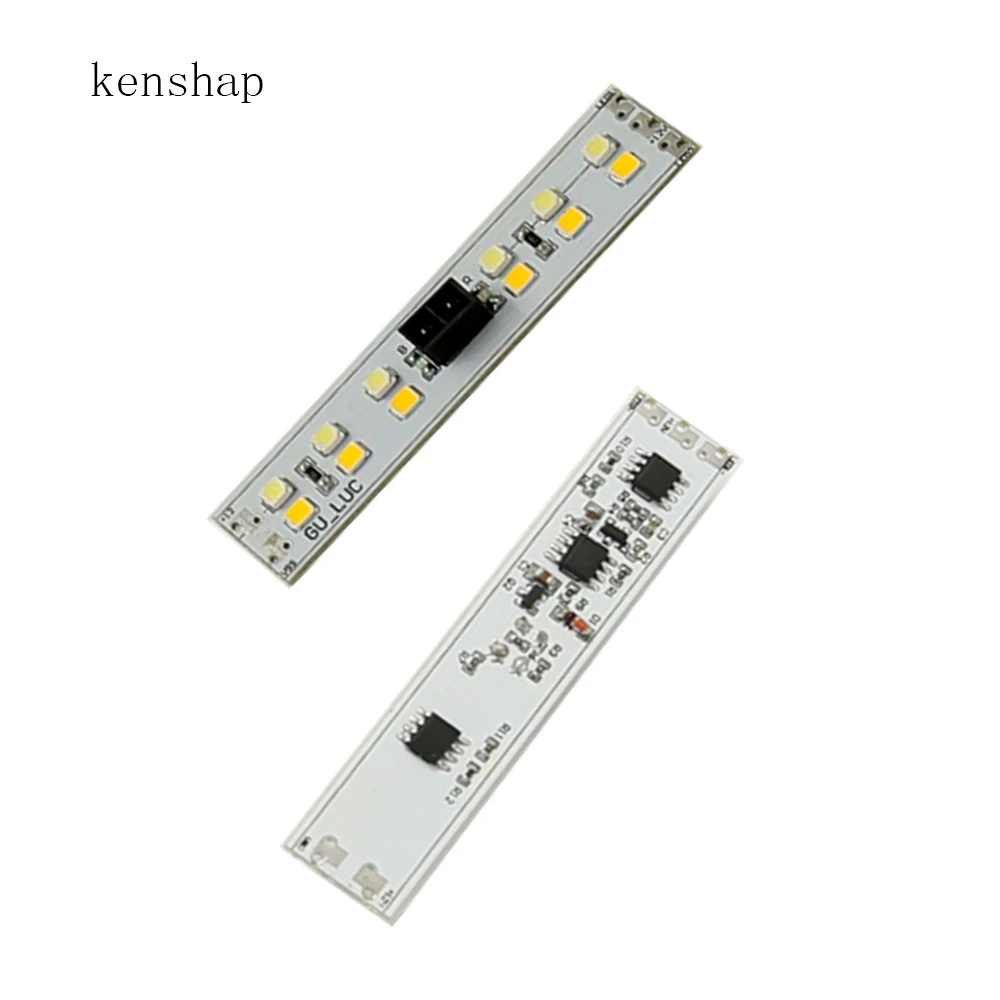

LED light bar hand sweep control panel LED hand sweep dimming module
- Category: LED Sensor Lights >>>
- Supplier: Shenzhen Liyan Modern Technology Co. Ltd.
Share on (62302869757):
Product Overview
Description
Quick Details
| Place of Origin | Guangdong,China(Mainland) | Brand Name | kenshap | |
| Model Number | LYXD-S-B01 | Usage | Automatic Infrarde Tap Sensor | |
| Input Voltage | DC 12V | Output Power | 50w | |
| Color | Brown | Line Lenhth | ||
| Quiescent Current | ≤10mA | Scan cycle | 500ms(Custmizable) |
Supply Ability
Supply Ability: 5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details 500PCS/ctn
Port ShenZhen
Lead Time With 5 working days

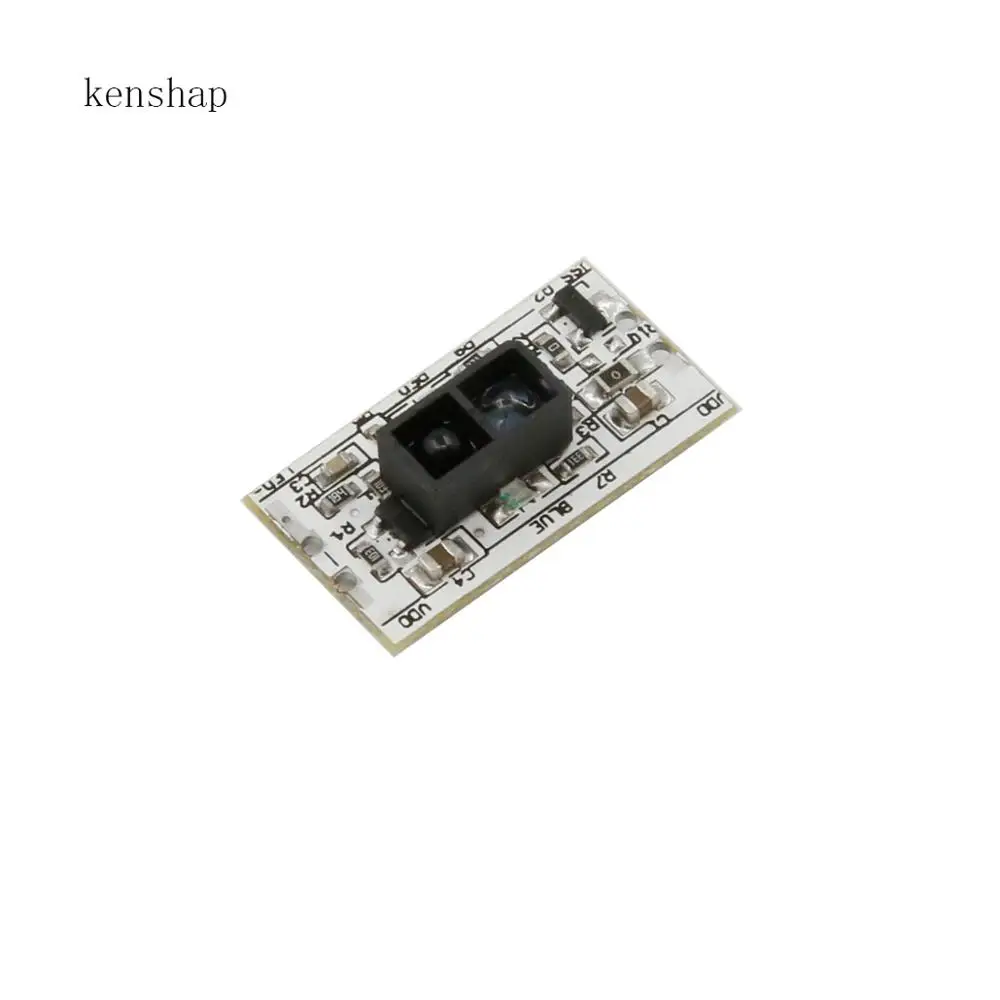

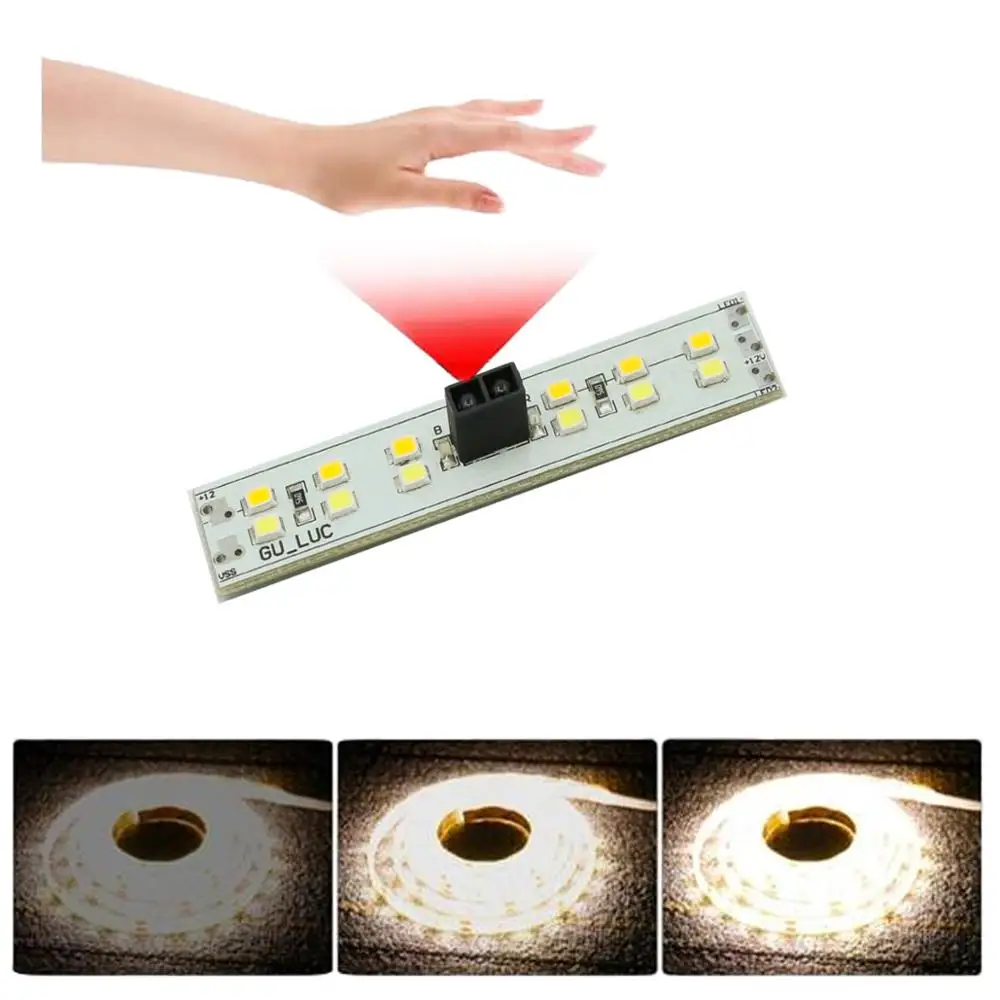

LYXD-S-B01 is a three-color temperature-sensitive non-contact sensor switch developed by the principle of infrared diffuse reflection. The infrared light emitting diode and the infrared receiving diode are formed, and the presence or absence of the front obstacle is detected by receiving the infrared wave reflected by the front obstacle and diffused back by the front obstacle to realize the color temperature adjustment of the LED light bar.
Features:
1 infrared induction;
2 induction angle ≤ 20 °;
3 after the induction, adjust the color temperature;
4 sensing distance can be customized, the default is 5-7CM;
5PCB board structure shape and module scheme can be customized;
6 applications: LED induction lighting.
Specifications:
1 \Power input: DC12V;
2 \ \Induction angle: ≤20°
3 \ sensor type: infrared diffuse reflection induction;
4 \Power consumption: <1MA;
5 \ output power: 50W;
6 \ working temperature: -10-60 ° C
