OPR 2600DB N CATV & SAT IF Mini Satellite Optical Receiver

Product Overview

Description

Overview

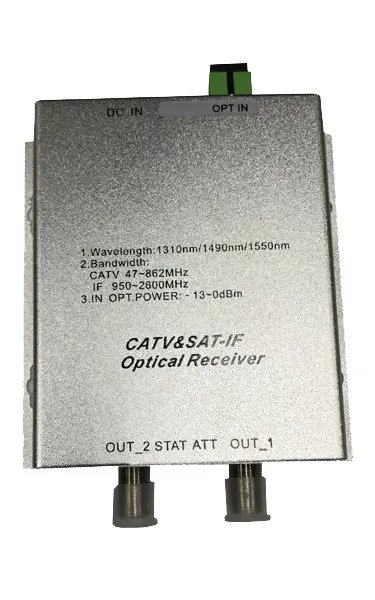

OPR-2600DB-N is our specialty products that specially developed for the CATV and satellite direct TV transmission in one network. With small shell, compact and reasonable internal circuit structure and excellent performance, is compatible with FTTx PON technology. Realize FTTH and the integration of Analog TV, Digital TV (DBS-C, DBS-T) and Satellite TV.



Features

1. High sensitivity optical detector.

2. It is an embodiment of high-tech in CATV and L-band satellite fiber linking products.

3. It can be received in an optical fiber with 47~2600MHz satellite and CATV digital and analog signals.

4. Simple installation; It is convenient for user to install.

5. Input power from -13 ~ +0dBm.

6. It has good electromagnetic interference resistance ability.



Technical Data

Parameters		Unit	Specification
Optical Part	Working Wavelength	nm	1290~1600
	Input range	dBm	-13~+0
	Optical Return Loss	dB	≥45
	Fiber Connector	-	SC/APC or FC/APC
RF Part	Frequency	MHz	47~862
	Unflatness	dB	±1.5
	Output Level	dBuV	66~86@0dBm
	Manual Gain Range	dB	0~20±1
	Output Return Loss	dB	≥16
	Output Impedance	Ω	75
	No. of output port	-	2
	RF connector	-	F-5(Imperial)
Link Part	CBT	dB	≥62@0dBm
	CSO	dB	≥63@0dBm
	CNR	dB	≥50@0dBm
Test Condition: 60* (PAL-D)channels, Optical input=0dBm, 3 steps EDFA Noise figure =5dB, distance 65Km, OMI 3.5%.
SAT-IF Part	Frequency	MHz	950~2600
	Output	dBm	-50~-30
	Unflatness	dB	±1.5dB
	IMD	-	-40dBc
	Output Impedance	Ω	75
General Part	Power supply	V	12 DC
	Power Consumption	W	≤4
	Working Temp	℃	0~50
	Storage Temp	℃	-20~85℃
	Humidity	%	20~85%

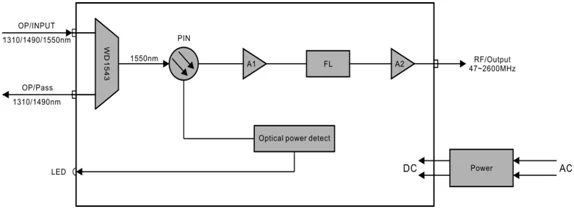

Diagram
