Place of Origin:
Any opaque object
Zoom in and out,Light protection,durable,Click,Draw
Plug and Play
3mm toughened glass

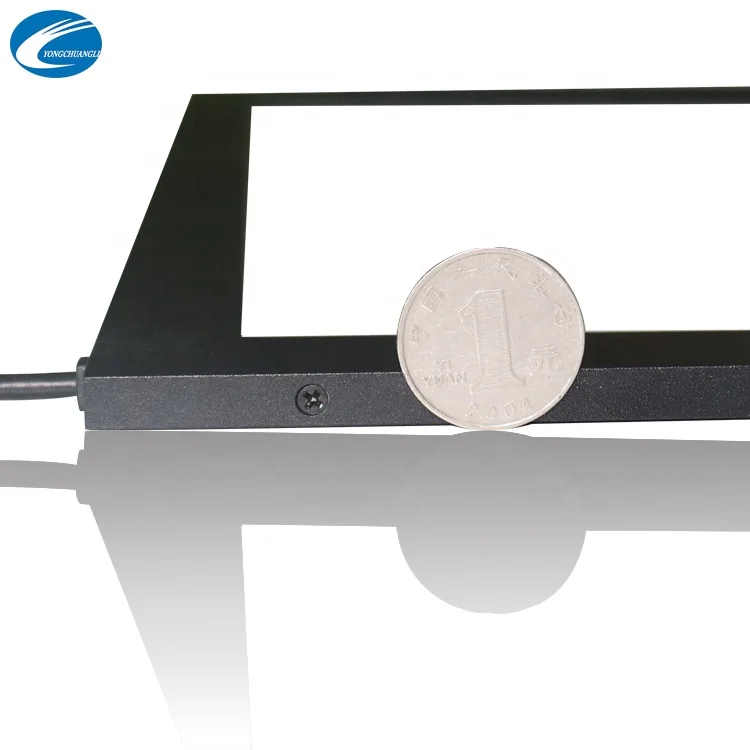

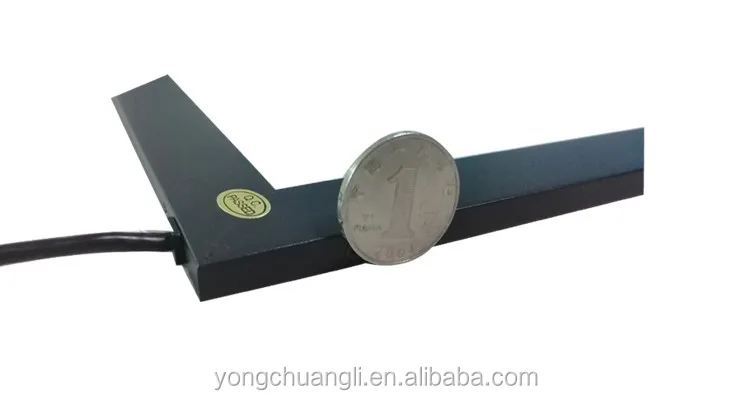

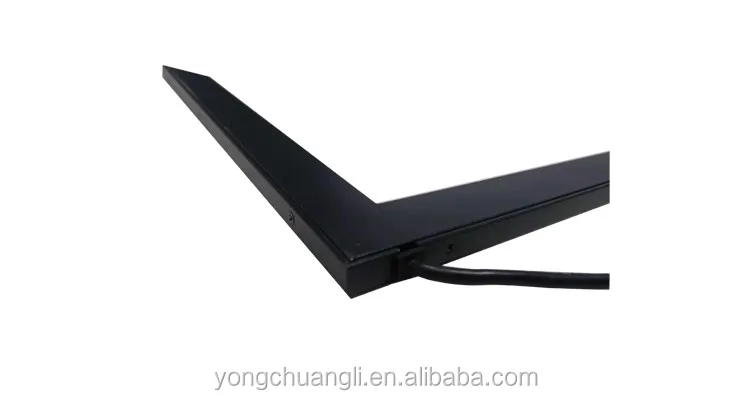

1.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.

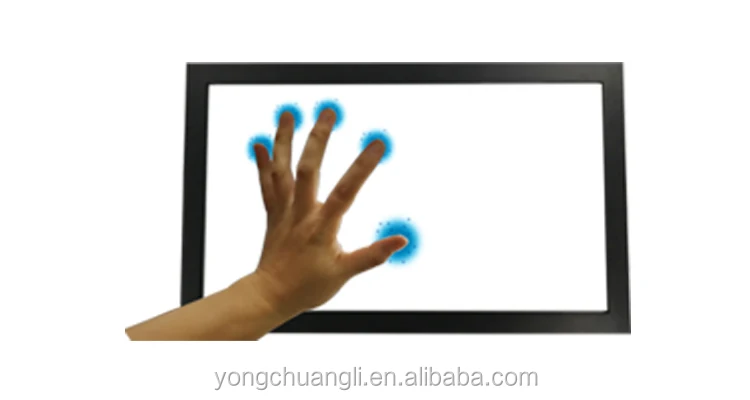

8.No special touch tools are needed, just opaque objects.

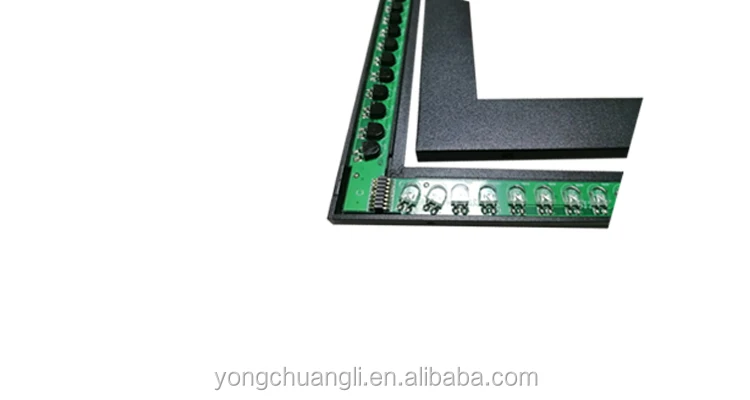

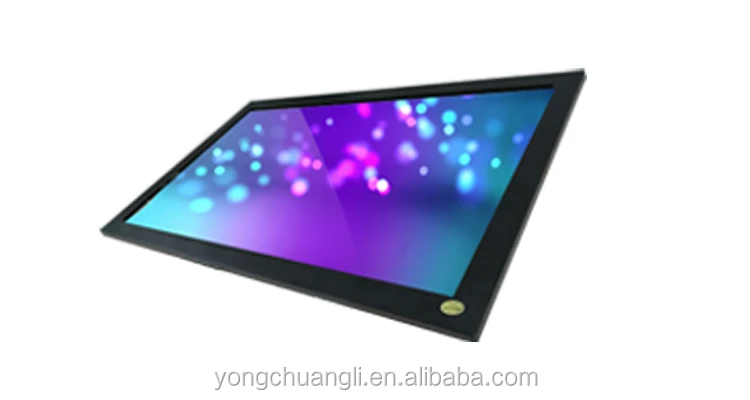

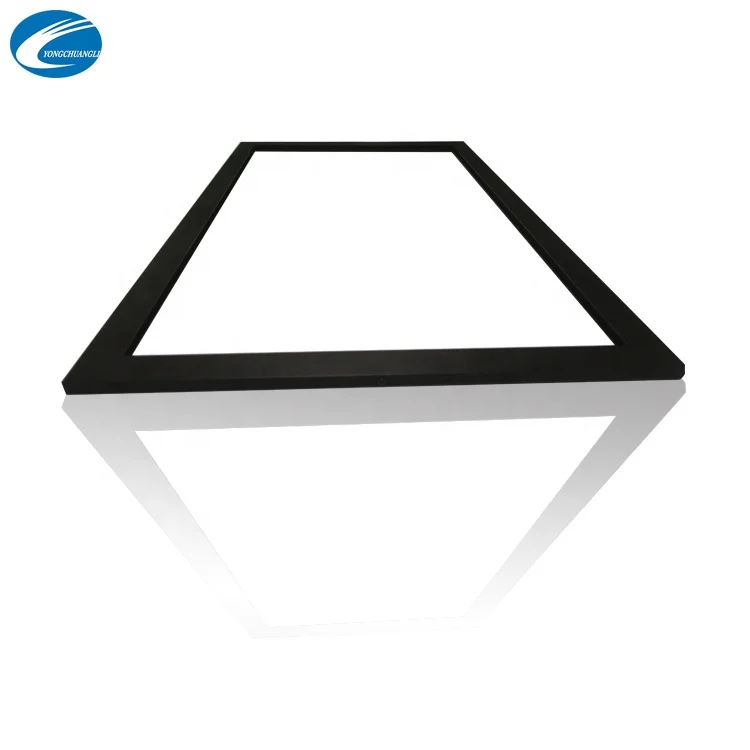

Specification of Infrared Touch Screen
Touch Screen Size
The middle area is less than 1 mm and the edge is less than 3 mm.
Any opaque touches, such as fingers, brushes, etc.
Number of clicks
No pressure requirement
Easy installation, strong compatibility
Power supply mode
Working Voltage and Current
4.75~5.25V , ≤200mA
Working temperature and humidity
-15℃~55℃,10% ~ 90% RH
Storage temperature and humidity
-40℃~75℃,10% ~ 90% RH
< 80000 Lux (different infrared tubes, different intensities)
According to EN 6100-4-2 2008:3. Contact discharge 4KV,Air Discharge 8KV (Test in Full Machine)
Windows 7,Windows 8,Windows10,Android,Linux,Mac,Windows xp
Support for providing dynamic link libraries and supporting custom API interfaces
High temperature storage
100 C, 20 hours, 2 hours at room temperature.
- 40 C, 20 hours, 2 hours at room temperature.
High and Low Temperature Cycle Work
80 C, 48 hours, - 10 C, 12 hours.
High humidity work
80 C, 85% RH, 20 hours.
USB plug-in test
> 2000 times

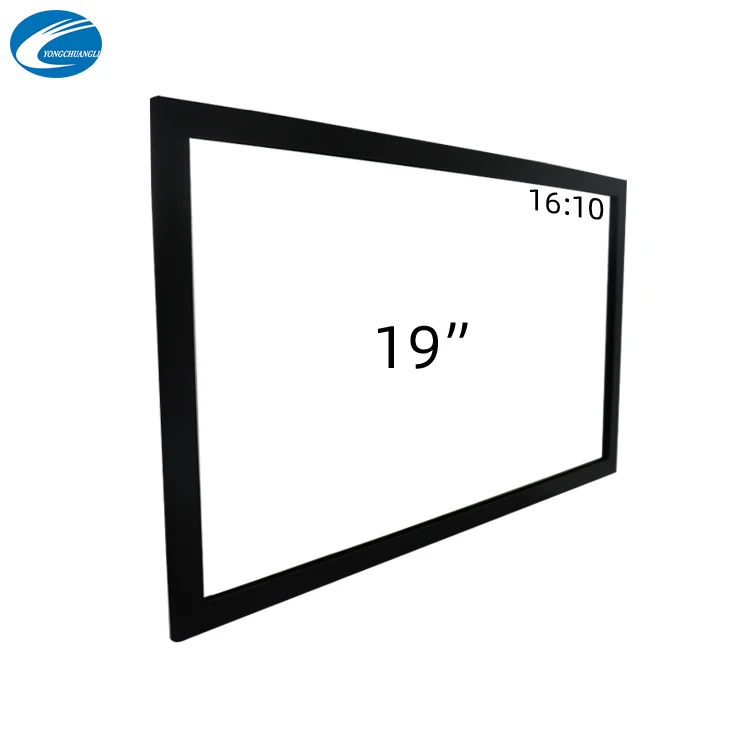

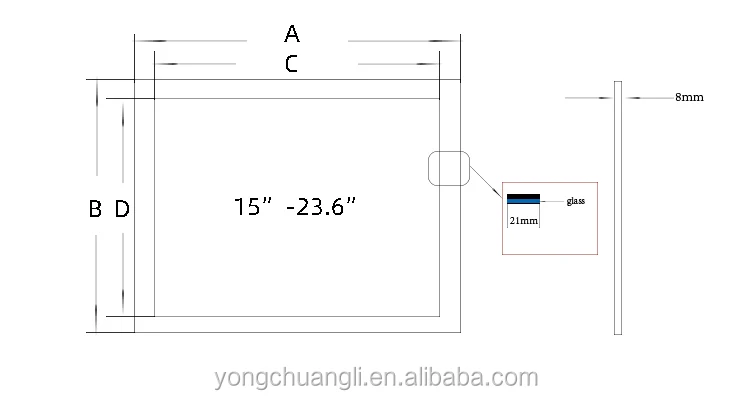

Infrared touch screen size
Shenzhen Yongchuangli Electronic Technology Co., Ltd.is a high-tech enterprise specializing in R&D, production and sales of infrared PCBA sets, touch frames, touch screens, splicing screens, interactive intelligent electronic whiteboard (projection type).Acquired nearly 10 domestic practical technology soft work, truly achieve 32 touch solution providers. The company focuses on interactive touch application, adheres to the "independent innovation technology beyond" development strategy, has a strong technical force of R&D team, and has a number of core technology solutions.
Infrared touch box, multi-touch screen and other core products have the following characteristics: high resolution, fast response, support for multi-touch operation, one-hand occlusion does not affect touch, support gesture switching dual system, the narrowest and thinnest border, drive-free support for multiple systems, suitable for Windows, Mac OS, Android, Linux operating system.
Quality products and all-round service are the basis for us to win the market. We patiently listen to every customer's suggestions and opinions, so that we continue to forge ahead, we always uphold the customer first, dedicated service!
The series of products produced by the company conform to UL, FCC, ROHS and Reach standards. The company has passed the ISO 9001:2015 international quality management system certification.

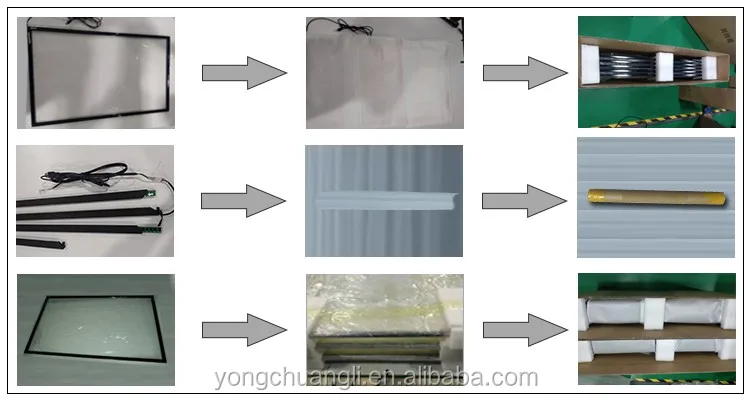

Packaging Detaills:Foam and carton box
Delivery Time: within 5-15 workdays after payment
