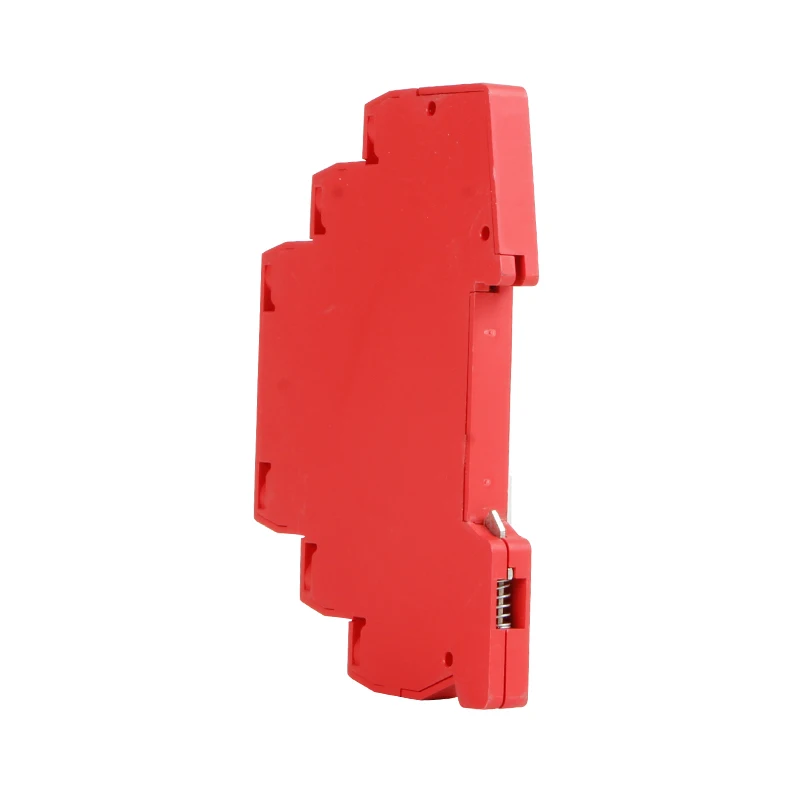

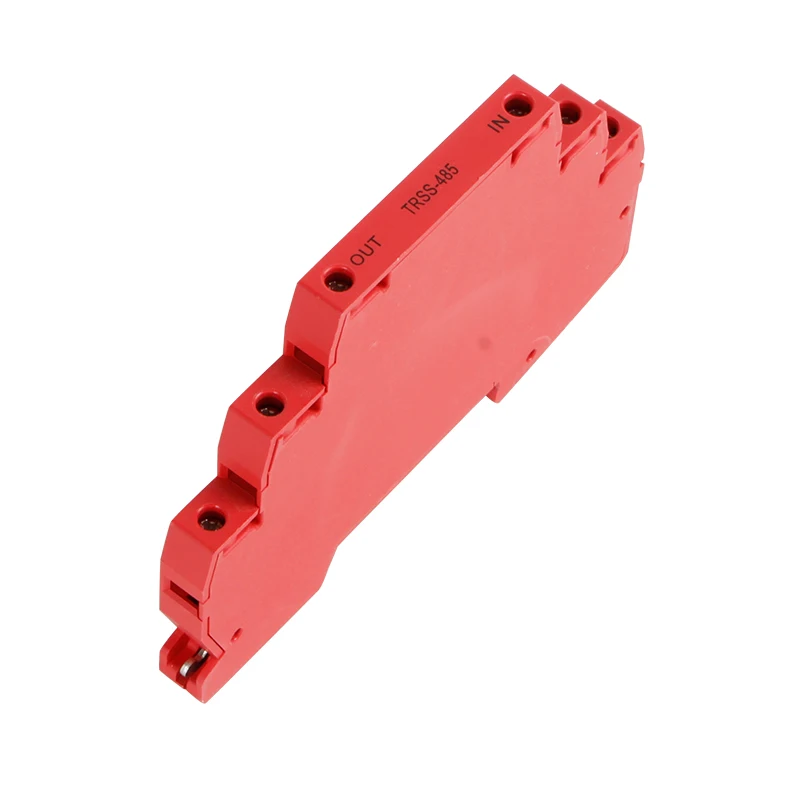

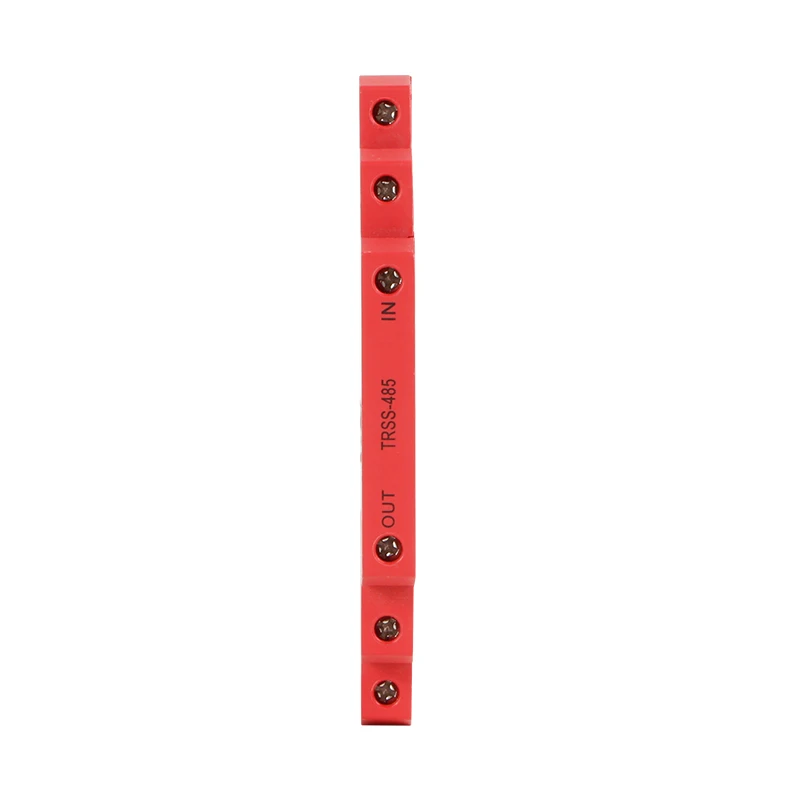

RS485voltage surge protection lightning protection control signal
- Category: >>>
- Supplier: Zhejiang THOR Electric Co. Ltd.
Share on (62303383319):
Product Overview
Description
Product Effects
Product Overviews
This product is suitable for analog signal system lightning protection, from damage by lightning over-voltage, induced over-voltage, electrostatic discharge.
The standard module can protect two lines. multiple standard modules can protect more lines at one place,It can be used to superimpose, and make up protect the array to protect the sensitive electronic equipment.
This product use front and back of two levels to protect, the first level is rough protection for energy dissipation; the second level is meticulous protection for clamping. The coupling go through the Front and back levels makes the surge protector really achieve the perfect lightning protection effect.
Main technical parameters
Main technical parameters | TRSS-485 | ||||
Max continuous operating voltage Uc(VAC) | 6 | 12 | 24 | 48 | 120 |
Voltage protection level Up(V)≤ | 10 | 20 | 60 | 80 | 200 |
Insertion loss (dB) | <0.5dB | ||||
Max discharge current (8/20μS) lmax(kA) | 10 | ||||
Nominal discharge current (8/20μS) ln(kA) | 5 | ||||
Response time ns | <1ns | ||||
Degree of protection | IP20 | ||||
Application | Primary protection for in line | ||||
Remarks | Other Uc can be customized | ||||
