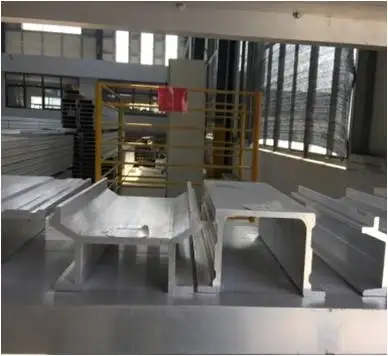

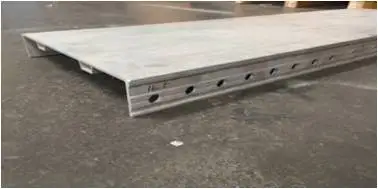

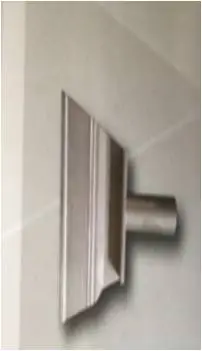

It suits for any angle between 35°~135°aluminum formwork profile cutting, can cut support head, corner panel and other template profile, and can also cut special-shaped plates.

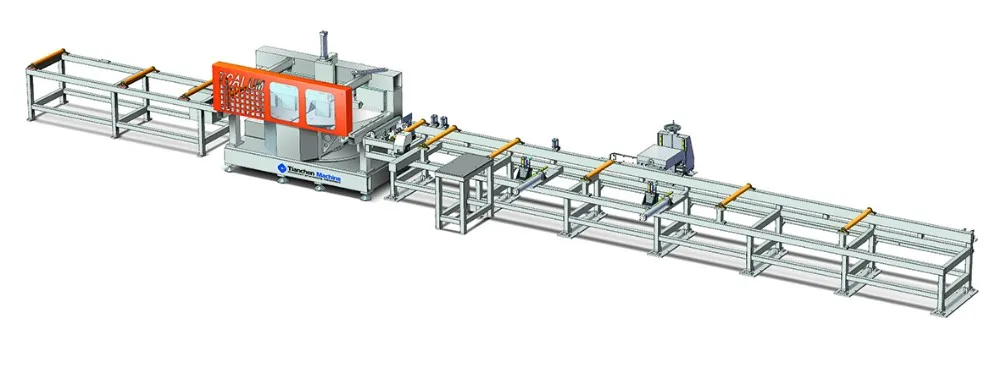

Main Features
★ The motor and the optional saw blade diameter are large, especially suits for large section profile cutting.
★ Adopt high precision linear guiderail pair for machine head feeding and loading, works stable and with high precision.
★ Adopt air and liquid damping method for saw blade feeding, working stable and cutting performing fine.
★ Adopt Schneider full closed loop CNC system, the servo motor drive the high precision reducer gear rack to feed, with high precision positioning
★ All moving pairs are lubricated to reduce the wearing of guide rail and longer service life.
Technical Parameters
Item
Specification
Power supply
380V 50Hz
Operation Air Pressure
0.6-0.8MPA
Cutting Motor Power/Rotation Speed
5.8kw 3000r/min
Blade specification
Φ500 x Φ30 x 4.4x Z120
Cutting Angle
35°~155°
Worktable Angle Speed
2 r/min
Cutting scale(L x H)
Φ500,90°:400x140mm.530x65mm
45°:280x140mm,360x65mm
Φ650,90°:400x220mm.620x65mm
45°:280x220mm.430x65mm
Auto Feeding Length
6500mm
Auto Feeding Speed
60m/min
Cutting Angle tolerance
±5'
Cutting Profile Surface Roughness
Ra12.5μm
Cutting Length Tolerance
±0.15mm
Dimension
12000x2400x1800mm
Weight
4000kg
Certifications
CE Certificate
ISO Certificate
AAAA Grade in Good Standardizing Practice Certificate (2016-2019)
The First Selected Brand of Manufacturing Equipment in 2018~2019 The 14th AL-survey Chinese Doors, Windows and Curtain Wall Industry Brand List
High-tech Enterprises of Shandong Provinces in 2017~2020
Outstanding Contribution Enterprise for Thirty Years of Chinese Building Curtain Wall Industry
Key Enterprises in Shandong Construction Machinery Industry
Famous Trademark in Shandong, China
Green Products of China Formwork and Scaffold Industry(2018-2019)
Our Service
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.
Packing & Delivery
Packaging: Clean and lubricate the machine and necessary parts before delivery; carefully packed them with protective film, and stably fixed in the container.
Shipping: sea transportation, air transportation

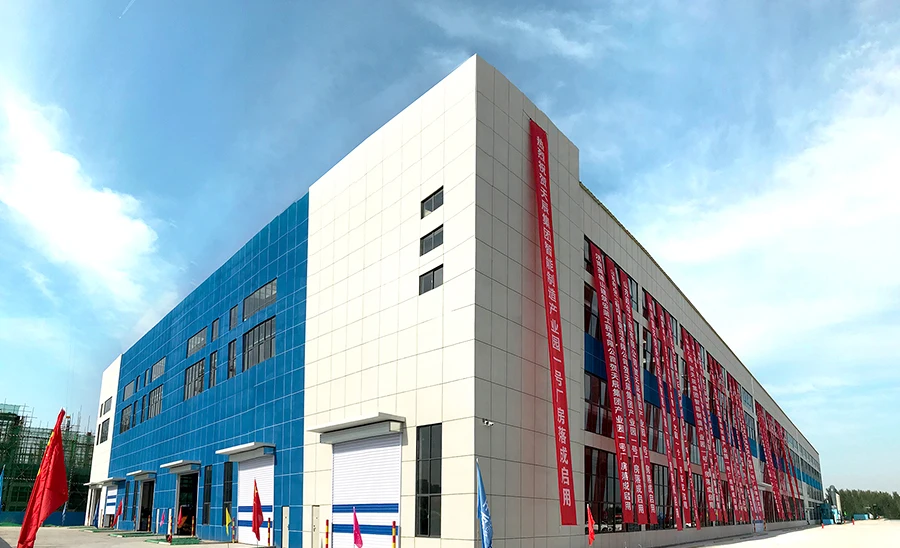

Our Company
Jinan Tianchen Aluminum Machine Co., Ltd is the first listed company in China for door and window curtain wall equipment, and it is a holding subsidiary of Jinan Tianchen Machinery Group, a well-known enterprise in Shandong Province. The company focuses on the research and development and manufacture of aluminum door and window curtain wall and industrial aluminum deep processing equipment. It is a comprehensive high-tech enterprise integrating scientific research, production, sales, testing and service. Tianchen Aluminum Machine has developed into a professional manufacturer of aluminum door and window curtain wall industry with the most complete varieties, the largest production and sales volume, and the largest number of service outlets in China. The products include aluminum door and window curtain wall processing equipment, aluminum formwork production line and industrial aluminum deep processing equipment for rail transit and automobile lightweight industry.
As a world renowned Chinese brand, Tianchen has created a team of responsible, dedicated and dedicated professionals in technology, marketing and after-sales. With professional ability and service spirit, we provide customers with stable and technologically advanced processing equipment based on industry needs.
The people oriented design concept, strict mechanical processing technology and perfect quality assurance system have created the outstanding quality of Tianchen. Tianchen has the most powerful parts processing and manufacturing capabilities in the industry. It has introduced dozens of large-scale processing equipment, CNC machining centers, laser interferometers, ball-bars and other high-precision testing equipment. Tianchen Company adheres to the model of independent innovation and lean manufacturing, continuously improves the level of R&D and manufacturing, and has won the unanimous approval from the market and customers. At present, Tianchen has provided machines to more than 7,000 aluminum door and window manufacturers and more than 100 aluminum curtain wall manufacturers in China, with a domestic market share of over 40% (more than 70% in some major markets) and over 60% of the top 100 companies in China's building curtain wall industry have become loyal users of Tianchen, and has been exported to more than 60 countries and regions such as the United States, Russia, South Korea, Singapore, Thailand, Vietnam, the Philippines, Australia, the United Arab Emirates, South Africa, France, Greece, Italy, India and etc, and enjoys world wide reputation.
"Doing new, doing well", Tianchen closely follows the development trend of domestic and foreign door and window curtain number of patents fill the gap in the industry. In the future, Tianchen will adhere to innovation-driven development, help transform old and new kinetic energy, and promote industry progress!
Never forget the original heart, practice the spirit of artisans; work hard to create a national brand!
Exhibitions
FAQ
1. Which machine should I choose? A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.
2. How to use the machine, what should I do if problems occurred to the machine? A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.
3. Which payment method do you accept? A: We accept T/T, L/C and etc.
4. What is the delivery time? A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 7-25 working days after deposit.
