Automated Water based Ink Flexo Printing Machine

Share on (62303618445):


Price:

Quantity:


Product Overview

Description


MASS_APP4_1618_BEGIN










MASS_APP4_1618_END

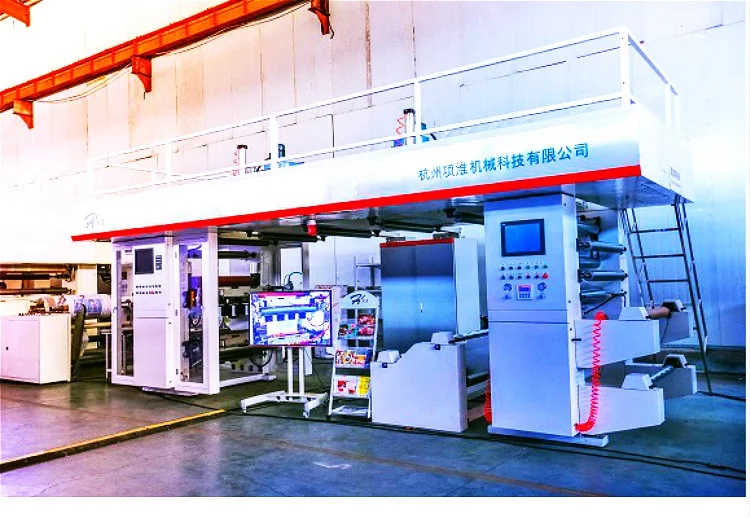

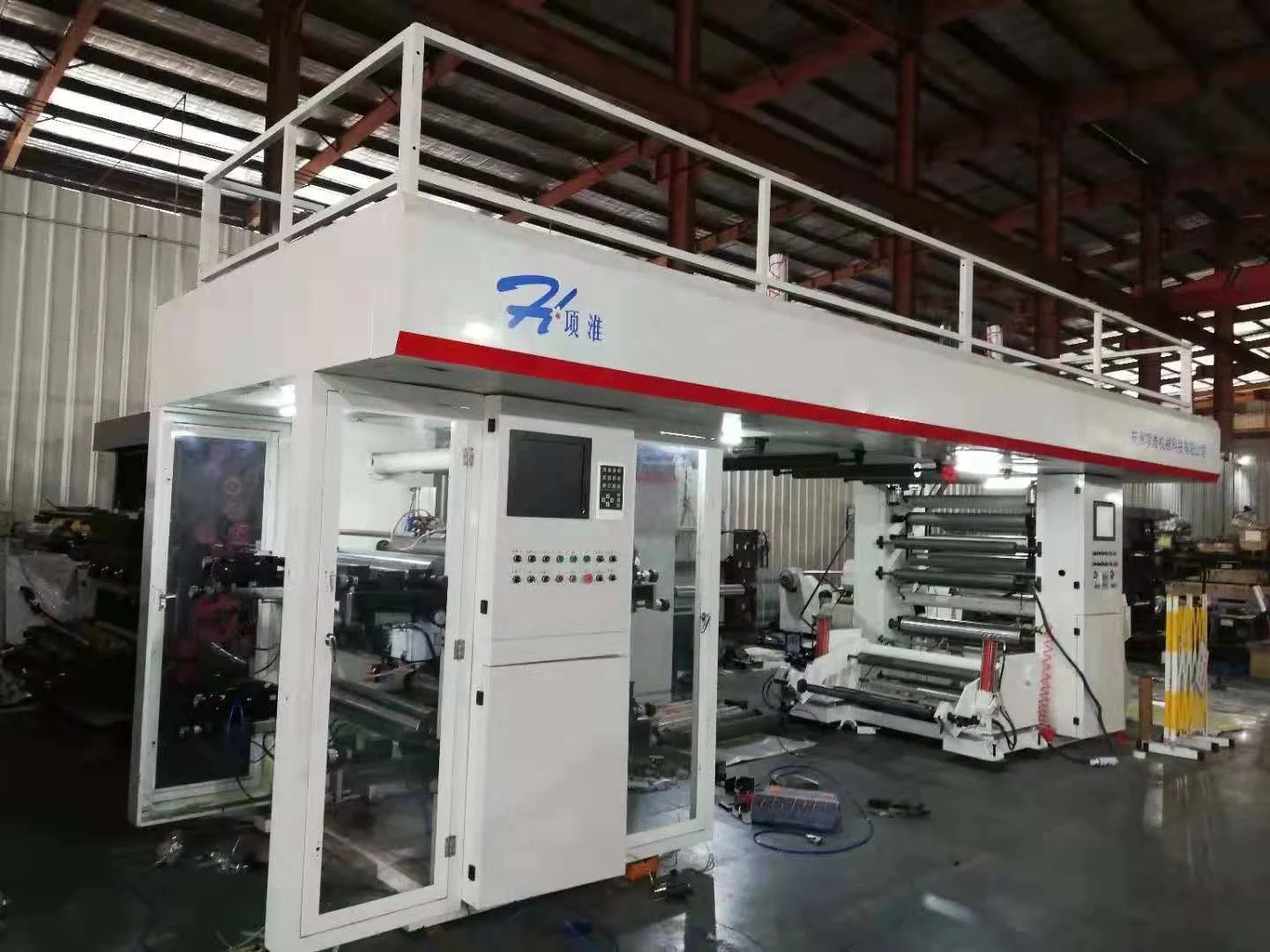

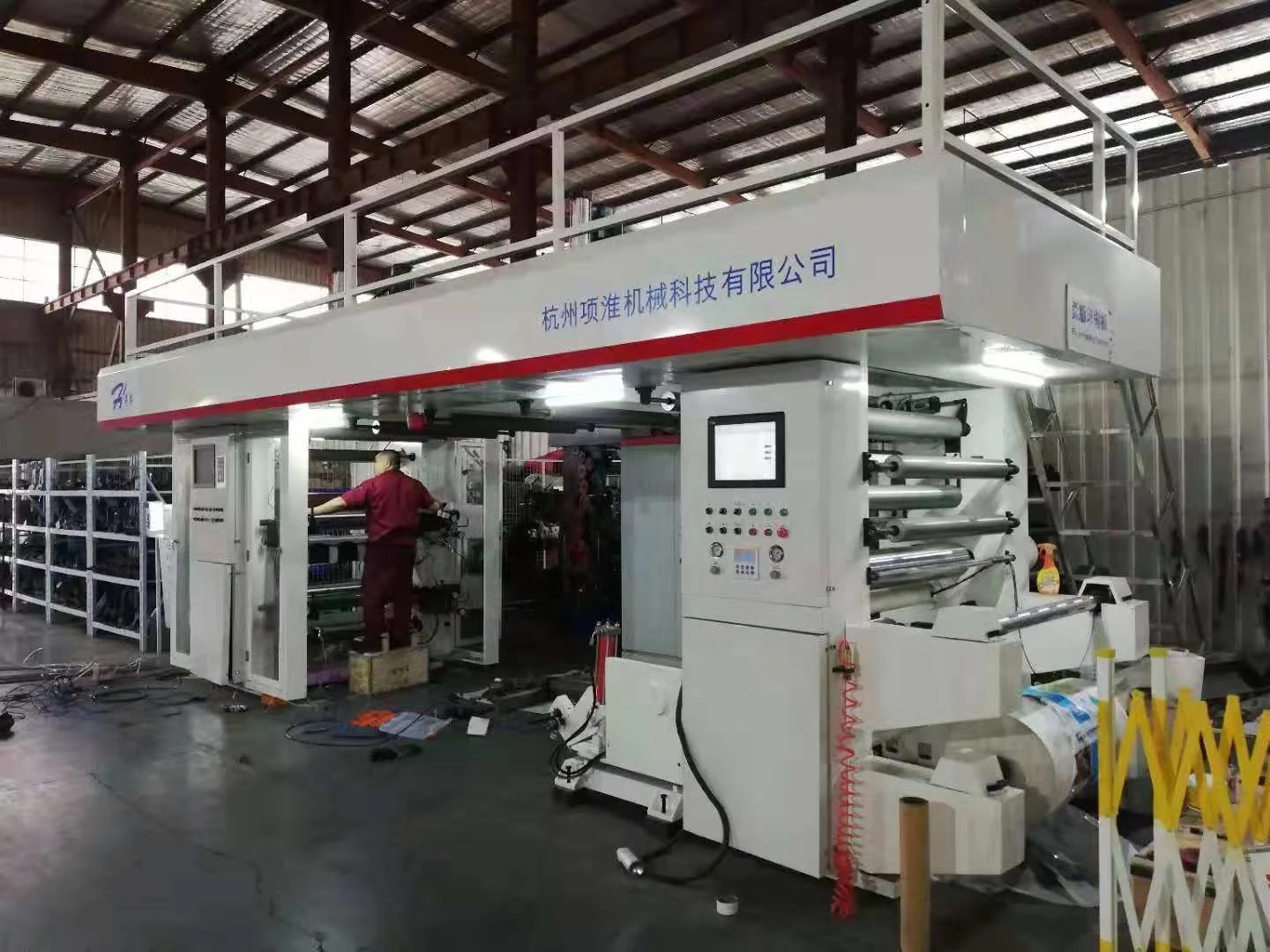

Flexographic Printing Machine



Product Description







 - High standard,High performance


- Factory price, Long-Life Service

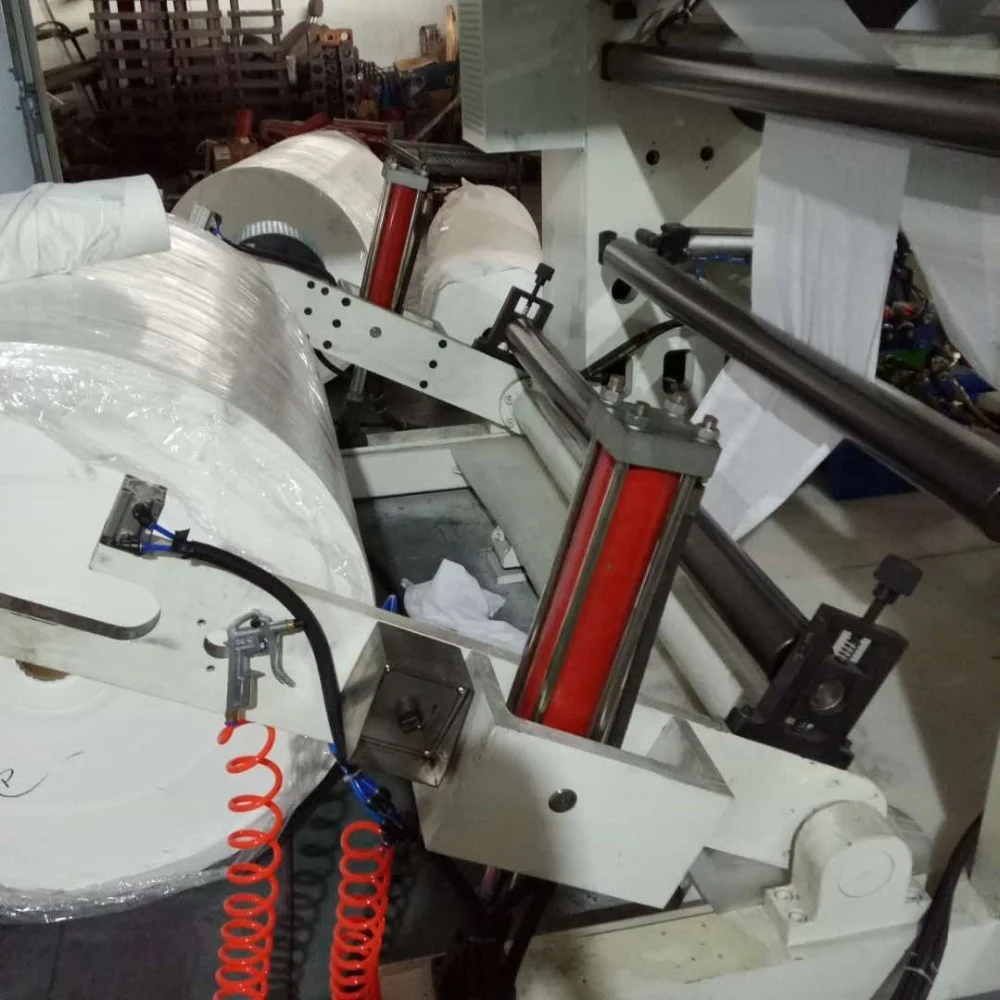

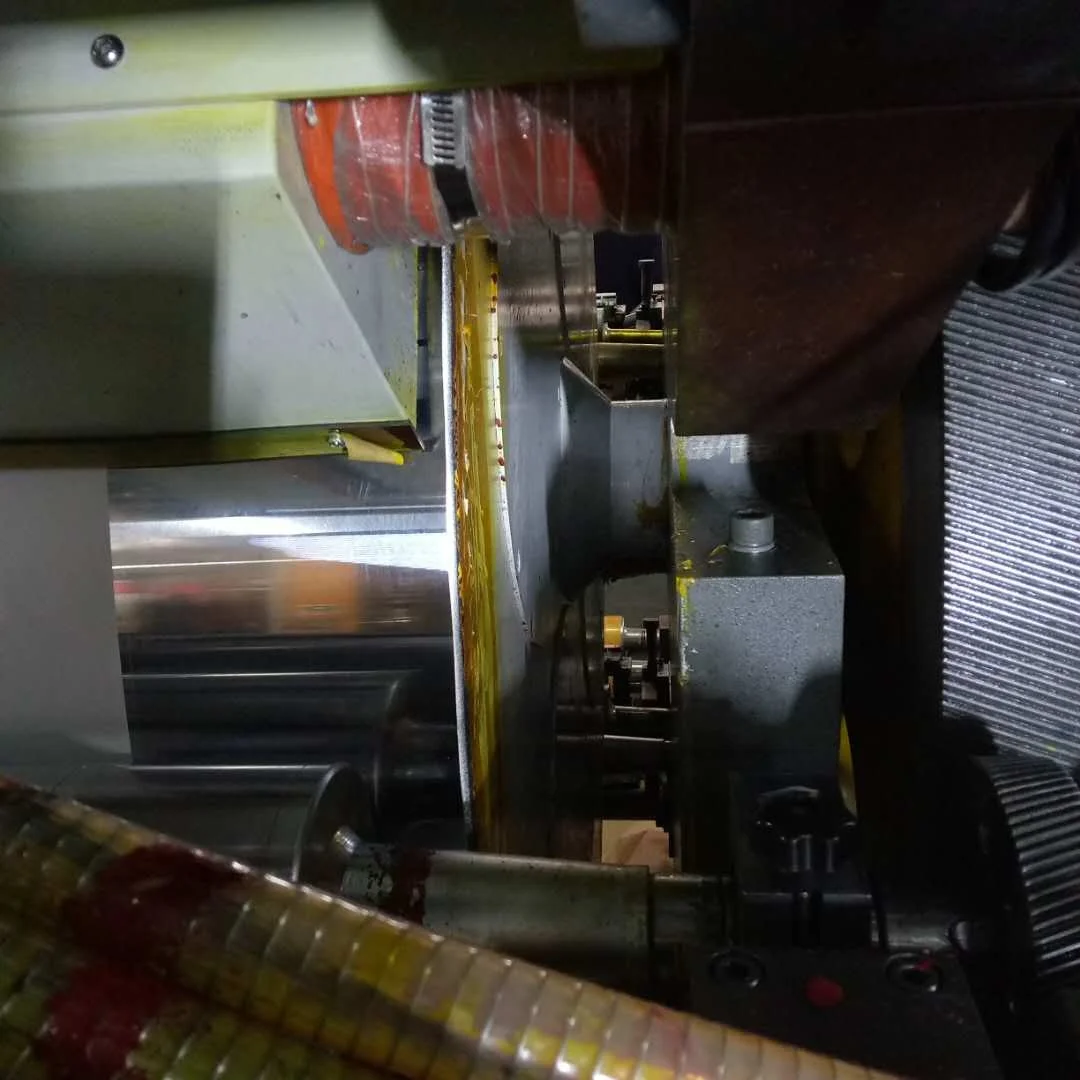

 4 color 1meterdetailed pic





Suitable material


Various kinds of soft packing materials such as roll paper, non-woven, Film(PE,PVC,OPP,BOPP,NY:15~120μm,PET:15~100μm)etc.





Performance


A.Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc.


B.It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.





Printed Samples


non woven bag  (26)sample1











Parameters






















































































printing machine Model



YT-2600-2000



YT-4600-2000



YT-6600-2000



YT-8600-2000







Printing Machine color



2color(2+0,1+1)



4color(4+0,3+1,2+2)



6color(6+0,5+1,4+2,3+3)



8color(8+0,7+1,6+2,5+3,4+4)



Max. Material Width



600mm-2000



600mm-2000



600mm-2000



600mm-2000



Max. Printing Width



560mm-1160mm



560mm-1160mm



560mm-1160mm



560mm-1160mm



Printing Length



260-1050mm



Printing Speed



150m/min



 150m/min



 150m/min



150m/min



Max. Diameter of Roll Material



Φ600 mm(Non woven, filmΦ1000mm)



Total Power



       9kw



18kw



22kw



28kw



Plate Thickness (including two-sided glue paper)



1.17mm or 2.38mm



Machine Weight



2000kg



2800kg



3600kg



4600kg



Overall Dimension



3.3*1.6*2.3m



4.8*1.6*2.4m



4.8*1.6*2.8m



5.4*1.6*3.5m



Working Voltage



380V 3-phase 50Hz



Extra optional devices:


1) EPC web guider + Auto tension controller


2) Air Shaft


3) Ceramic anilox roller


4) PLC touch screen


5) enclosed doctor blade, and so on


3)Can be customized with requirements







We retains the right to modify parameters without previous advice.







Our Services


 our service.png





Packaging & shipping

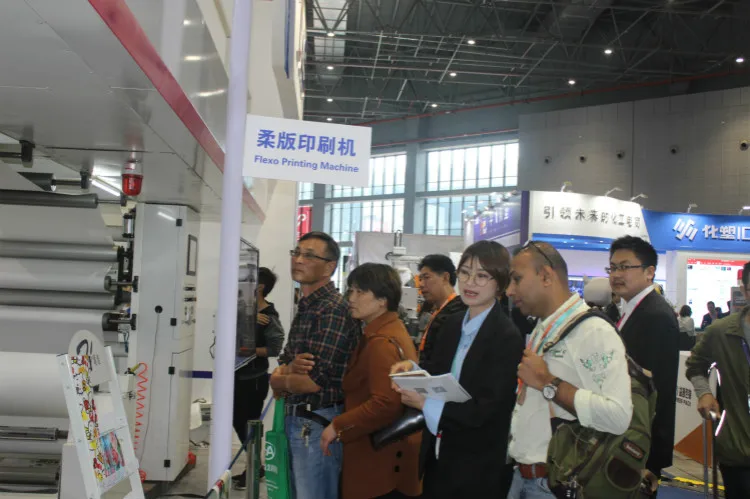

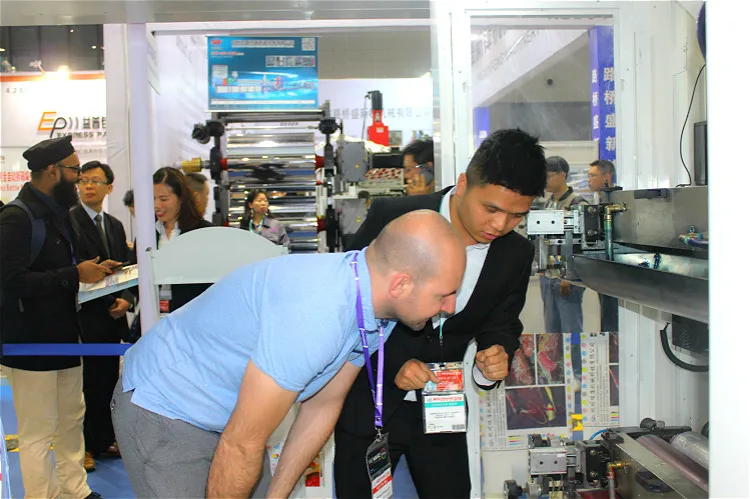

Company show


Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our companys main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.


The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!












FAQ





Q: Are you a trading company or a factory?


A: We are a factory, a real manufacturer, not a trading company.





Q:Where is your factory located?


A:Our factory is located in Hangzhou city Zhejiang province,China. Is near to Shanghai, about 40 minutes by high-speed rail.





Q:How is your after-sales service?


A:We have been in this printing machine line of business for many years. We will send our professional engineers to your factory to install and test machines if you have need.





Q:Can your products be customized?


A:Almost all of our machines can be customized,including the size, color,logo, package and so on.





Q: I need a quotation/How much is your price?


A: Please tell us your materials, width of your material, how many colors do you need.


Then we will know which machine is suitable for your and suggest the right machine for you.





Q: What's your delivery time?


A: Usually finish the production within 30 workdays after your 30% advanced payment


Actually need to check according our stock & production plan.





 If you are interested in our flexo printing machine, contact us please!


we will provide you with detailed quotation and video of the machine!
