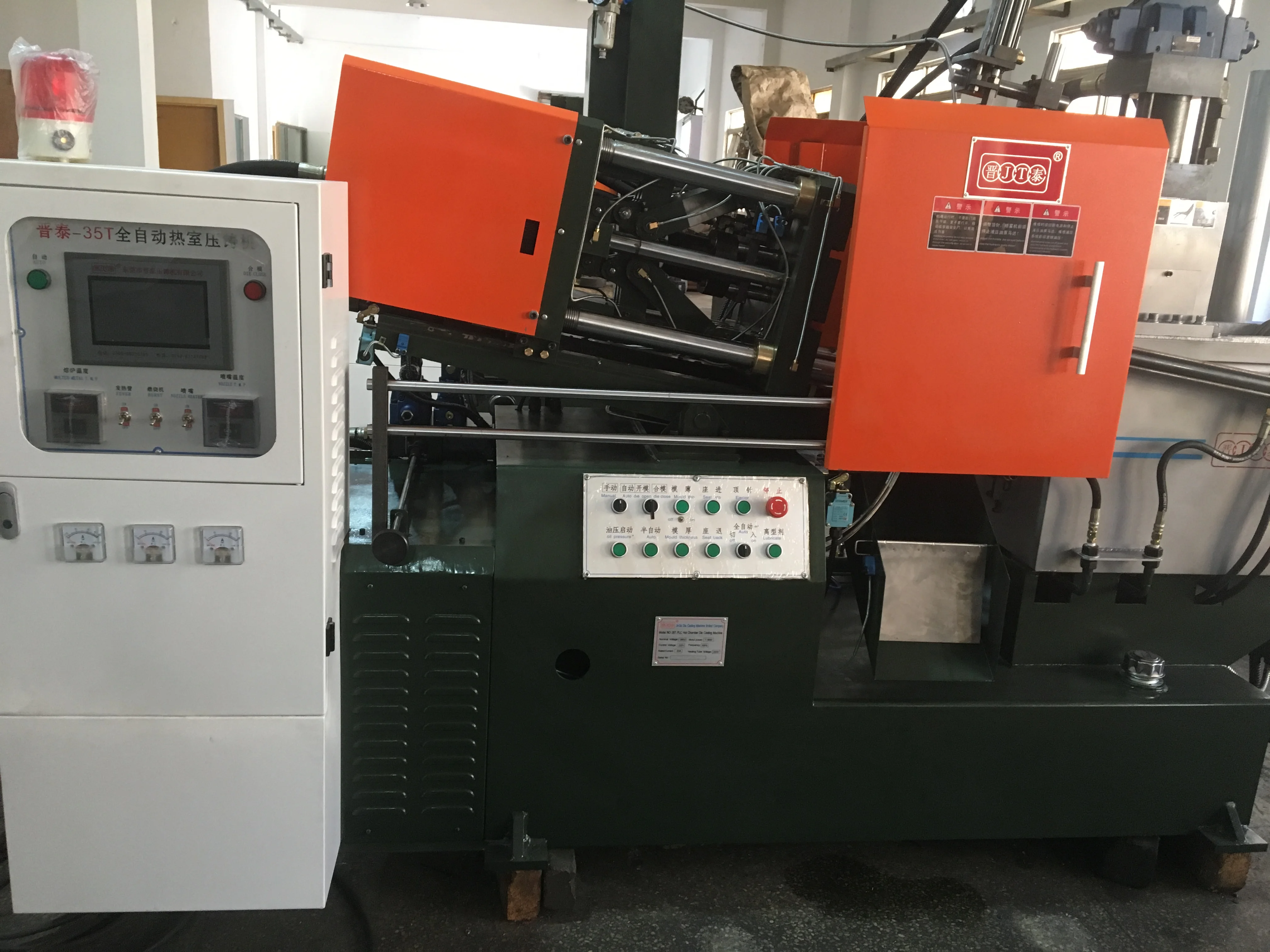

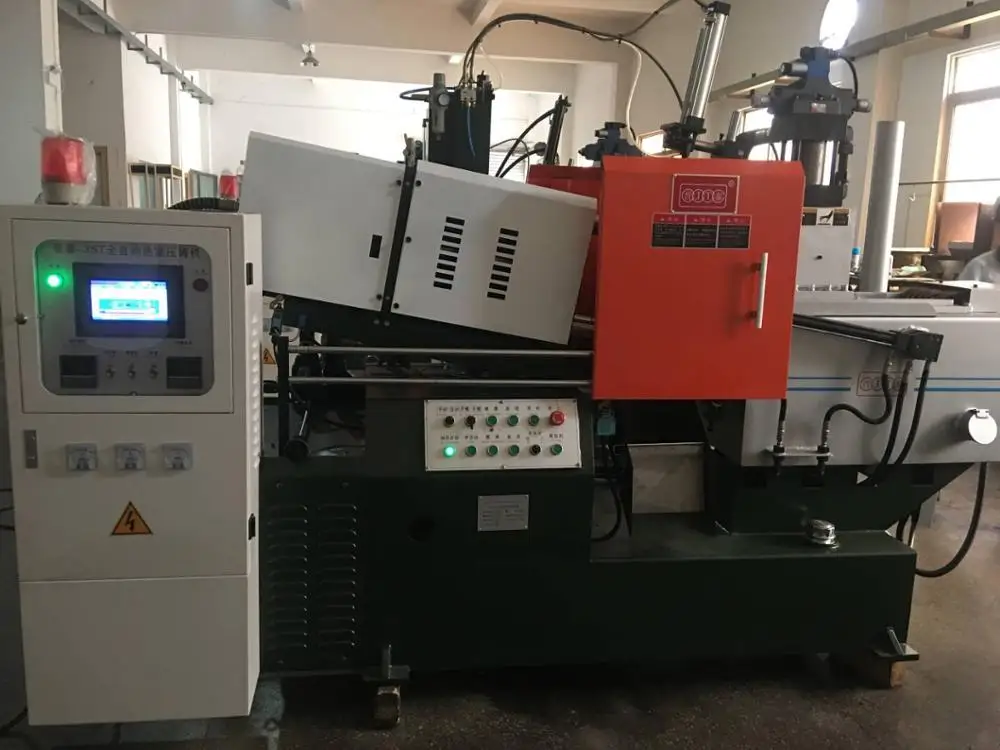

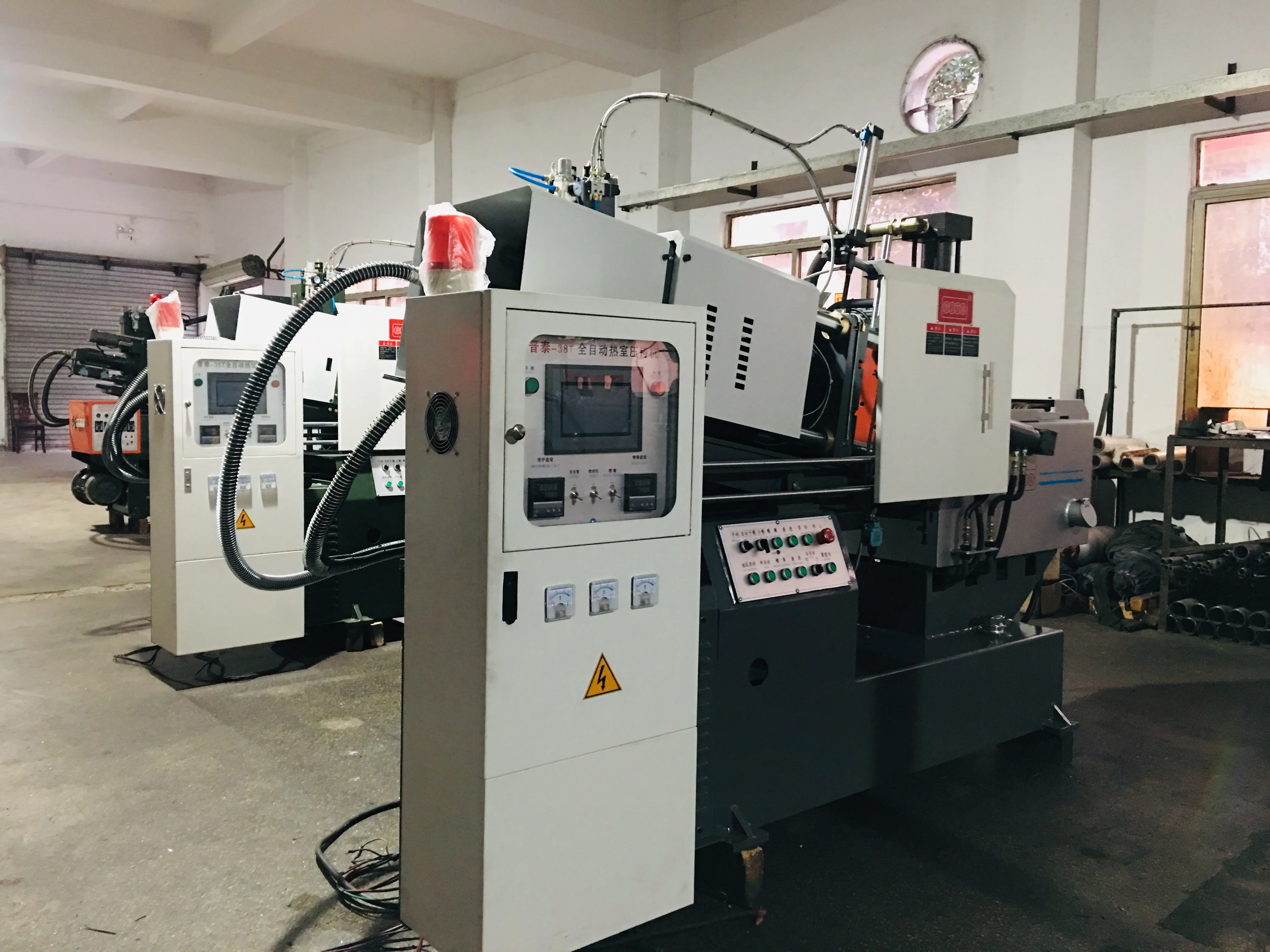

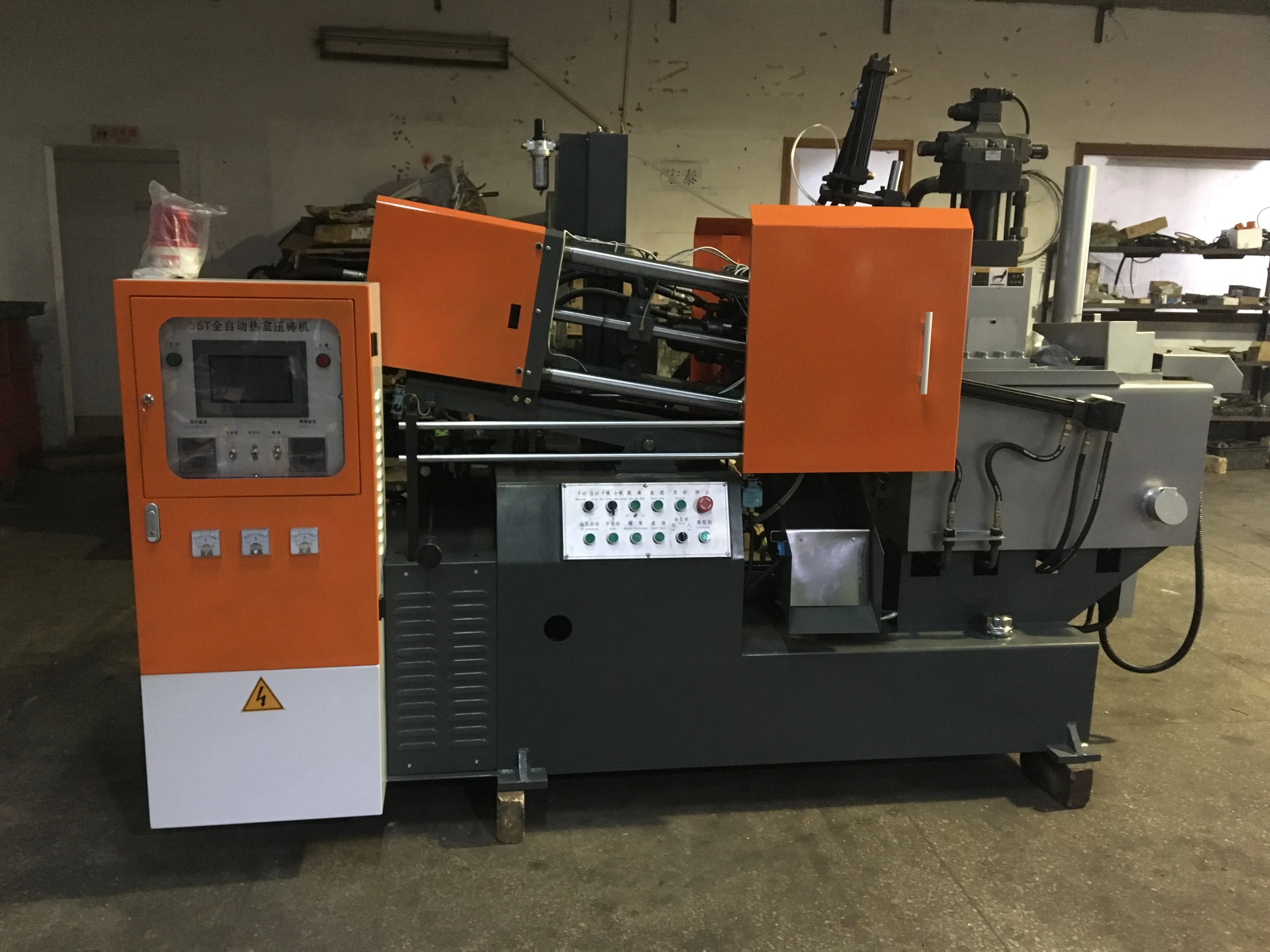

lead die casting machine to make sinker

Product Overview

Description

Specification:

Commodity	die casting machine
Size & type	35T hot chamber die casting machine
Dimension	3000*1200*2200
Packing	Wooden case
Payment terms	T/T,Western Union,Paypal are available
M.O.Q	1 set
Weight	1.8 ton

Main features:

1 Machine  hinge  automatic  lubrication  system;

2 Automatic  buckle  nozzle,leaving    the  nozzle;

3 Hydraulic  gear  adjustment  mode;

4 High  pressure, fast  speed,high  efficiency, no  burr;

5 Power  or  media  oil  can  be  selected  at  the  time;

6 Oil  cylinder  push-out ,can  adjust  push-out  distance  and  push-out  of  times;

Technical data of the machine:

Item	Unit	Specification	Item	Unit	Specification
Clamping force	KN	300	Volume  of Crucible	Kg	100
Diameter of Di-cylinder	mm	60	Oil  Pump Flow	L/min	41
Tie Bar Diameter	mm	46	Accumulator Volume	L	16
Opening  Stroke	mm	140	Oil  Tank Volume	L	180
Space between Tie Bars(H*W)	mm	260*260	Dry Cycle Time	S	3.5
Die Thickness(Min~Max)	mm	150~300	Heating Power  of  Spray  Nozzle	Kw	1.2
Stroke of injection Cylinder	mm	90	Heating  Power  for Material  Melt	Kw	9-12
Diameter of Injection Plunger	mm	38~42	Fuel  Oil  Use  for Material  Melt	Kg/h	1.5
Injection  Force	KN	35	Motor  Power	Kw	7.5
Diameter of  Injection  Plunger	mm	65	Hydraulic Pressure	M pa	8~10
Effective  Shot  Weight	g	400~600	Overall  Dimensions	Mm	3000*1200*2200
Traverse  Stroke	mm	220	Machine  Weight	T	1.8

Main advantages:

1 small zinc alloy die casting machine.

2 used computer controlled die casting machine.

3 used pressure die casting machine.

4 used hot chamber die casting machine.

5 time-saving  and easy to handle.

6 the machine are suitable for making the metal button ,zipper head ,zipper silder ,hardware accessories and garment accessories ,belt buckle and etc.

the leading products in our factory:



Scope of application:

1 metal button                                2  metal badge

3 zipper silder                                4 zipper head

5 belt buckle                                  6 precision machinery

7 hardware accessoires               8 garment accessories

The machine are suitable for making the following products:

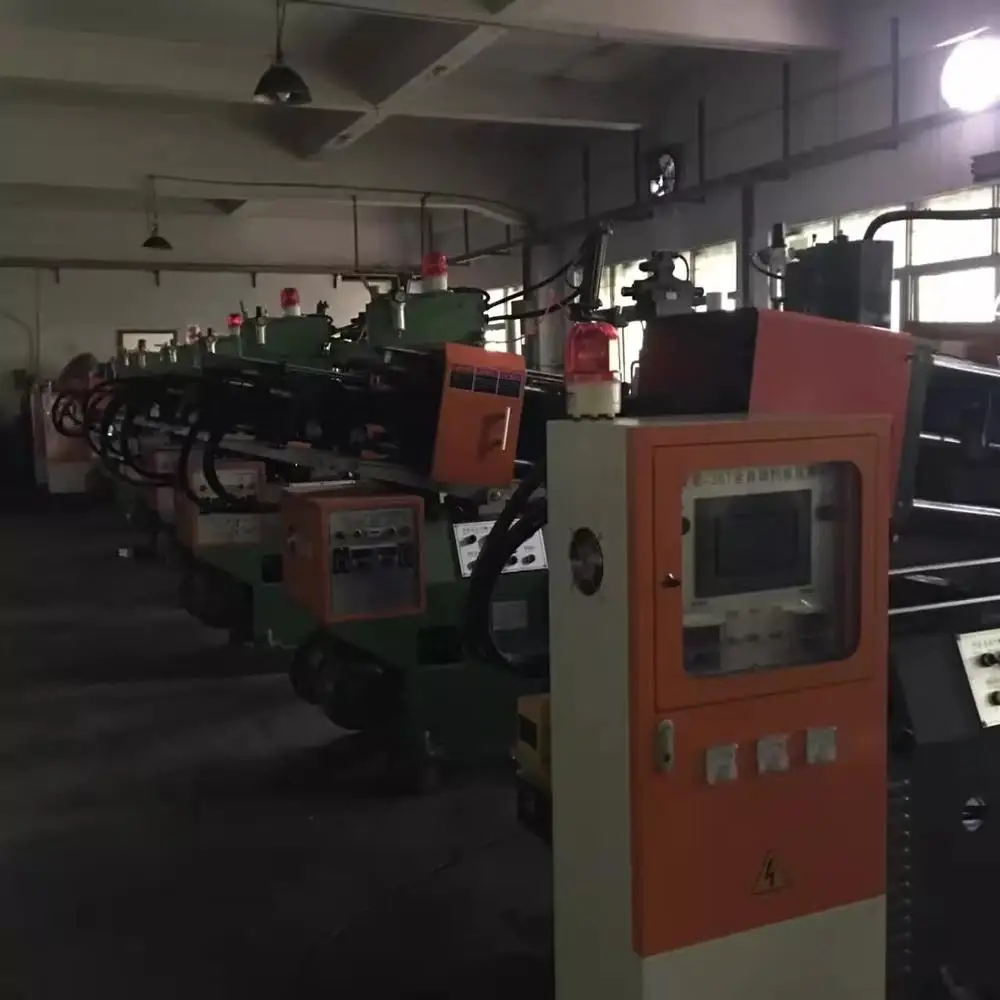

About our factory:



Dongguan  jintai die casting machine co.,ltd.was founded in 1990,which specializing in making full automatic  hot chamber die casting machine with  the type of 15T,25T,35T.The products are widely sold  in many areas ,such as guangdong,fujian,jiangxi ,hebei,shandong,zhejiang and overseas Vietnam, India,Bangladesh  and Malaysia and etc.Many client are give high reputation  due to the fine quality ,favourable price and our honest dealing .

It's an ideal products for you,there‘re so many kinds of products for your to choose,welcome you to come our factory to visit

Machine parts:

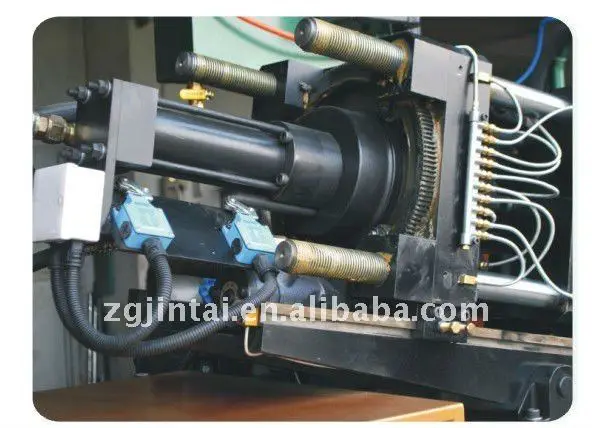

Hydraulic mould adjustment: adjust the thickness of mould throught hydraulic pump,precious and accurate.

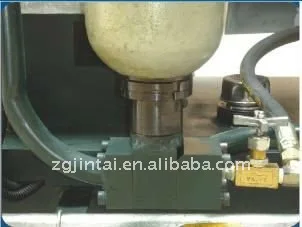

Combined Nitrogen gas cylinder seat :Avoid oil leaking accidents of shatter crack caused by injection vibration from pipe coupling designs of the traditional machine.

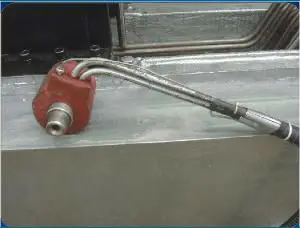

Jig reinforcement : Avoid break ,leakage and short circuit caused by shaking.



Mould open -mould  close swith adopts 3 level automatic reset swith design ,avoid mould open & close coils burnout problem with traditional 2 levels swith ,adopts Seimens products imported from Germany.
