304 Stainless Steel Meat Bowl Cutter DVSD (Dual Variable Speed Driver) Meat Cutting Machine bowl cutter machine

Product Overview

Description

Special

·         Variable Speed Driver (VSD)

Client can easy enter speed number (RPM) on HMI for different production purpose. (Both Knife Speed & Bowl Speed)

·         End knife lock system (EKLS)

EKLS allow clients lock knife on knife shaft with small Aleen Key for 1 min job.



Material

·         Body made by 4mm SUS 304

·         Inner support made by full SUS 304 Cube Tube

·         Electrical Control box made by 2mm SUS 304

·         Bowl made by SUS 304

·         PLC & HMI is Omron, all circuit breaker, Contactor, relay and push buttons is Schneider

·         Knife bearing is NSK (Japan Made) or NTN (Japan Made)

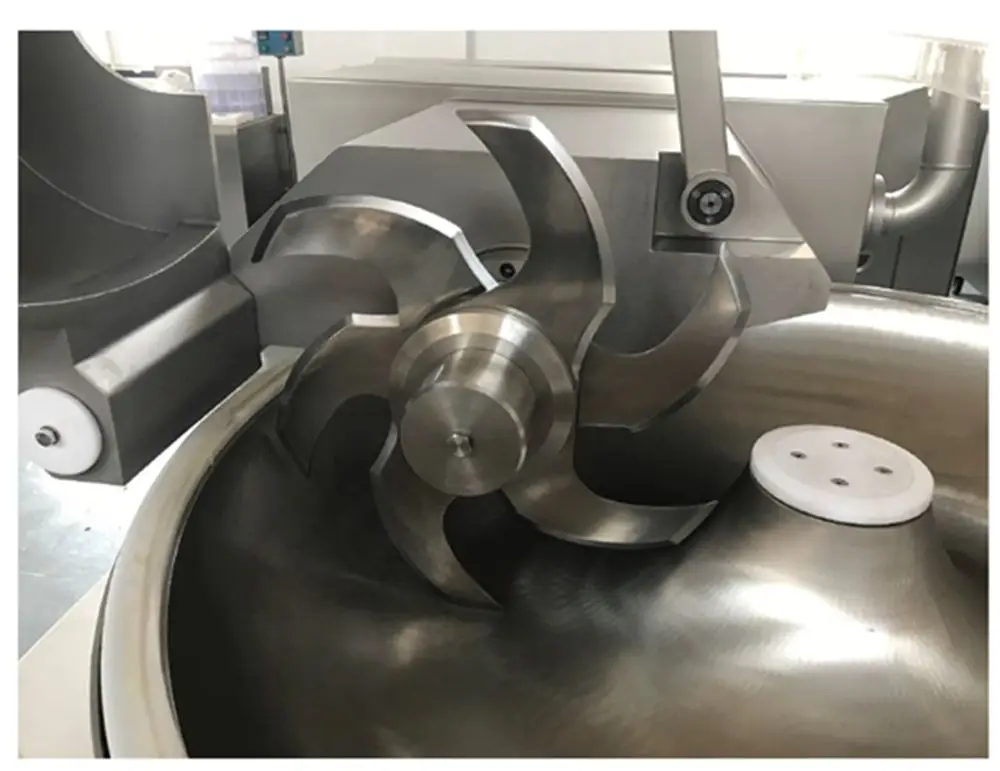

·         Knife shape









Model	K130L
Knife Shaft Motor Power	30 Kws
Bowl Motor Power	1.5 Kws
Bowl Volume	130L
Capacity	80 Kgs each bowl
Cutting Range	Fish products, meat products, Soybean Protein, Cheese etc..
Knife Speed Range	150 – 3500 RPM (Max.3800 RPM)
Bowl Speed Range	4 – 14 RPM (Max.14 RPM)
Knife Shaft and Bowl Motor Driver	Dual Variable Speed Driver (VSD)
Logical Control	Omron PLC & HMI
Temperature Modula	PT100+Omron Temperature Drive
End Knife Lock Device	Manual Hydraulic Lock
