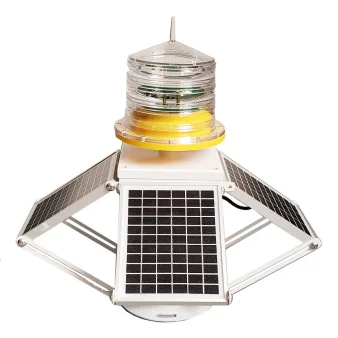

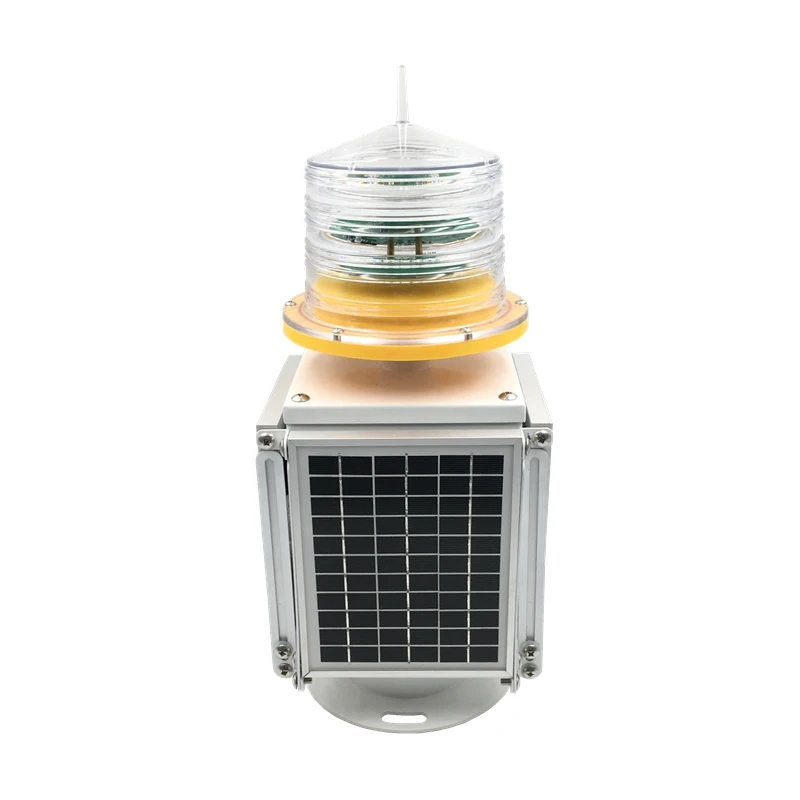

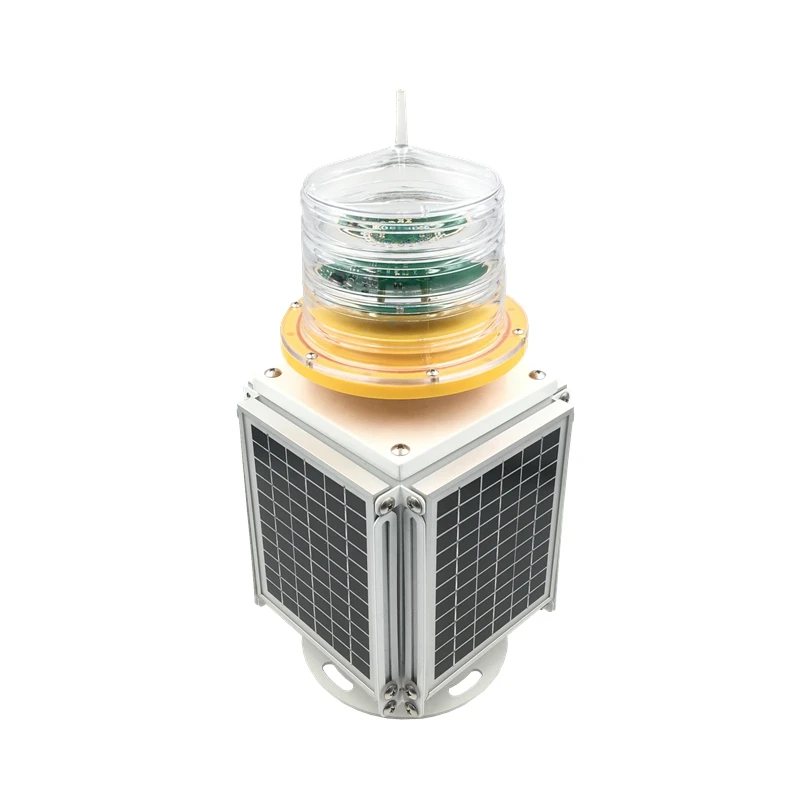

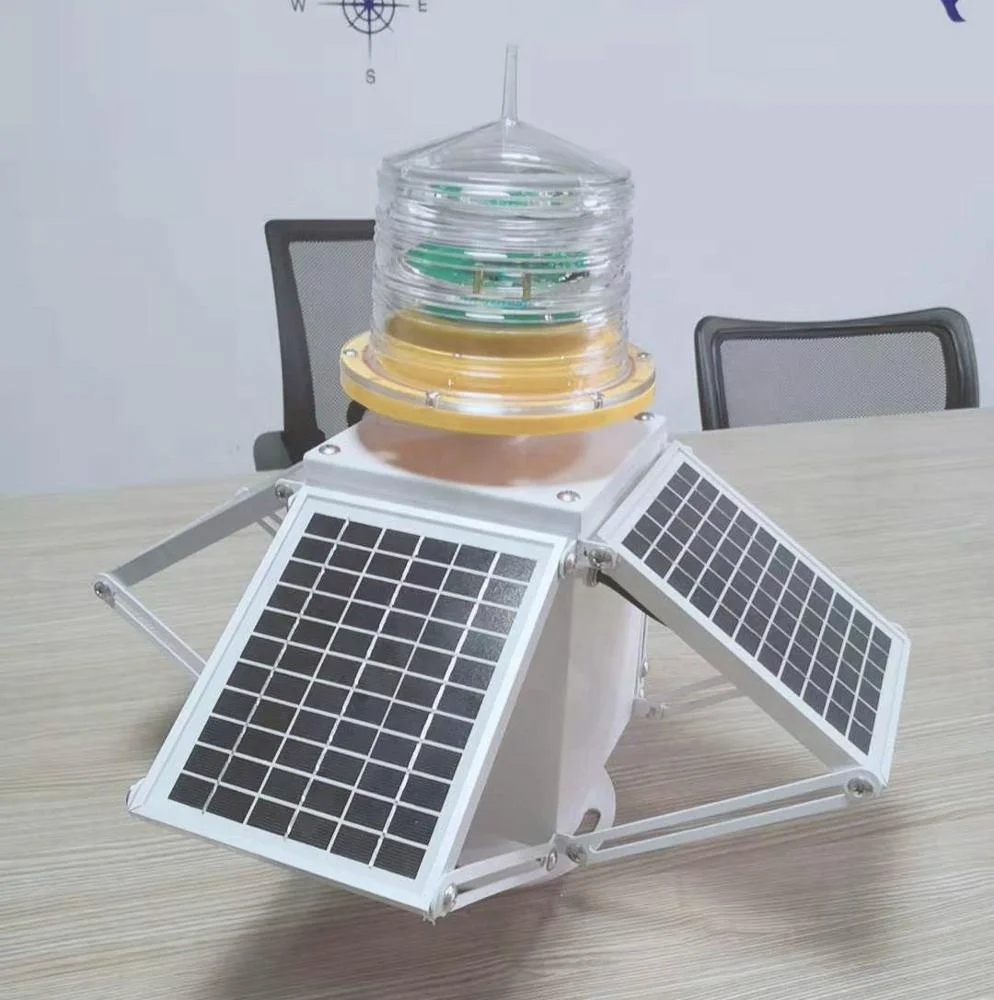

GS MS/T portable medium intensity type B solar aviation obstruction light

Product Overviews

GS-MS/T portable medium intensity type B solar aviation obstruction light adopts advanced structure design with 4 groups of solar panels which features with angle adjustable and high efficiency, cooperated with solar dedicated Lead-acid battery as power supply.

Advanced power management system will be used to charge the power in a full protection in order to save the service life of battery if it is under the condition of short-voltage/over-voltage or temperature too high/too low.

Control circuits adopt with low power dissipation control chip, which can reduce circuit power consumption.

The light source adopts imported LED chip, which has advantage of high ligh intensity, lower power consuption, long service life and so on.

Lampshade adopts PC material, which has the ability of anti-UV, anti-shock, and corrosion resistance.

Product shell adopt 304L stainless steel materials with stoving varnish, which is lightweight and corrosion resistance and easy installation and transportation.

Product Details

• Continuous working time in rainy day can reach to more than 15days.(10 hours a day)


• Photocell can switch ON/OFF the light in rainy days or at night automatically


• Standard optical design, high photoelectric conversion efficiency.


• Adopts special customized LED chip, Higher tranfer efficiency and Longer service life


• Lead-acid battery, service life can be up to 3 years,User-replaceable


• Lithium Iron Phosphat battery optional, better stability.


• Good ability of Impact resistance, light fastness,  anti-lighting, anti-UV, anti-snow and rain.


• Incorporated an enviroment-friendly spike-deterring unwelcome bird life


• No radio frequency, no electromagnetic interference

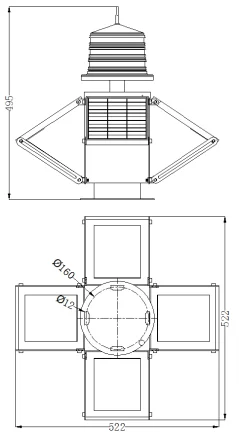

 Dimension Drawing

Usage Notice

• Please read the instruction carefully and then use the device correctly


• Solar powered marine lantern must be installed in a sunny place to keep it working continuously


• Please install this light on the installation plane that perpendicular to light axis, installation plane should has mechanical strength


• Ensure to place the device under sunlight to recharge power 12 hours before the initial use


• Please turn off the device and put it under sunlight for 5 days to recharge power each 3 months if stored without use

Application

• Block


• Bridge


• Towers


• Communication tower


• Chimney


• Runway


• Heliport


• Traffic barrier


• Tower cranes
