CAMA SM15 biometric fingerprint scanner module for time attendance

Product Overview

Description

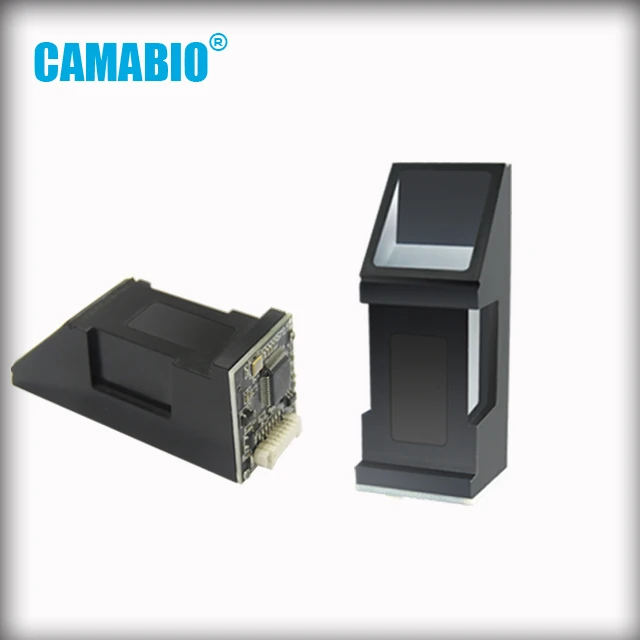

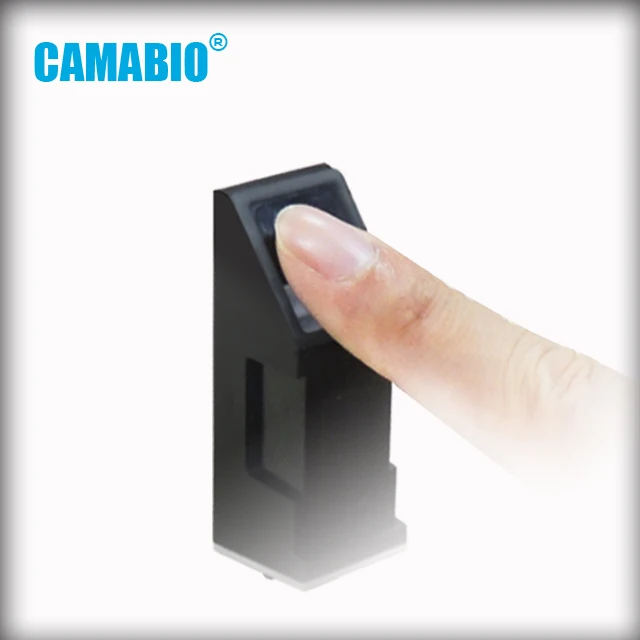

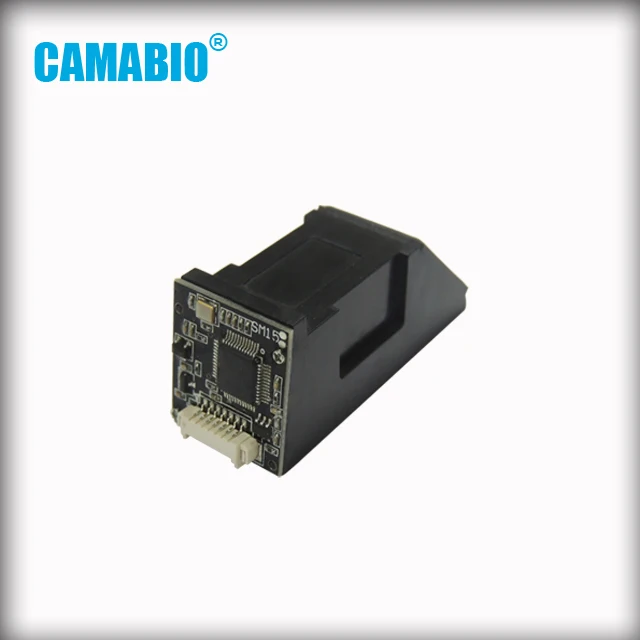

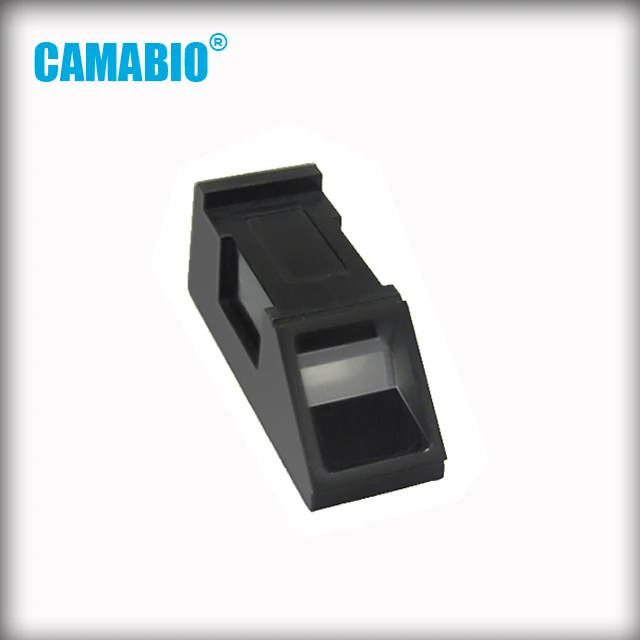

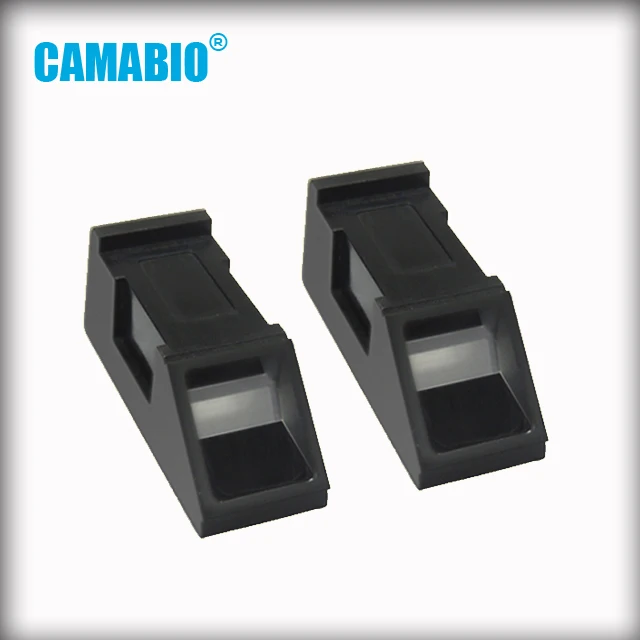

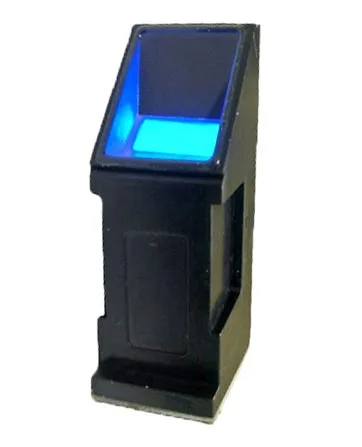

CAMA -SM15 biometric fingerprint scanner module for time attendance







1. Module integrated with sensor as smallest appearance

2. Advanced Technology of self study function

3. Support 360 degree identifying

4. Better performance with dirty fingers, dry fingers, wet fingers

5. Excellant performance & fast identifying speed







Widely applied in middle & low end products for OEM secondary development



Simple ports, high reliability, small fingerprint template, large fingerprint capacity

It's convenient to be embedded to user system for realizing clients required fingerprint verification products



Built-in precise micro potentiometer imported from Japan, able to adjust the scope of back brightness



UART communication interface with adjustable  safety level function, fingerprint data reading & writing function



Good fingerprint recognition capability







Item	Description
Sensor	CAMA optical sensor
Scan area	18mm*20mm
Fingerprint image	242 x 266 (pixel)
Resolution	500 DPI
Fingerprint template	496 bytes
Communication port	UART
FRR	< 0.1%
FAR	< 0.001%
Identification speed	1:1 <0.5S; 1:N (500 fingerprints) <0.9S
Fingerprint capacity	3000
Work current	< 100mA
Standby current	< 20μA
Power supply	DC 3.3V
Working temperature	-20degree- 60degree
Working humidity	20% -80%
