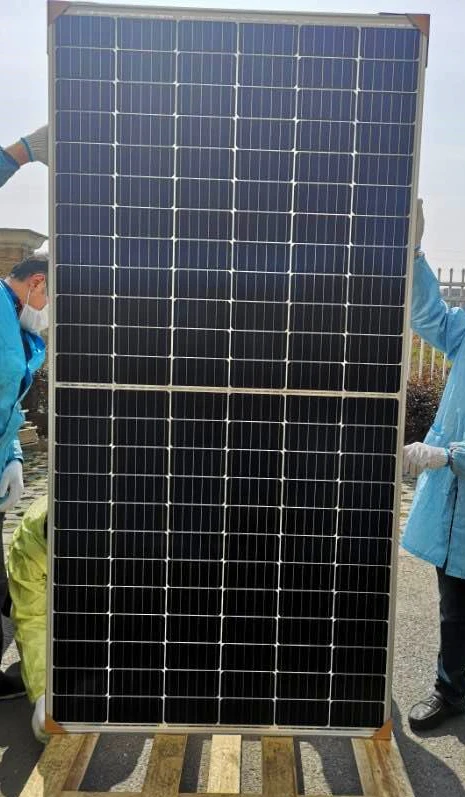

Longi Solar 455w 450w 445w 440w 435w 430w 425w 144 Cell Mono Solar Panel PV Module
- Category: >>>
- Supplier: Shenzhen Topsky Energy Co. Ltd.
Share on (62303901622):
Product Overview
Description
Hi, I am Sunny. Thanks for your interesting .
Whatsapp/Wechat/Tel:+86 13417506105
Skype:topskysolar09
Email: sales09(at)topsky-tech.com
Website: //www.topsky-tech.com
Email: sales09(at)topsky-tech.com
Website: //www.topsky-tech.com
Product Description

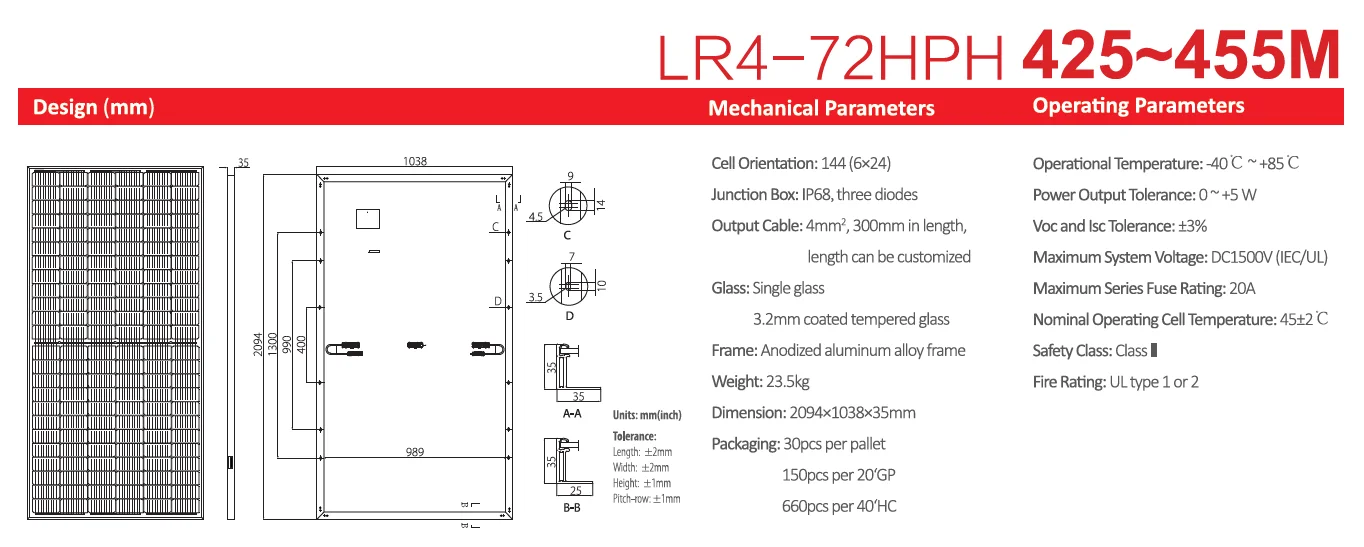

Typical Mechanical Characteristics | ||
Dimension | 2094 x 1038x 35 mm | |
Weight | 23.5 KG | |
Frame | Anodized Aluminum Alloy | |
Glass | Single Glass, 3.2 mm coated tempered glass | |
Cell Encapsulation | EVA | |
Back Sheet | Composite Film | |
Cells | 6x24 Monocrystalline Solar Semi-Cells | |

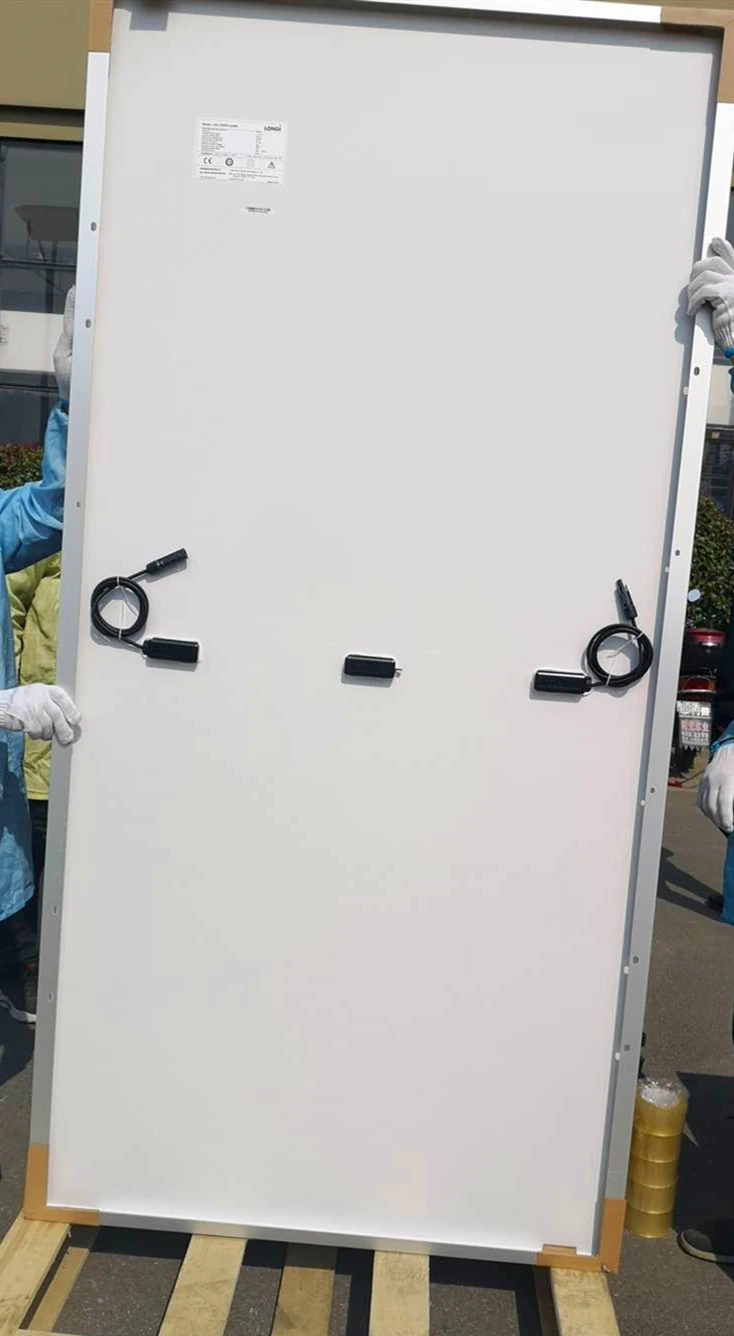

Junction Box | IP68, three diodes | |
Cable | Length 300 mm, 1 x 4 mm² | |
Connector | Compatible with MC4 | |

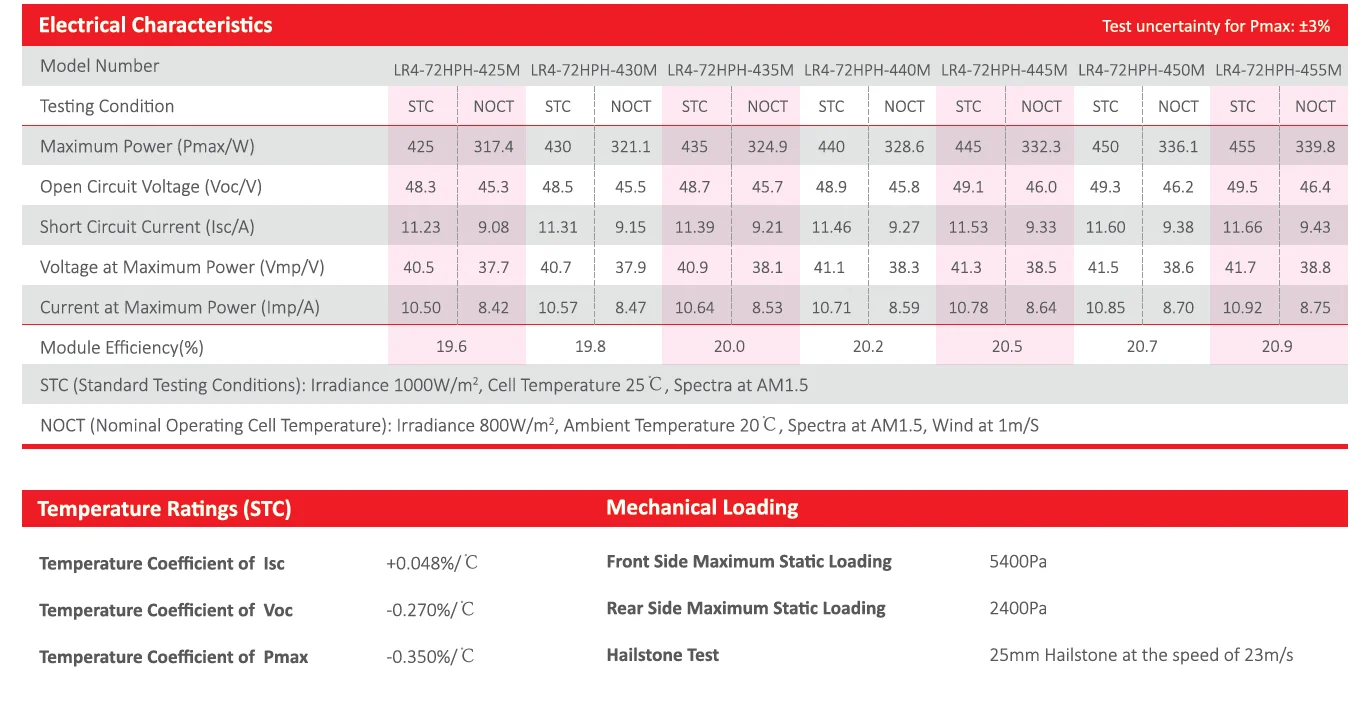

Temperature Characteristics | Maximum Ratings | ||||
Voltage Temperature Coefficient | -0.270%/K | Maximum System Voltage (V) | DC 1500 (IEC/UL) | ||
Current Temperature Coefficient | +0.048%/K | Series Fuse Rating (A) | 20 | ||
Power Temperature Coefficient | -0.350%/K | Reverse Current Overload (A) | 20 | ||
Packaging | System Design | ||||
Container 20' | 150 pcs. | Temp. Range | -40℃ to +85℃ | ||
Container 40' | 600 pcs. | Hail | Max. diameter of 25mm with impact speed of 23m/s | ||
Container 40'HC | 660 pcs. | Max. Capacity | Snow 5400 Pa, wind 2400 Pa | ||
Application Class | A | ||||
Safety Class | Ⅱ | ||||

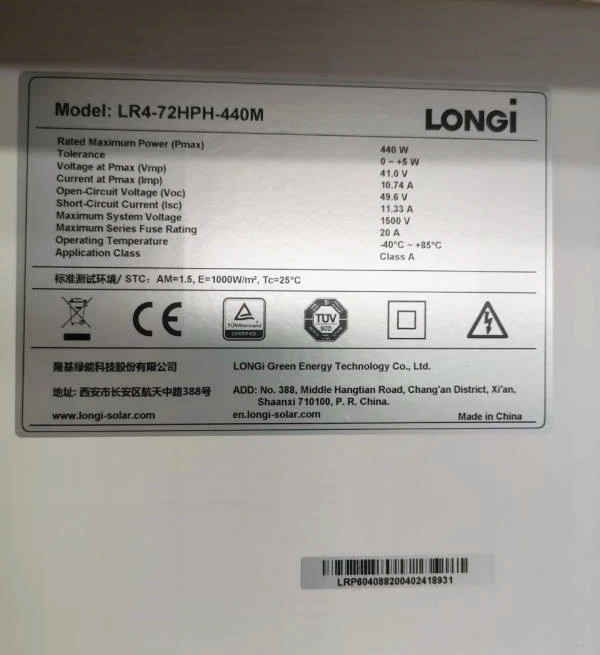

Details Images
