RF star low power consumption 2.4 GHz Wlan and 5 GHz dual band wifi module CC3235
- Category: WiFi Modules >>>
- Supplier: Shenzhen RF-Star Technology Co. Ltd.
Share on (62303959291):
Product Overview
Description
Product Description

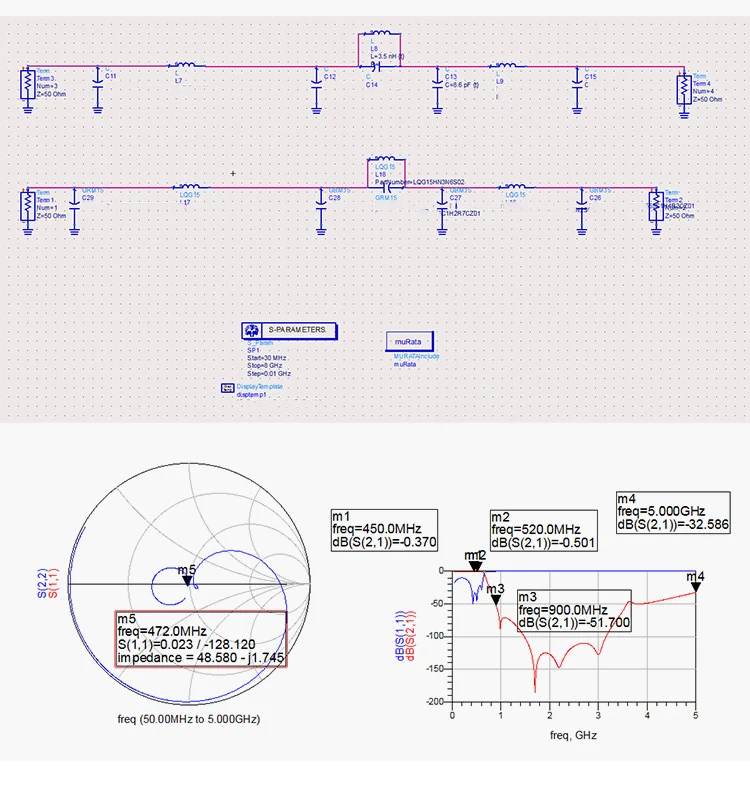

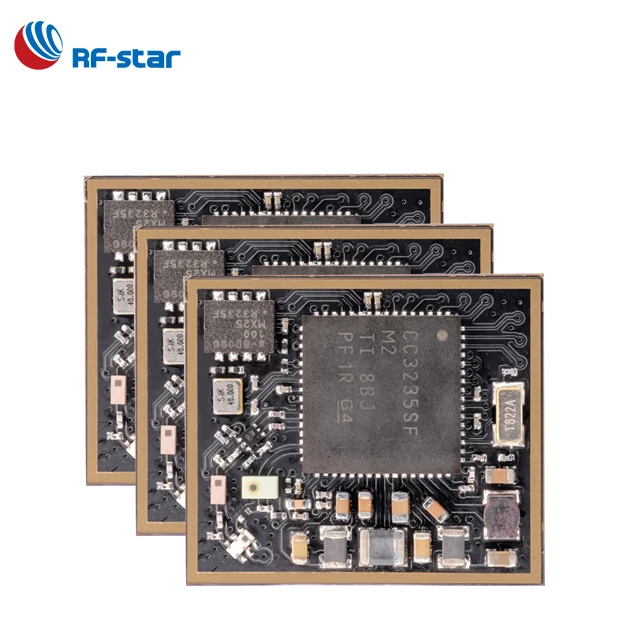

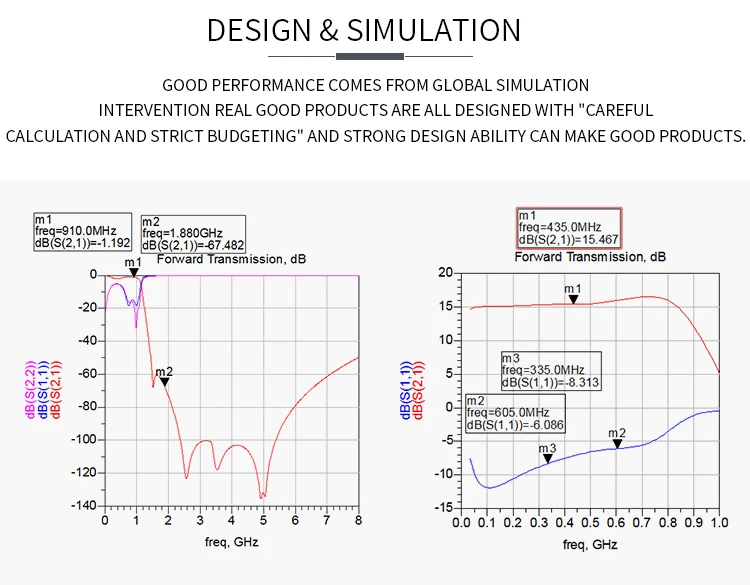

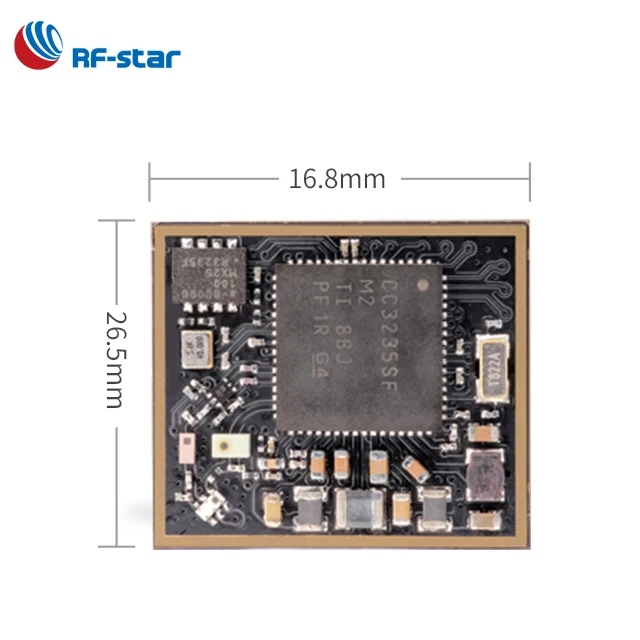

RF-star low power consumption 2.4 GHz Wlan and 5 GHz dual-band wifi module CC3235
RF-WM-3235B1 is an RF module based on TI lower-power SoC CC3235SF with built-in dual-band Wi-Fi connectivity. It integrates a 40 MHz crystal, 32.768 kHz RTC clock, RF filters, diplexer, and two physical separated on-chip MCUs: Arm® Cortex®-M4 MCU with a user-dedicated 256 KB of RAM, an embedded 1 MB Flash and an external plug-in 4 MB Flash, network processor for running Wi-Fi and Internet logical layers. It features 802.11 a/b/g/n: 2.4 GHz and 5 GHz support, 2.4 GHz Coexistence with B radio, improved fast scan, hostless mode for offloading template packet transmissions and application features of small size, robust connection distance, and rigid reliability.

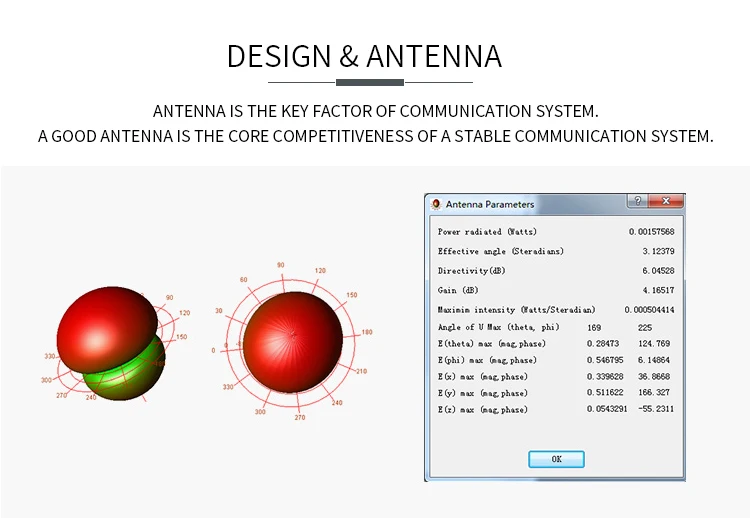

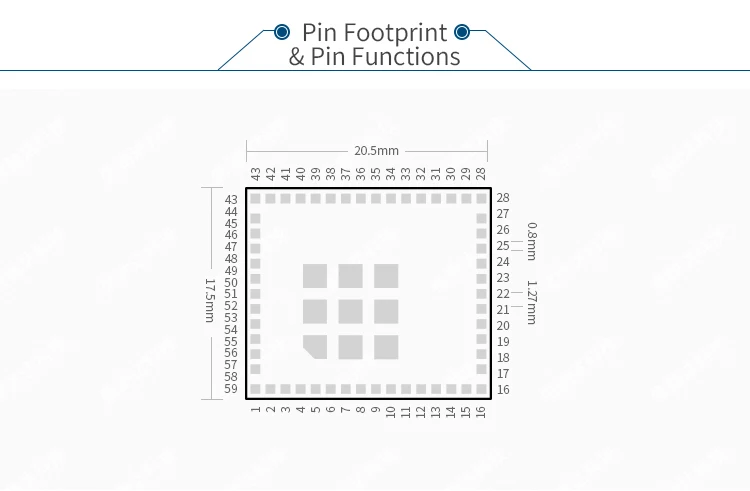

Table 1. The Pin Diagram of RF-WM-3235B1
Pin | Name | Function | Description |
1 | GND | GND | Ground |
2 | GND | GND | Ground |
3 | GPIO10 | GPIO | GPIO |
4 | GPIO11 | GPIO | GPIO |
5 | GPIO14 | GPIO | GPIO |
6 | GPIO15 | GPIO | GPIO |
7 | GPIO16 | GPIO | GPIO |
8 | GPIO17 | GPIO | GPIO |
9 | GPIO12 | GPIO | GPIO |
10 | GPIO13 | GPIO | GPIO |
11 | GPIO22 | GPIO | GPIO |
12 | JTAG_TDI | TDI | JTAG interface: data input |
13 | FLASH_MISO | I | Serial flash interface: SPI data in |
14 | FLASH_CSN | CS | Serial flash interface: SPI chip select |
15 | FLASH_CLK | CLK | Serial flash interface: SPI clock |
16 | GND | GND | Ground |
17 | FLASH_MOSI | O | Serial flash interface: SPI data out |
18 | JTAG_TDO | TDO | JTAG interface: data output |
19 | GPIO28 | GPIO | GPIO |
20 | NC | / | No Connect |
21 | JTAG_TCK | TCK | JTAG interface: clock |
22 | JTAG_TMS | TMS | JTAG interface: mode select |
23 | SOP2 | SOP | Configuration sense-on-power |
24 | SOP1 | SOP | Configuration sense-on-power and 5 GHz switch control |
25 | GND | GND | Ground |
26 | GND | GND | Ground |
27 | GND | GND | Ground |
28 | GND | GND | Ground |
29 | GND | GND | Ground |
30 | GND | GND | Ground |
31 | RF_ABG | RF Out | RF BG band: 2.4 GHz TX, RX RF BG band: 5 GHz TX, RX |
32 | GND | GND | Ground |
33 | NC | / | No Connect |
34 | SOP0 | SOP | Configuration sense-on-power and 5 GHz switch control |
35 | NRESET | RESET | Master chip reset input. Active low input. |
36 | VBAT_RESET | RESET | VBAT reset input. Active low input. |
37 | VBAT1 | Power | Power Supply: 2.7 V ~ 3.6 V, recommend to 3.3 V |
38 | GND | GND | Ground |
39 | NC | / | No Connect |
40 | VBAT2 | Power | Power Supply |
41 | NC | / | No Connect |
42 | GPIO30 | GPIO | GPIO |
43 | GND | GND | Ground |
44 | GPIO0 | GPIO | GPIO |
45 | NC | / | No Connect |
46 | GPIO1 | GPIO | GPIO |
47 | GPIO2 | GPIO | Analog input (1.5 V max.) or GPIO |
48 | GPIO3 | GPIO | Analog input (1.5 V max.) or GPIO |
49 | GPIO4 | GPIO | Analog input (1.5 V max.) or GPIO |
50 | GPIO5 | GPIO | Analog input (1.5 V max.) or GPIO |
51 | GPIO6 | GPIO | GPIO |
52 | GPIO7 | GPIO | GPIO |
53 | GPIO8 | GPIO | GPIO |
54 | GPIO9 | GPIO | GPIO |
55 | GND | / | Thermal ground |
56 | GND | / | Thermal ground |
57 | GND | / | Thermal ground |
58 | GND | / | Thermal ground |
59 | GND | / | Thermal ground |
60 | GND | / | Thermal ground |
61 | GND | / | Thermal ground |
62 | GND | / | Thermal ground |
63 | GND | / | Thermal ground |
Application

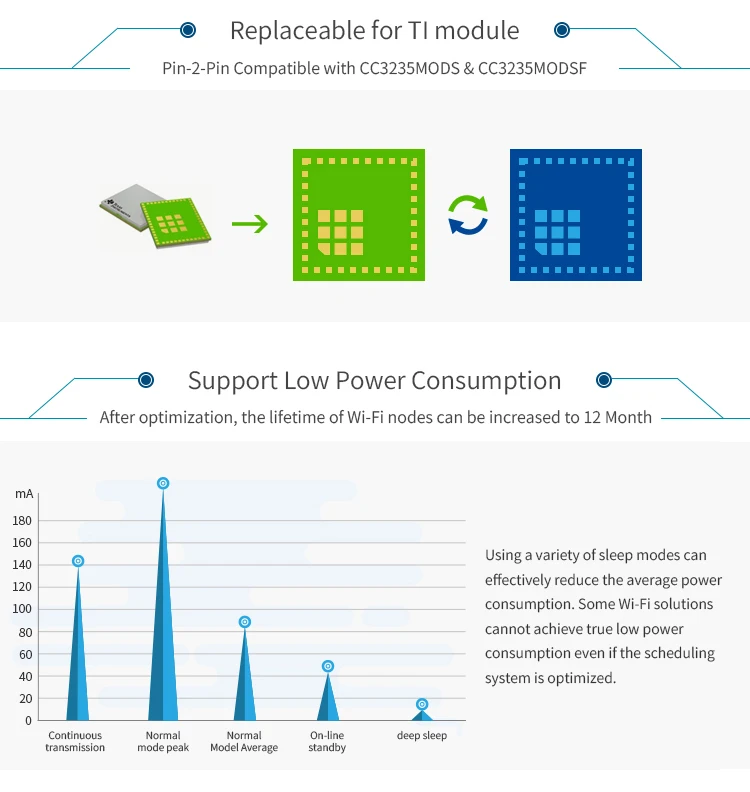

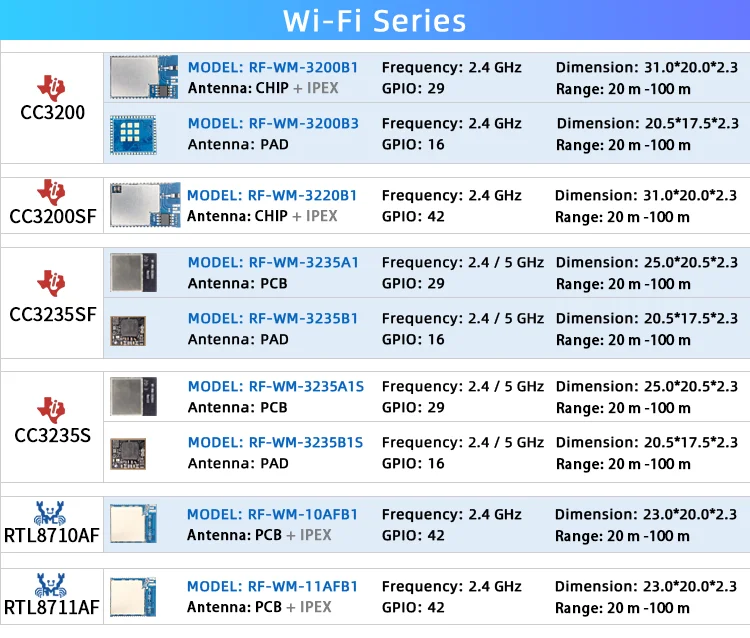

WiFi Series
