Xianhe 12T hydraulic swing arm leather die cutting machine for wool
- Category: Other Shoemaking Machines >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (62303966472):
Product Overview
Description
Product Description

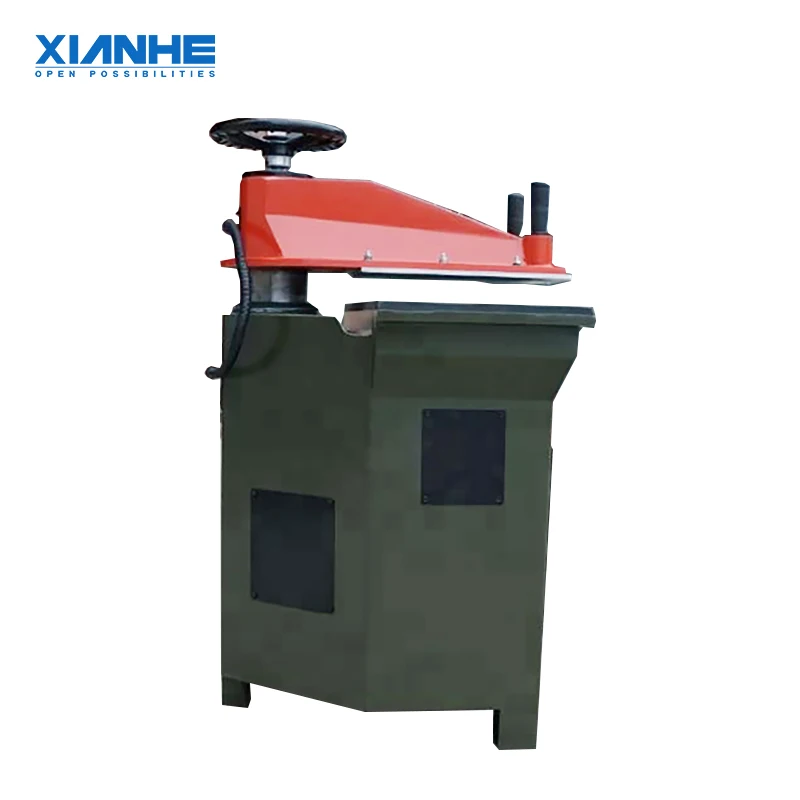

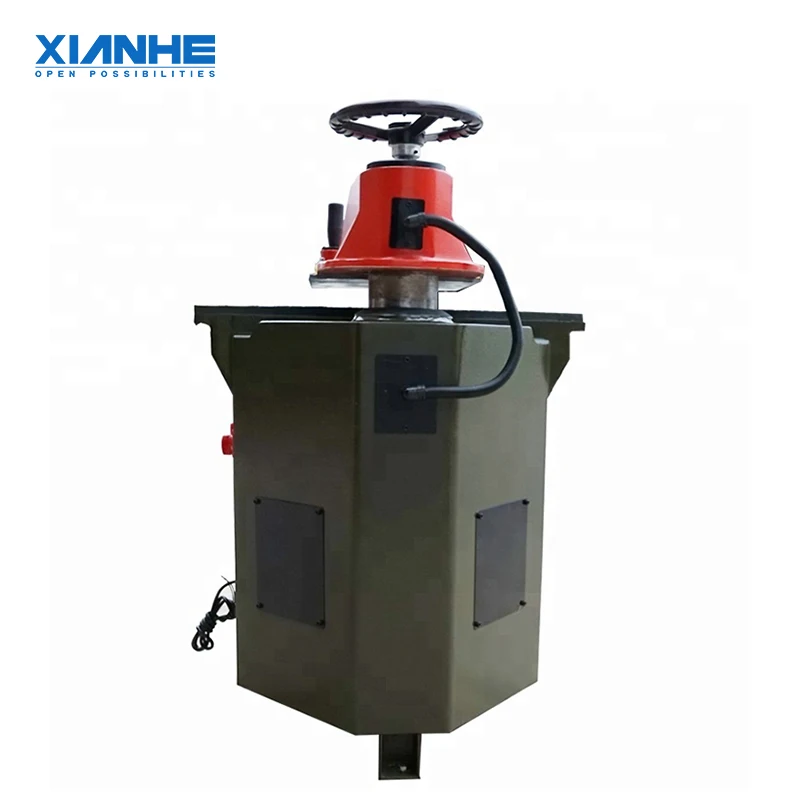

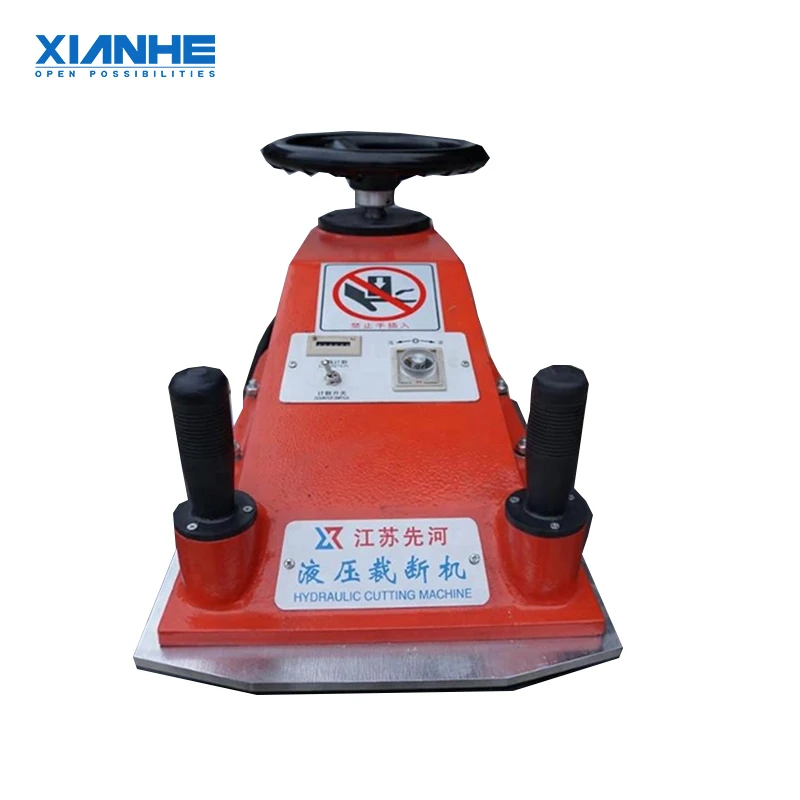

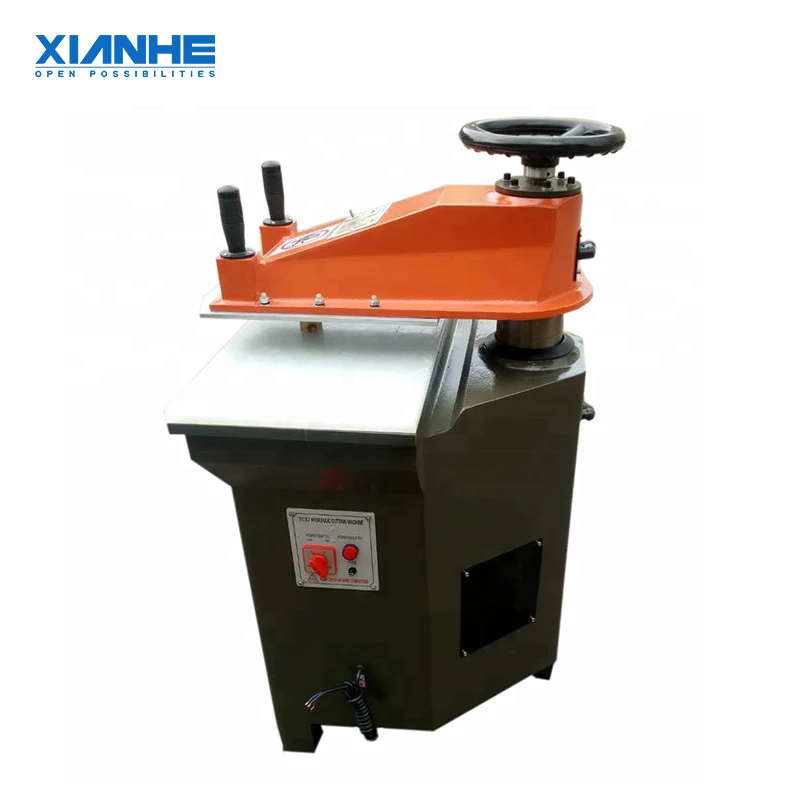

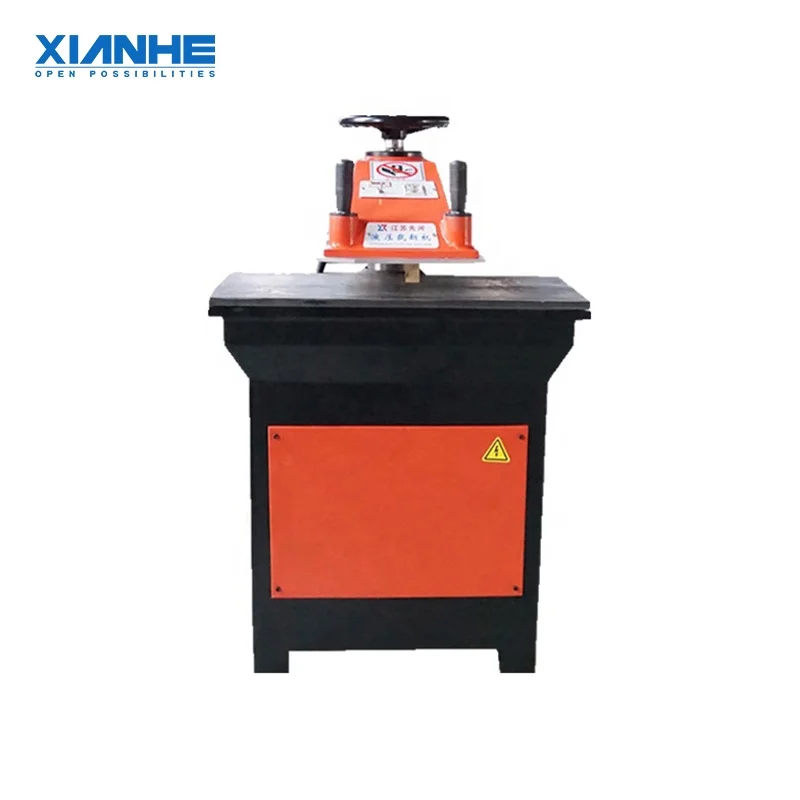

Xianhe 12T Swing arm cutting machine:
- Two hands operation, high safety.
The machine can be widely used in handbags, luggage, shoes, leather goods, silk flowers, foam, plastic, plush toys, sports goods, automotive supplies, EVA and other industries non-metal cutting processing with the molding tool mould.
Features:
- Dual oil cylinder, precise four-column guide, automatic balancing double connecting rod structure, which can reach high tonnage cutting force and ensure the same cutting depth of each cutting position.
- Automatic lubrication system is used to make sure machine precision and extend machine life.
- During the cutting board press down, it is automatically slow cutting when touching the cutter to avoid size error of the upper and lower layers of the cutting material.
- Special setting structure, make the stroke adjustment simple and accurate.
Product Paramenters
Model | SW/C-80T/100T/120T | SW/C-160 | SW/C-200T |
Max. Cutting Force | 8T/10T/12T | 16T | 20T |
Demension | 880*845*1420mm | 900*960*1570mm | 1080*1030*1600mm |
Power | 0.75kw | 1.1kw | 1.5kw |
Working table size | 350*450mm | 350*460mm | 350*550mm |
Stroke | 5-75mm | 5-75mm | 5-100mm |
Weight/Kg | 380kg | 510kg | 620kg |
