Product Overview

Description



Products Description

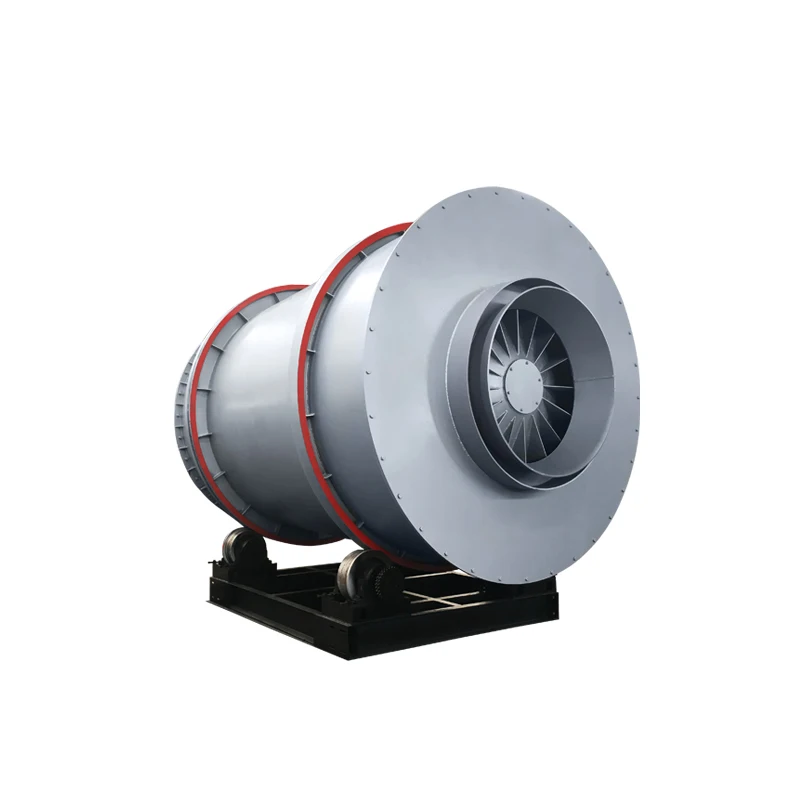

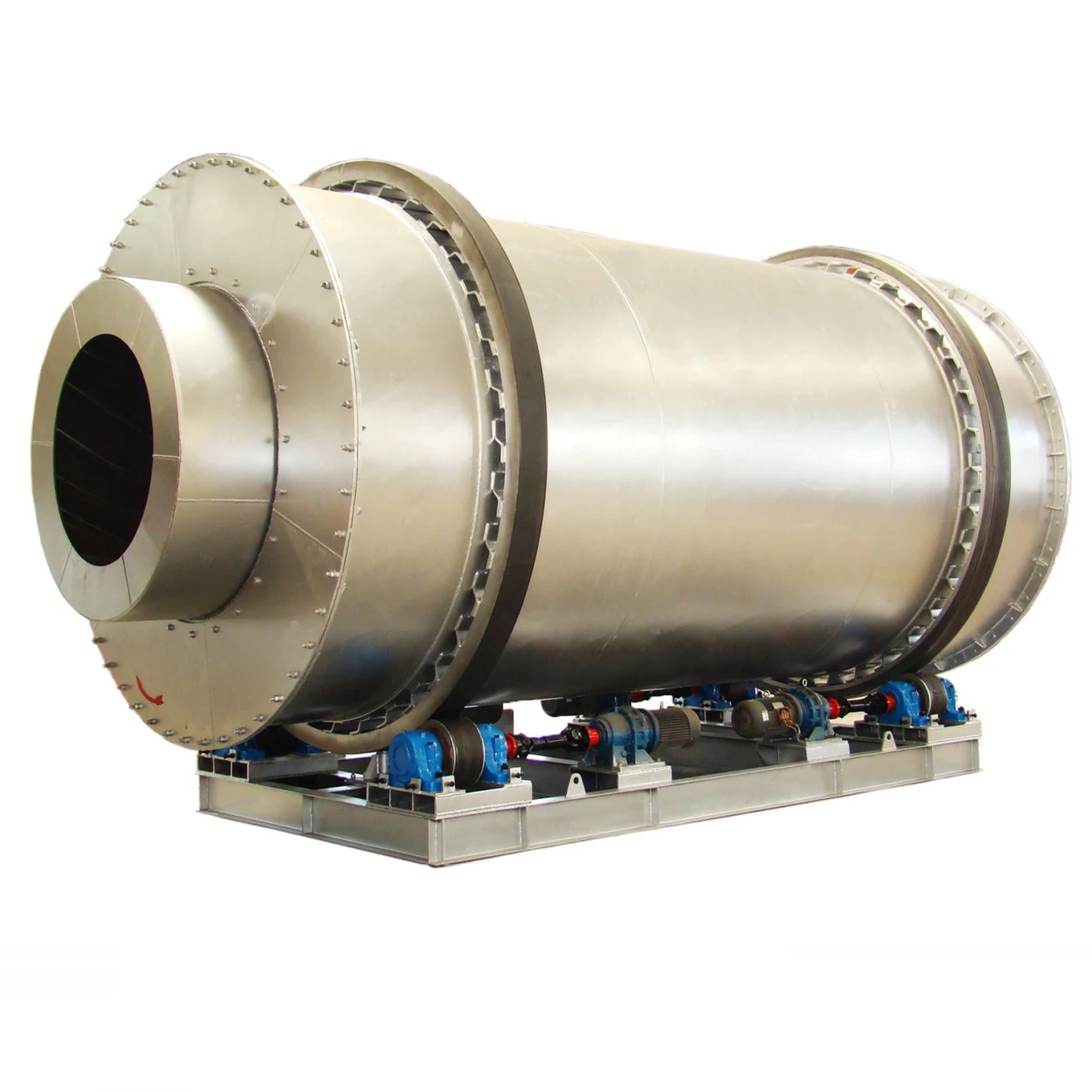

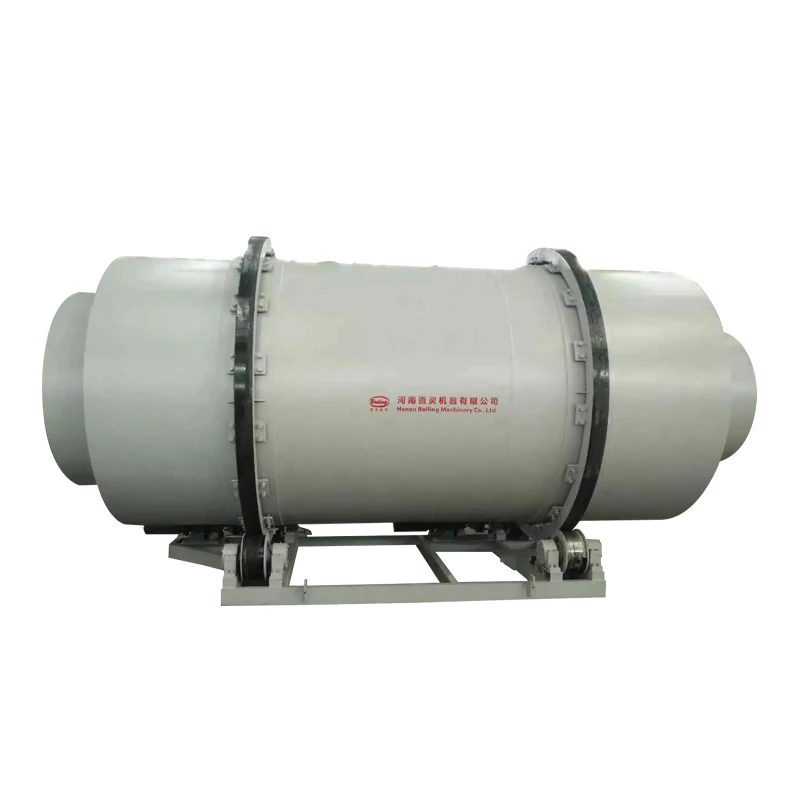

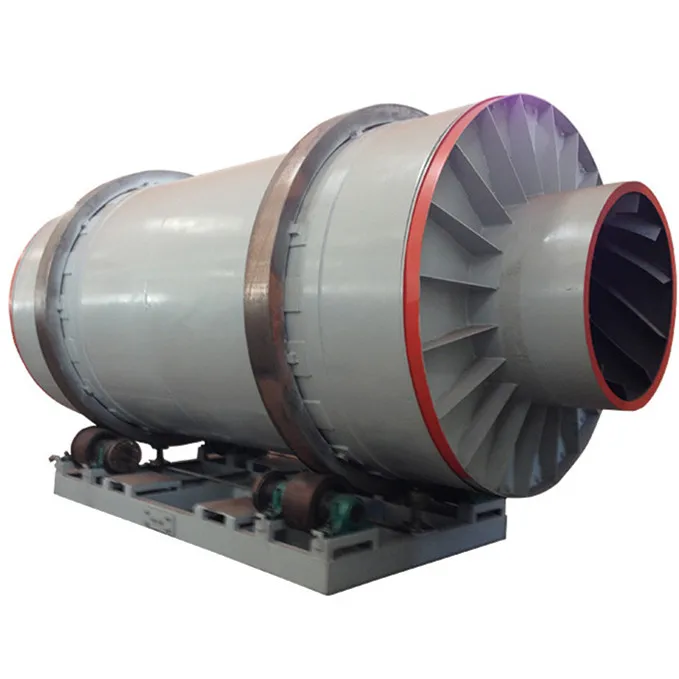

Limestone slurry horizontal tube drum dryer is divided into623,625,628,6210 and 6220.The three-return dryer is a choice equipment for drying non-cohesive materials such as reiver sand and sand. As long as the materials which can be dispersed naturally after being loosened by hand, they can be dried by a three-return dryer.

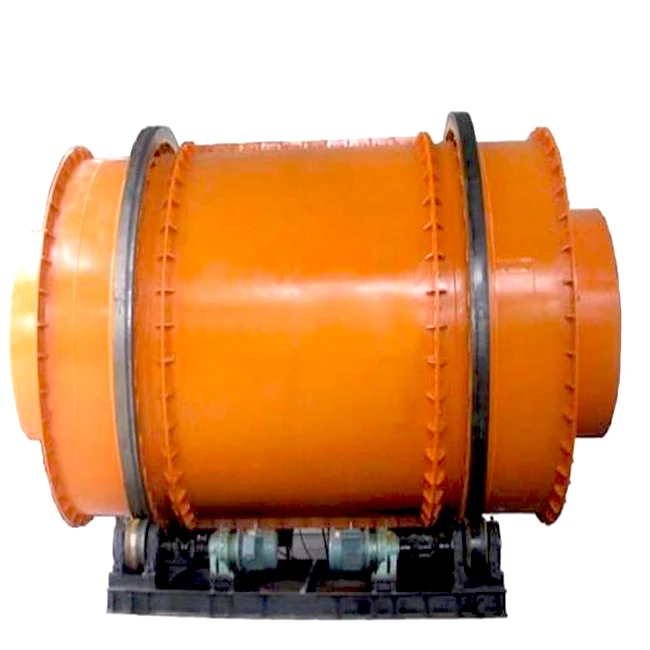

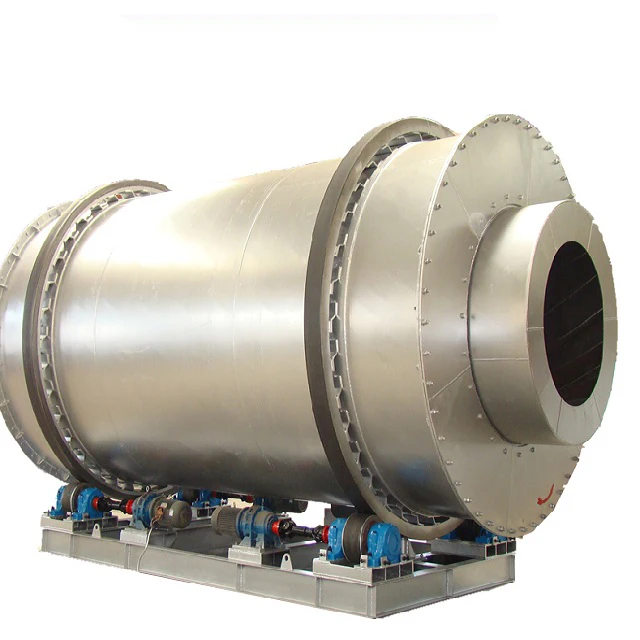

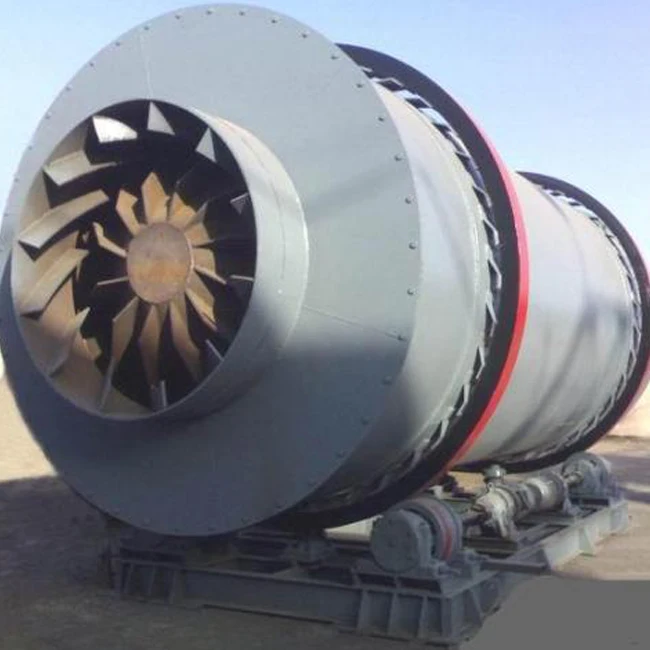

The so-called three-return dryer is a high-efficiency dryer equipment with three-layer heat insulation effect and self-insulation structure.It is reasonably inlaid by three cylinders according to certain mathematical relationship, which effectively prevents heat emission. Its heat value utilization rate can reach more than 90%, and it is an industrial dryer with high heat energy utilization rate at present. The main advantage is that the heat preservation effect is better than that of the traditional single drum dryer. The dryer consists of inner drum, middle drum and outer drum to form a self-insulation circulating structure, which has higher working efficiency, more energy-saving and environmental production.


Features


1.International standard with ISO, CE certificate.
2. Simple system, safe and easy operation.
3.Flexibility in fuels used (NG, Oil, Coal ect.).


4.Year of experience with all types of dryers.
5.Capable of installation anywhere in world.


Working Principle

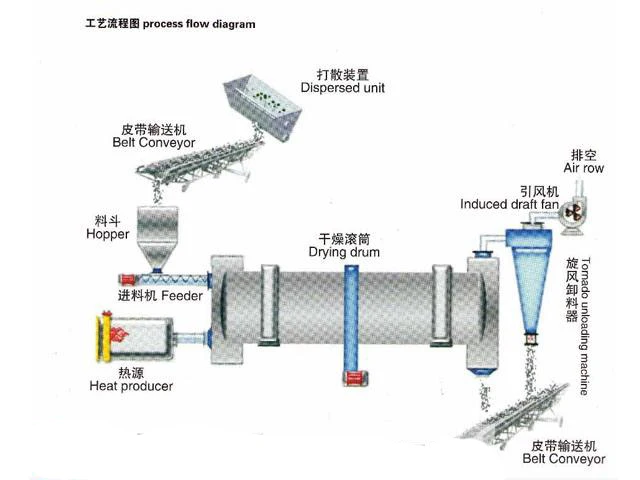

Material are delivered to the hopper by belt conveyor or bucket elevator . Then they go into the charger tip by passing through the pipe of charger. When materials go into the tip of the dryer , heat carrier go into the dryer with material.After that ,they go into the discharging exit by passing through inner rum , middle drum and outer drum to go into the discharging storehouse.After heat carrier pass through the dryer it needs cyclone dust collectors to gather in the material within the gas . If you want to reduce the amount ofdust within tail gas , you should use bag duster or wet process duster to discharge .Then, materials are sifted and segregated qualified production by linear vibrating screen .


Technical Parameters


Model
Size
(m)
Productivity
(t)
Final
moisture
content
Coal
consumption
(kg/t sand)
Power
(kw)
AQS-623
1.7*1.8
3-5
<0.5%
5-7
4.0
AQS-625
2.1*2.2
4-6
<0.5%
5-7
5.5
AQS-628
2.2*2.4
6-8
<0.5%
6-8
7.5
AQS-6210
2.5*2.7
8-12
<0.5%
8-10
4*2
AQS-6215
2.8*3.0
14-16
<0.5%
8-10
5.5*2
AQS-6220
3.0*4.0
18-22
<0.5%
8-10
4*4
AQS-6225
3.2*4.5
23-26
<0.5%
8-12
5.5*4
AQS-6230
3.0*6.0
28-35
<0.5%
8-12
7.5*4
AQS-6250
3.2*7.0
48-55
<0.5%
8-12
11*4
AQS-6280
3.8*8.0
70-80
<0.5%
8-12
15*4
AQS-6250*2
4.2*9.0
98-110
<0.5%
8-12
22*4


Company Profile

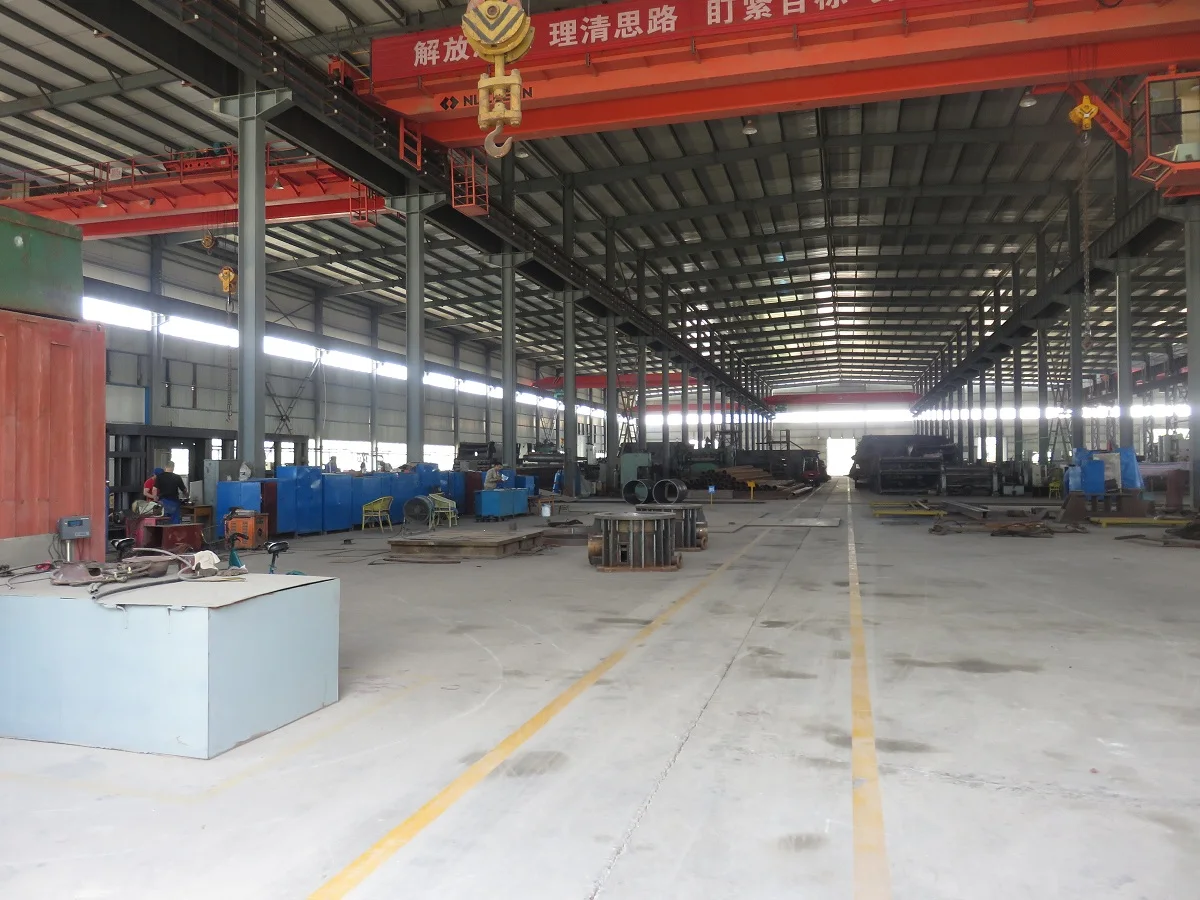

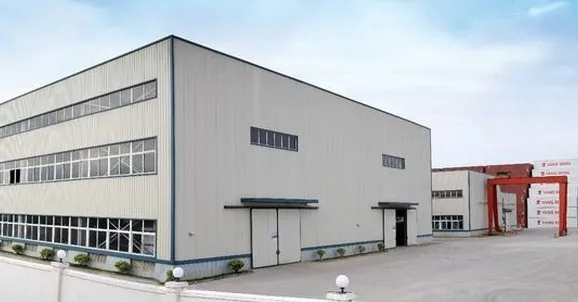

Company profile

Henan Zhongjiao Mining Machinery Manufacturing Co. Ltd. is a joint-stock enterprise that focuses on the production of large and medium-sized mining machinery and equipment, and integrates design and development, production and processing, sales and technical services.The company mainly produces crushing equipment, sand production equipment, mineral processing equipment, grinding equipment, building materials equipment, metallurgical equipment and related technical service support.Believe in the quality of products for the life of the company, always adhere to the quality of brand building, service to enhance the brand, and strive to provide customers with innovative and high-quality products and services.








Product packaging


Packaging Details

1.International export standard packing of Limestone slurry horizontal tube drum dryer

2.small parts are woodened box package

3.main engine nude,container,or customer 'requirement



Port:

Qingdao or the nearest port



Lead Time:

Shipped in 20 days after payment



FAQ


FAQ
Q1.How long is the warrenty of your equipments?
The warranty period of our equipments is one year.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.


Inquiry Service


Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.

We are the professional machine manufacturer in China.

I need to ask you some details for sending you the more suitable quotation,

  1. What is theraw material do you want to process?
  2. What is thecapacity per hour do you need?
  3. What is theraw material input size?
  4. What is theoutput size of your product?

I hope you can tell me these details, i will give you the best quotation ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
