ball pen spring making machine stainless steel compression spring high speed coiling machine
- Category: >>>
- Supplier: Dongguan Guangjin Cnc Equipment Co. ltd.
Share on (62304067418):
Product Overview
Description
0.4mm ball pen spring making machine stainless steel compression spring high speed coiling machine

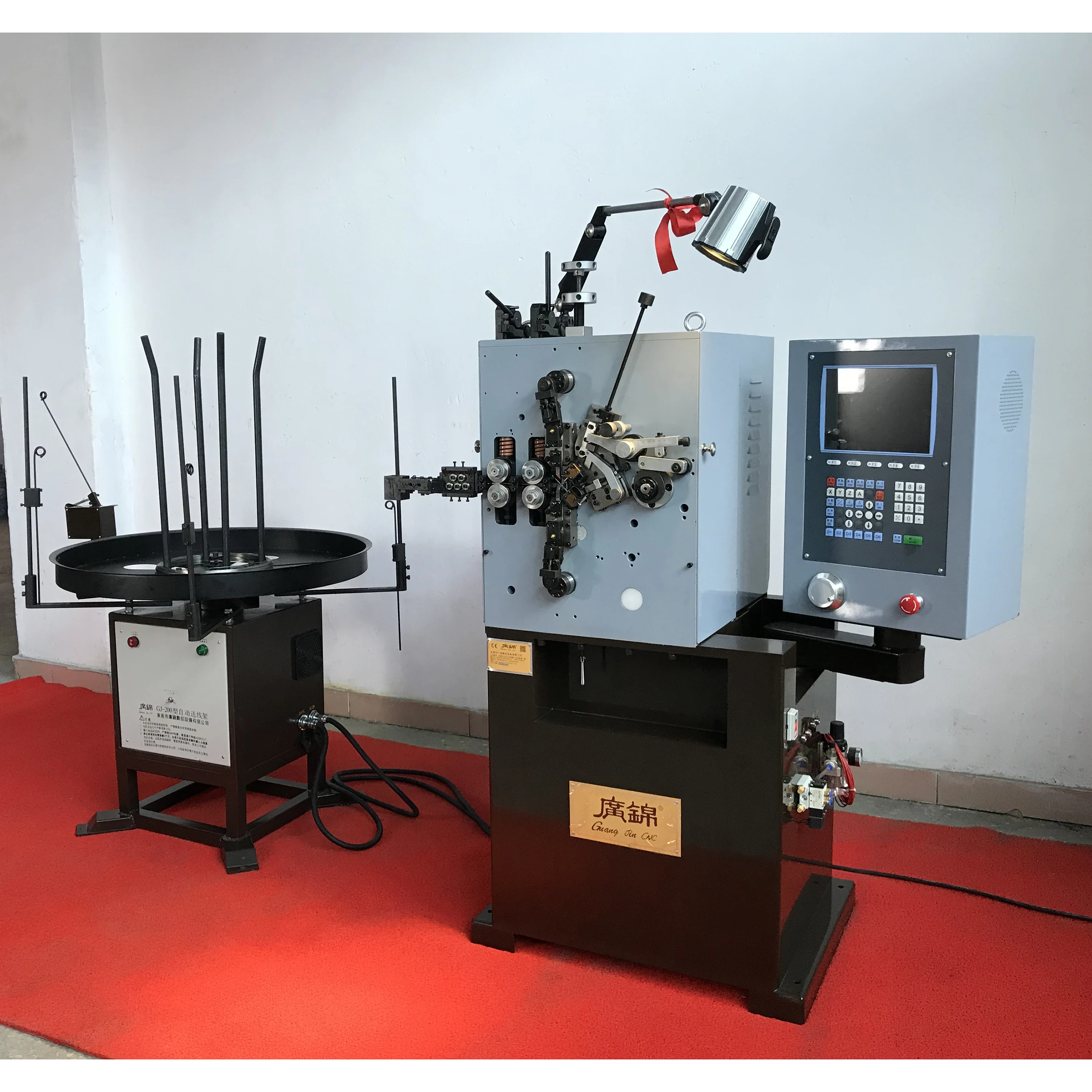

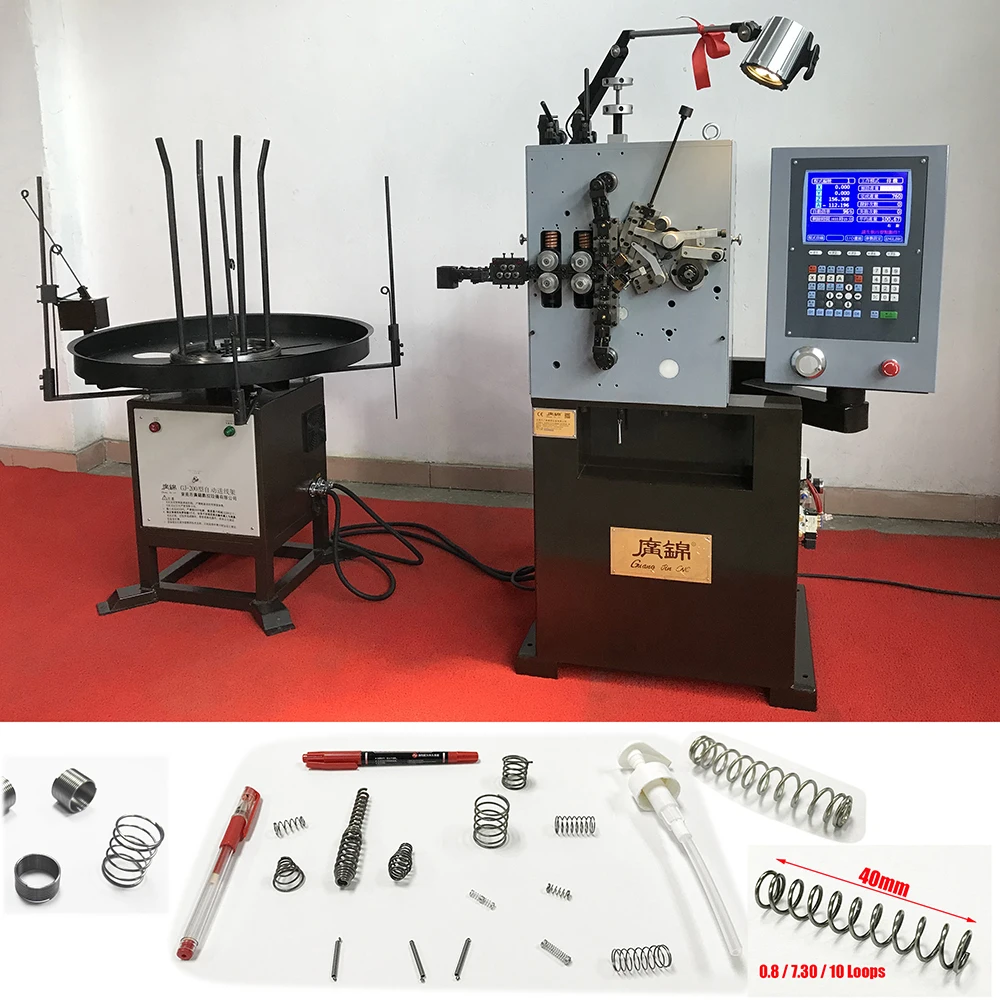

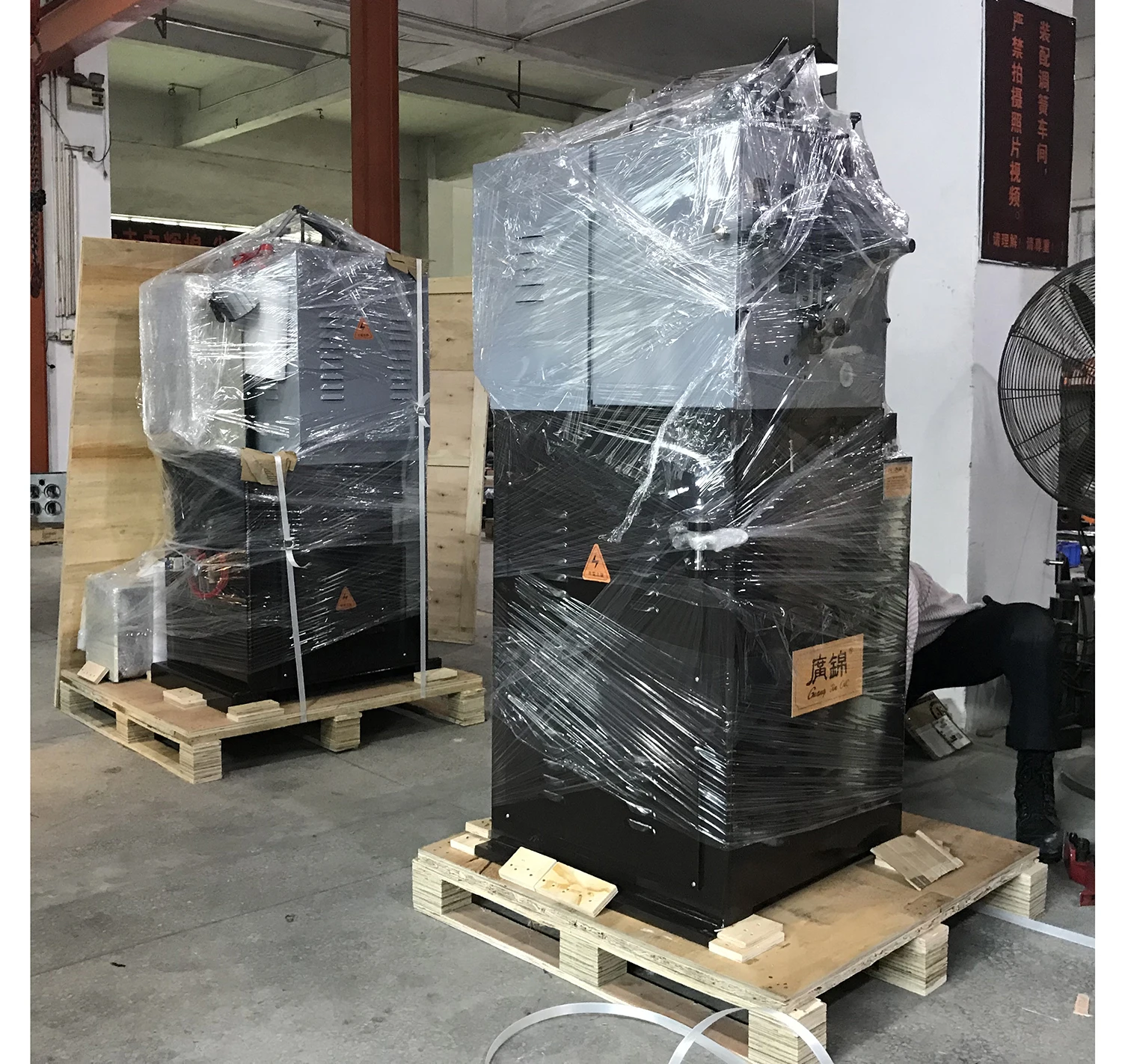

Machine pictures
Details
Technical Parameters

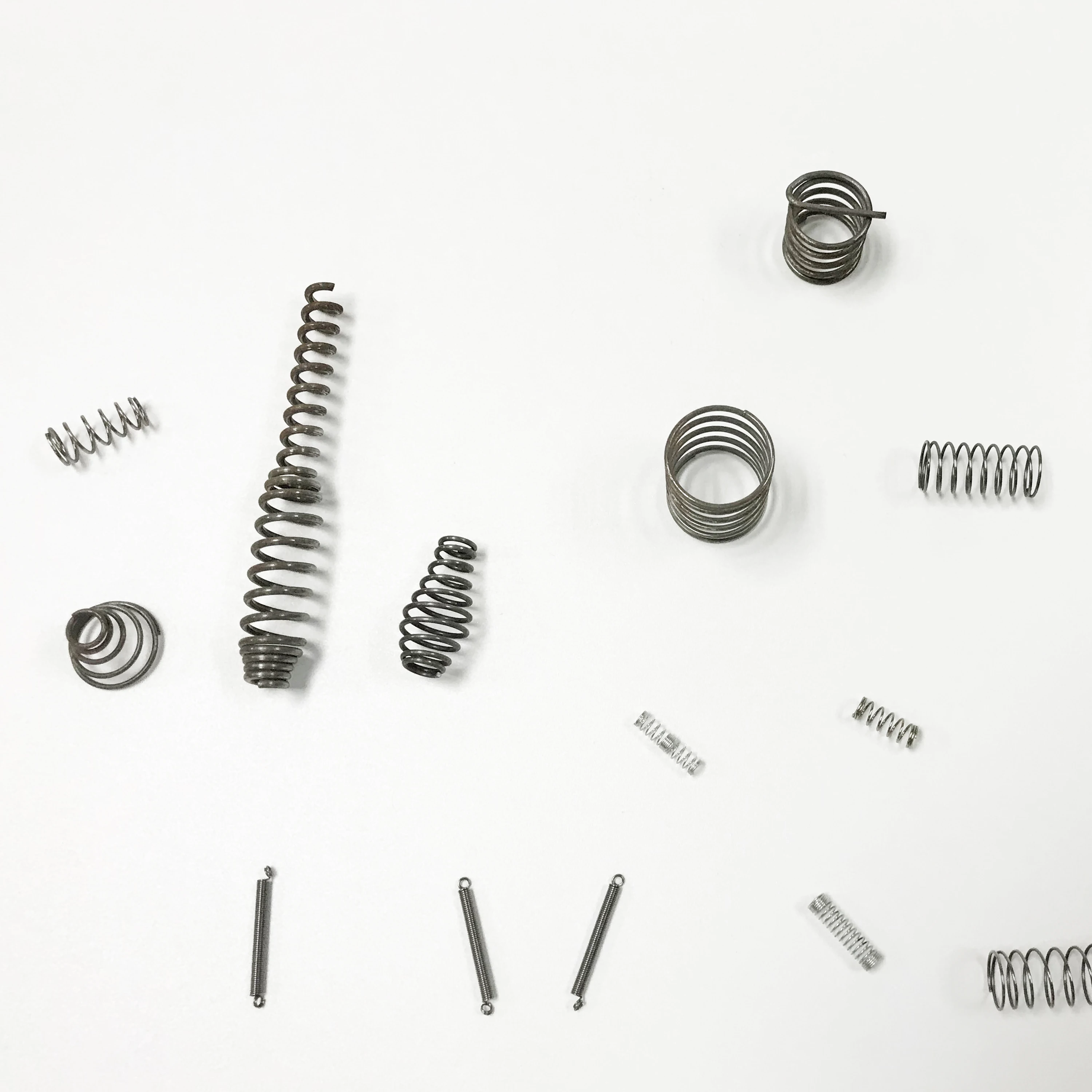

Producing: compression, touch finger, oil seal rings, etc | |
Wire size | Φ0.15-2mm |

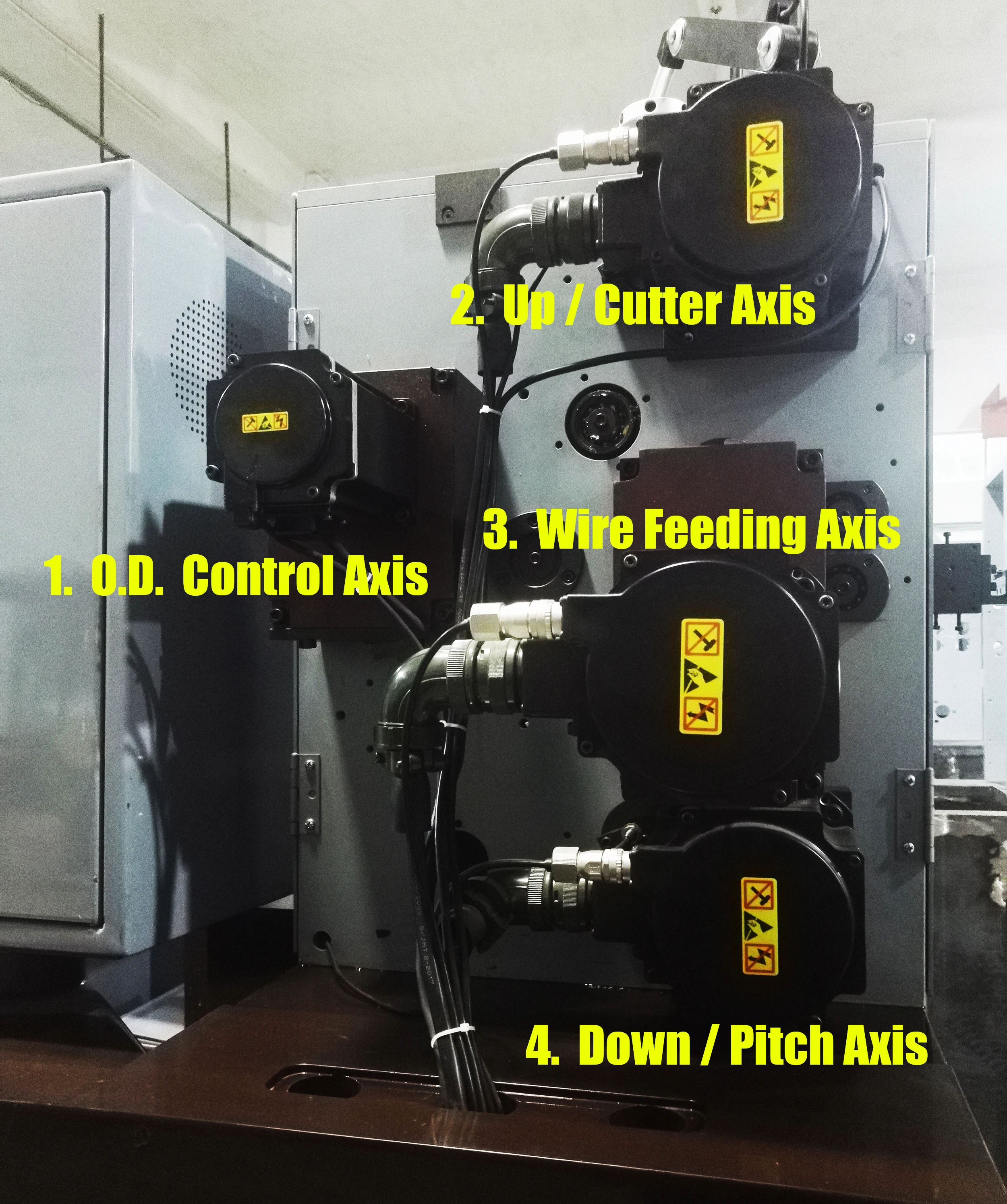

Number of Axes | 4 axis (servo motors) |
Wind Direction | Right and Left Hand |
Feeding Length | 0.01mm / 1000.00mm |
Wire Feed Speed | 0 ~ 150 m/min |
Producible Spring O.D. | Max 40mm |
Cam Setting Value | ±0.1° ~ ±359.9° |
Max Feeding length | Unlimited |
Wire Feed Servo Motor | 2.0kw |
Cutter Servo Motor | 1.5kw |
Pitch Servo Motor | 1.5kw |
Cam ( O.D. ) Servo Motor | 1kw |
Power / Input | 380v±10%, 50Hz, AC, 3 phase |
Machine Size / Weight | 54*80*130 (H) mm / 650 kg Feeding wire height: 105cm |

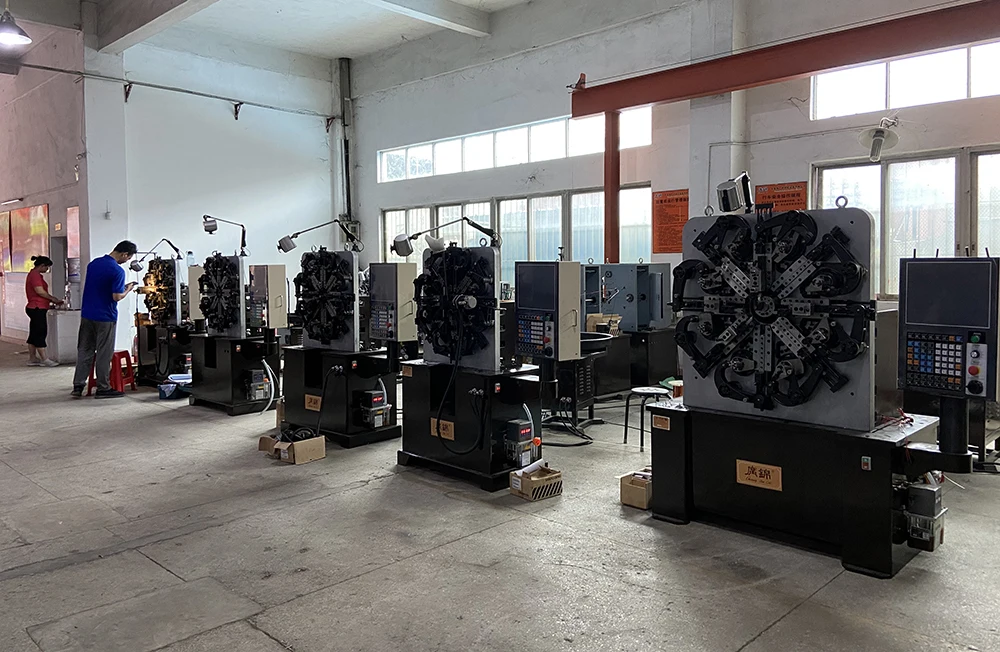

Dongguan GuangJin CNC Equipment Co., Ltd.

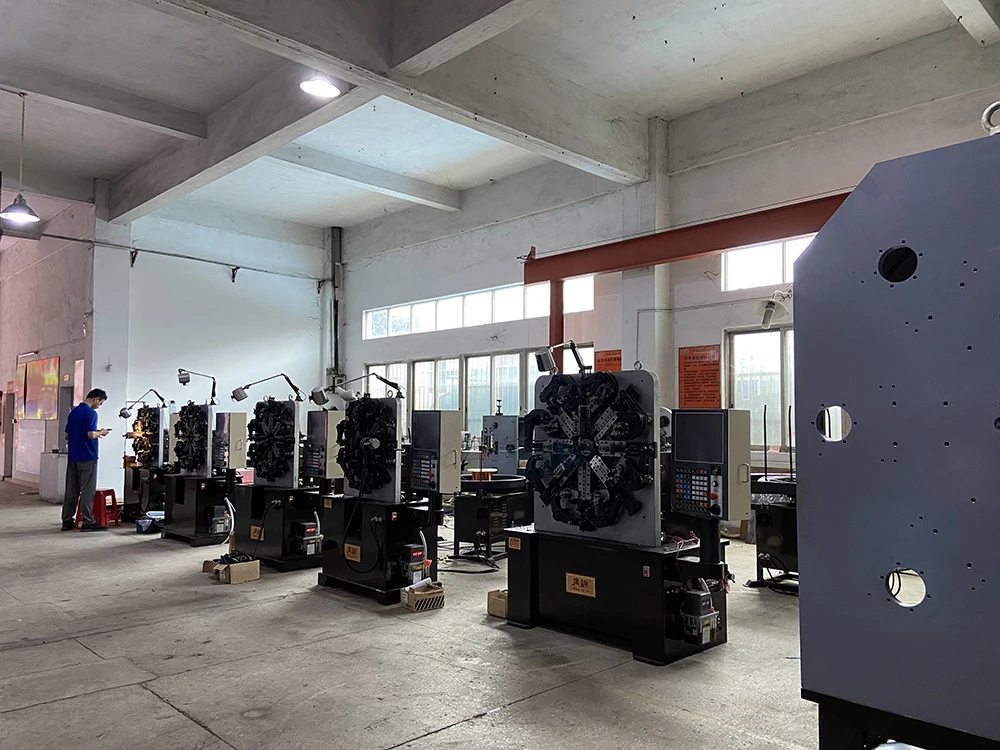

( Factory: Spring Coiling and Wire Forming Machine )
Sales: Baker Liu / WA: +8613433629565
Add: Dongguan City, South China, 523052.
Our machines making:
1. Vary type springs, Converyor Blet, Constant Force,
2. Customized wire forming products. C-Washer
3. Fishing snap, fish clasp, Flat spiral, Garter,
4. O-Ring, Oil seal, Wire Pin
5. Slant spring, Rake teeth.
6. Trigger sprayer spring.
