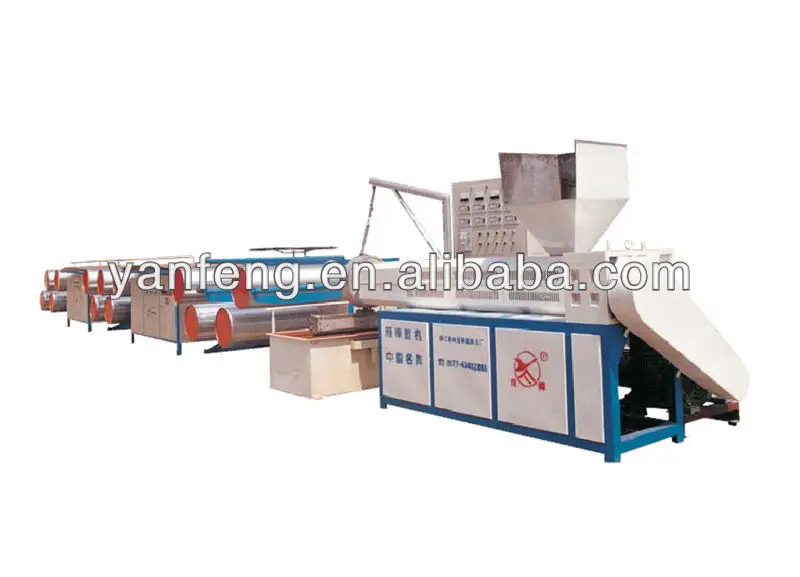

Flat Yarn Extruding Machine PP Woven Sack Tape Drawing Line Factory Price

Model No.

SJ-FS110/800B

Diameter of Screw (mm)

110

L/D ratio of Screw

23:1

Rotational Speed of Screw (r/min)

25-75

Width of Die (mm)

800

Motor Power of Extruder (kw)

30

Heating Power of Extruder (kw)

36

Power of Driving Motor (kw)

7.5

Heating Power of the Heating Board (kw)

15

Drawing Rate

4-8

Thickness of Tape (mm)

0.025-0.08

Production Capacity (kg/h)

60-120

Linear Speed (m/min)

50-150

Approx.Weight (kg)

6500

Installing Dimensions (L×W×H) (mm)

13300×1500×2000
