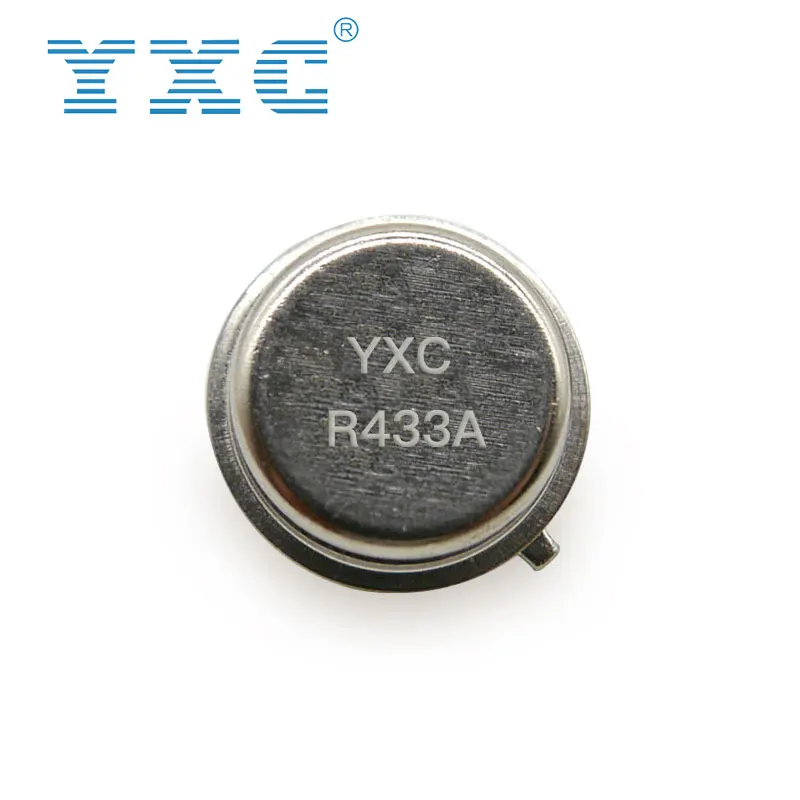

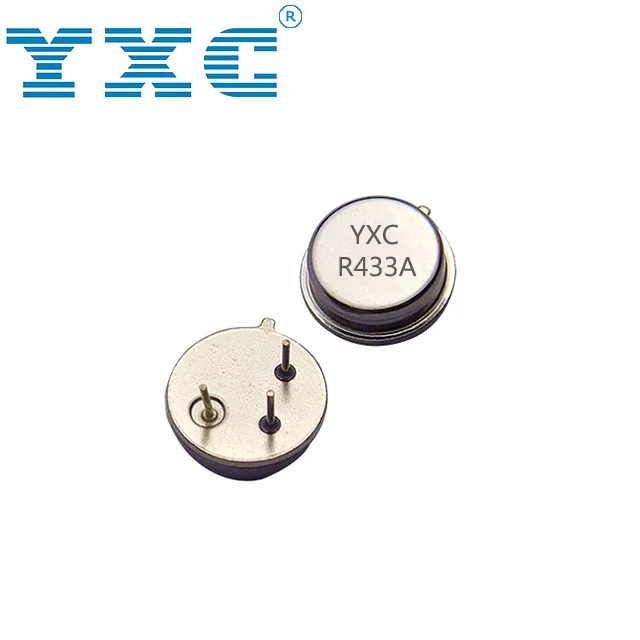

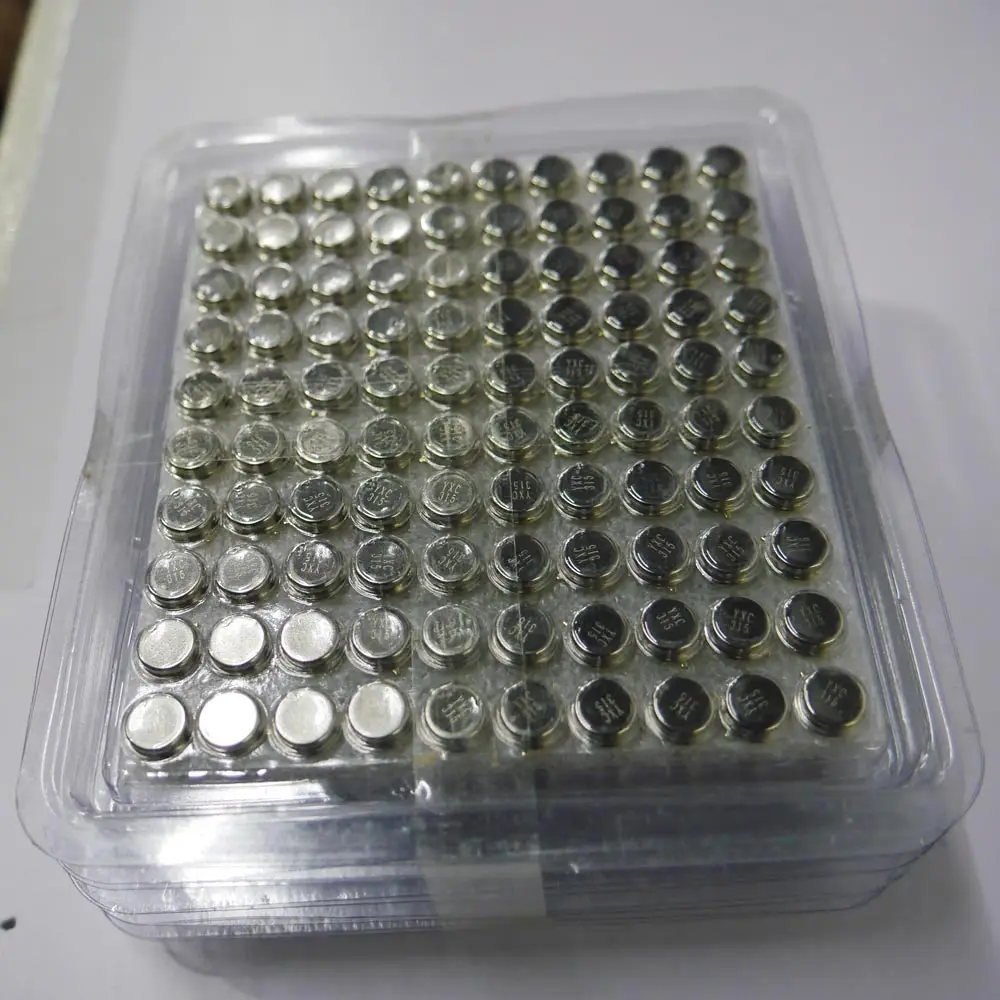

R433A TO 39 DIP Crystal Oscillator 433.92 MHz SAW Resonator 433.92MHz
- Category: Crystals >>>
- Supplier: Shenzhen Yangxing Technology Co. Ltd.
Share on (62304089422):
Product Overview
Description
specification
Specifications
1. External dimensions: TO-39
2. Frequency range: 433.92MHz.
3. Designed for the stabilization of transmitters
Electrical Specifications
Maximum Rating
|
DC Voltage VDC |
10V |
| AC Voltage Vpp | 10V 50HZ/60HZ |
| Operation temperature | -40℃ to+85℃ |
| Storage temperature | -40℃ to+85℃ |
| Max Input power | 10dBm |
Electronic Characteristics
| Item | Unites | Minimum | Typical | Maximum | |
| Center Frequency | MHz | 433.845 | 433.920 | 433.995 | |
| Insertion Loss | dB | 1.6 | 2.2 | ||
| Quality Fctor Unload Q | 8300 | 12000 | |||
| 50Ω Loaded Q | 850 | 1500 | |||
| Temperature Stability | Turnover Temperature |
℃ |
10 | 25 | 40 |
| Freq.temp.Coefficient | ppm/℃2 |
0.032 |
|||
| Frequency Aging | ppm/yr | <±10 | |||
| Dc.Insulation Resistance | MΩ | 1.0 | |||
|
RF Equivaletn RLC Model |
Motional Resistance R1 | Ω | 18 | 26 | |
| Motional Inductance L1 | μH | 79.28 | |||
| Motional Capacitance C1 | fF | 1.685 | |||
| Transducer Static Capacitance | pF | 2.3 | |||
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
