Hydraulic oil filter element 0040DN003BH3HC 0040DN003BH4HC 0040DN003BHHC 0040DN003BN3HC 0040DN003BN4HC 0040DN003BNHC
- Category: >>>
- Supplier: Xinxiang Great Filter Equipment Co. Ltd.
Share on (62304091699):
Product Overview
Description
Products Description

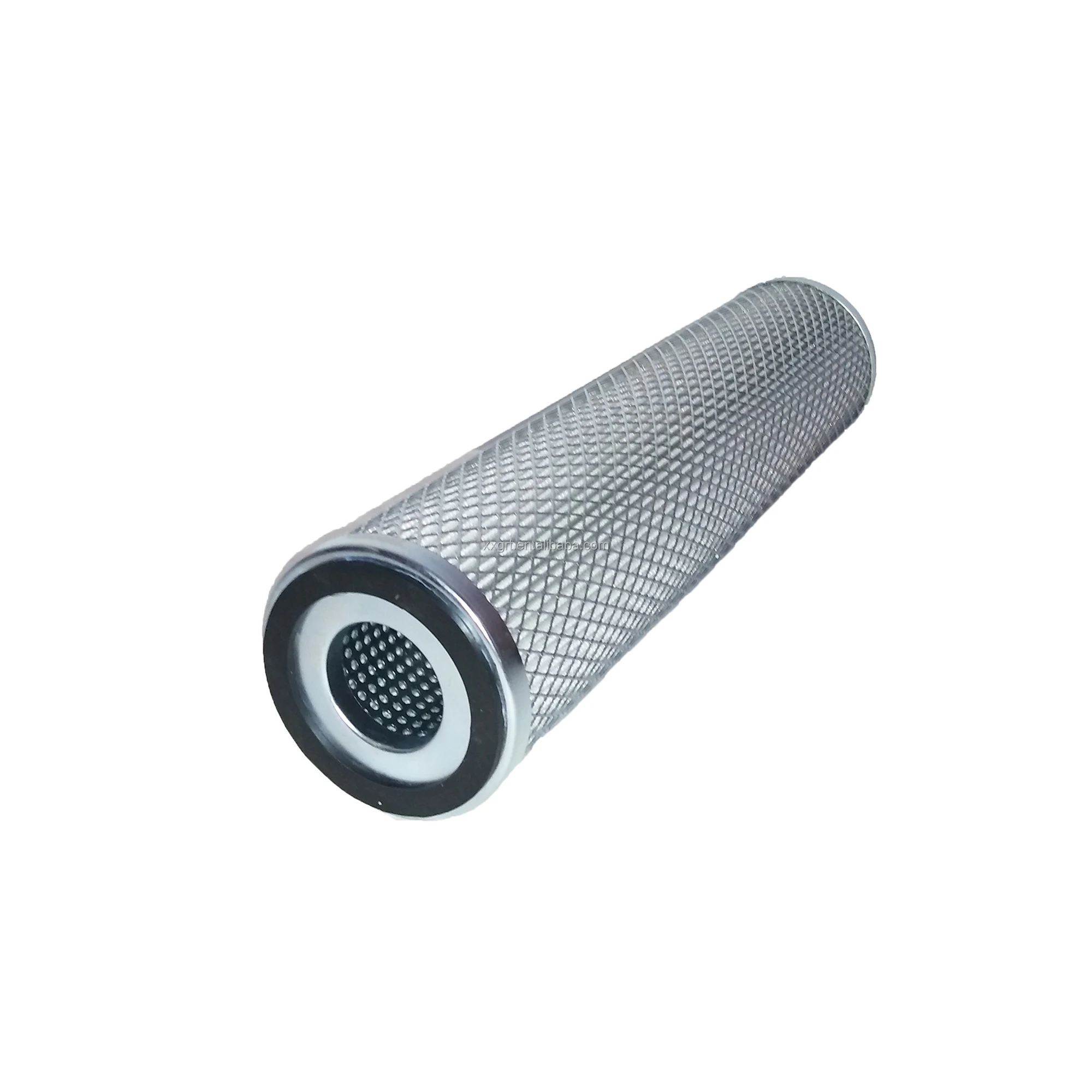

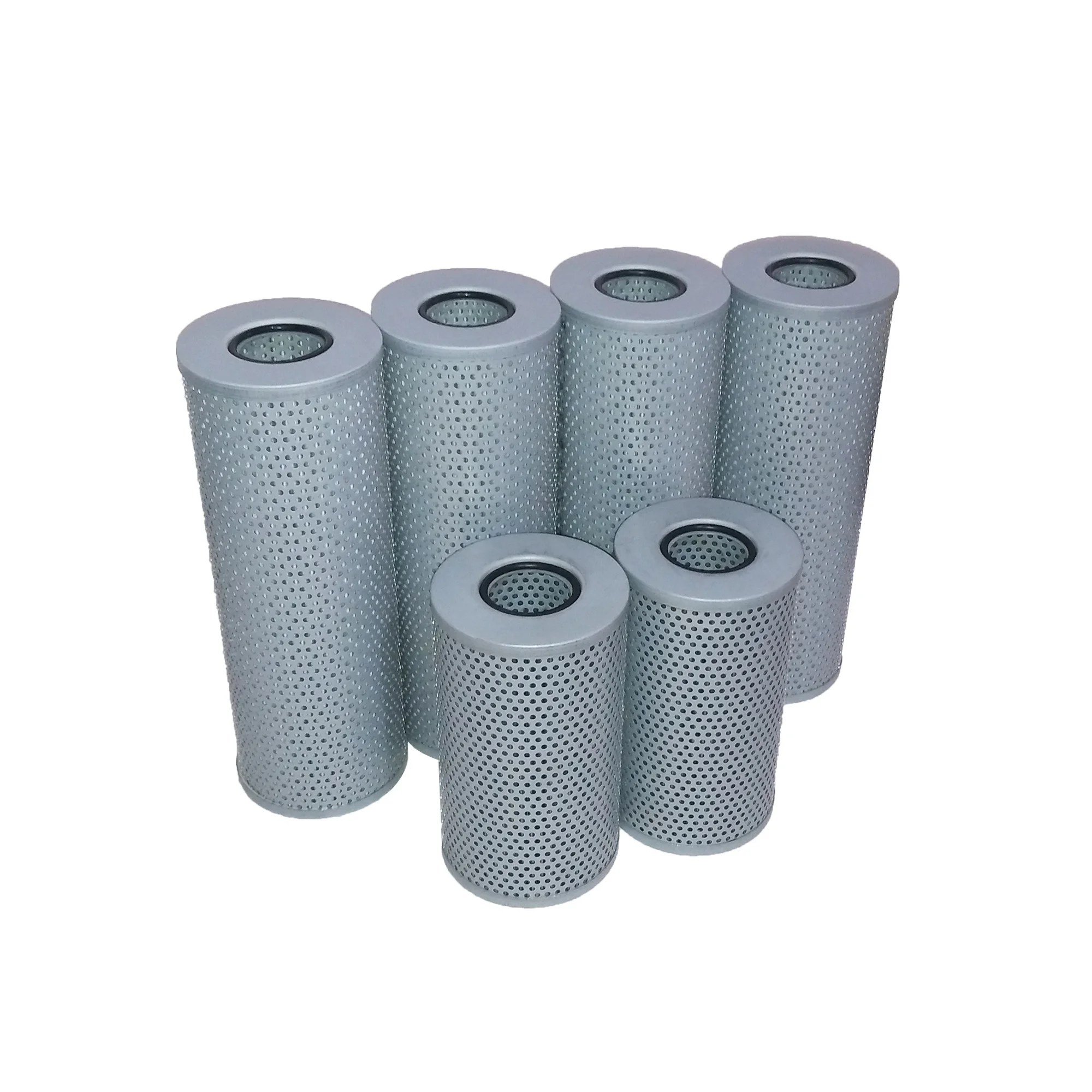

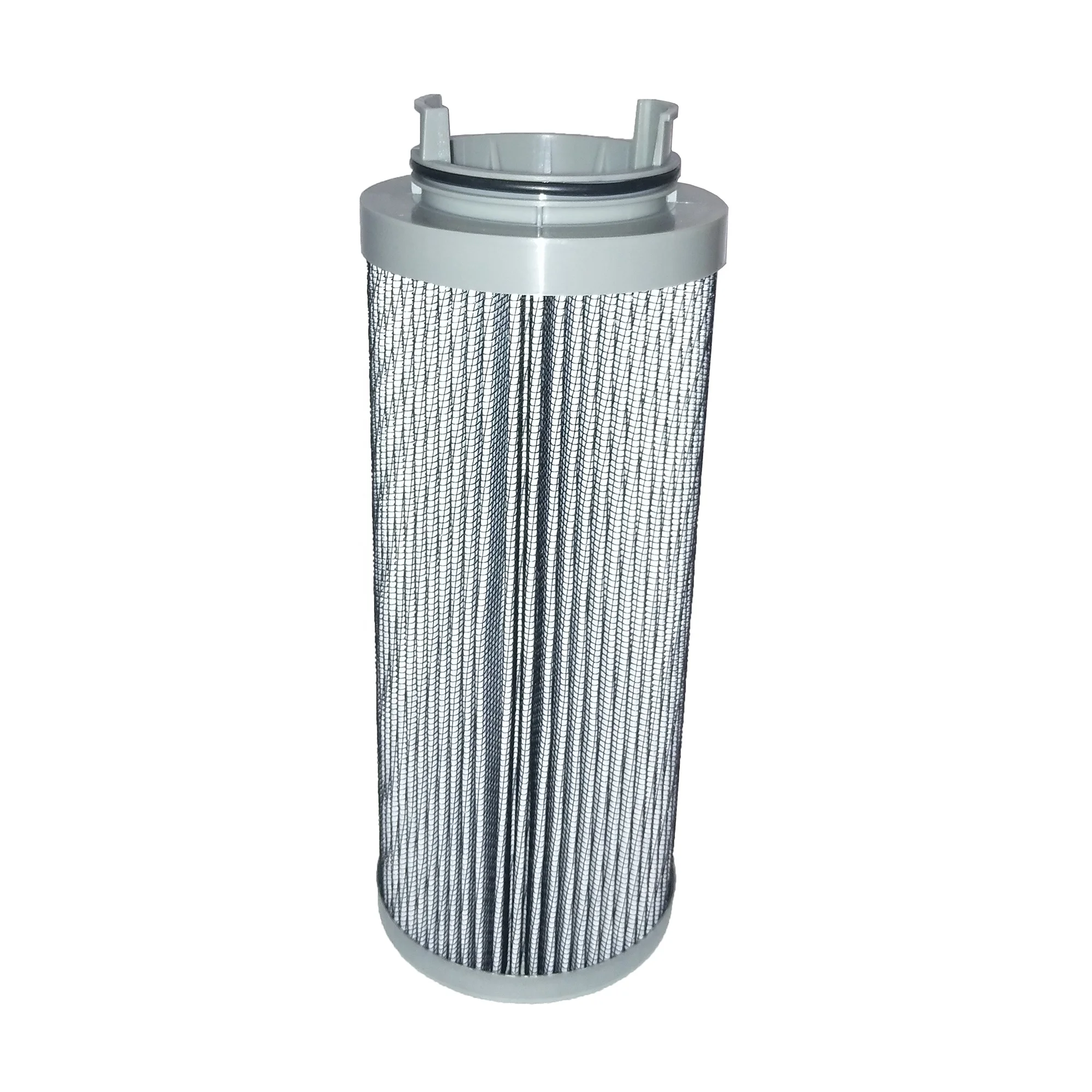

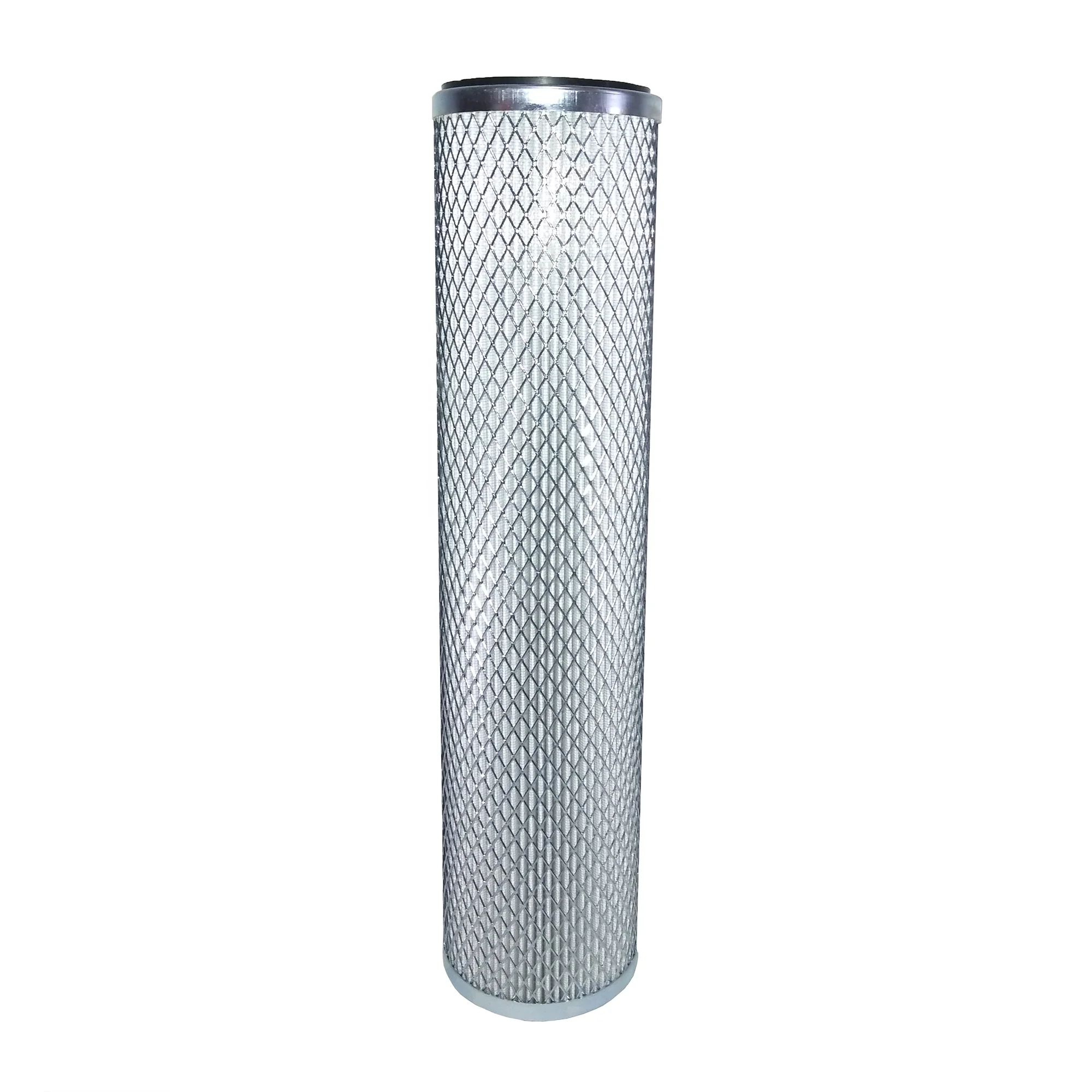

Hydraulic oil filter element 0040DN003BH3HC 0040DN003BH4HC 0040DN003BHHC 0040DN003BN3HC 0040DN003BN4HC 0040DN003BNHC
The hydraulic oil filter element is used in the hydraulic system to filter out solid particles and gelatinous substances in the working medium. It also filters out solid impurities generated from external mixing or internal operation of various oil systems. It can effectively control the pollution degree of working medium and protect the normal operation of mechanical equipment. It is an indispensable part of the pipeline series for conveying media. . The hydraulic oil filter is mainly installed in the hydraulic system: on the oil suction line, on the pressure oil line, on the return line, on the bypass, on a separate filter system. The hydraulic oil filter is mainly made of stainless steel woven mesh, sintered mesh and iron mesh. Since it uses mainly fiberglass filter paper, chemical fiber filter paper and wood pulp filter paper, it has high concentricity and high pressure. It has good straightness. Its structure is made of single or multi-layer metal mesh and filter material. The number of layers and the mesh number of the mesh are determined according to different use conditions and uses. Hydraulic oil filter has a wide range of applications, covering almost all industries: steel, electric power, metallurgy, shipbuilding, aviation, paper, chemical, machine tools and engineering machinery, construction machinery and other fields.
Working pressure | 21bar~210bar |
Filtration accuracy | 1μ~100μ |
Working temperature | -30 ° C ~ + 100 ° C |
Related Products
Testing standards
ISO 2941 Filter Cartridge - Test Method for Crack Resistance of Filter Cartridges
ISO 2942 filter element - hydraulic filter structural integrity test method
ISO 2943 filter element - Hydraulic filter material and liquid compatibility test method
ISO 3723 filter element - end-to-end experiment
ISO 3724 filter element - determination of fatigue characteristics
ISO 3968 filter element - differential pressure flow characteristics
ISO 4572 filter element - multiple pass method for determining filtration characteristics
ISO 2942 filter element - hydraulic filter structural integrity test method
ISO 2943 filter element - Hydraulic filter material and liquid compatibility test method
ISO 3723 filter element - end-to-end experiment
ISO 3724 filter element - determination of fatigue characteristics
ISO 3968 filter element - differential pressure flow characteristics
ISO 4572 filter element - multiple pass method for determining filtration characteristics
Packing & Delivery
Installation Instructions
The hydraulic oil filter replacement and installation method is as follows:
1. Put off the original hydraulic oil before changing, check the oil return filter, oil absorption filter, pilot filter to see if there are iron filings or other impurities attached. If there are any hydraulic components failure, after cleaning, the cleaning system .
2. When changing hydraulic oil, all hydraulic oil filter elements (return oil filter, oil suction filter, pilot filter) must be replaced at the same time, otherwise it is equivalent to no change.
3, identify the hydraulic oil label, different grades, different brands of hydraulic oil are not mixed, may react to deterioration and produce flocs, it is recommended to use the excavator to specify oil.
4. Before the refueling, the oil-absorbing filter element must be installed first. The nozzle of the oil-absorbing filter core is directly connected to the main pump. When the impurities are light, the main pump is accelerated and the pump is pumped.
5, refueling to the standard position, the oil tank generally has an oil level gauge, look at the liquid level gauge. Pay attention to the parking mode. Generally, all the cylinders are fully retracted, that is, the arm and bucket are fully extended and landed.
6, after adding the oil, pay attention to the main pump to discharge air, otherwise the light will temporarily no action, the main pump is abnormal (air blast), and the air pocket damages the main pump. The air exhaust method is to loosen the pipe joint directly on the top of the main pump and fill it up directly.
Our Company
Contact Us
1.Our Engineer have 15 years experience on filtration area
2.Full experience on exporting business .With us your money in safe,your business in safe!!
3.Fast Delivery Time:5-7days
4.Special Price
5.7*24hours after-service
6.Imported Micro Glass from USA HV Company
7.99.99% filtration efficiency !&100% Inspection Management System
NOTICE
All product photos displayed on this website are taken by our factory and .All photos are not allowed to be reproduced for commercial use without authorization.On this website Product quotation and parameters are for reference only, please contact us for specific quotation. Our company's biggest features can be designed and manufactured according to customer needs. The products displayed on the company's website are only part of the product. Quality assurance, reputation first!Welcome inquiry !
We also replacement supply spare parts suitable for Brand Compressor .Notice Our filter is replacement with neutral packaging. it's not a genuine part!!
XXGRT (XINXINAG GREAT FILTER)is an independent supplier of aftermarket filters and is not affiliated with the manufacturers mentioned in this web site.Original equipment manufacturer (OEM) names are the trademarks of each manufacturer.OEM names and part numbers are for reference only and do not indicate the manufacturer of our products.
